Product Overview
Description

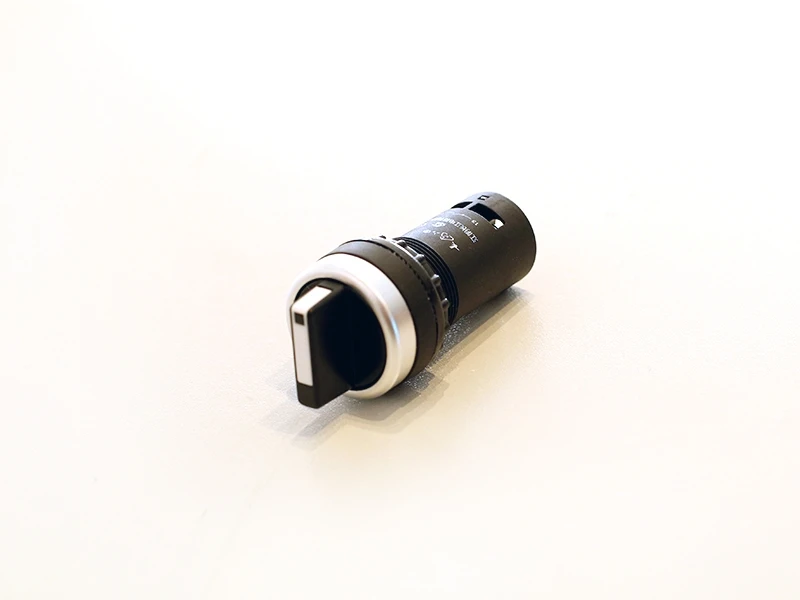

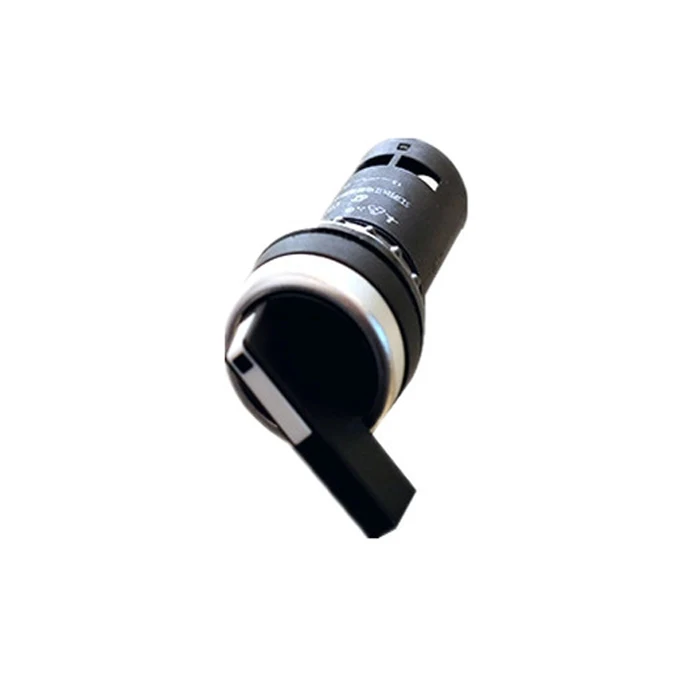

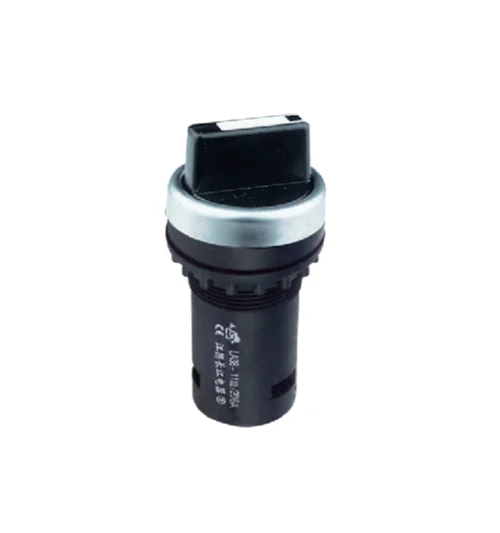

LA38 series economical rotary selector push button switch with short handle
China Shanghai institute of electrical science carried out a strict full set type tests for our push button switch products.Products are identified by the experts in the industry.Finally we got the LA38 product
model in October 17, 1996. When you are purchasing, please identify the LA38 series button switch
produced by Jiangyin Changjiang electric appliance co.,ltd

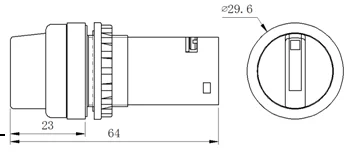

Outline Size of mounding hole
LA38-**X2(3)/206A | |||||||||||
Name | Push button switch,Knob | ||||||||||
Products Standard | GB/T14048.5 | ||||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | |||||
≤2000m | -25℃~+55℃ | -40℃~+70℃ | ≤90% | 3 | Ⅲ | ||||||
Main technical index |
| Rated insulated Voltage | 300V | ||||||||
Rated impulse withstand voltage | 4000V | ||||||||||
Contact resistance | ≥50MΩ | ||||||||||
Front protect class | Push button switch IP65 | Knob IP54 | |||||||||
Withstand Voltage | 1.89KV/5S | ||||||||||
button parameter | Stipulated hot current Ith | 5A | |||||||||
Contact resistance | ≤50mΩ | ||||||||||
Rated working Voltage /Current | AC-15 | DC-13 | |||||||||
220V/3A | 24V/3A | ||||||||||
Electrical life | Push button switch | 500000 times | Knob | 100000 times | |||||||
Mechanical life | Push button switch | 1000000 times | Knob | 200000 times | |||||||
lamps parameter | Rated working Voltage /Current | None | |||||||||
Life of signal lamps | None | ||||||||||

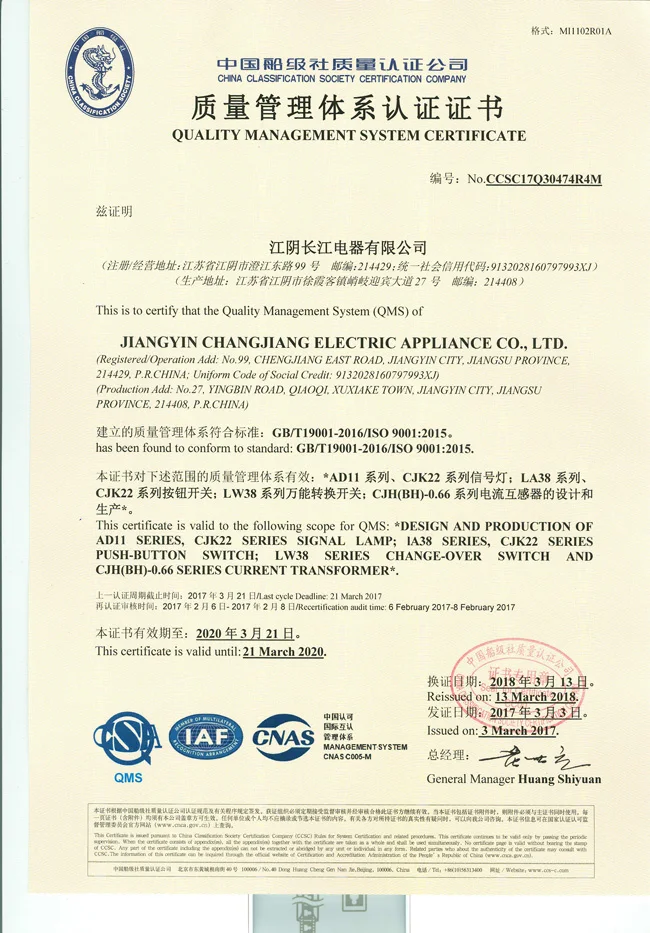

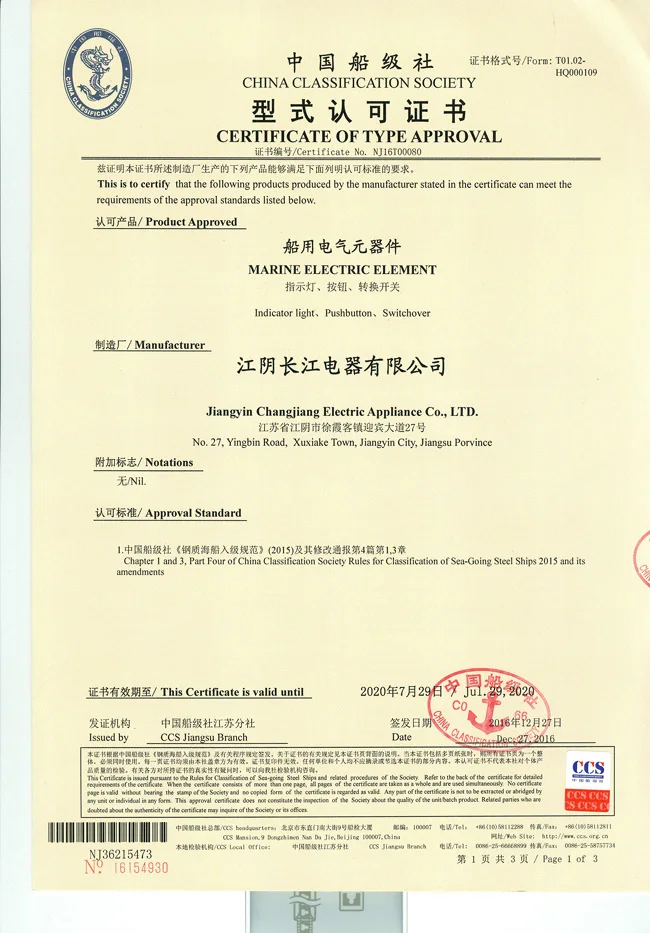

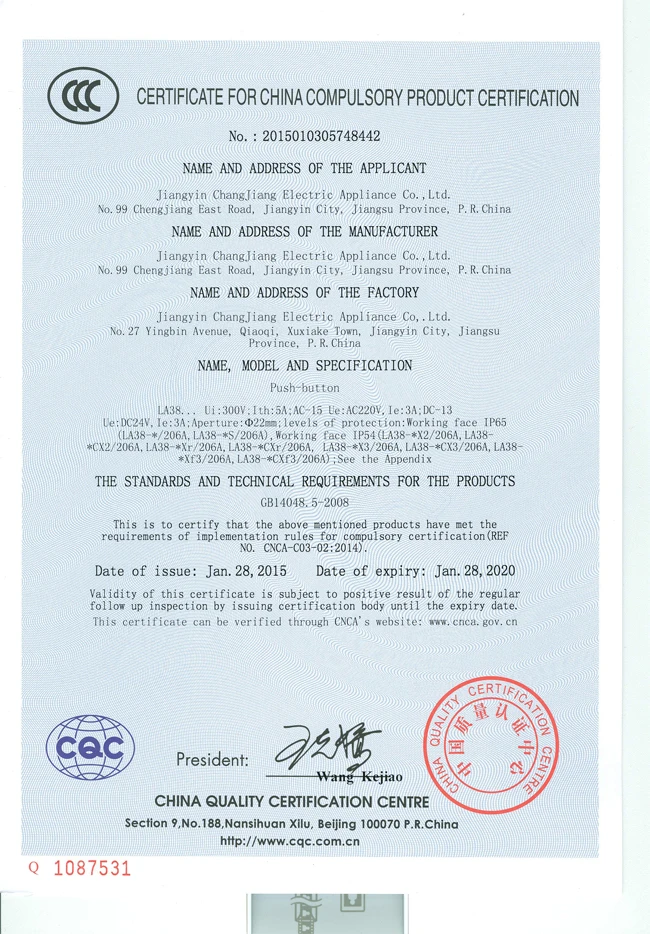

Certificate
About us
Our company was founded in 1992, it is a strong capital and continuous innovation manufacturer,This enables us to provide the most advanced and competitively priced products and services available today.OEM can also available, Customers' designs are warmly welcome.
Company history
1972-1992 Jiangyin transistor factory
1992-1993 Jiangyin Changjiang electronic industrial company
1993-1996 Jiangyin Changjiang electronic industrial corporation
1997-2002 Jiangyin Changjiang electric appliance Co., Ltd.
Jiangyin Changjiang electronic industry Co., Ltd.
2003- Jiangyin Changjiang electric appliance Co., Ltd.
Department and production line
FAQ
Q:Why choose us?
A:1. We are the professional manufacturer with competitive price ,and lower freight rate and the faster speed delivery.
2.Strict quality control.,and every product is inspected 100% by our QC team before delivery.
Q:After-sale service
1. Indicator light:2 years' warranty; switch: 18 months' warranty.
2. Parts replacement for free
3. Free tech support.
Q:Do you provide samples?is it free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
Contact us for more details about price,packing,shipping and discount.
