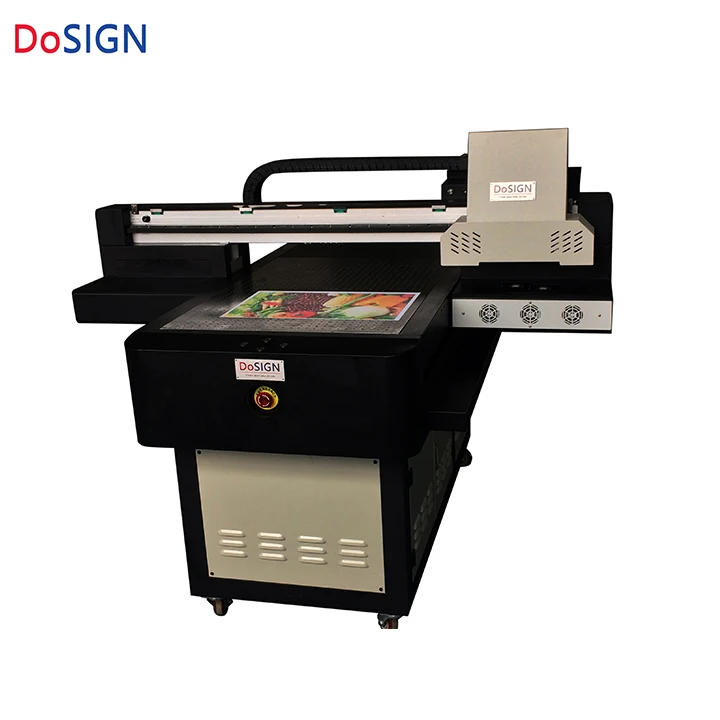

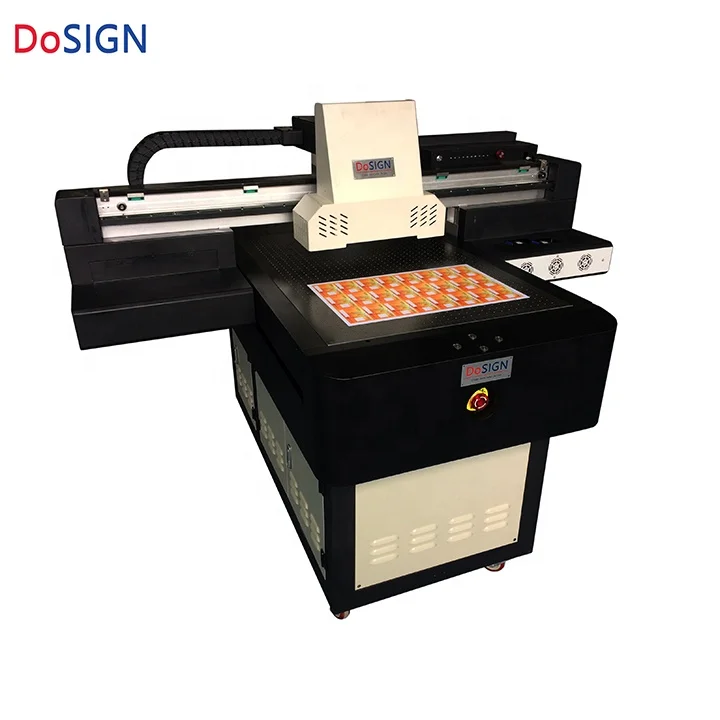

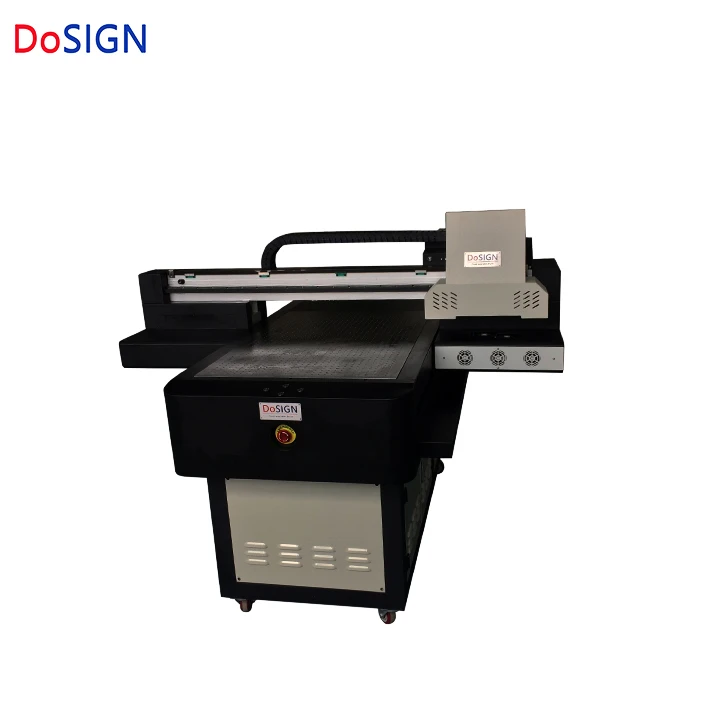

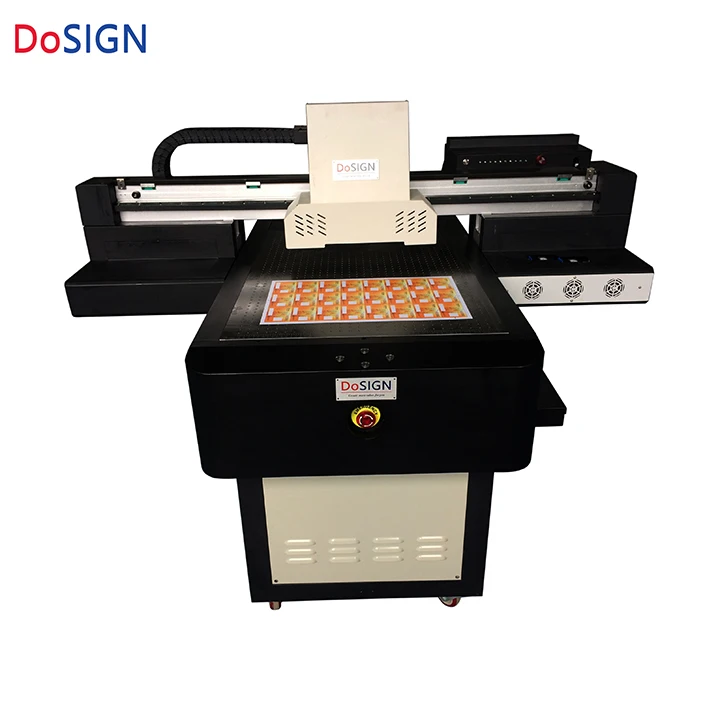

6090 UV digital printer for corrugated plastic sheet cardboard box foamboard

Share on (60844500861):


Price:$5,400.00 - $5,800.00

Quantity:


Product Overview

Description


UV digital printer for corrugated sheet corrugated plastic sheet corrugated cardboard box






Product Description

A1 A2 3D embossed raised texture inkjet digital flat bed uv printer with varnish glossy


The Most affordable Practical UV Flatbed Printer 6090U with Price-effective printheads



  • Printing on Glass/Wood/Acrylic/Metal/Plastic/PVC board/Foam board/Ceramic tile/Stone...etc.

  • Free printing samples are available.

  • White ink stir system avoid head clogging

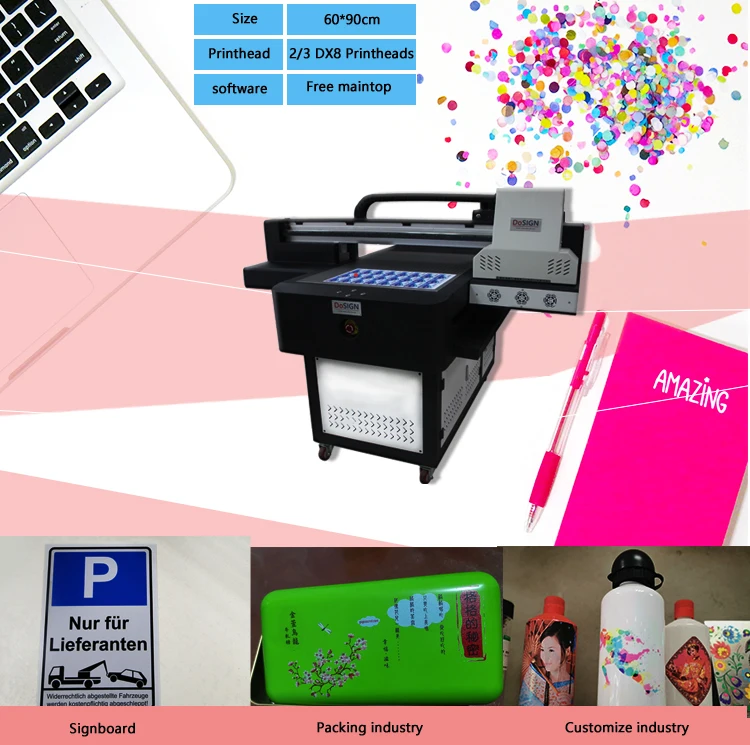

6090 UV-Printer-3-tx800




DS-6090U UV Printer is the best choice for starting medium-scale business! This 60cm*90cm cm small size UV Flatbed Printer can print white ink continually without blocks, it can print on most flat materials.
Print any substrate materials directly
This 6090 uv printer is designed to print on both rigid and flexible materials . It instantly dry in prints directly on wood, PVC, acrylics, leather, glass, crystal, ceramics, rubber, aluminum, copper, etc… The printer is ideal for custom gifts, giveaways, Promotional Items, pens, golf ball, phone cases, Cards, etc..
LED UV curing system & 3D embossed and raised print
The ink system is based on an advanced LED UV curing system.  The LED UV ink technology allows the creation of amazing 3D textured and raised printing effects.
High printing resolution and up to 2880 dpi
Empowered by the piezo print technology and anti-static print systems, The 6090 UV direct printer benefit from the variable dot printing technology. For sharp detailing and small text rendering, this uv printer prints up to 28800dpi in high resolution mode and fires ink droplets as fine as 1.5pl.
White ink and varnish ink supply
White ink channel for printing on dark and transparent materials.
More standard fixtures for optional
The matched fixtures help us print several pieces per time, even with different artworks. You can not only capture the small minimum to 1 piece, but also the large orders up to thousands of materials.

Technology Hightlight
This dosign UV printer wildly use on almost all the flat materials, especially suitable for the gift items, promotion items, souvenir items, customize items etc; Without film plate-making, no need any MOQ limit, the color and picture are unlimited, low printing cost; Self design and own technology to make the stable printer with high quality to start a printing business.
The 6090 UV Printer can install 2 pieces or 3 pieces 6 colors TX800 DX8 Print heads, can print CMYK+LC+LM+White+Varnish at the same time in one pass, and make the uv printing result to be the greatest with 3D embossed raised texture.





Specifications:






































































































ModelDS-6090U
PrintheadPiezoelectric Printhead DX5 dx7 dx8 print head
Number of heads2 or 3 Pieces PrintHeads
Printing Width60cm x 90cm
Accepted Height8cm (17cm can be customized)
Printing Speed3 Pass18m²/Hour
4 Pass10m²/Hour
6 Pass6m²/Hour
Maximum Resolution 1440, 2160, 2880 dpi
Print Height1mm to 80mm adjustable(160mm can be customized)
Ink ColorsCmyk / CMYK+LC+LM +W / Cmyk+LC+Lm+W+Varnish
Printing MaterialsGlass, Metal, Marble, Plastic, Wood etc
Data InterfaceUSB2.0 High Speed Interface Transfer System
Working EnvironmentTemperature15℃-30℃
Humidity40%-60%
Power50-60HZ 400W-1600W
AC220V±10% / AC110V±10%
Operating SystemWindows XP Windows 7, Windows 8
Dimension180cmx168cmx133cm
Weight320KG
Added ValueLow Ink alarm system
Vacuum platform with Dividing Rule
Water circulation cooling system
Dual Ball Screw Drive







Details Printer Part

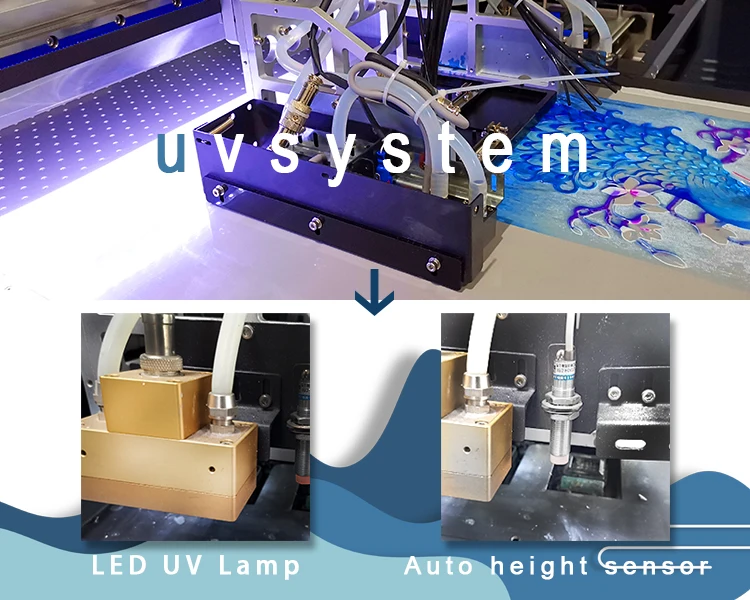

UV LAMPS 6090 PRINTER

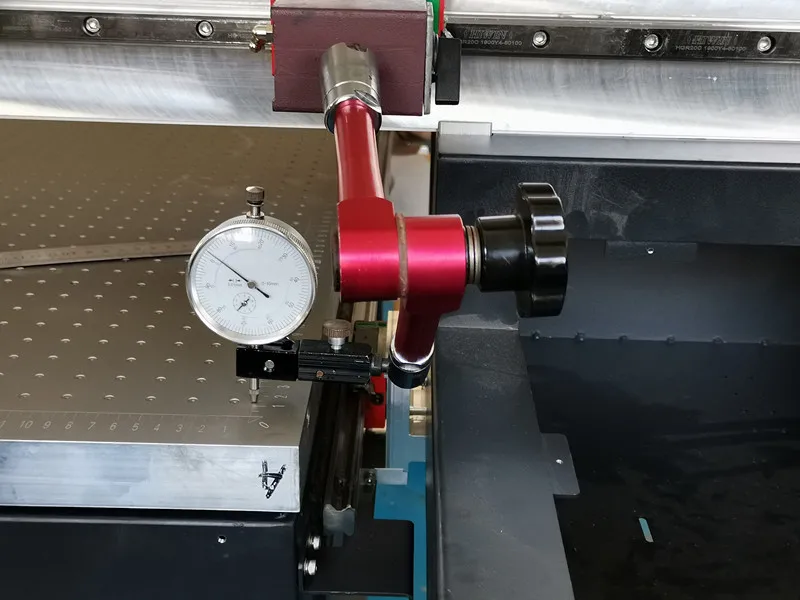

_20190909064244_

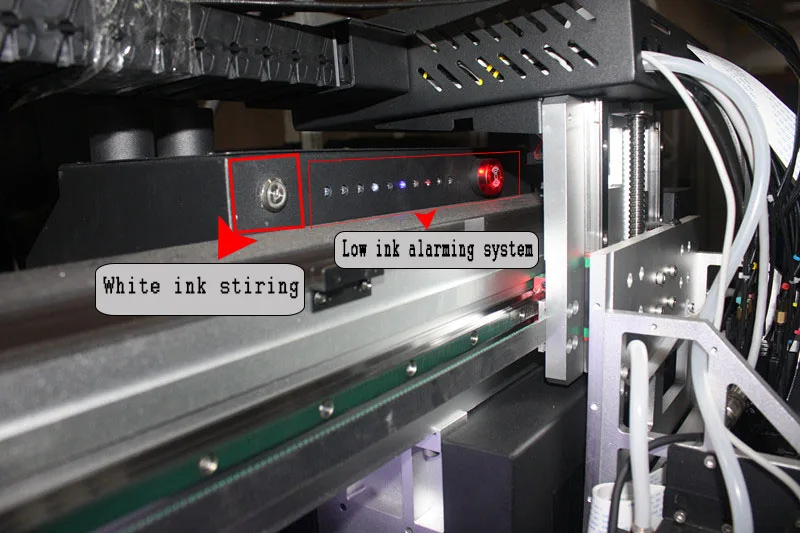

ink circulation

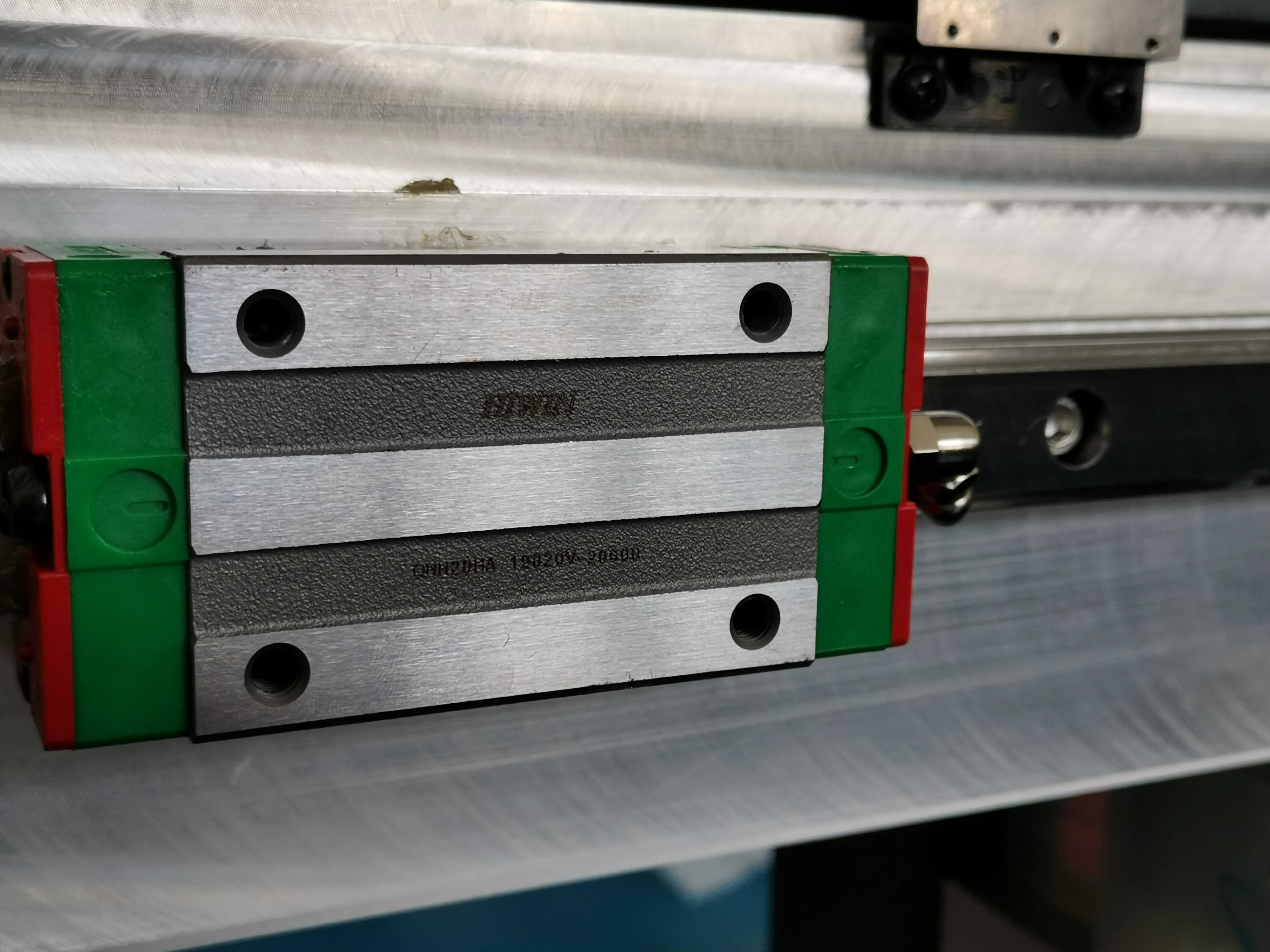

_20190909064239

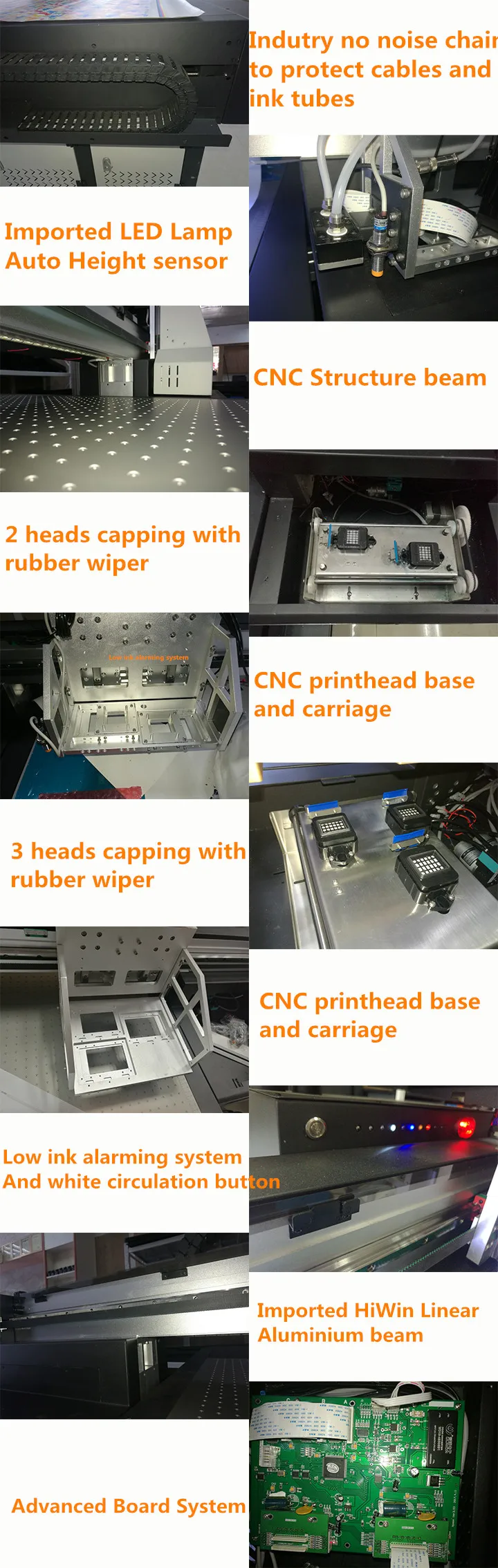

details pictures 1_.jpg





Contact & Inquiry


photobank





Send your Inquiry!! The big discount price you will get from our ladies~





You may also like other machines, just click it and send inquiry of it which you love.





Thanks.





Applications:


sample.jpg IMG_2355.JPG















Producing & Qaulity

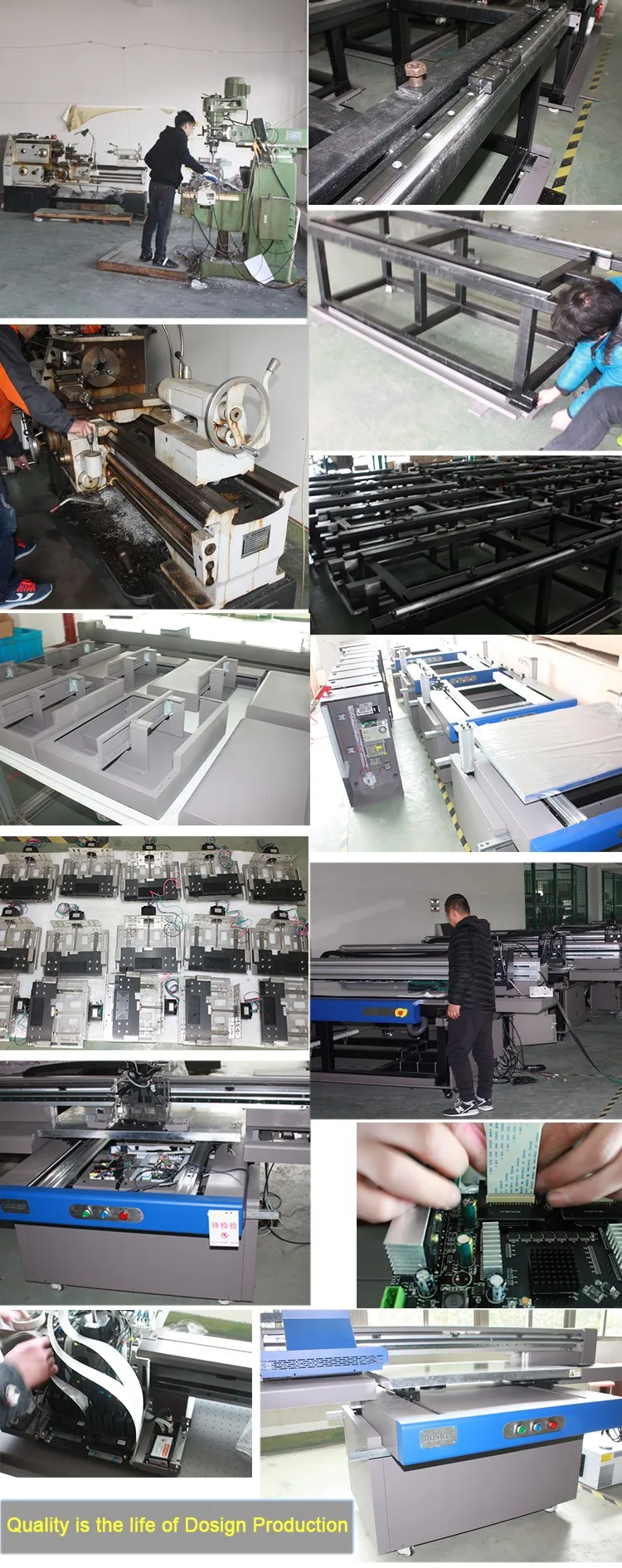

 producing and quality.jpg








Service & Maintenace


1)Customized Service:


Provide Customized Production and Packing for You!


2)Print Service:


Provide FREE Printing Samples for You!


3)Training Service:


Provide FREE Training for Our Clients! Even can Send Engineer to Oversea Local Customer!


4)Guarantee Service:


Provide Lifetime Warranty for All Machine Models!


5)Solution Service:


The Most Important We Have Digital Printing Solution Ability!


Provided Many Digital Inkjet Printing Solutions for Clients !

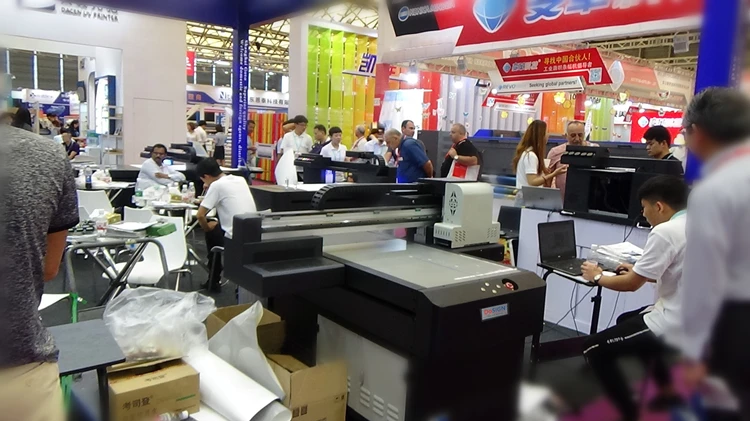

DSC03914.jpgdosign-customers


This is the top quality UV Printer DS-6090U!!

Welcome you Contact & inquiry:

1----send us your inquiry online

2----contact your salesman directly whats'upp:+86- 136- 7169- 4722

You will get big discount price soonest to get largest benifit and save your money.

More information for dtg printer, eco solvent printer, uv printer, sublimation printer, solvent printer etc, i and our powerful team is here to serve you all the time!
