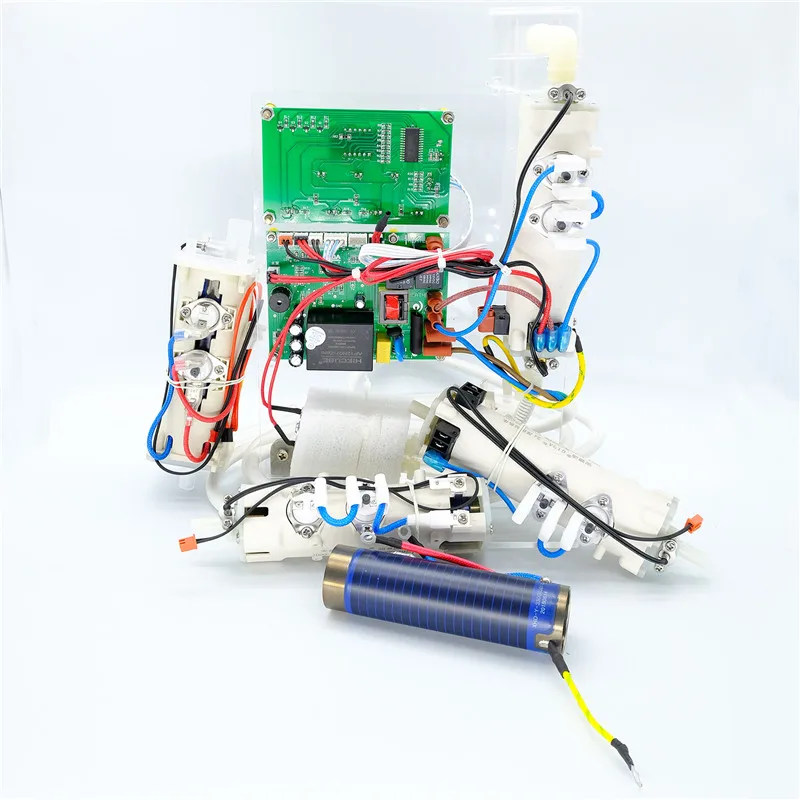

24 instant thick film electric heater testing kit for water purifier
24 instant thick film electric heater testing kit for water purifier
24 instant thick film electric heater testing kit for water purifier
24 instant thick film electric heater testing kit for water purifier

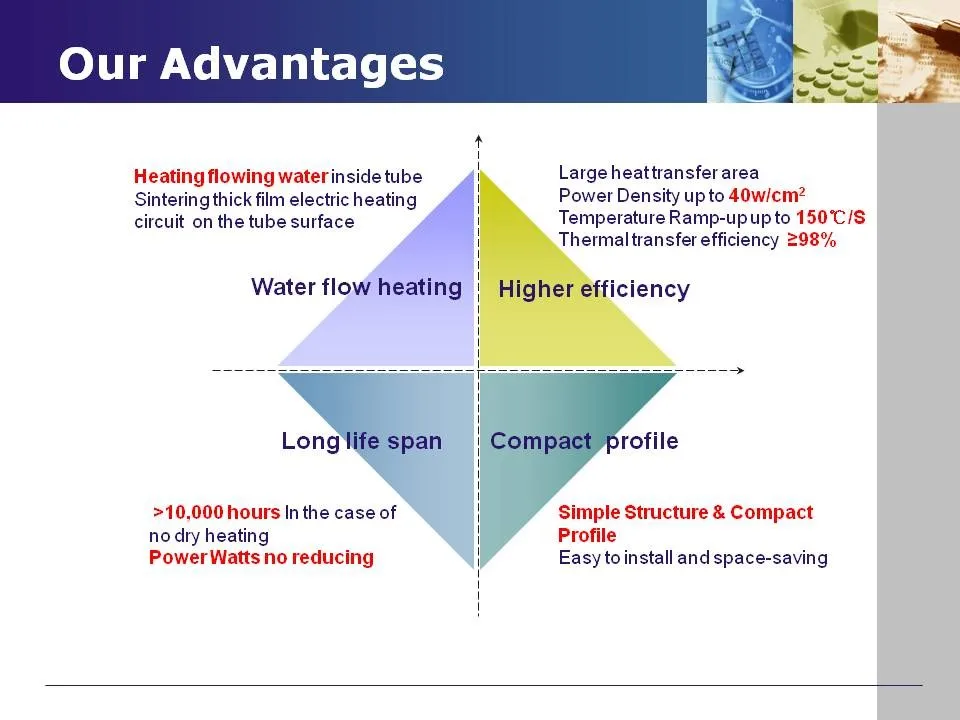

Advantages of thick film heating tube
The major advantage of thick film heating tube is high power density, high thermal transfer effiency and fast temperatuer rump up rate and long life span.

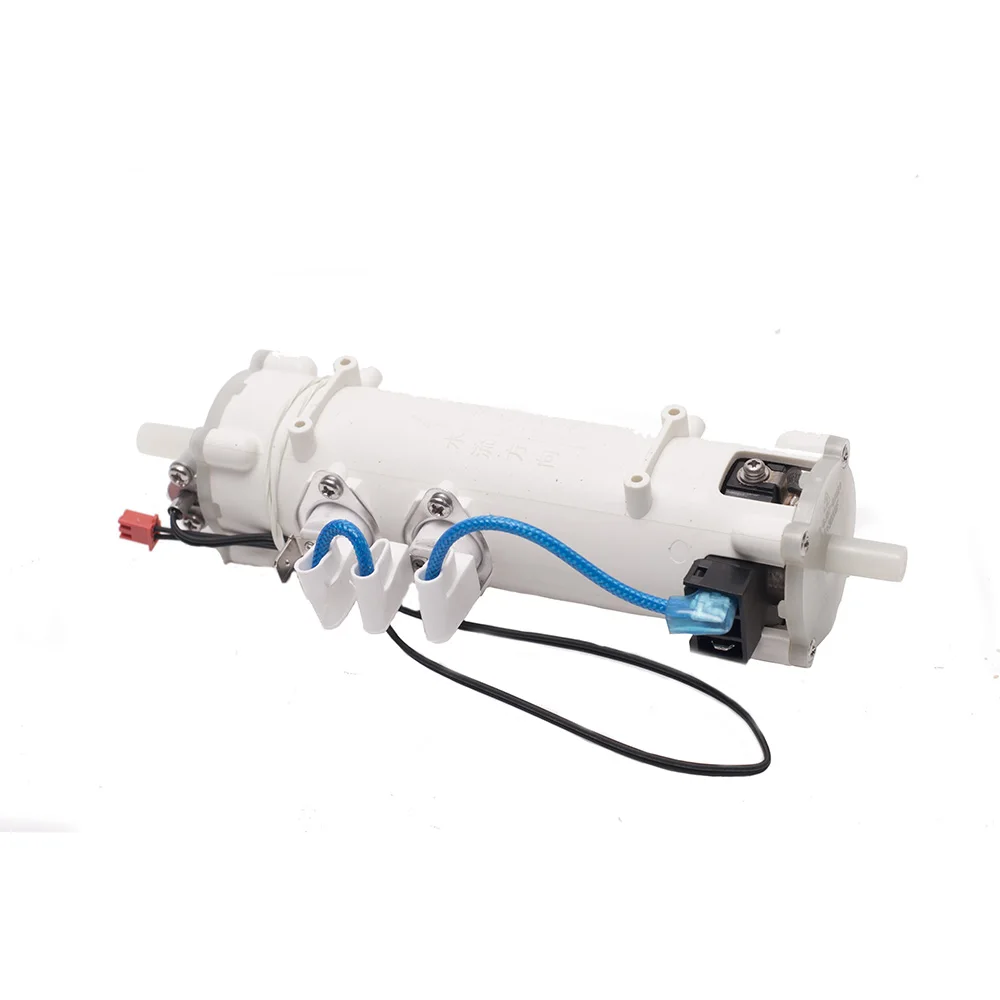

With its simple tubular structure, it can heat water flow inside the tube. Electric Circuit printed on tube surface, to heating the water flow inside. It can perfect replace traditional stainless steel electric heating tube.
The composition of thick film heating module
24 thick film instant water heater element is mainly applied in quick heating or fluid continuous heating. In order to get continuous hot water in target temperature, NTC temp sensors, water pump and electric control system are required to work with TF Heater Element.
24 thick film instant water heater element is mainly applied in quick heating or fluid continuous heating. In order to get continuous hot water in target temperature, NTC temp sensors, water pump and electric control system are required to work with TF Heater Element.
Grounding Type | Spot-Weld | Heat Density | >60W/cm² | |
Ramp-Up Rate | 80℃/s | Thermal Efficiency | >98% | |
Heating Power | 685w+1365w+2050w | Service Life | >10,000 hours | |
Rated Voltage | 220 | Certificate | CQC, RoHS | |
Dielectric Strength | 1500V/5mA/60s | Power Deviation | -10% - +5% | |
Leakage Current | ≤0.25mA | Insulation Resistance | ≥200MΩ | |
Thermistor Type | PTC | Dimension | 280mm(H)*180*mm(W)*125mm(T) |
Deatail Introduction

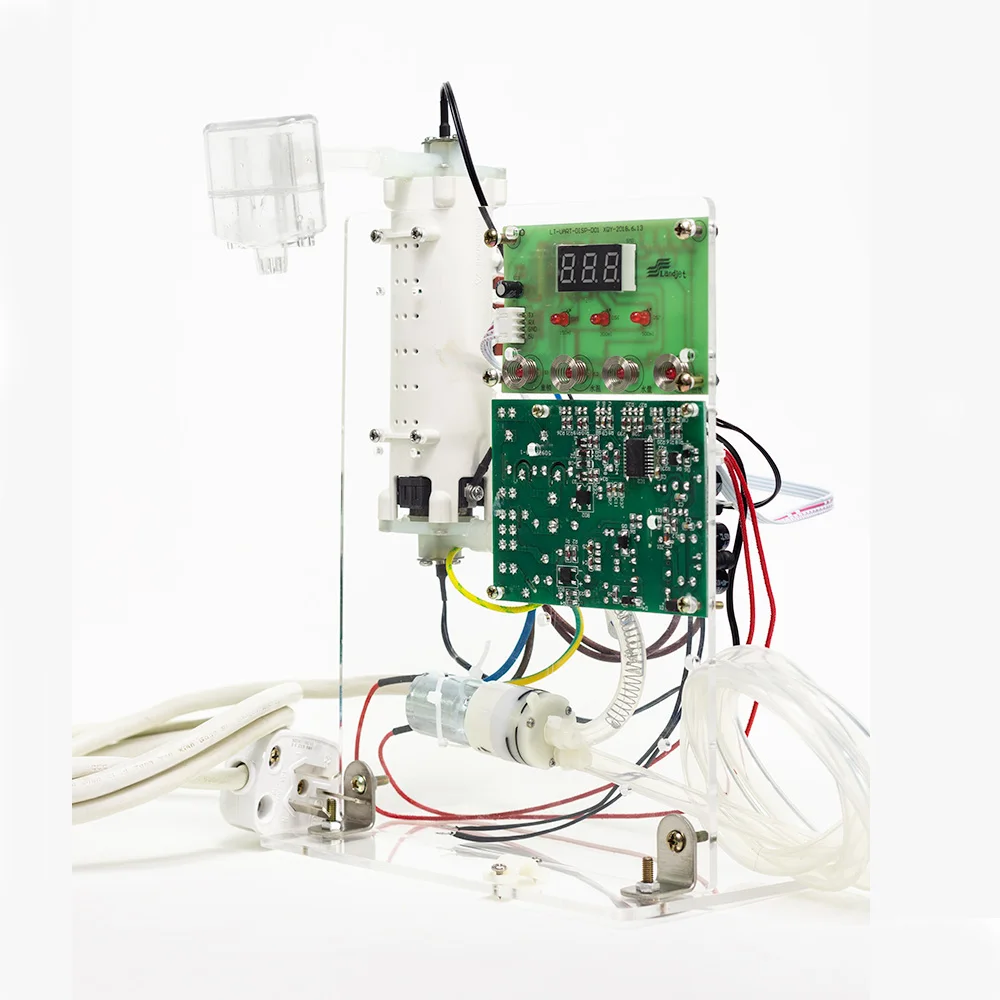

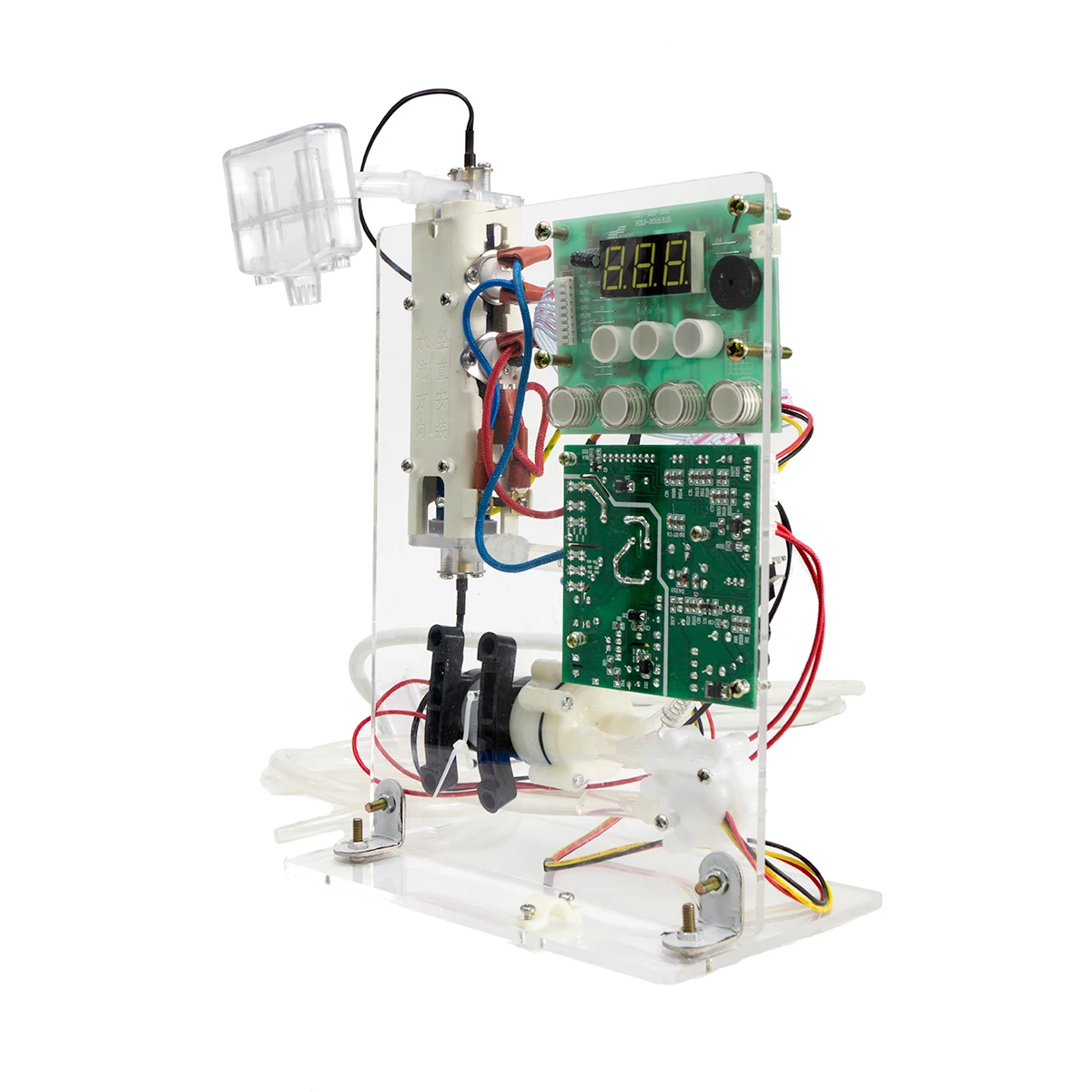

1)Since thick film heater element is new type water fluid heater parts for most home appliances manufacturers or other customers, we make this Electric Testing Kit as Mini Electric Instant Hot Water Dispenser Prototype, which can be set to supply target temperature hot water or water volume in each single heating process.

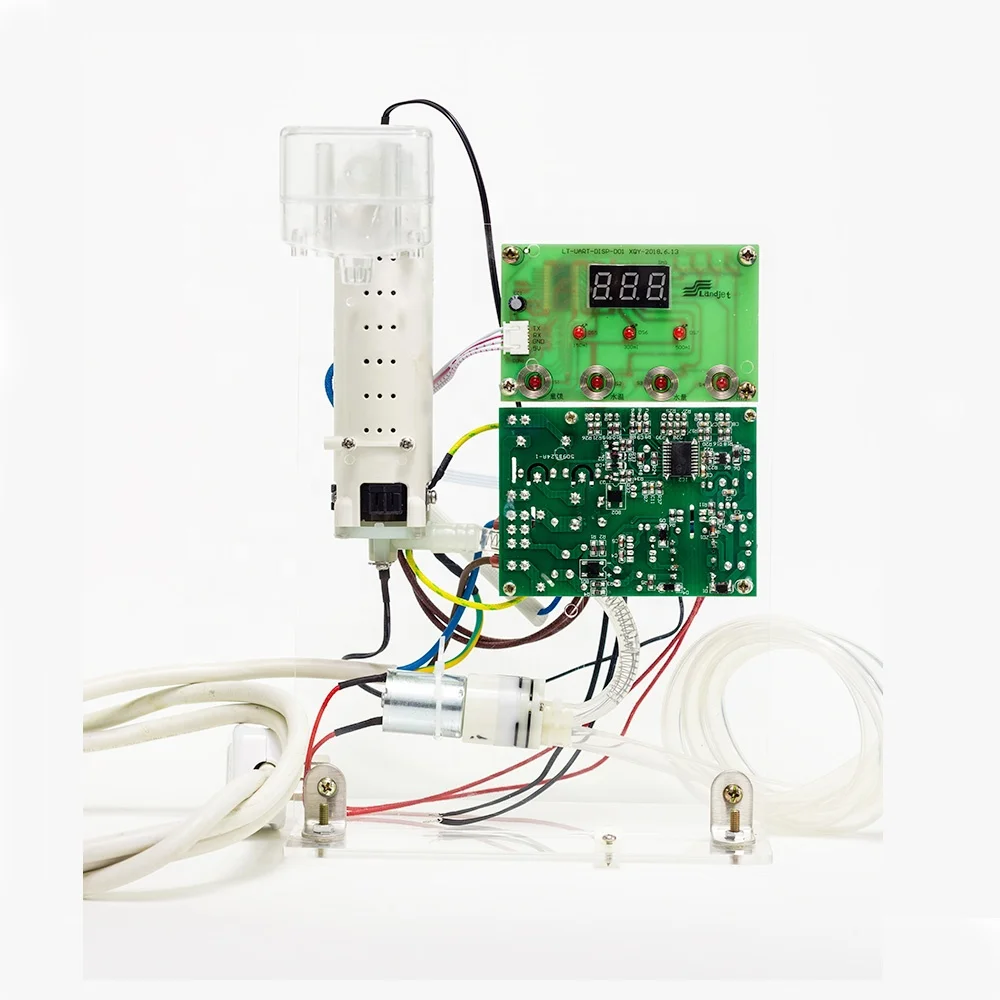

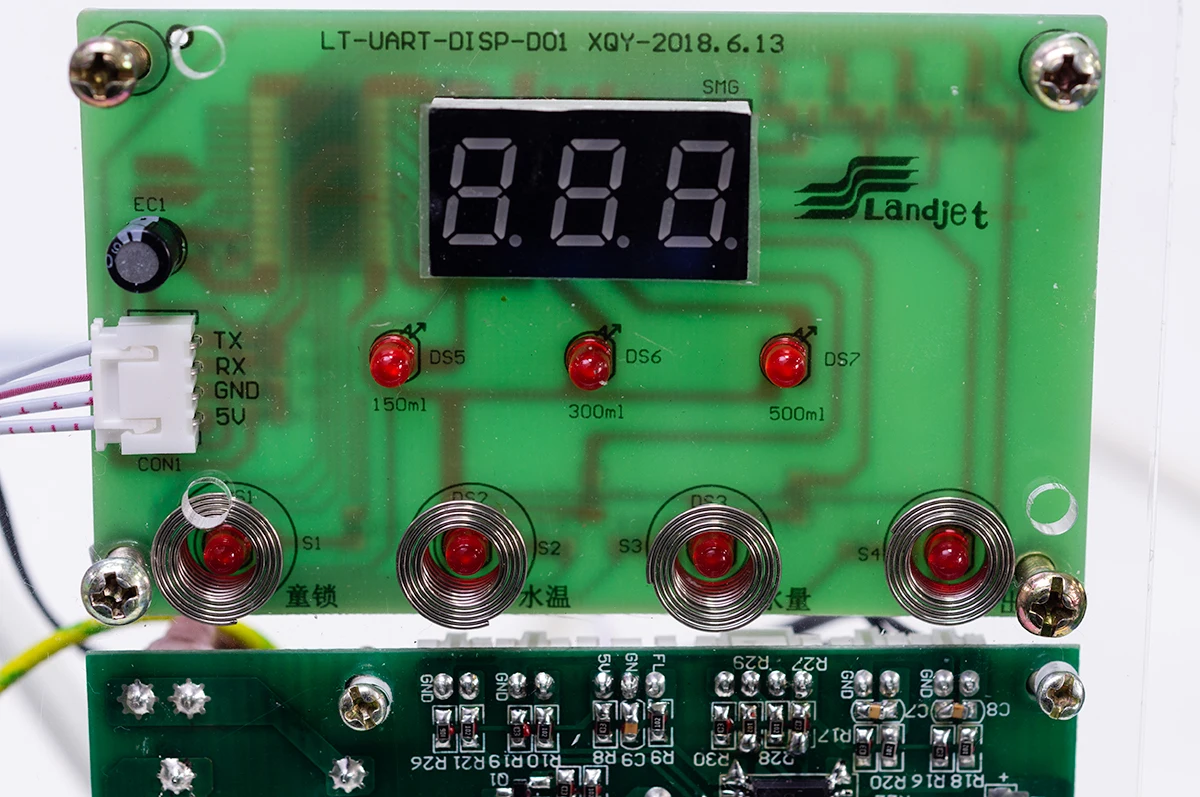

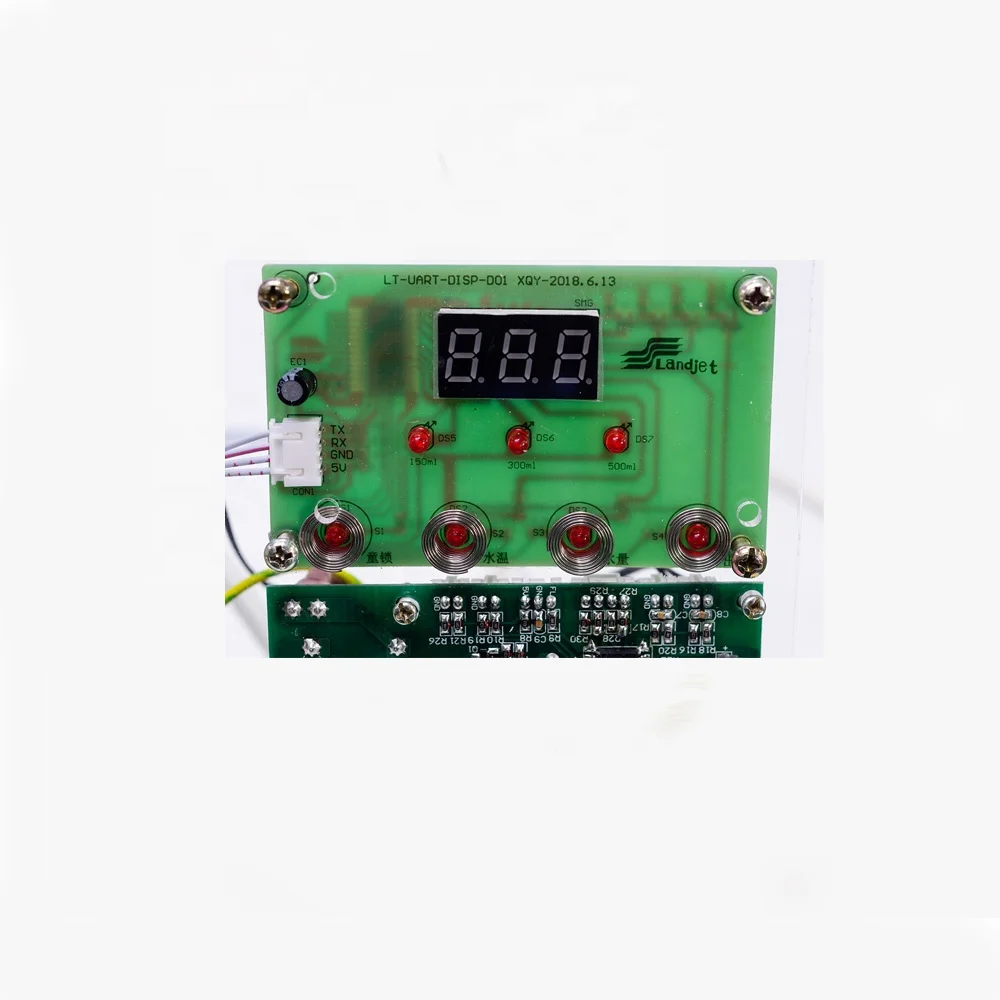

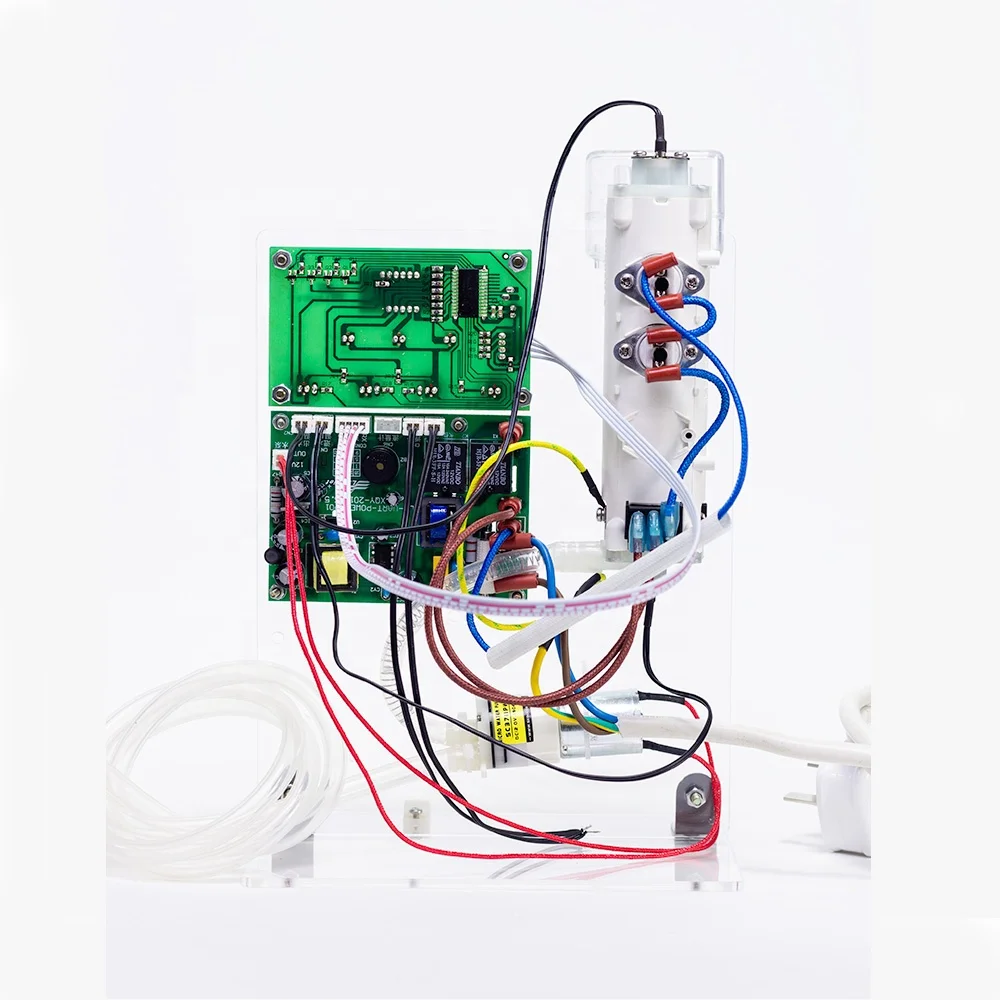

2)It'll help customers to understand how thick film heater works and to learn more thick film heater applications in new model R&D.The Electric Thick Film Instant Heating Testing Kit is assembled by Thick Film Heater Element, DC Membrane Pump, PCB control system, LCD Display, Touch Buttons etc.
3) It can realize three different power, such as 685w,1365w,2050w on one heating tube, which means you can connect the suitable power with your requirement.Power can be selected to provide a high-quality solution for achieving low-temperature effluent, and it can make sure the stability of water outflow with different temperature. We use wire socket to connect wires, which is different with old method welding, and it can make the connecter more stable and safety.

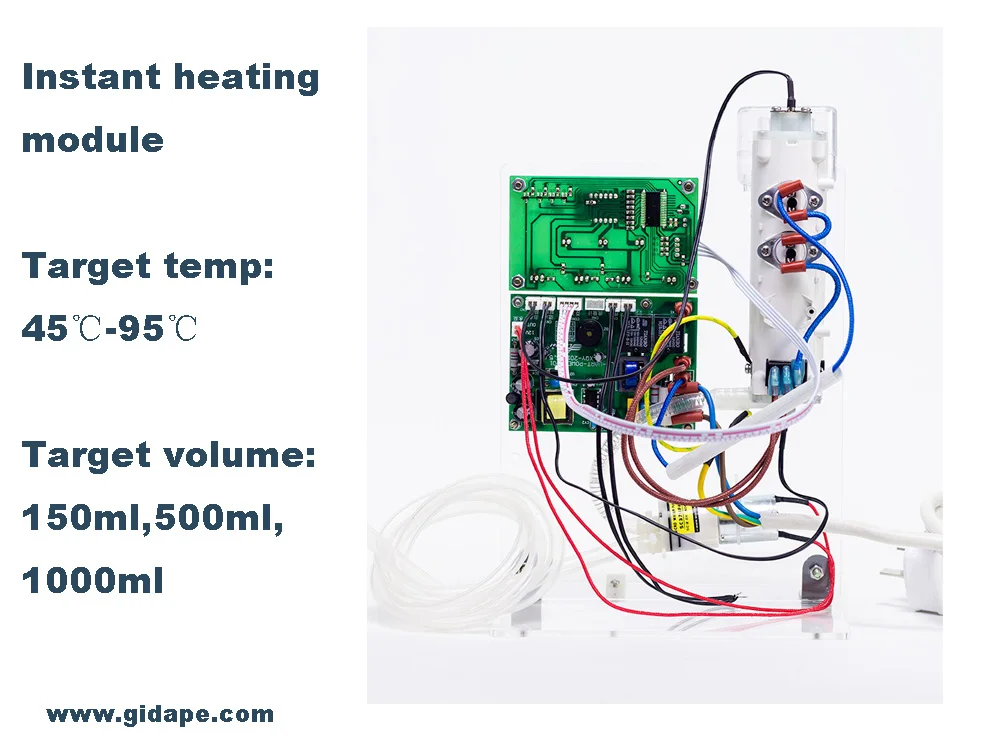

4)Target Temperature: 45℃, 50℃, 55℃, 60℃,65℃ 70℃, 75℃, 80℃,85℃, 90℃,95℃ 100℃
5)Volume in single heat process: 150ml, 500ml and 1000ml
4)Target Temperature: 45℃, 50℃, 55℃, 60℃,65℃ 70℃, 75℃, 80℃,85℃, 90℃,95℃ 100℃
5)Volume in single heat process: 150ml, 500ml and 1000ml

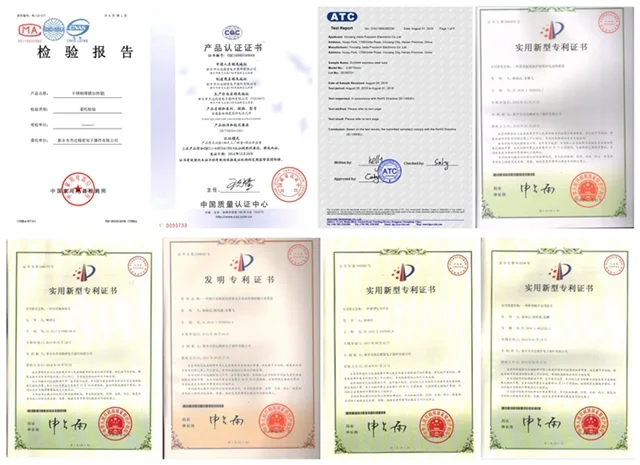

Certifications
Customize Service
1. Substrate: SUS 430, 430
2. Tube diameter, Tube length, Power, Thermostat, Control Board, etc are available for customer design.
Packing & Delivery
Packaging | ||
Size (m) | 1.2 (L) * 1 (W) * 1.2 (D) | |
Weight | 0.5 T | |
Packaging Details | The normal package is carton box, placed on wooden tray. | |
Related Products
Pre-heating high flowing rate thick film water heating model
2200w/220v electric heater testing kit for water purifier
CustomerApplications
The most compact instant type electric heating elements are the ideal heating element for novel and fashionable home appliances such as Water Dispenser, Water Purifier, Coffee Maker, Milk Machine, Water Kettle, etc.
Some of our Thick Film Electric Heating Tubes are individual customer solutions which are designed to match our customers' individual and specific requirements. During the development and application stages we work closely together with our customers in a partnership based on trust and mutual confidence.
FAQ
1)Can I DIY it for personal use by myself?
Xinxiang JIEDA Precision Electronics Co., Ltd.Our products are mainly used as heating elements for water heaters in mass production, not recommended for Personal DIY.
2).How to install Thick Film Heater Tube/Element?
Xinxiang JIEDA Precision Electronics Co., Ltd.Thick Film Heater Element is required to vertical mounted, and avoided to horizontal or inclined mount.
That's to prevent DRY HEATING in partial area caused by horizontal mounting, inclined mounting and vapor return.
3)How to get the suitable model for our application?
Xinxiang JIEDA Precision Electronics Co., Ltd.We need to know the water temperature in inlet and outlet port, the water flow rate, connection port requirements and other special requirements.
4)What's the operation attentions?
.①The temperature ramp-up above 80°C/s, please make sure the tube fulfilled with water before use.
② Please install it vertically, make sure water flow direction from bottom to top, to prevent dry heating in partial area of heating tube.
③ Set the minimum flow rate according to tubes' power watts, ensure smooth flowing of water, to prevent vaporizing and dry heating.
④. Make sure reliability grounding.
