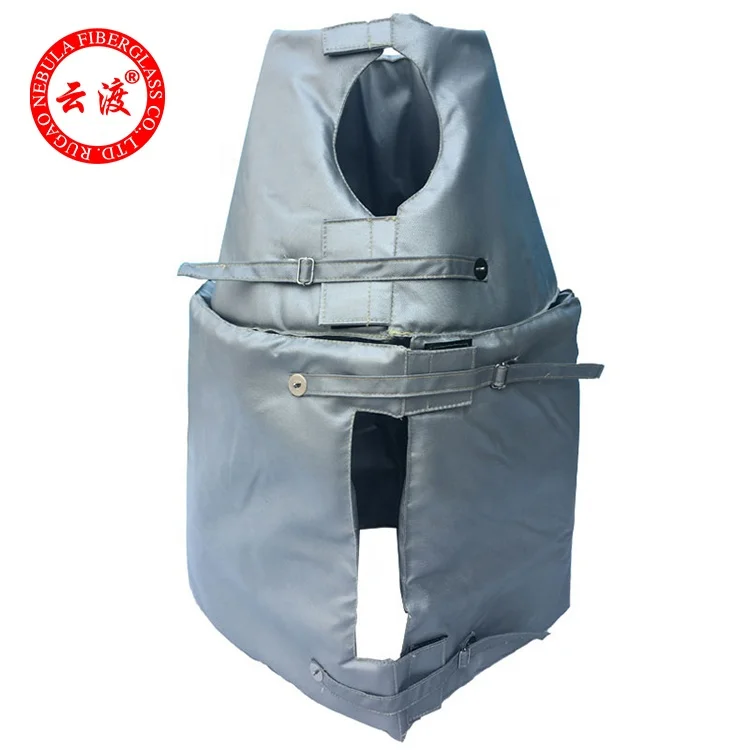

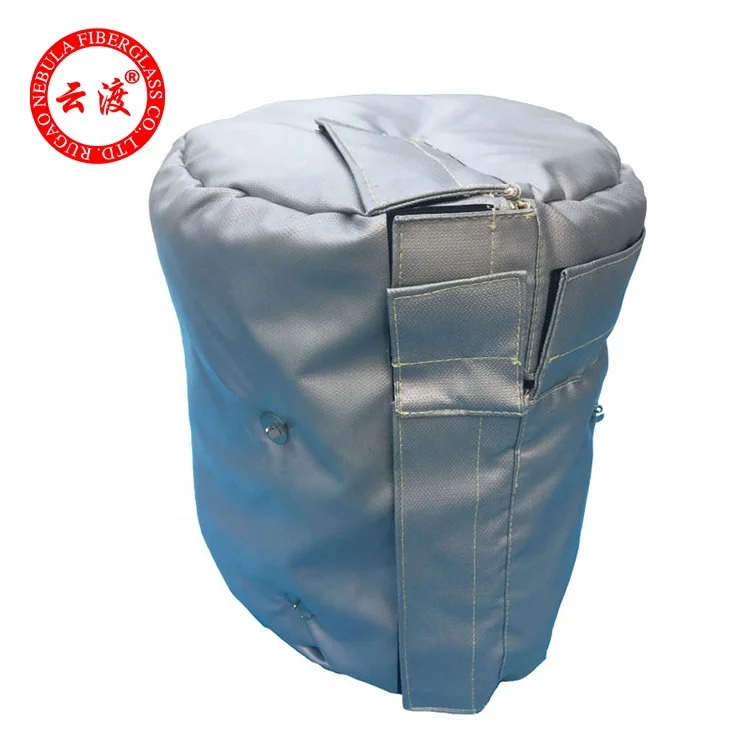

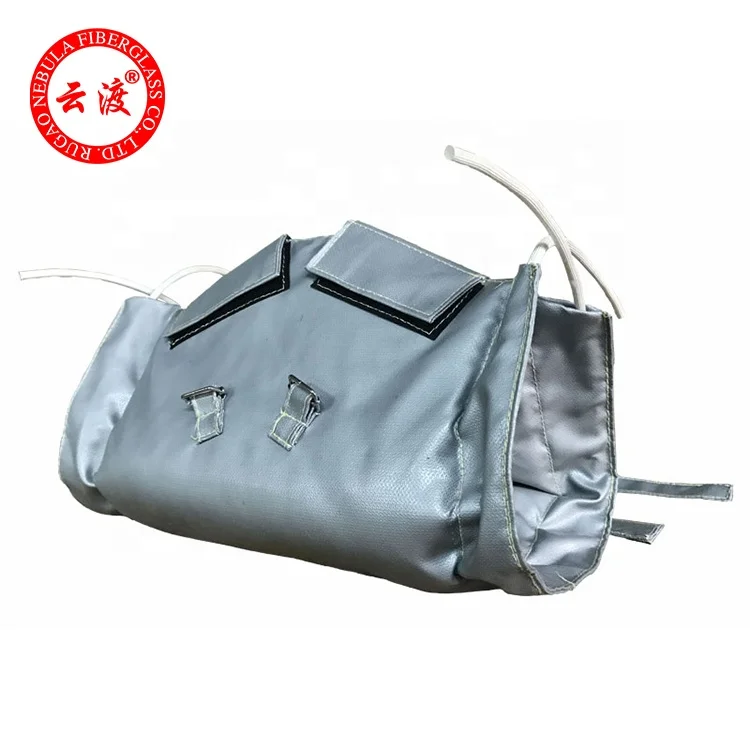

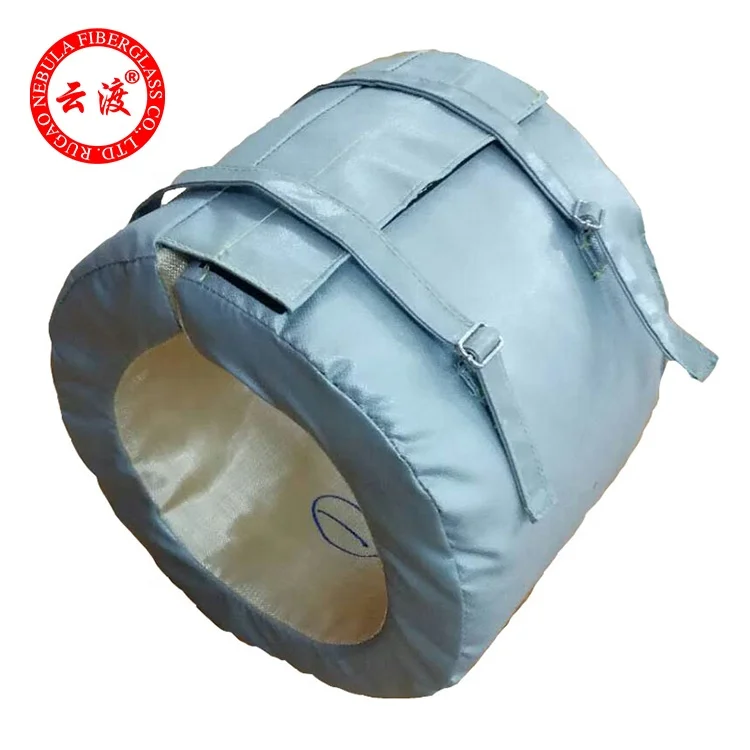

Factory Supplied Popular Condensate Pump Insulation Jackets

REMOVABLE / REUSABLE INSULATION COVERS/JACKETS

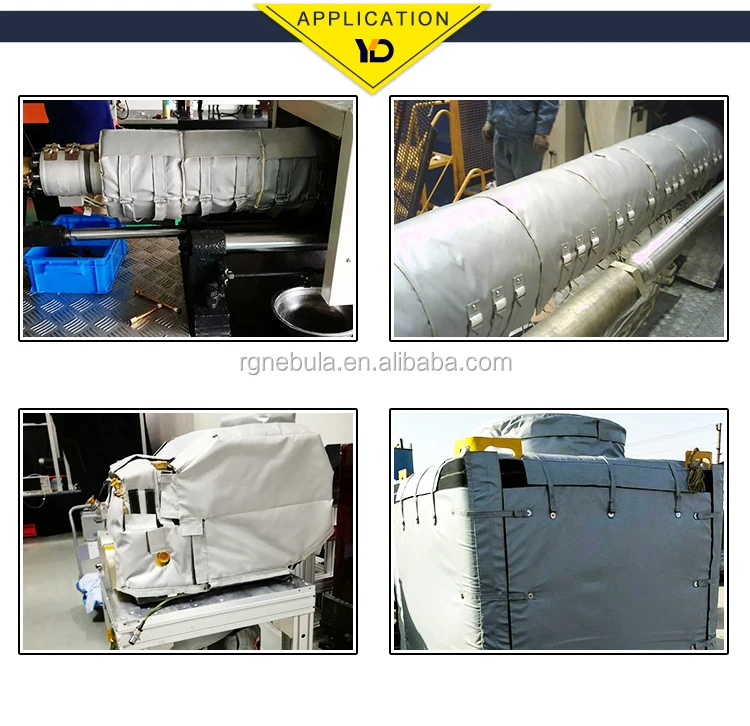

REMOVABLE / REUSABLE INSULATION COVERS/JACKETS are used to insulate engine parts, exhaust piping and components, and industrial process piping and machinery. In particular, applications which use diesel engines, such as power generation, off highway & on-highway vehicles, and marine often require insulation covers/jackets to manage the heat that these engines generate.

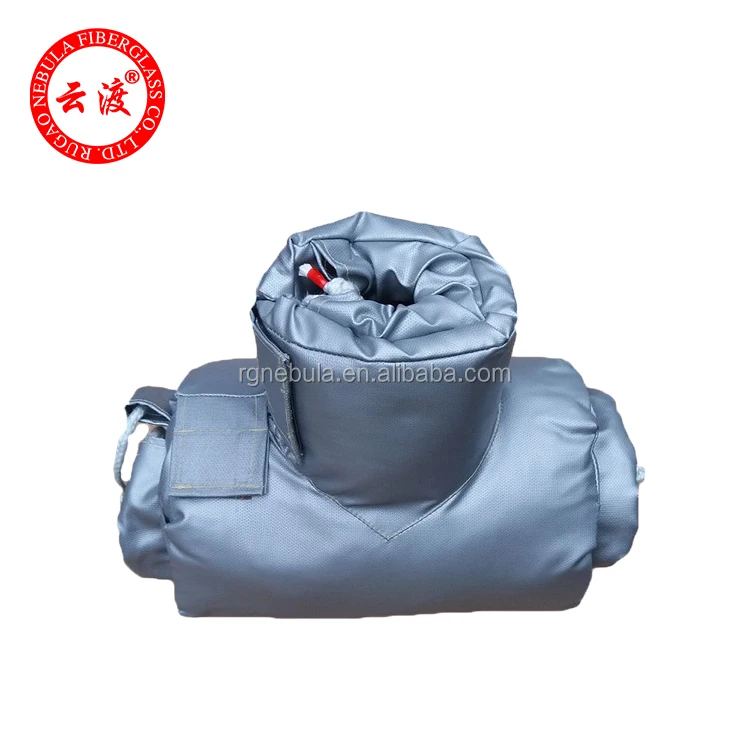

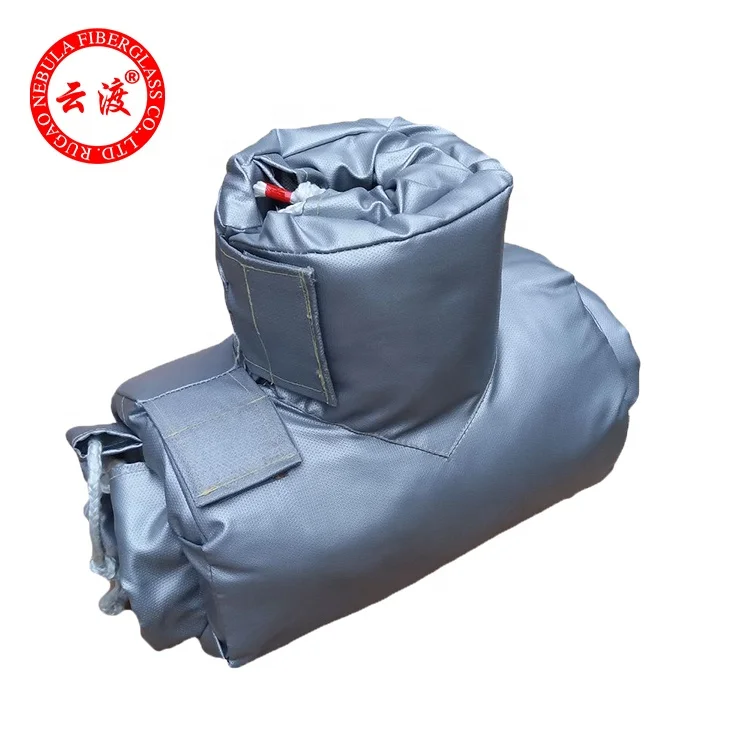

Typical industrial uses for REMOVABLE / REUSABLE INSULATION COVERS/JACKETS are for Pipes, Barrels, Steam traps, heat exchangers, flex , valves, flanges, elbows and strainers.

REMOVABLE / REUSABLE INSULATION COVERS/JACKETS are used on those parts of the hot piping on process and steam lines where Maintenance and Inspection accessibility is necessary which the permanent insulators leave open and become the source of MAJOR ENERGY LOSS.

Personnel Protection
Asbestos Free,Non Flammable,Reduces Ambient Temperatures
Insulation jackets can reduce temperatures as high as 600ºC to acceptable Safety Levels for personnel protection.

Energy Savings
REMOVABLE / REUSABLE INSULATION COVERS/JACKETS reduce heat loss in areas that have been uneconomical to insulate with conventional insulation.
REMOVABLE / REUSABLE INSULATION COVERS/JACKETS are custom designed to wrap snugly around even the most complicated fittings and irregular surfaces.

Maintenance and Inspection Savings
specifically designed for maintenance and inspection. Our covers or jackets can be removed and re-installed in minutes, even with inexperienced personnel. As they are reusable there is no need for new insulation every time.

Type 1:  HLBIII ≤160℃

Inner layer: two side-coated silica gel cloth

Insulation layer: fiberglass needle felt (thickness  15mm/30mm)

Outer layer: two side-coated silica gel cloth

Type 2:  HLB IV≤650℃

Inner layer: aluminum silicate fiber cloth

Insulation layer: aluminum silicate fiber blanker (thickness 40-100mm)

Outer layer: two side-coated silica gel cloth

Type 3: HLB V≤1000℃

Inner layer: high SiO2 fiber cloth

Insulation layer: aluminum silicate fiber blanket (thickness 40-100mm)

Outer layer: teo side-coated silica gel cloth
