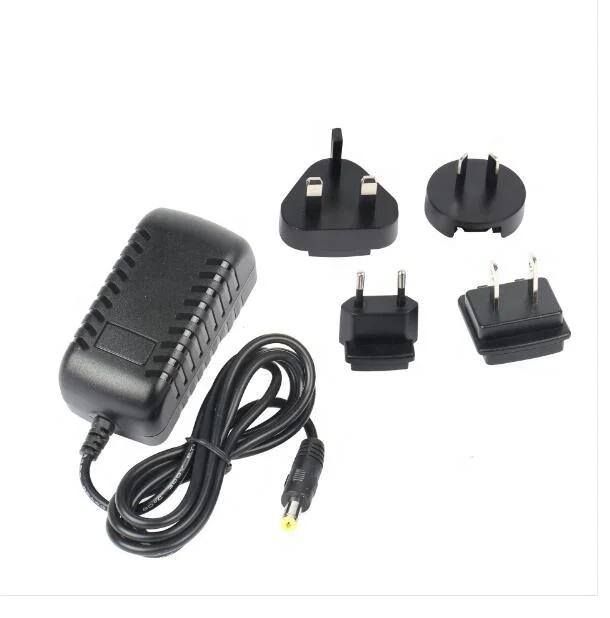

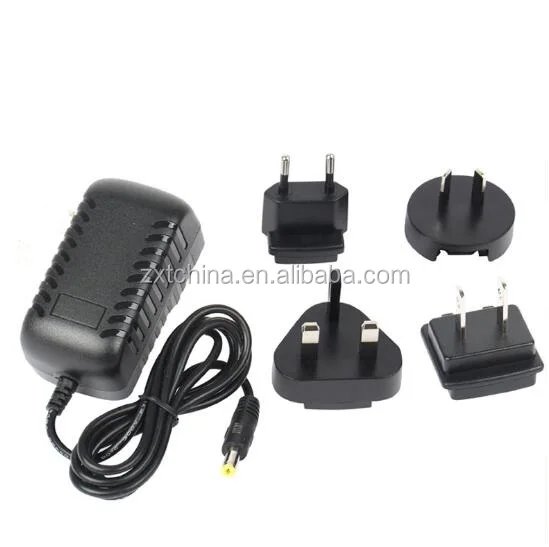

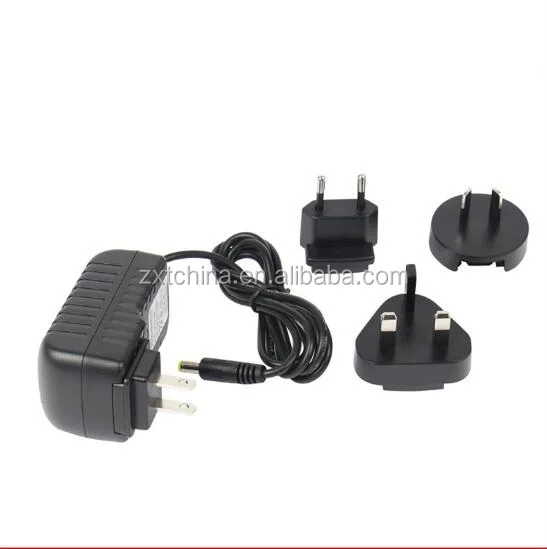

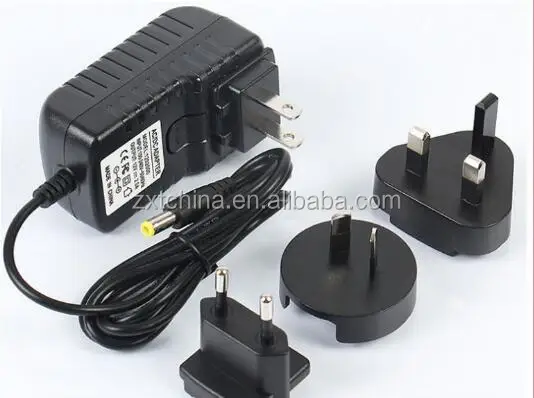

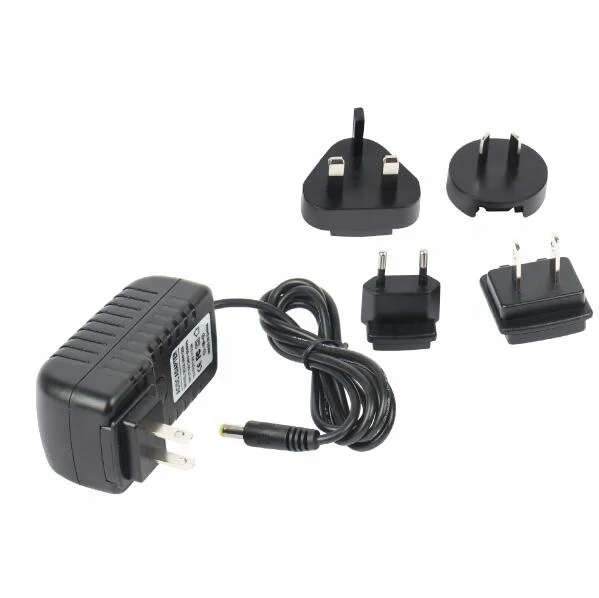

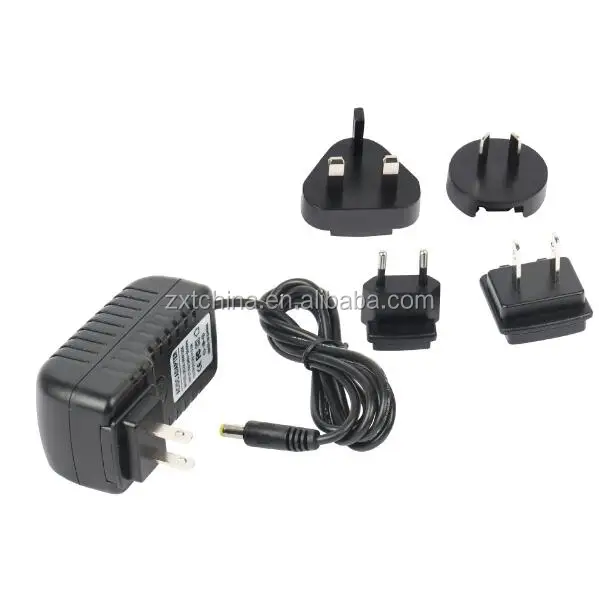

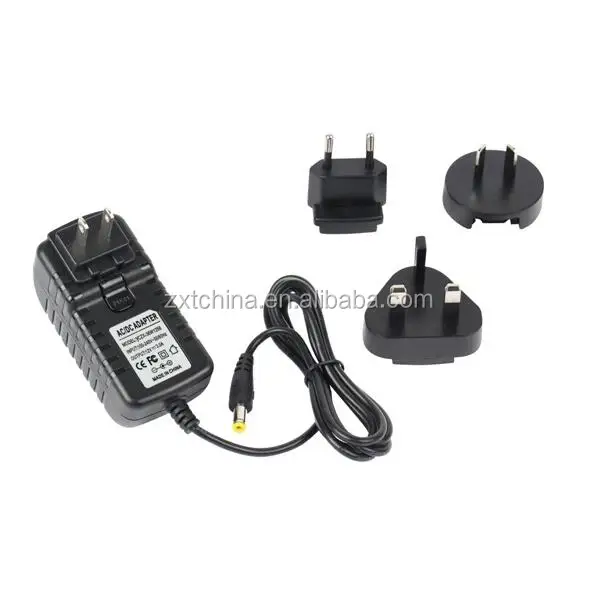

Interchangeable EU US UK AU Plug 12V 9V 18V 1A to 3A AC DC Power Adapter For Printer / LED Displays
- Category: >>>
- Supplier: Shenzhen Zhongxintong Technology Co. Limited
Share on (60844833681):
Product Overview
Description
Interchangeable EU US UK AU Plug 12V 9V 18V 1A to 3A AC DC Power Adapter For Printer / LED Displays
Electrical Characteristics:
| AC Input Voltage: | AC100-240V 50/60Hz |
| Input current : | 1.0A(max) |
| Output Voltage: | 9-15VDC; 18-24VDC |
| Output Current : | 100-3000mA |
| Output: | 12V/2.5A 15V/2A 24V/1.25A 12V/2A 24V/1A 15V/1.2A 12V/1.5A/9V 1A/9V 2A/ .... |
| Input Surge Current : | 60A(max) |
| Hi-pot Test : | 3000Vac 10mA 3S |
| Output voltage ripple and noise : | 120mVp-p max |
| Energy efficiency level : | VI |
| Safety Standard: | UL62368; UL60065; FCC Part 15 Subpart B Class B , IEC/EN60065; IEC/EN62368; EN60950; EN55032;EN55022 |
| Insulation resistance: | 50MΩ(at 500VDC) |
| Protection: | OC/SC/OV/SC/OH/ Protection |
| Working temperature: | -5°C-+40°C. |
| Storage temperature: | -20°C-+60°C. |
| Working humidity: | 30%-85%. |
| Storage humidity: | 10%-95%. |
Applications:
Suitable for monitor, sterieo, printer, USB hub, Modem, Dub, DVD, Riter, Bot, Wireless Helicooter, HD player, LCD TV, surveillance camera, LED display, LED light, mobile hard disk box, digital photo frame, radio, electronic equipment, security system, communication equipment, medical equipment, power equipment, industrial control equipment, etc.
Quality Control:
With experienced IQC staff and advanced inspecting instruments before production.
During production, our QC staff randomly samples the semi-finished products for inspection.
Our FQC team is responsible for the 100% finished product quality control.
Quality Systems:
1) IQC (Incoming Quality Control)
2) IPQC (In-Process QC)
3) IDQC (In-Depot QC)
4) ODQC (Out-Depot QC)
5) QA (Quality Assurance)

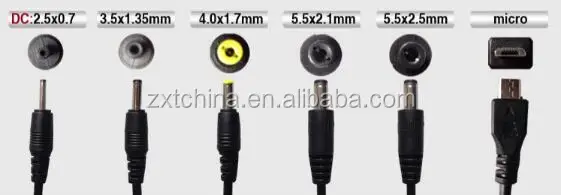

Different Connector Types :

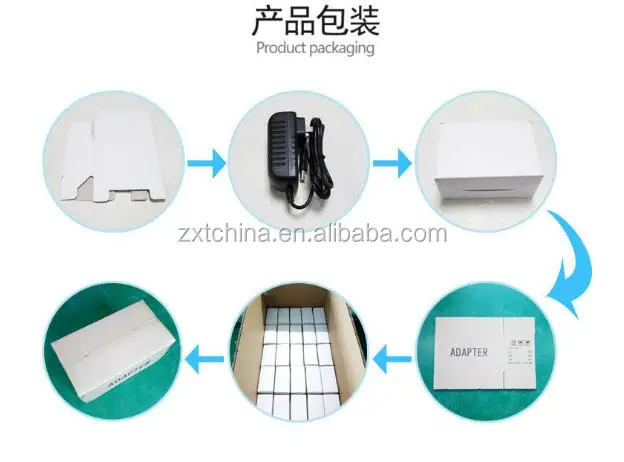

Packing :
FAQ :
1.Q: Are you ture factory ? |
A: Yes,we are real professional factory of car charger,travel charger,wall mount adapter,power bank, usb cable, etc. |
2.Q:Can you accept OEM or ODM service? |
A:Yes,we can OEM color, logo , packages, mould and PCB Circuit etc as per your requirement |
3.Q: What's your MOQ? |
A:We can accept small order if have on stock, and usually 3000pcs OEM order. |
4.Q:Do you have warranty? |
A :Yes,we have warranty of 1 year period. |
5.Q:Do you have certificates for your products? |
A:Yes,we have FCC,RoHS,CE ,UL , SAA, SASO, IEC, CEC, DOE, California65, KC etc Certifications. |
6. Q: Can you design the new housing based on our design? |
A: Yes, we can design, one week make out manual samples, mock up sample 30days, sample test ok start to MP |
7. Q: What's the main product of you factory? |
A: Our main product is high end mobile phone charger, E.G: travel charger, wall charger, car charger, power adapter, power bank, usb data cable etc. |
8. Q: Do you have some new product coming? |
A: We will design more and more new product with differenct outlooking and function about the car charger and adapters. |
9. Q: How large of your company? |
A:Our factory is about 1500 square meters |
10.Q:How many employee in your company? |
A:we have about 8 production lines.and 100-200 workers. |
11.Q:What is your investment for the factory? |
A:About 10millions. |
12.Q:How about your quality control? |
A:All the products from our factory will be strictly tested by our quality control system,which including incoming material test,half-finished products test,end finished products test,1 cycle burn-in test, In and out warehouse test before shipment etc. |
