Product Overview

Description

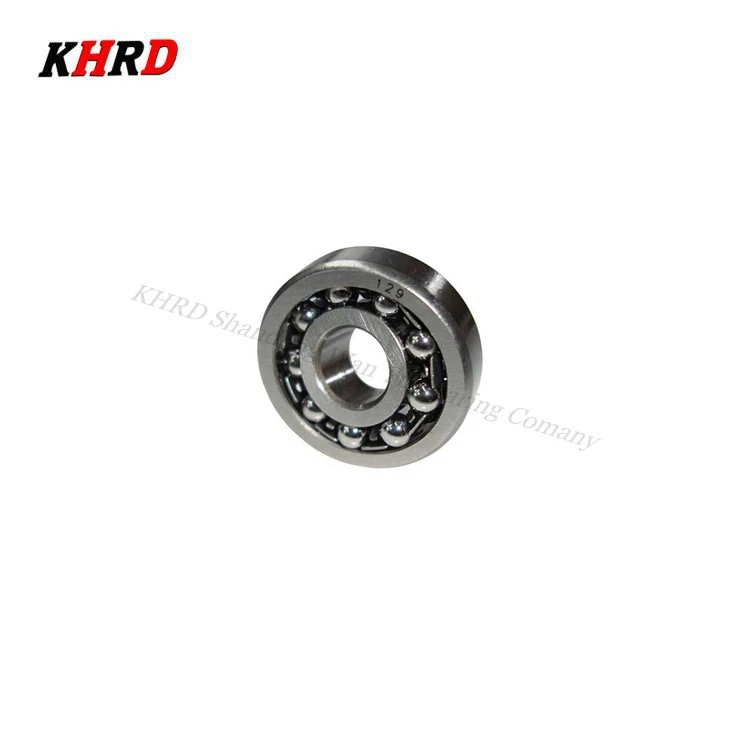

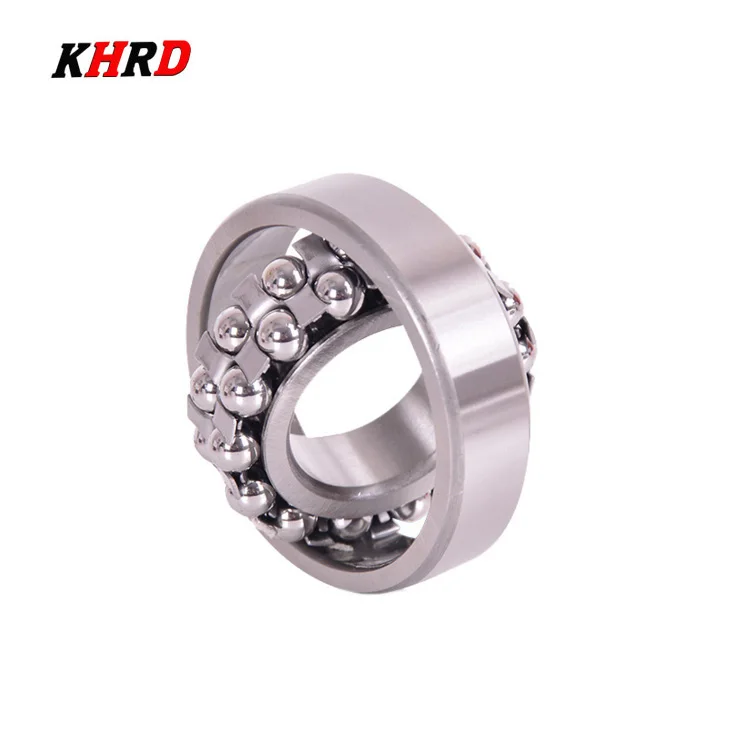

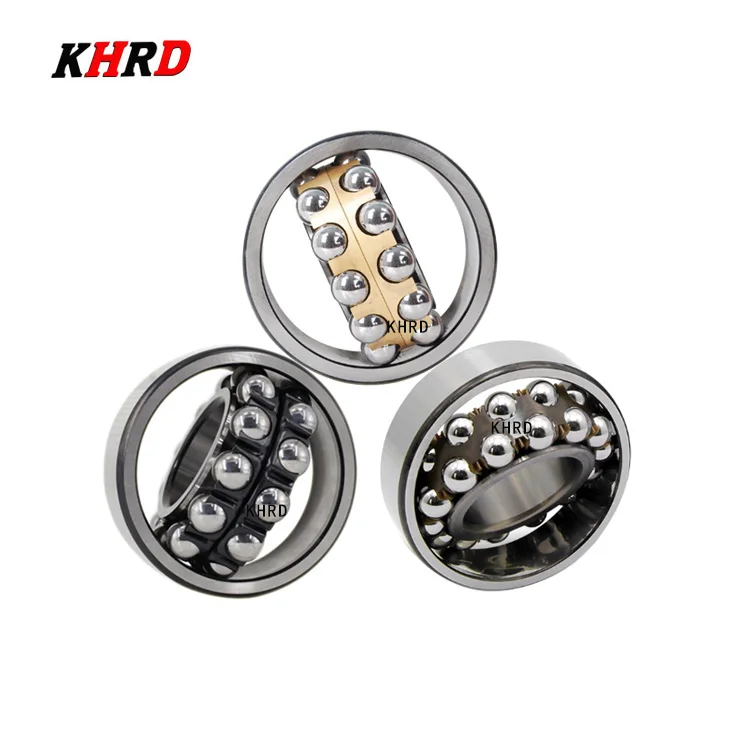

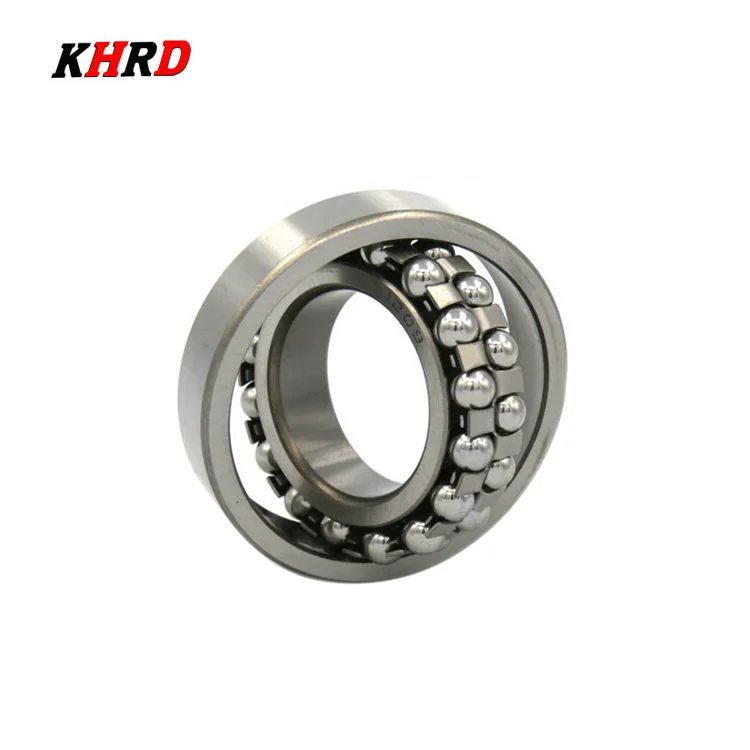

126 bearing 1026 New Design Self-Aligning Ball Bearing 6*19*6mm



        Self-aligning ball bearing have cylindrical or conical inner bore. It is characterized by the spherical shape of the outer raceway and the self-aligning ability. It can compensate the errors caused by different centers and shaft deflections, but the relative inclination of the inner and outer rings must not exceed 3 degrees. its  suitable for bearing heavy and impact loads, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, rolling mills, mines, oil, paper, cement, sugar and other industries.



Bearing Number	126/1026
Bearing Structure	Self-Aligning Ball Bearing
Bearing Boundary Dimensions	d:6mm
	D:19mm
	B:6mm
Bearing Rings Material	GCR15,Chrome Steel,Stainless Steel
Bearing Cages Material	Nylon,Steel,Brass
Bearing Application	Mainly used in metallurgy,mining,petroleum,chemical industry,construction machinery and other areas
Bearing Certifications	ISO 9001:2008
Bearing Orgin	China(Mainland)



























Number	Specification			Rated Load(KN)		Speed(r/min)		Weight
	D(mm)	D(mm)	W(mm)	Cr(N)	Cor(N)	Grease	Oil	kg
1200	10	30	9	5.55	1.19	22000	28000	0.033
1201	12	32	10	5.7	1.27	22000	26000	0.039
1202	15	35	11	7.6	1.75	18000	22000	0.051
1203	17	40	12	8	2.01	16000	20000	0.072
1204	20	47	14	10	2.61	14000	17000	0.12

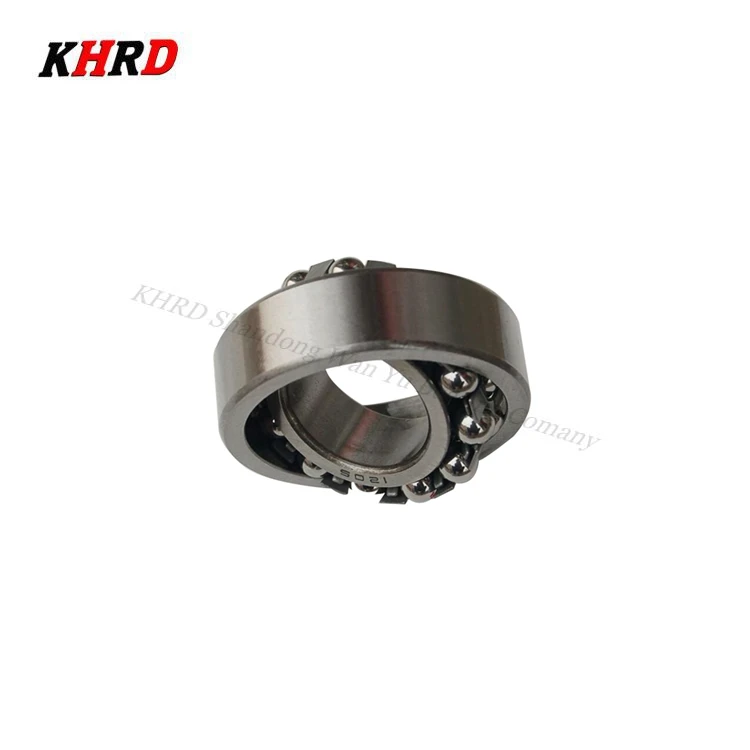

1205	25	52	15	12.2	3.3	12000	14000	0.14

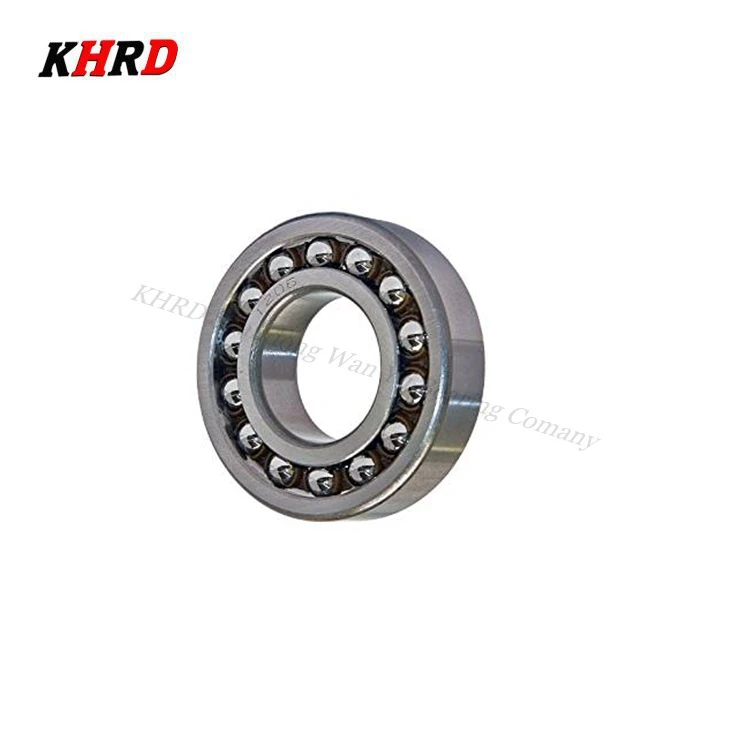

1206	30	62	16	15.8	4.65	10000	12000	0.22
1207	35	72	17	15.9	5.1	8500	10000	0.32
1208	40	80	18	19.3	6.5	7500	9000	0.415
1209	45	85	19	22	7.35	7100	8500	0.465
1210	50	90	20	22.8	8.1	6300	8000	0.525
1211	55	100	21	26.9	10	6000	7100	0.705
1212	60	110	22	30.5	11.5	5300	6300	0.9
1213	65	120	23	31	12.5	4800	6000	1.15
1214	70	125	24	35	13.8	4800	5600	1.3
1215	75	130	25	39	15.7	4300	5300	1.41
1216	80	140	26	40	17	4000	5000	1.73
1217	85	150	28	49.5	20.8	3800	4500	2.09
1218	90	160	30	57.5	23.5	3600	4300	2.55
1219	95	170	32	64	27.1	3400	4000	3.21
1220	100	180	34	69.5	29.7	3200	3800	3.82











          Shandong Wan Yu Bearing Co.Ltd was founded in June 2005,our company is located in Hebei,Shandong junction on the East Beijing Kowloon Railway,high-speed south,west of Beijing GUangzhou high-speed,North YInchuan expressway,S315 close to the highway,the geograohical position is very superior.It is a new type of bearing manufacturing company with ralatively fast development foeed and excellent production equipment.











































Q:How to extend the bearing’s lifetime?
