Decorative poles /street light steel pole

Product Overview

Description

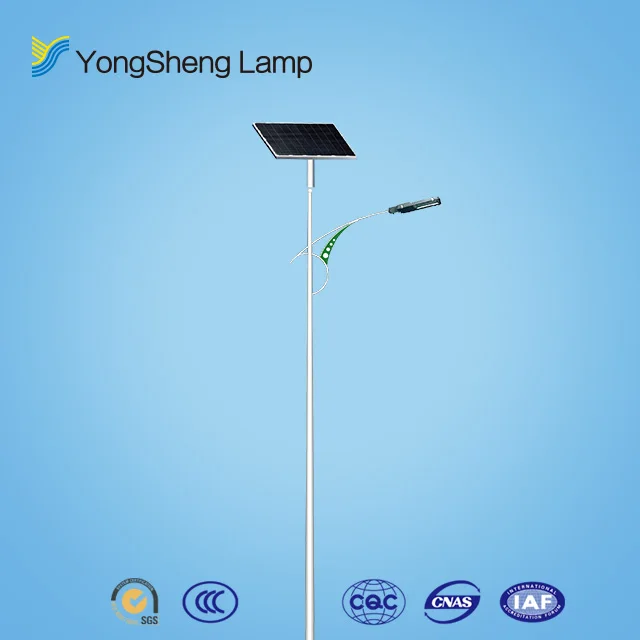

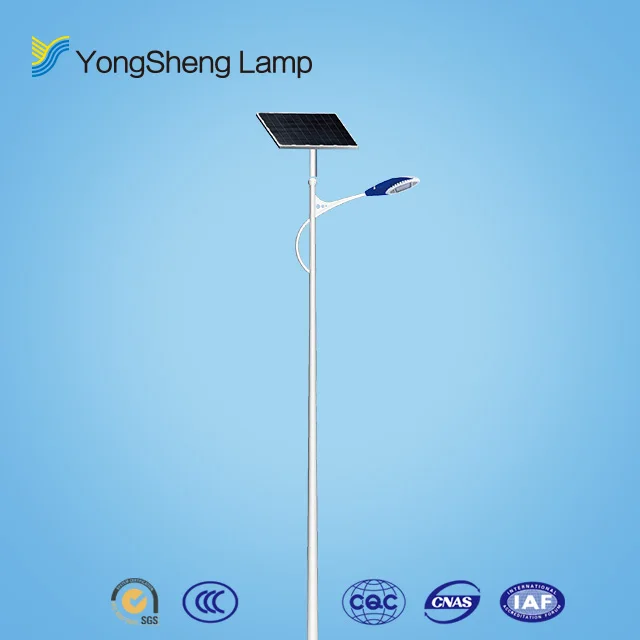

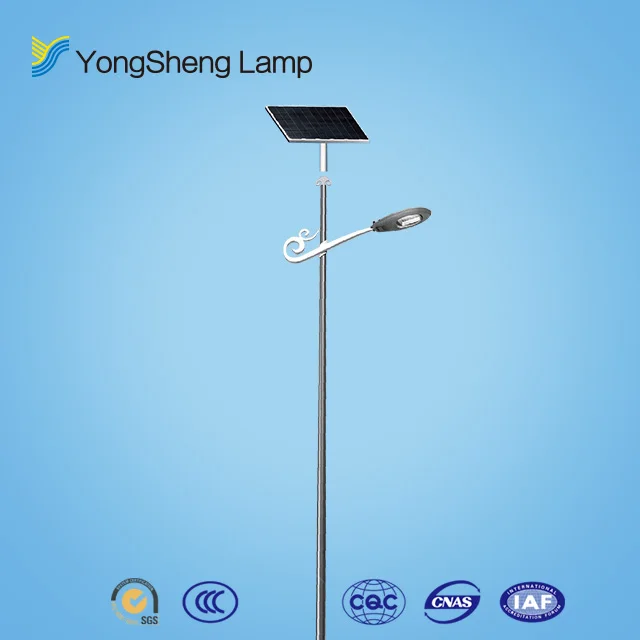

 Road lights can be divided into mains, solar, wind and solar series

Characteristics of road lights: Road lighting is used on both sides of the main roadway for driving illumination. It is required to ensure the brightness of the road surface, not to have strong glare to interfere with the line of sight of the vehicle, the lighting is more uniform, and the long-distance contact configuration can depict the continuation of the space light. The beauty makes the landscape of the road have a different landscape.

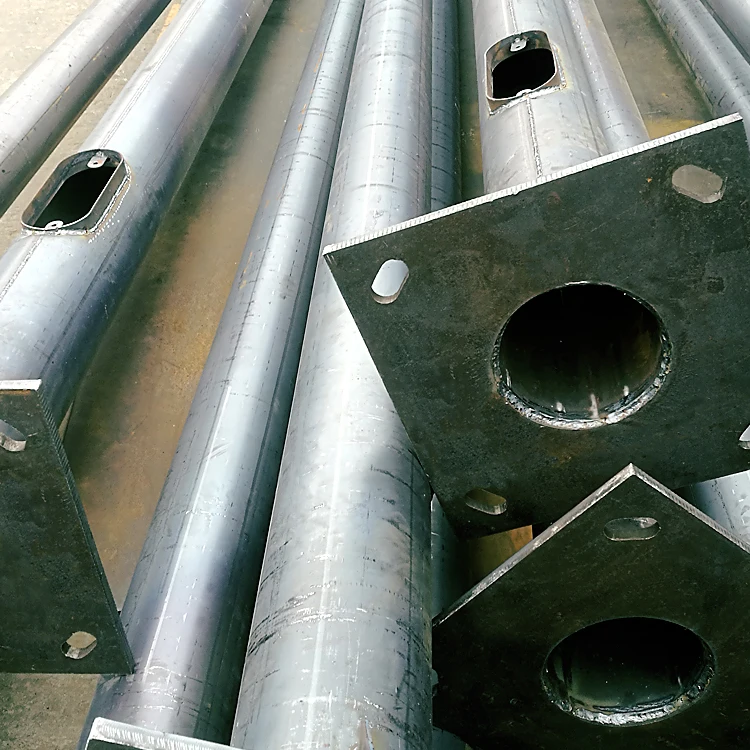

Lamp pole process description:

1, using high-quality light pole, material Q235B, hot-dip galvanizing inside and outside after welding;

2, the lamp arm is a split lamp arm, reducing the volume and reducing transportation costs;

3. The light plate bracket is a split structure, reducing Volume, reduce transportation costs;

4, accessories: connecting bolts are all made of stainless steel;

5, packaging: bubble film packaging;



Road light standard parameters

height/m	Lower caliber/mm	Uppercaliber/mm	Wall thickness/mm	weight/kg	Arm length/mm	Opening height/mm	Opening size/mm	Anchor bolt/mm	Pitch/mm	LED light source
5000	60	135	2.75	42	850	300	75*120	M16*550*4	Diagonal260	20-40W
6000	60	135	2.75	49	850	300	75*120	M16*550*4	Diagonal260	30-50W
7000	60	135	2.75	54	850	300	75*120	M16*550*4	Diagonal260	30-60W
8000	60	165	3.0	81	1000	300	115*235	M18*750*4	Diagonal280	50-100W
9000	70	175	3.5	116	1200	300	115*235	M18*750*4	Diagonal350	50-100W
10000	70	175	3.5	127	1200	300	115*235	M18*750*4	Diagonal350	80-120W
11000	72	213	3.75	177	1500	500	115*235	M24*1000*4	Diagonal300	80-120W
12000	72	213	3.75	192	1500	500	115*235	M24*1000*4	Diagonal300	80-120W
