HK0810 RS Drawn cup needle roller bearing
- Category: >>>
- Supplier: Shanghai Chenghui Bearing Co. Ltd.
Share on (60845084007):
Product Overview
Description
Product photos
Specifications
| Inside diameter (mm): | 8 |
| Outside diameter (mm): | 12 |
| Width (mm): | 10 |
| Weight | 3 g |
| Shell Material | sheet steel |
| Needle roller material: | through hardened Chrome Steel |
| Cage material: | sheet steel |
| Seal | nitrile rubber |

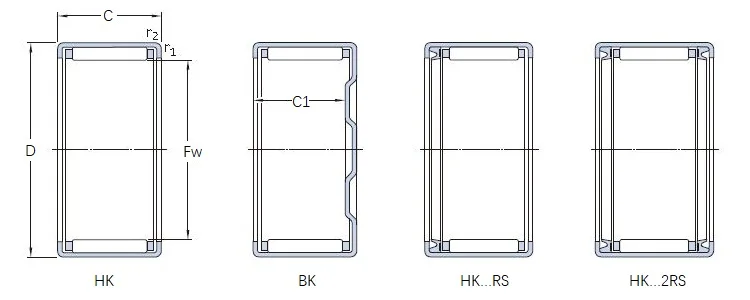

HK...RS Drawn Cup Needle Roller Bearings
| Designation | Fw | D | C | Weight | Designation | Fw | D | C | Weight | |
| mm | mm | mm | g | mm | mm | mm | g | |||
| HK0810-2RS | 8 | 12 | 10 | 3 | HK0810-RS | 8 | 12 | 10 | 3 | |
| HK0812-2RS | 8 | 12 | 12 | 3 | HK0812-RS | 8 | 12 | 12 | 3.1 | |
| HK1010-2RS | 10 | 14 | 10 | 4 | HK1012-RS | 10 | 14 | 12 | 4 | |
| HK1012-2RS | 10 | 14 | 12 | 4.3 | HK1214-RS | 12 | 18 | 14 | 10 | |
| HK1014-2RS | 10 | 14 | 14 | 5 | HK1414-RS | 14 | 20 | 14 | 12 | |
| HK1214-2RS | 12 | 16 | 14 | 11 | HK1514-RS | 15 | 21 | 14 | 12 | |
| HK1216-2RS | 12 | 18 | 16 | 11 | HK1518-RS | 15 | 21 | 18 | 16 | |
| HK1416-2RS | 14 | 20 | 16 | 13 | HK1614-RS | 16 | 22 | 14 | 13 | |
| HK1516-2RS | 15 | 21 | 16 | 15 | HK1814-RS | 18 | 24 | 14 | 14 | |
| HK1520-2RS | 15 | 21 | 20 | 18 | HK2018-RS | 20 | 26 | 18 | 21 | |
| HK1616-2RS | 16 | 22 | 16 | 14 | HK202918-RS | 20 | 29 | 18 | 21 | |
| HK1620-2RS | 16 | 22 | 20 | 18 | HK2214-RS | 22 | 28 | 14 | 16 | |
| HK1816-2RS | 18 | 24 | 16 | 15 | HK2218-RS | 22 | 28 | 18 | 24 | |
| HK2016-2RS | 20 | 26 | 16 | 18 | HK2518-RS | 25 | 32 | 18 | 29 | |
| HK2020-2RS | 20 | 26 | 20 | 23 | HK2818-RS | 28 | 35 | 18 | 31 | |
| HK2216-2RS | 22 | 28 | 16 | 18 | HK3018-RS | 30 | 37 | 18 | 37 | |
| HK2218-2RS | 22 | 28 | 18 | 24 | HK3518-RS | 35 | 42 | 18 | 39 | |
| HK2220-2RS | 22 | 28 | 20 | 26 | HK4018-RS | 40 | 47 | 18 | 45 | |
| HK2516-2RS | 25 | 32 | 16 | 27 | HK4518-RS | 45 | 52 | 18 | 50 | |
| HK2520-2RS | 25 | 32 | 20 | 31 | HK5022-RS | 50 | 58 | 22 | 76 | |
| HK2524-2RS | 25 | 32 | 24 | 40 | ||||||
| HK2530-2RS | 25 | 32 | 30 | 47 | ||||||
| HK2820-2RS | 28 | 35 | 20 | 34 | ||||||
| HK3016-2RS | 30 | 37 | 16 | 31 | ||||||
| HK3020-2RS | 30 | 37 | 20 | 36 | ||||||
| HK3024-2RS | 30 | 37 | 24 | 44 | ||||||
| HK3516-2RS | 35 | 42 | 16 | 32 | ||||||
| HK3520-2RS | 35 | 42 | 20 | 41 | ||||||
| HK4016-2RS | 40 | 47 | 16 | 37 | ||||||
| HK4020-2RS | 40 | 47 | 20 | 48 | ||||||
| HK4520-2RS | 45 | 52 | 20 | 54 | ||||||
| HK5024-2RS | 50 | 58 | 24 | 81 |
