Product Overview
Description
\t\t\t\t\t\t\t\t\tCompany Introduction \t\t\t\t\t\t\t
As 15 years laser machinery manufacturer, Best Laser is committed to providing customers with high-quality, reliable laser machines.
As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine all have got CE certification. Best Laser also has got TUV and FDA certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
To be recognized as China's foremost manufacturer and supplier of laser marking, engraving, etching and cutting systems. Dedicated to providing the best-quality equipment and services all over the world. Looking for distributors and users globally!
Product Description

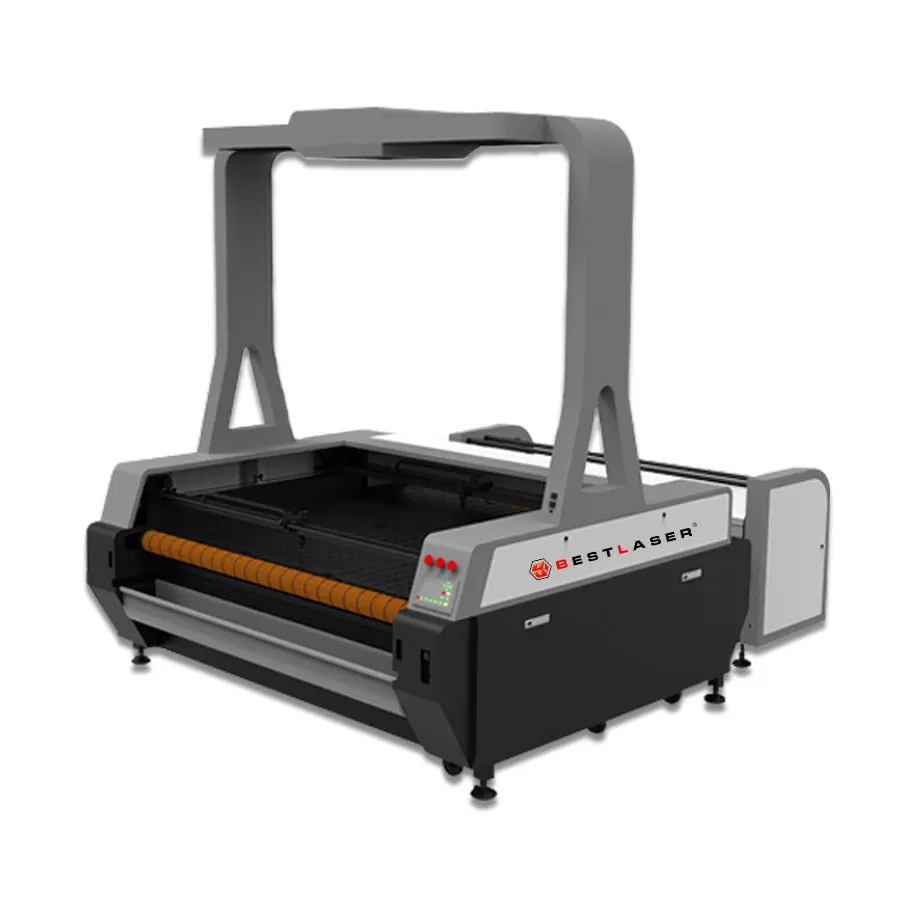

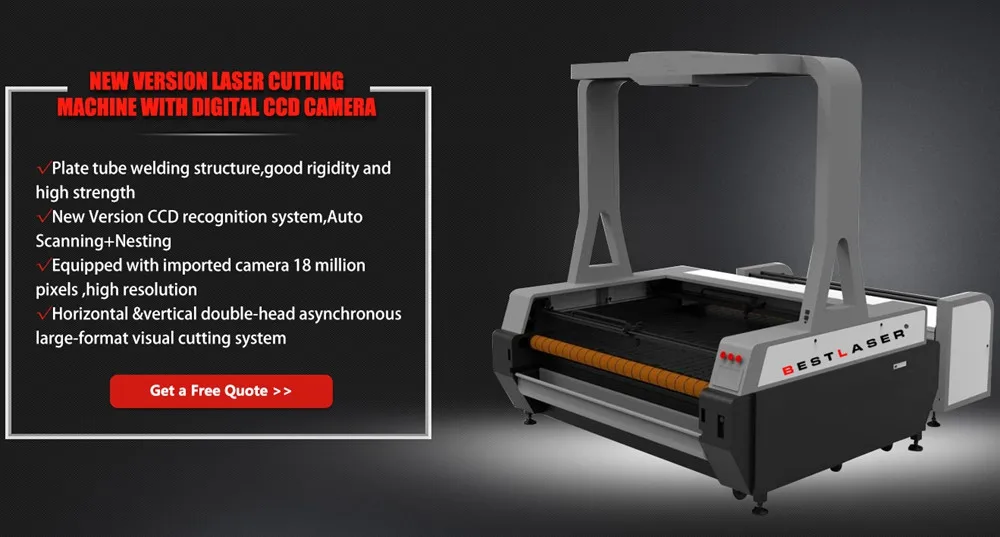

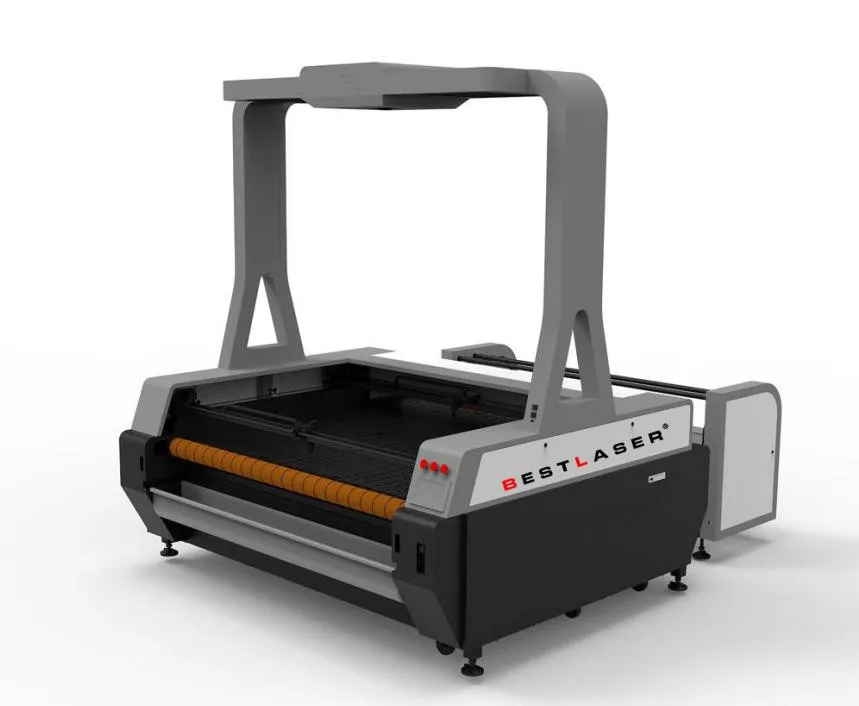

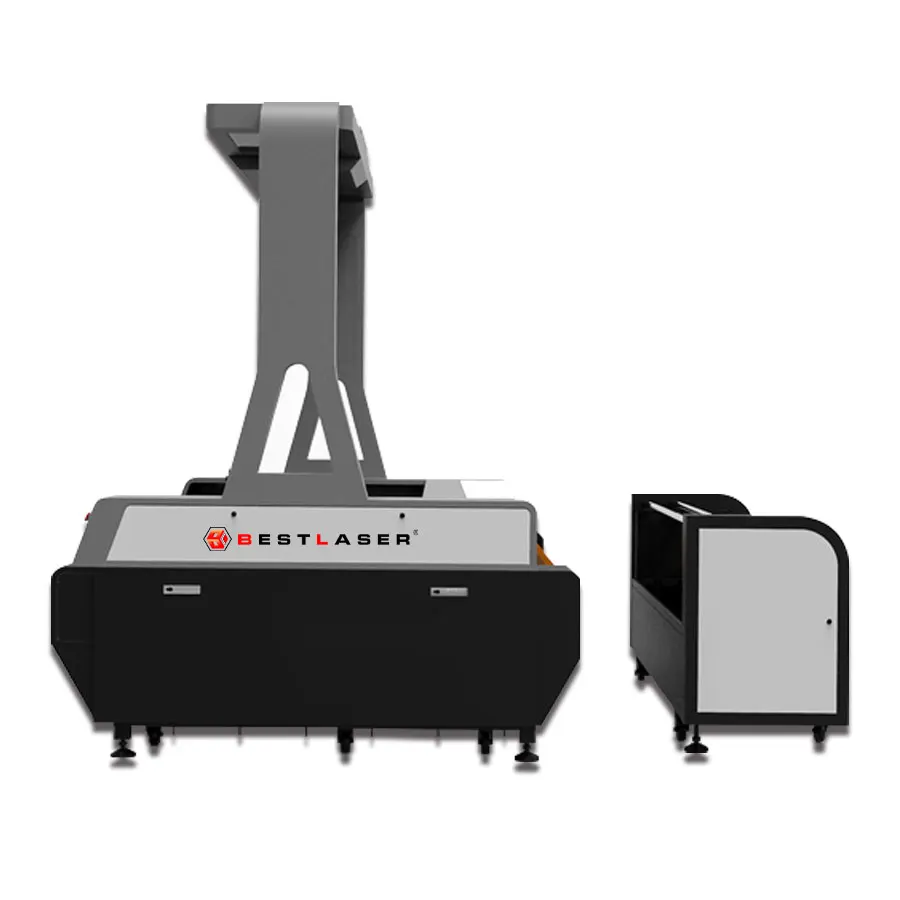

laser engraver 150 watt fabric cutter with ccd camera scanner
new ccd version laser cutting machine for fabric flower introduction
Product Category: Auto feeding Laser Cutting Machine with CCD camera
Main Feature:
1) Working area: 1800mm*1000mm
2) working table:B type mesh belt
This machine is mainly for the fast cutting of printed soft materials,has the unique advantaged of stable performance and high processing efficiency, occupying area with 2800*2430mm.
Adopting plate tube welding, which has good rigidity and high strength. The motion system adopts the inner rail module system, with stale structure and convenient for adjust. Controlling system adopts the domestic horizontal and vertical double-head asynchronous large-format visual laser cutting system, double laser head can cut different graphics, automatically extract cutting outlines, automatically typesetting, optimize the path, automatically feeding and discharging materials, greatly improving production efficiency.
Main Feature:
1) Working area: 1800mm*1000mm
2) working table:B type mesh belt
3) laser type :sealed co2 laser tube80W/100W/150W
Adopting plate tube welding, which has good rigidity and high strength. The motion system adopts the inner rail module system, with stale structure and convenient for adjust. Controlling system adopts the domestic horizontal and vertical double-head asynchronous large-format visual laser cutting system, double laser head can cut different graphics, automatically extract cutting outlines, automatically typesetting, optimize the path, automatically feeding and discharging materials, greatly improving production efficiency.

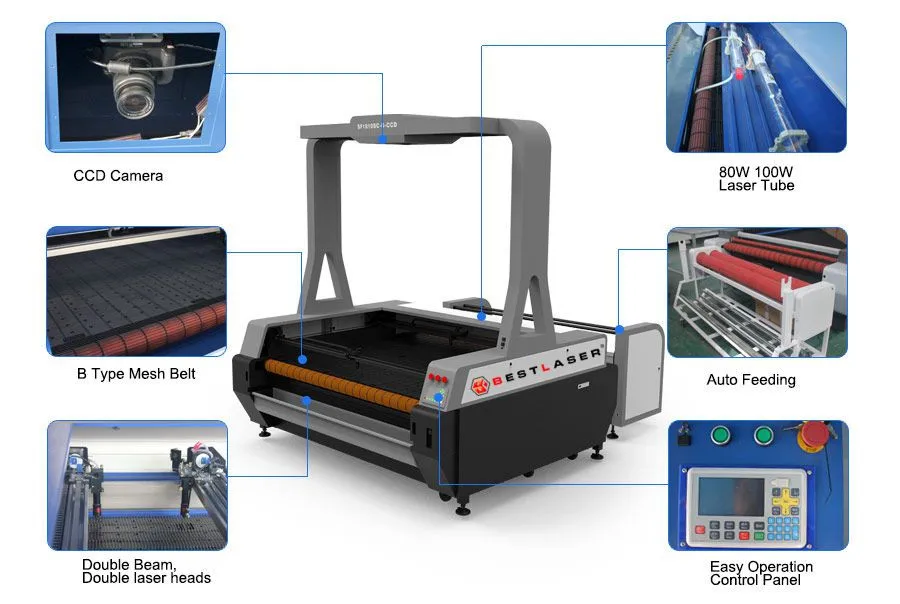

ccd laser cutting machine for fabric flower Unique Features
1.The machine frame adopts the plate tube welding structure, which has good rigidity,
high strength and good stability.
2.The motion system uses inner rail module, which is more stable and easy to adjust.3.High-quality domestic stepping motor, synchronous belt, imported lenses to ensure stable machine performance.
4.Adopting conveyor belt system with customized stainless steel conveyor belt vacuum
absorbing table structure, which has large adsorption force and stable operation.
5.The automatic feeding and rolling system cloth greatly save manpower and improve the
processing efficiency
6.Automatic correcting device can be selected. In the process of automatic discharging, the equipment corrects the offset generated during the material conveying process through the correcting system to achieve high-precision graphic stitching precision.8. Equipped with luxury consumables, USA original focus lens and reflecting mirror, chinese best quality Laser Tube, makes high efficiency and steady.9. Adopt high speed step driving system, high precision repetition, litter error, numeral timing,
simulation quantum control laser power, can engrave 1×1mm little English character perfectly.
10. Red Light Pointer realizes the exact position without laser.
Controlling System:
Adopting domestic double-head asynchronous laser cutting system which support two laser heads cutting different graphic at same time ;it can reasonably distribute two laser head processing patterns according to the typesetting graphic data, thereby improving production efficiency. And equipped with a large-format vision system, automatic extract graphic outline and multi-template matching processing.
Hardware Configuration:
USB2.0 interface, support U disk
Number of control axes: 2-axis linkage line and arc interpolation, optional expansion axis application;
Control motor: domestic stepper motor;
It has power-off protection function and strong anti-interference performance.
Software features:
4.3-inch full color display, Chinese and English menu, intuitive and concise;
Support double X, double Y double head asynchronous cutting
Support double beam 4 head asynchronous cutting
Support automatic feeding, super-format split cutting
Support large-format visual double-head asynchronous cutting
Support U disk offline file preview
Support network communication and USB communication, stable transmission and fast speed
Support perfect power cut-off function
Adopting domestic double-head asynchronous laser cutting system which support two laser heads cutting different graphic at same time ;it can reasonably distribute two laser head processing patterns according to the typesetting graphic data, thereby improving production efficiency. And equipped with a large-format vision system, automatic extract graphic outline and multi-template matching processing.
Hardware Configuration:
USB2.0 interface, support U disk
Number of control axes: 2-axis linkage line and arc interpolation, optional expansion axis application;
Control motor: domestic stepper motor;
It has power-off protection function and strong anti-interference performance.
Software features:
4.3-inch full color display, Chinese and English menu, intuitive and concise;
Support double X, double Y double head asynchronous cutting
Support double beam 4 head asynchronous cutting
Support automatic feeding, super-format split cutting
Support large-format visual double-head asynchronous cutting
Support U disk offline file preview
Support network communication and USB communication, stable transmission and fast speed
Support perfect power cut-off function
Detailed Images

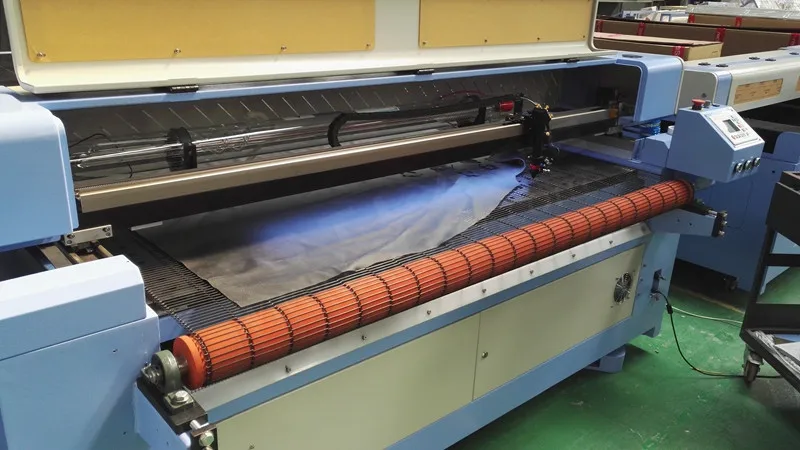

Crawler-type Conveyor

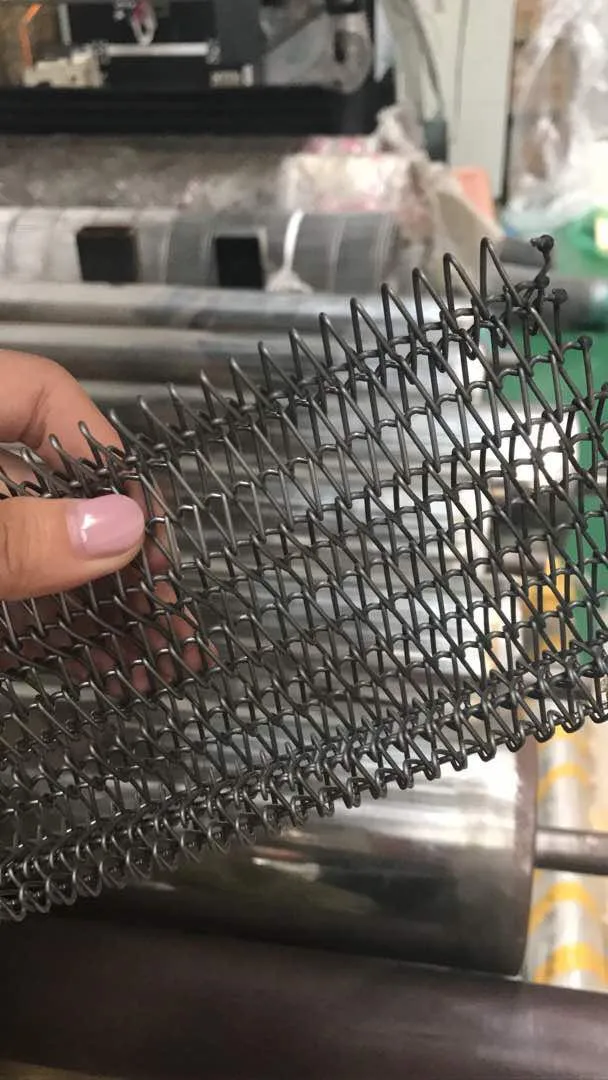

Working Table
1.)Specially Used for one roller of cloth /fabric /leather /garment which ca feed the materials
automatically which largey save loading and
discharge time
.2.)With small hold chin working table which can make the materials even during engraving and cutting,
can absorb soft materials like silk to working table strictly

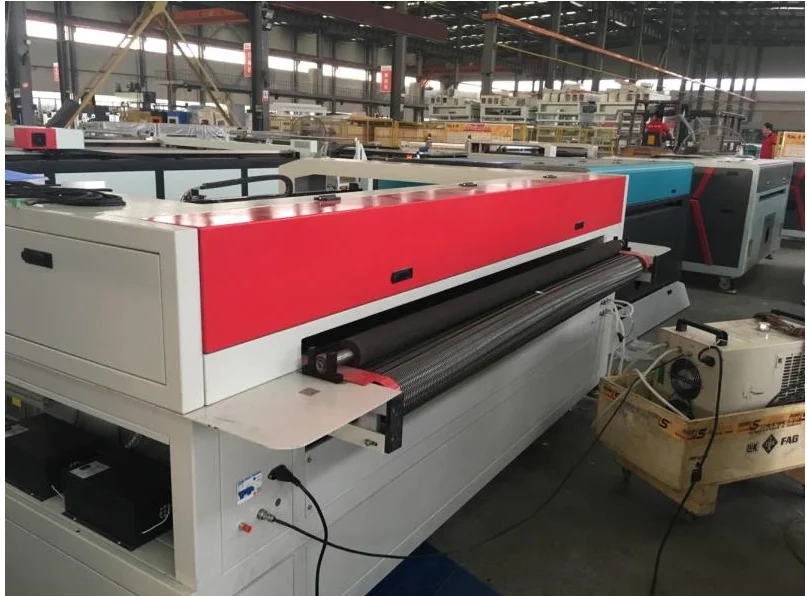

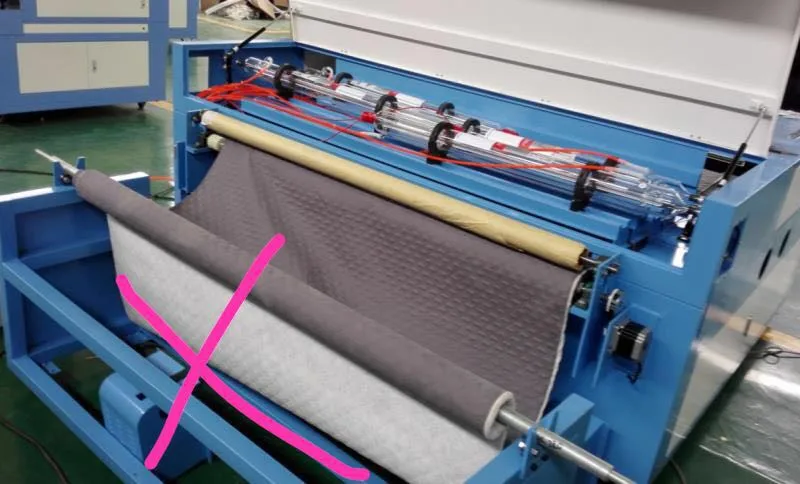

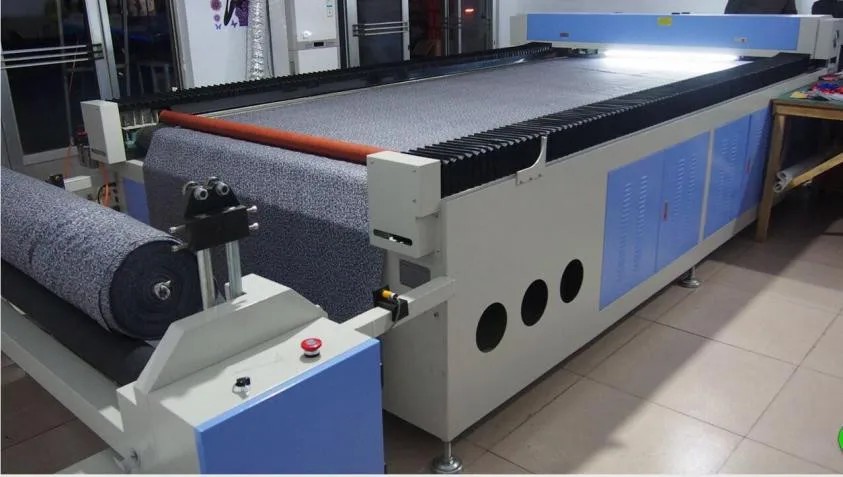

Auto Feeding & Rolling System
for Fabric/Garment/Leather
Suitable for engraving/cutting on one roller of cloth /fabric /leather /garment, the machine can be fixed with a selective rolling & automatic feeding system,which make the whole cloth processing steps finish one time.realize the long work piece automatically completely, such as one
roller of cloth/fabric/leather/garment
Auto Feeding System Frame
It can feed one roll of materials automatically ,you can not select this part with machine
if not want

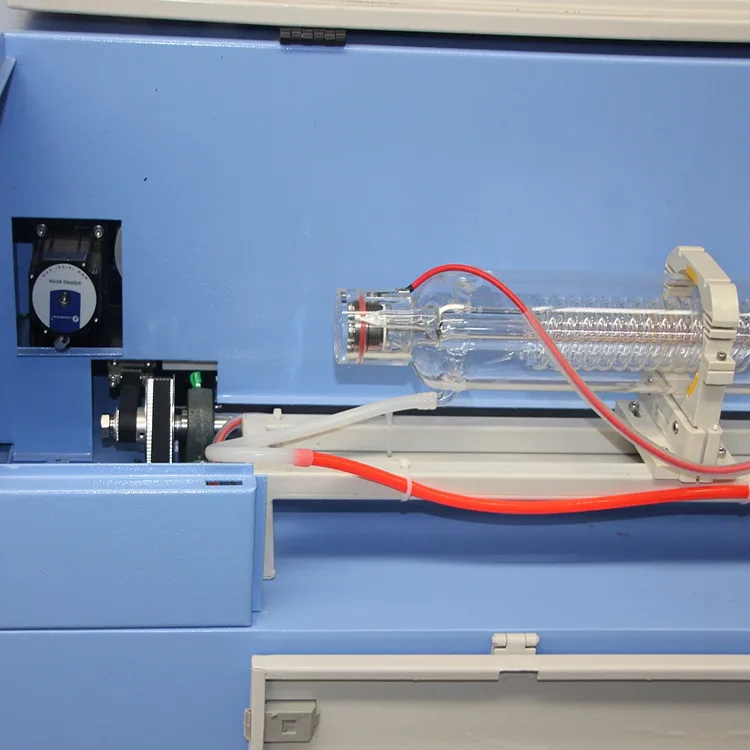

Laser Tube
Top China Brand Glass Sealed Laser Tube,high stability,longer lifetime (10000 hours) and good after sales service

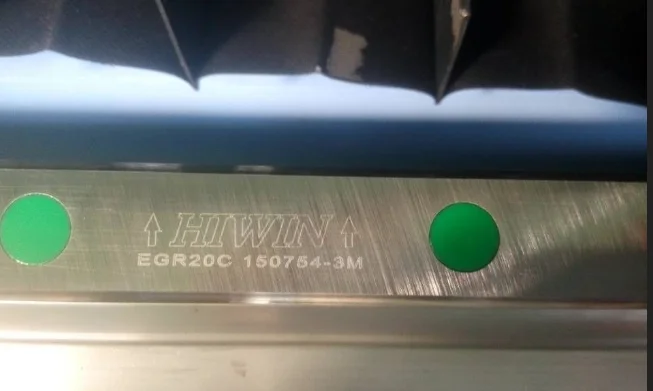

Taiwan Brand Linear Guide Rail
High speed+accuracy+low noise&long lifetime helps laser head move smoothly,

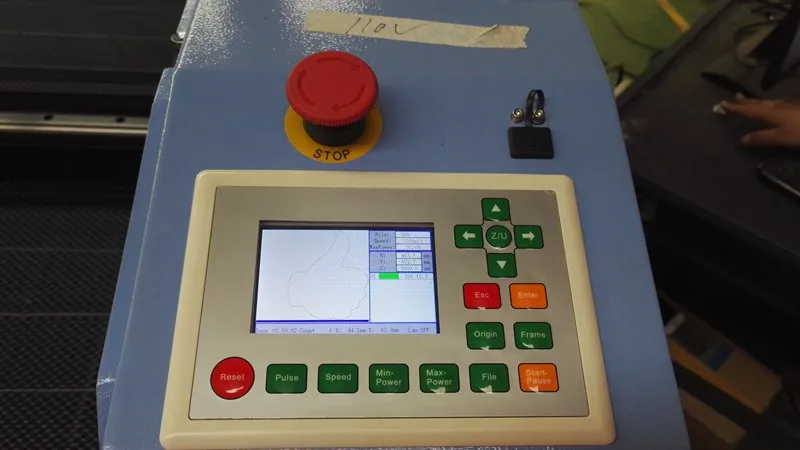

Control Panel
English version control panel , easy coperation,
support USB offline control and PC control

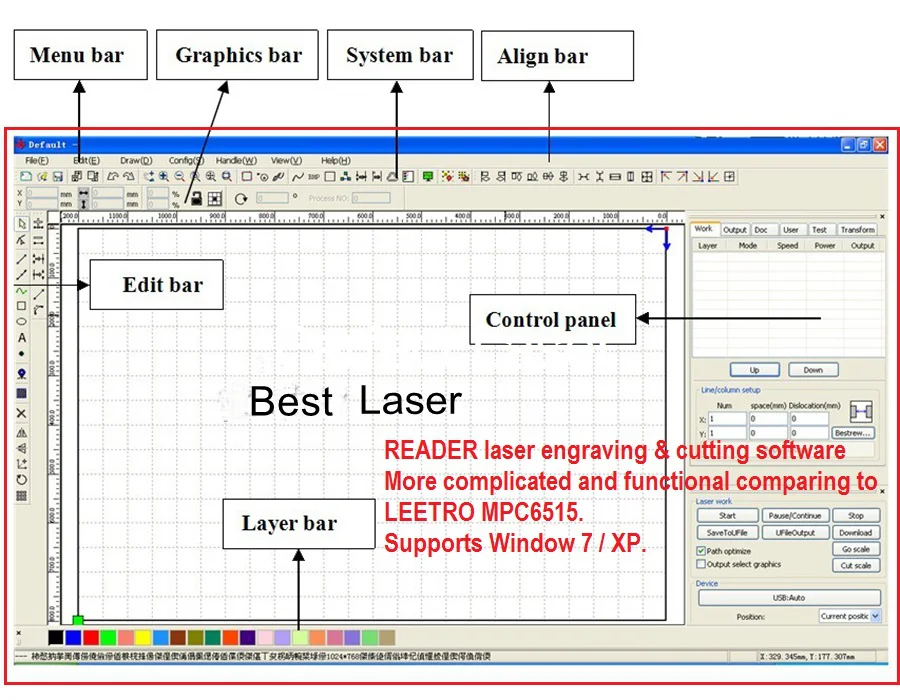

English Software
Powerful edit +power off memory function+supporting design with various format, it support English and other language

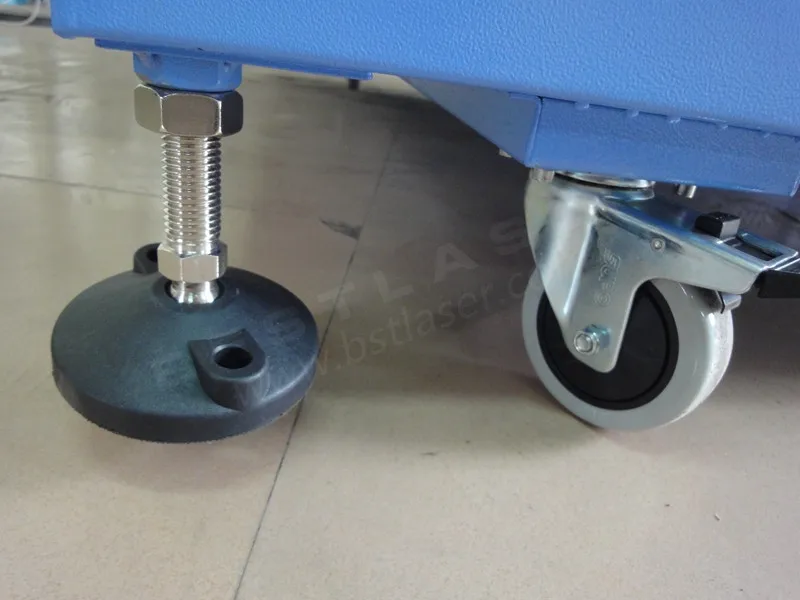

Full-Direction Wheel
Easy move and lock to fix the position.

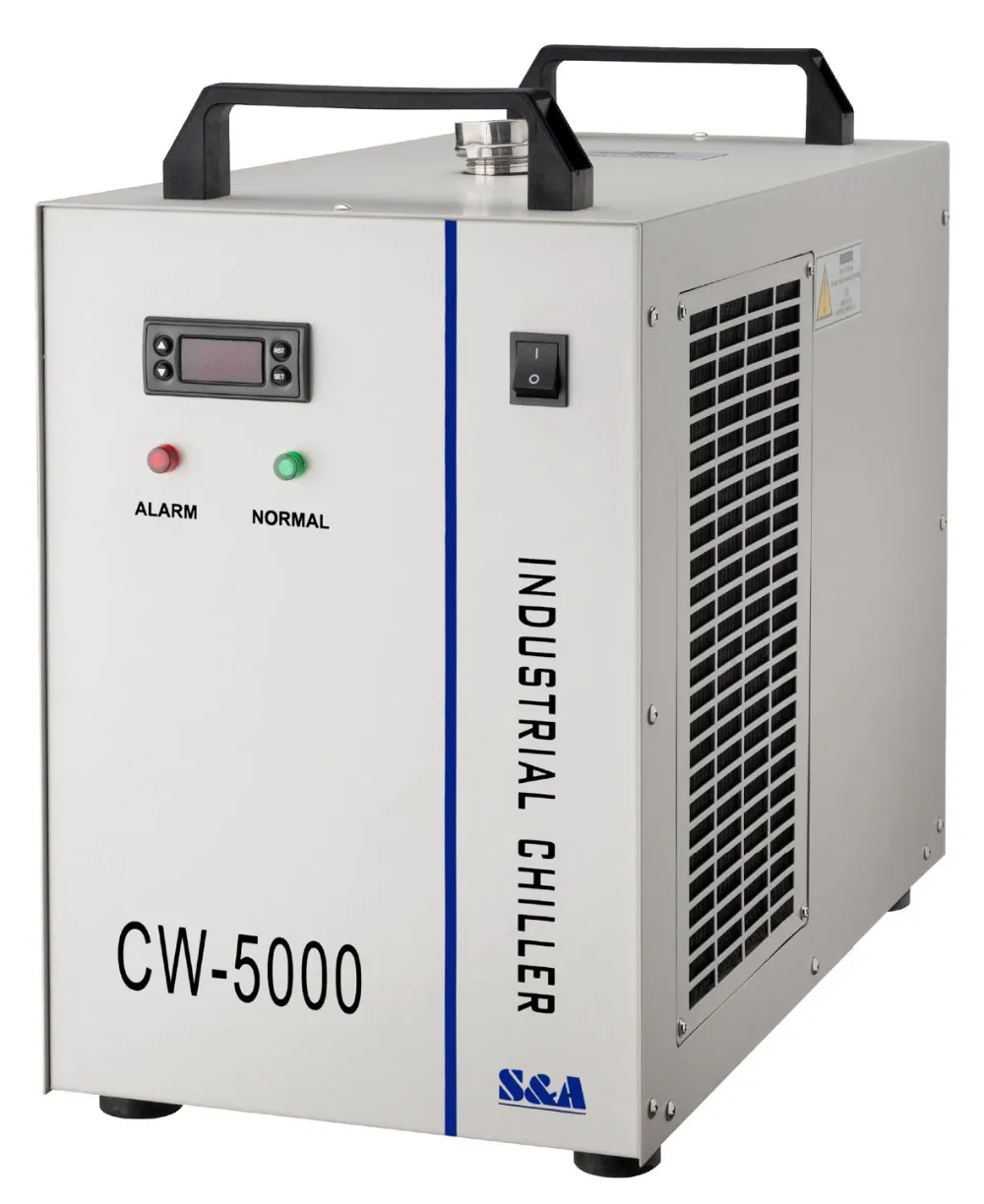

Water Chiller with Alarm
Protection
1.)Top China Brand Industrial Air-conditional water chiller .
2.)Have temperature display and alarm
function which can avoid over burning Protects the water circulation from electricity-off.
Technical Data
Model | CCD Fabric Laser Cutting Equipment BE-DK1810D | ||||
Working Area | 1800mm*1000mm | ||||
Software | RUIDA | ||||
Controlling software | DSP control system | ||||
Positioning Accuracy | ±0.05mm(no red light) | ||||
Laser Power | 80W/100W/150W | ||||
Working table | B type mesh belt | ||||
Image Format Supported | BMP,PLT,DST,AI,DXF,etc | ||||
Cooling System | Circulation water cooling | ||||
Power Supply | AC220±10%,50-60Hz,30A max | ||||
Driving Motor | stepper motor | ||||
Working Temperature | 0-45℃ | ||||
Working Humidity | 5%-95% | ||||
Controlling System | CNC Professional Control System | ||||
Support Graphics Mode | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc. | ||||
Cooling Mode | Circulation Water Cooling and Protection System | ||||
Auxiliary Devices | Exhaust Fan and Exhaust Pipe | ||||

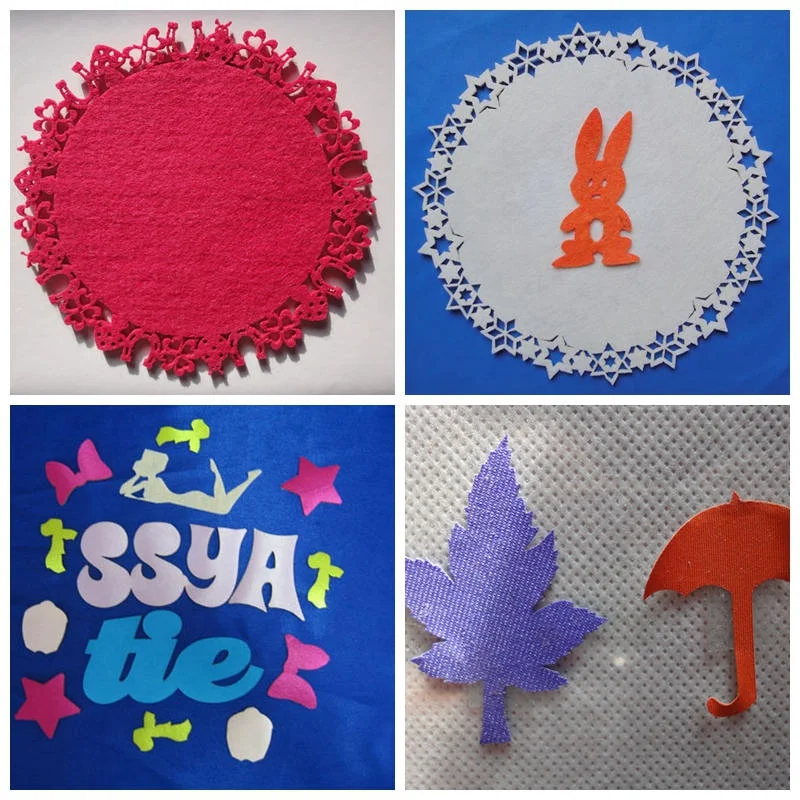

Demo Marking Samples
ccd laser cutting machine for fabric Application :
Available Materials:
genuine leather,artificial leather ,soft leather,decorative leather, packaging leather ,etc . all kinds of leather,leather materials ,pure cotton , real silk , all kinds of chemical fiber, jeans and so on .all kinds of textile materials, or non-woven material.
Application Industry:
genuine leather,artificial leather ,soft leather,decorative leather, packaging leather ,etc . all kinds of leather,leather materials ,pure cotton , real silk , all kinds of chemical fiber, jeans and so on .all kinds of textile materials, or non-woven material.
Application Industry:
clothing,home textiles, embroidery ,BUWAN , leather, Luggage ,outdoors ,,sportsware,
car seat cloth .
Packing & Delivery
Packaging | ||
Size | 229*169*115cm | |
Weight | 650kg | |
Packaging Details | We have 3 layers package. 1.Outside:we adopt wood craft case. 2.Middle: the machine is covered by foam, to protect the machine from shaking. 3. Inside layer, the machine is covered by thickening plastic bag for waterproof. | |
\t\t\t\t\t\t\t\t\tFAQ for Co2 Laser \t\t\t\t\t\t\t
FAQ for Best Laser Co2 Laser Engraving Cutting Machine
Q1:What material can co2 laser machine apply to ?
A:It can be used for engraving and cutting all non-metal materials like acrylic cutting, acrylic engraving machine, wood cutting, wood engraving, fabric /leather /cloth /textile engraving and cutting . as it's non-contact way so it not bring any harm to materials surface which widely used in the fields of AD, garment industry ,decoration industry ,etc .
Q2 :What's the working size do you supply ?
A:small size laser engraving machine with 300×210mm,600×400mm, 900×600mm, 1300×900mm, 1600×1000mm working areas. Another is flat bed laser size type fabric cutting machine with 1300×1800mm, 1300×2500mm, 1600×2600mm ,1600×2600mm working areas
Q3:What's the laser power for co2 laser engraving machine ?
A:About power , we supply power from 60w-150w
40W-60w :Mainly for engraving
80W-100W:Mainly for engraving and cutting
120w-180w:Mainly for cutting
Q4:What's the laser tube brand do you use and guarantee ?
A:For laser tube above 80w we adopt Top China Brand Reci or EFR brand ((lifetime :10000 hours )
For small power like 50w / 60w we adopt Yongli brand (lifetime :3000-4000 hours ).
Q5:What's the consumables for co2 laser machine ? any parts need to change after some usage ?
A:The only fitting parts and consumable for co2 laser machine is laser tube and mirrors ,
To save shipping fare and urgent usage, we recommend you order some with machine together by sea shipment
Q7:If I don't know how to use the machine, can you teach me?
A:) We offer worldwide installation, training and aftersales services(optional). Our professional and
experienced technicians will come to your local warehouse to install, train or check machine or solve the
aftersales problem.
B:1) There is a DVD disc including machine user manual and software user manual c/w machine. 2) Online (skype & phone) 3) Remote desktop software (Teamviewer) 4) Demo Video
\t\t\t\t\t\t\t\t\tContact \t\t\t\t\t\t\t
Please contact Best Laser for more information. Your kind reply of following questions will help us to recommend the most suitable machine.
1, are you looking for laser cutting machine? Or other type of laser machine (laser engraving, laser marking...)?
2, what material do you need to cut (or engrave)?
3, Is that in roll or in sheet of the material? what is the size and thickness of the material?
4, after processed, what will be the material used for? (application)
