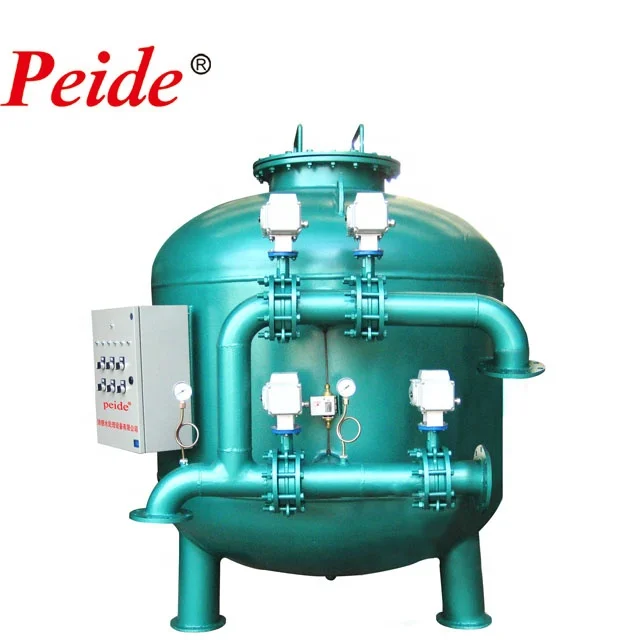

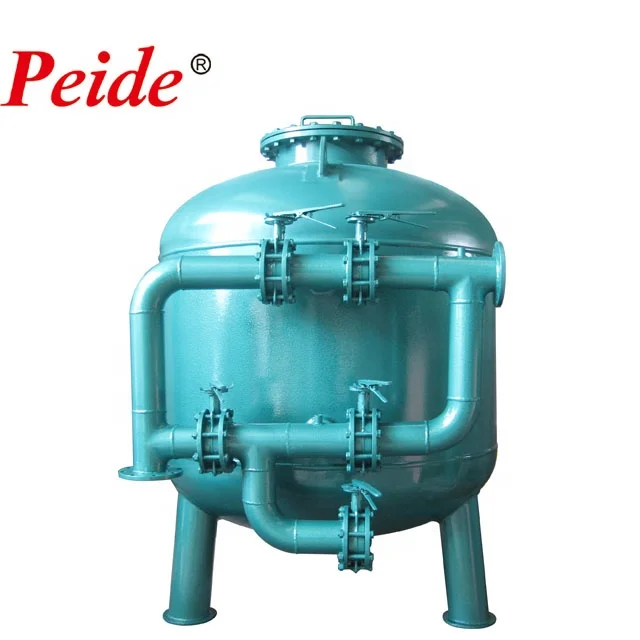

Quartz sand filter removes impurities from raw water to achieve water reuse. Filter is automatic operation and back-flushing, under control system of dp-switch (pressure drop), butterfly and PLC control system.

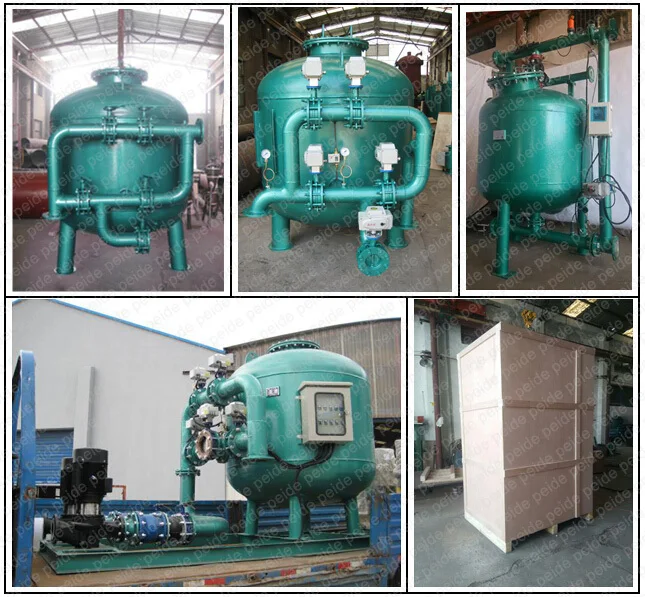

Stainless steel water filter Pictures

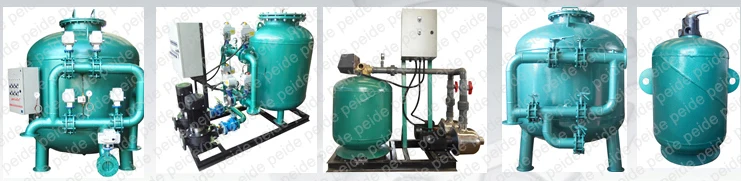

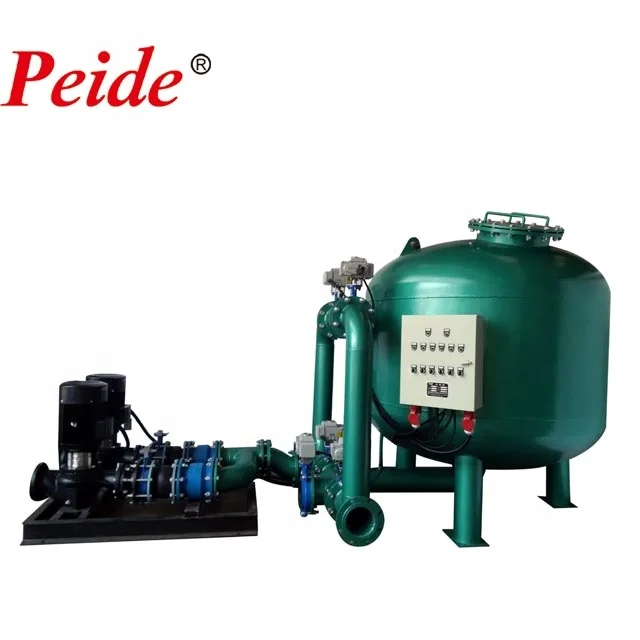

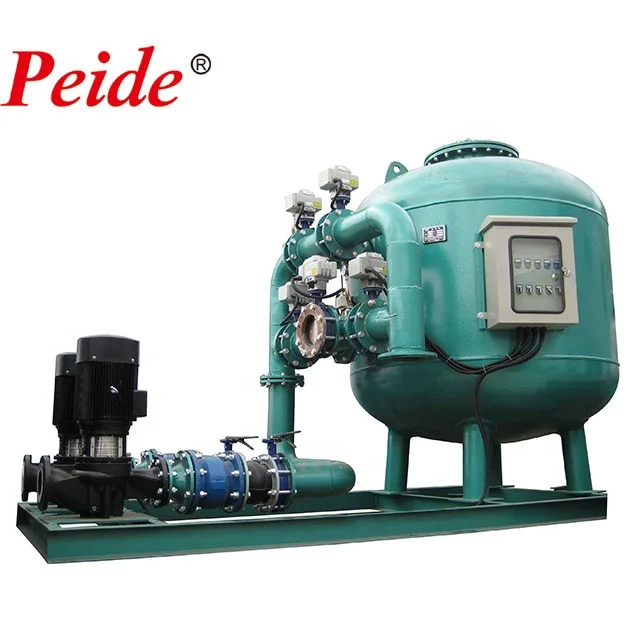

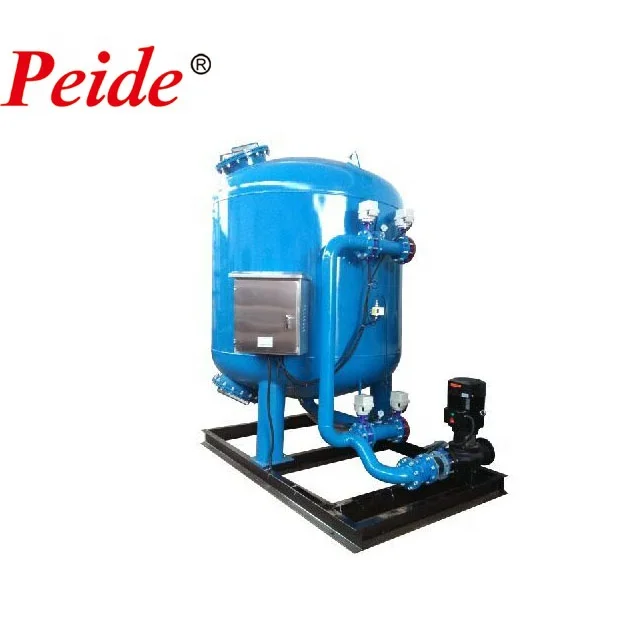

Big-flow auto Small-flow auto Small-flow auto big-flow manual small-flow manual
How does the Stainless steel water filter works
Raw water passes inside water distributor into filter media layer (quartz sand), which let impurities stay at sand layer. Clean water flow out stably from water collector. When the pressure drop reaches the given value, the cleaning cycle is started. The rinse control start working at pressure drop value at 0.05-0.15MPa, return to 0.02-0.04MPa after back flushing.
Quartz sand inside tank mixed with coarse and fine sands. They are allocated above water distributor averagely. Even in back flushing, water consumption is little. Tank inside has rubber line and plastic line for option. It is for anti-corrosion, which ensure a tank can be used 10-20years. The completed filter control system has finished already in factory.
Technical Parameter
Stainless steel water filter Parameter
Single Flow Rate
6-300m3/H
Design Pressure
7.5-16 bar
Water inlet pressure
2.5-3 bar
The Range of Working Temperature
20-120.C (68-248.F)
Seal Type
O-ring and Washer
Connect Method
Flange
Surface Treatment
Matt Spray Beads, Mirror Polishing, Electropolishing
Control Method
Differential pressure switch, Time control and manual control
We can supply different kind filter medium and combination
Equipment Chamber Material
Carbon steel 304ss or 316L
The key of filter effect
water distribution and catchment technology
Application
Where to use quartz Stainless steel water filter
Swimming pool, hotel spa, water entertainment, aquarium, fish farm
Irrigation in agriculture Drinking water pre-treatment Industrial recycled water, central air-condition system
Model Specification
We have models for choose
Quartz sand filter with water enters from top
Item
Model
Φ
(mm)
Height
(mm)
Connect size
(mm)
Filter area
Flow rate
(T/H)
1
QLQ500×700
520
816
40
0.2
6-10
2
QLQ600×766
620
874
40
0.28
8-14
3
QLQ700×819
720
899
40
0.38
12-19
4
QLQ800×872
820
957
50
0.5
15-25
5
QLQ900×1024
920
1104
50
0.64
18-30
6
QLQ1000×1079
1000
1164
50
0.79
23-39
7
QLQ1100×1131
1100
1211
50
0.95
28-47
8
QLQ1200×182
1200
1267
80
1.13
33-55
Quartz sand filter with water enters from side
Item
Model
Φ
(mm)
Height
(mm)
Connect size
(mm)
Filter area
Flow rate
(T/H)
1
QLQ1400×1700
1400
1700
100
1.54
45-75
2
QLQ1600×1800
1600
1800
150
2.01
60-100
3
QLQ1800×1900
1800
1800
150
2.54
75-125
4
QLQ2000×2000
2000
1900
150
3.14
95-155
5
QLQ2000×2000
2200
2000
150
3.8
115-190
6
QLQ2400×2100
2400
2100
150
4.52
130-210
7
QLQ2600×2400
2600
2400
150
5.3
145-225
8
QLQ2800×2500
2800
2500
200
6.15
155-240
9
QLQ3000×2600
3000
2600
200
7
170-255
Diagram on pressure drop

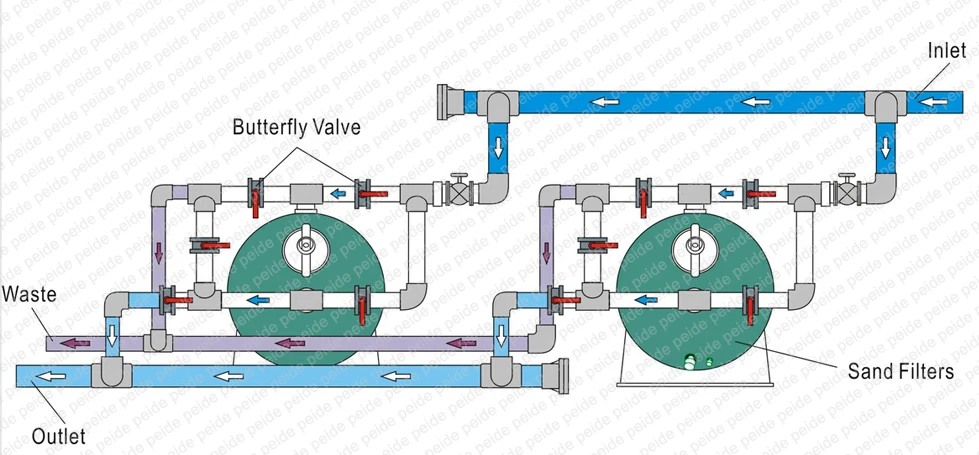

Installation Diagram
Drawings help you understand clear
Install Notice
Attentions in using
1. When quartz sand filter first into use, users should clean sand firstly, after that to start filtration.
2. Turn all operating valves slowly, to avoid water impact. 3. Keep sharp or hard things away from filter. 4. Keep away from fire and high temperature. 5. Make sure sand is clean when not using.
Irrigation industrial sand filter How to install ?
Before installing a quartz sand filter, please make sure the ground is strong and even. The space is big enough for connecting pipes, valves and repair.
The filter needs changes sands after using some time. Follow below steps one by one: 1.Take down control valve 2.Pour sand into tank, by covering a protective cover at the inlet to avoid sand inside After replacing new sand, return control valve, connect tightly. Remember there’s a pressure gauge, but not fasten it tightly. Make sure each pipe connection is correct and no leak.
Internal Fitting
Stainless steel water filter Inside look
Stainless steel water filter media

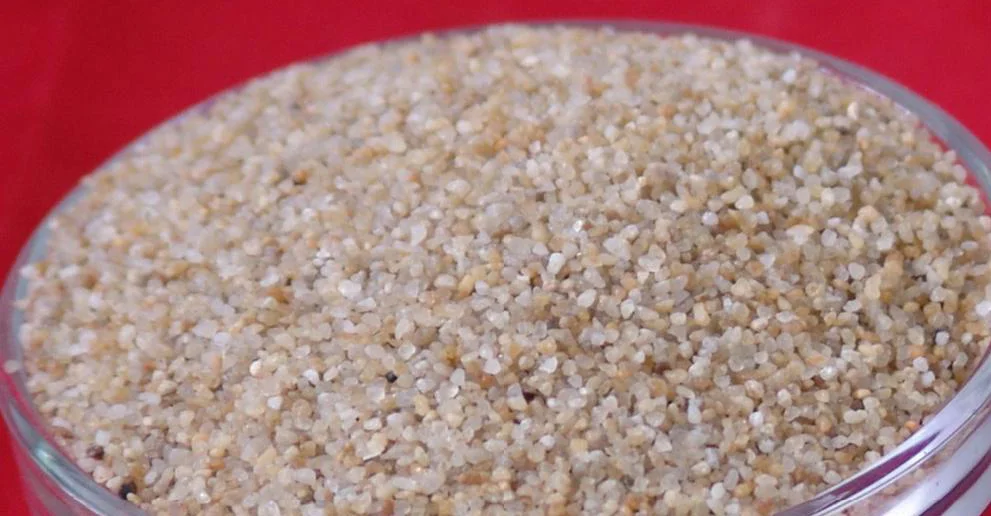

Natural quartz sand: contains SiO2, smooth and clean out appearance.
Quartz sand from mine bed: irregular shape of sand, with strong hardness. Sea sand: smooth and clean out appearance.
