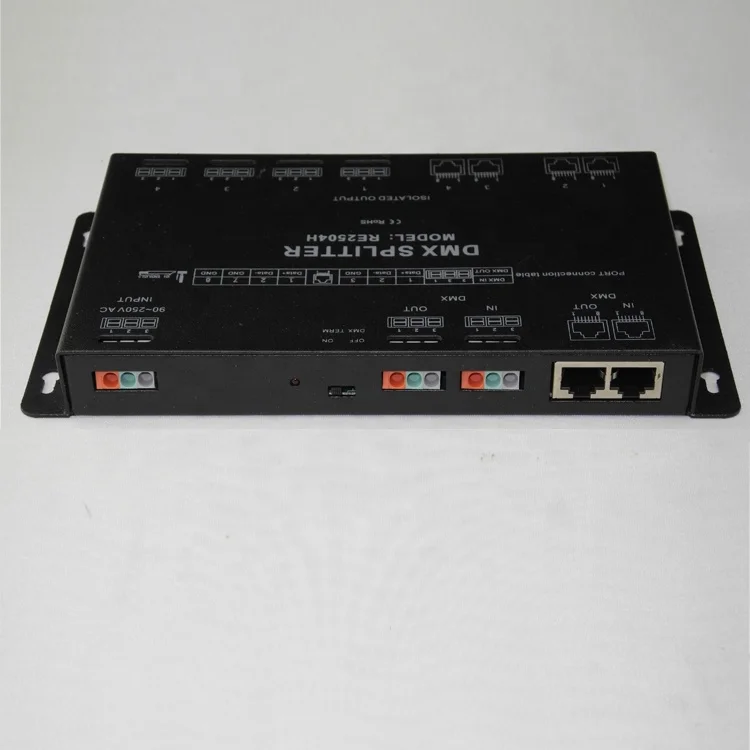

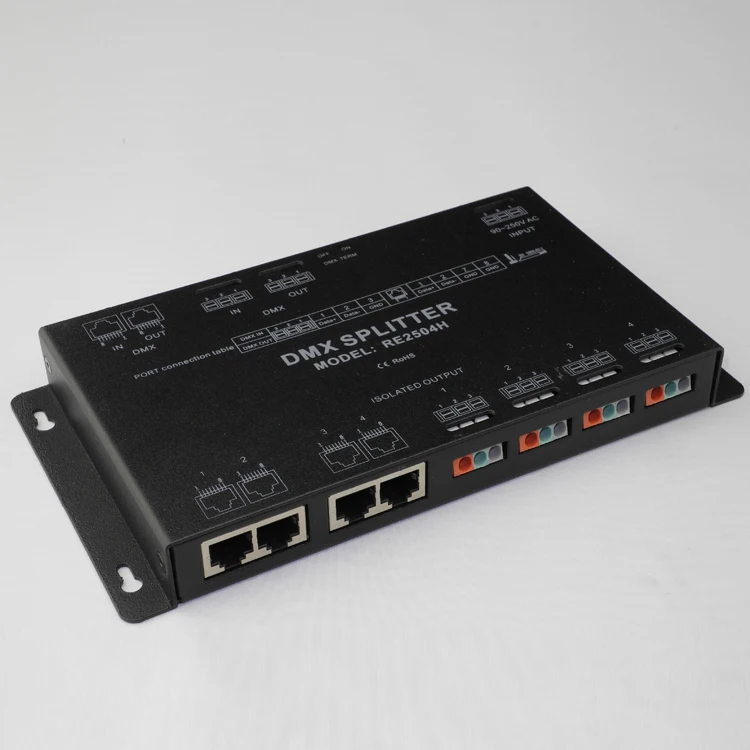

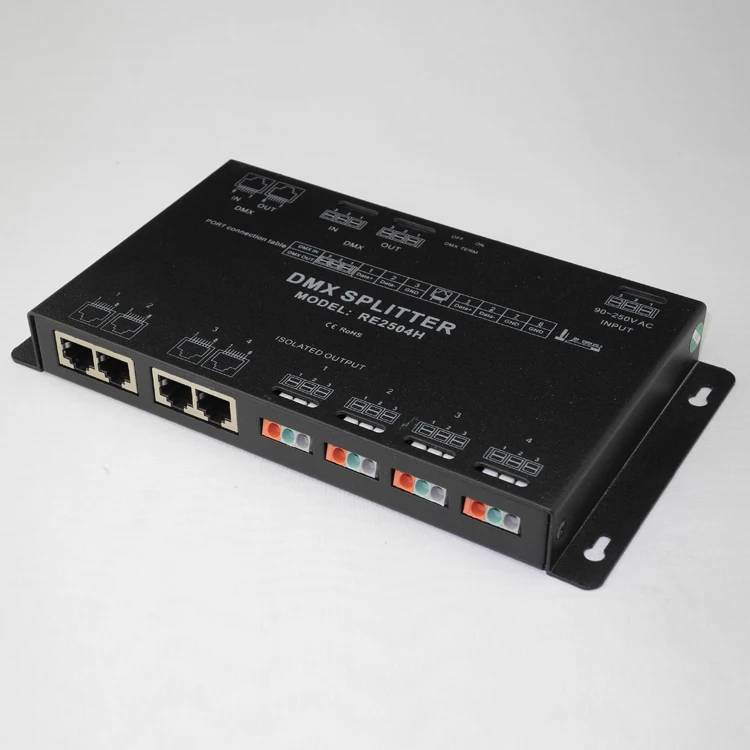

DMX512*4CH output DMX signal splitter

Features of 4CH DMX Signal Splitter RE2504H:

RE2000 digital signal distributor is used to DMX512 digital lighting control signal for amplification and 4 channels distribution output, each input/output interface adopts high voltage isolation technology, applied to DMX512 signal via remote transmission attenuation after the plastic amplification processing, as well as various distribution output interface, between input interface and the distribution between output interface to complete electrical isolation use occasion. As a result of each interface between independent isolation, and it can be avoided by controlling circuit, scanner, silicon box problems and burned precision digital light console, to ensure the safe operation of digital light console, at the same time also guarantee DMX signal can normal transfer to all kinds of lighting equipment, so as to improve the whole digital lighting control system reliability.

1), DMX signal amplification and 4 channels distribution output.

2), Each input/output interface adopts high voltage isolation technology.

3), Matching all kinds of lighting equipment.

4), Signal types: DMX512, and the RS-485 interface of various digital signal transmission.
5), Signals connected socket: RJ45 and 3 PIN press button terminal.
6), Output RJ45, 3 PIN pressure buckle terminals.
7), Input to output, output to output electrical isolation pressure: > 1000V.

Specifictions of 4CH DMX Signal Splitter RE2504H:

Input Voltage: 12-24VDC                             Channel: 1CH In & 4CH Out

Input Signal:DMX512                                    Output Signal:DMX512
Segregation Voltage: > 1000 V                   Power Consumption: <1.5W
Protection Grade: IP40                                 DMX Socket:RJ45/Press Button Terminal

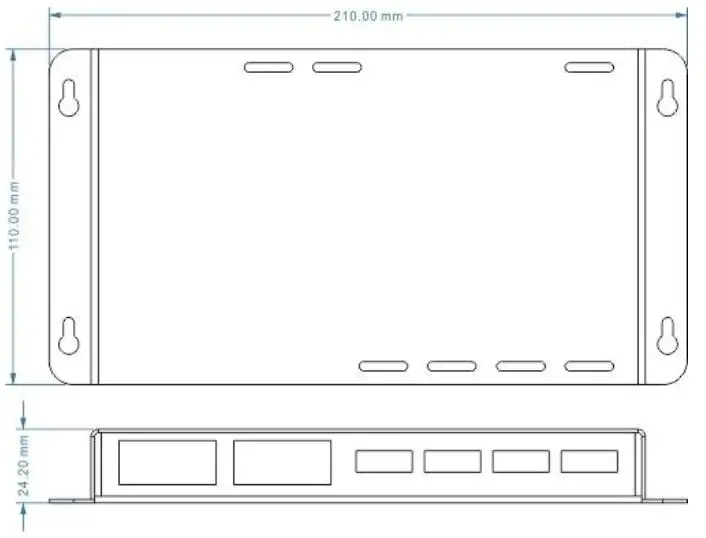

Gross Weight: 678g                                      Product Size: 210mm*W110mm*H24mm

Tech-Parameters of DMX Signal Splitter Series:

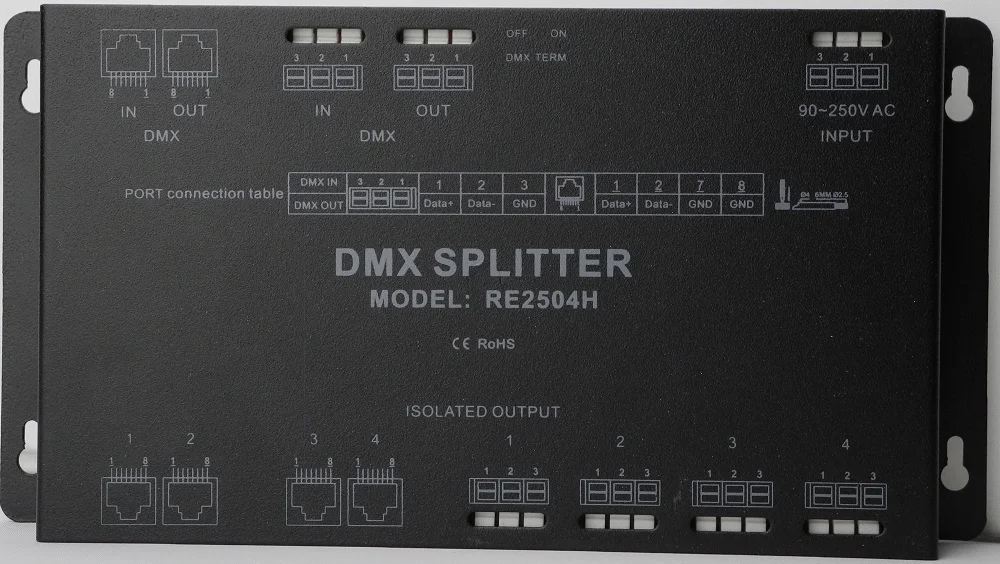

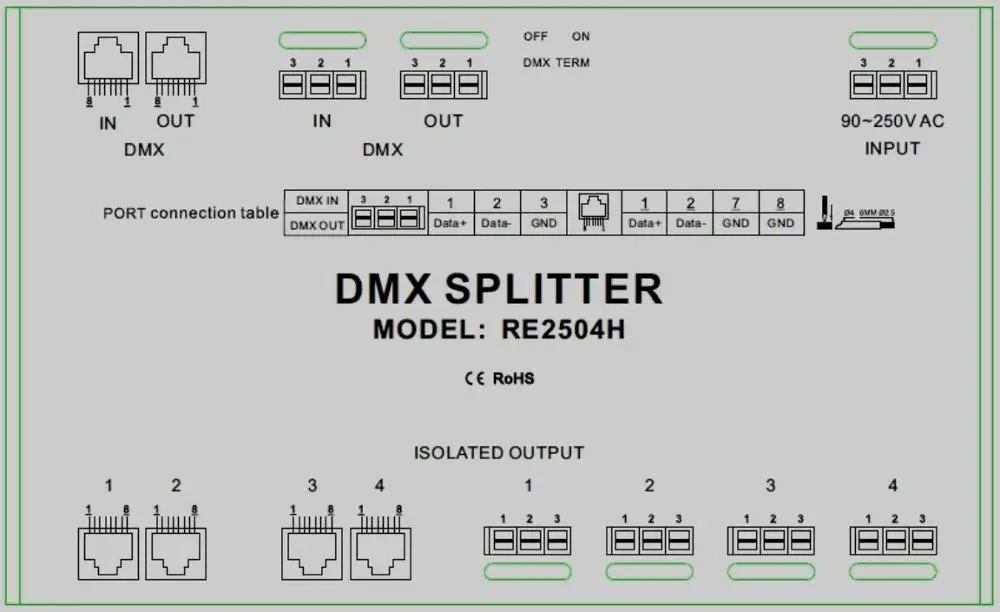

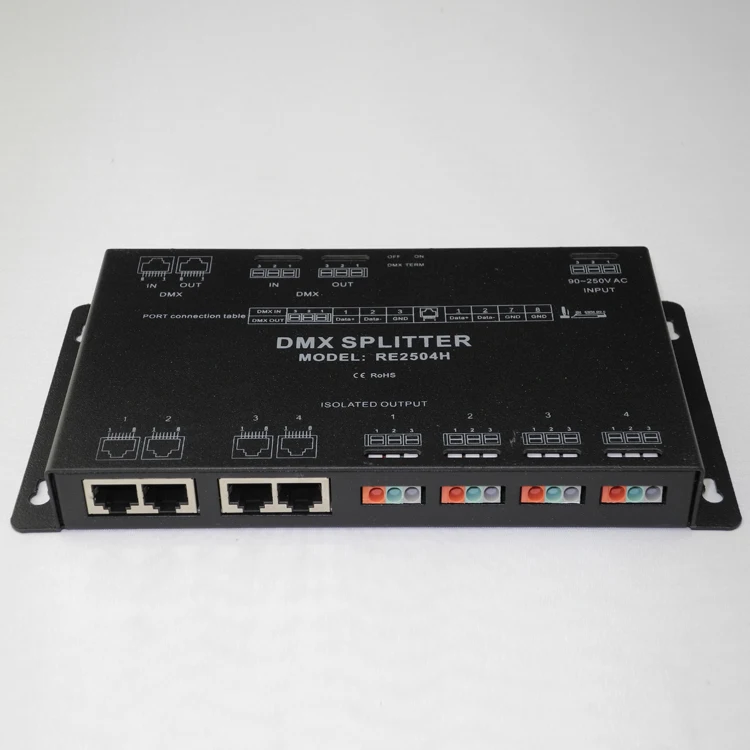

Function Instructions of RE2504H:

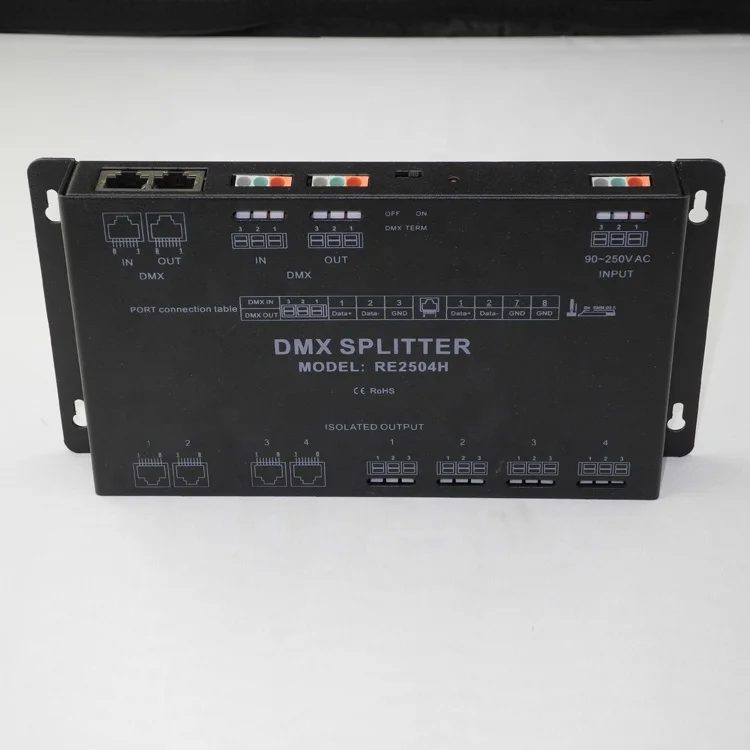

1), The power input terminals, DMX signal input: 3 PIN terminal , RJ45 network interface.See the panel to correct connection
2), DMX signal output: RJ45 double network interfaces, 3 PIN pressure terminals.

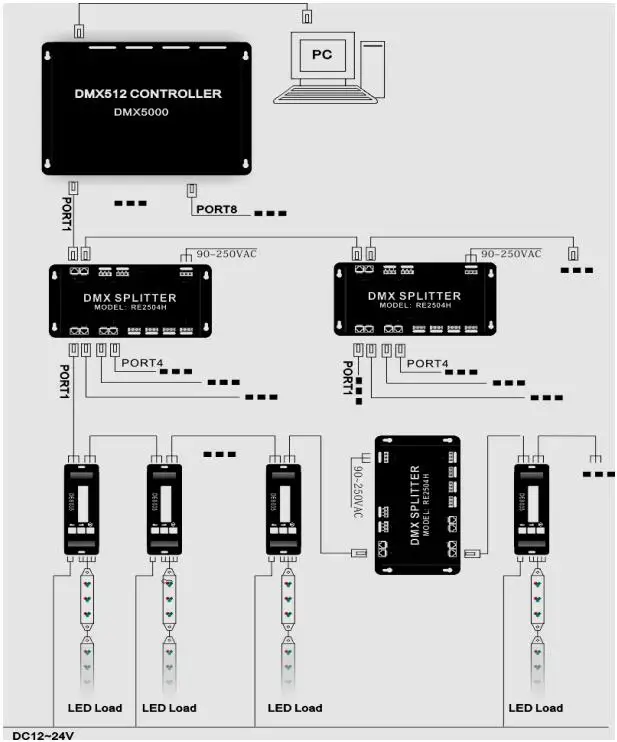

 Product on-line:

DMX512 Control Signal Connection:

1. DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity.DMX512 controller output signal positive, signal negative, signal ground with DE8008 input interface corresponding connection.

2. DMX5000 output and DE8008's transmission lines can't be over 300 meters.

3. DMX5000 each interface can with not more than 170 DE8008. Eight output interface. Through the JBLED FLASH light making software and can with computer on line control. Realize infinite contact the DMX lights.

4. When contacting 32 DE8008, DMX signal must add a signal amplifier RE2504H. Cascade can't more than 4 PCS.
