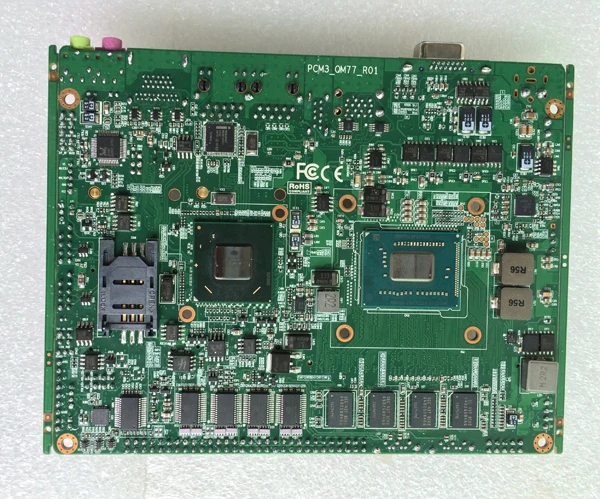

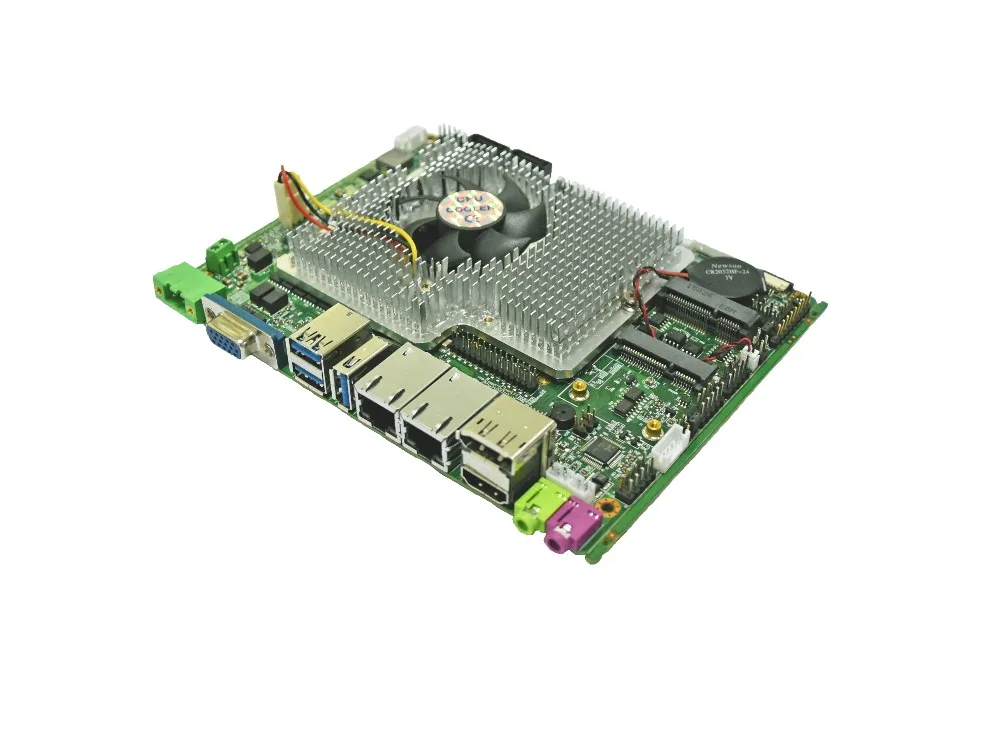

High Quality Integrated Intel I5 3317U 1.70 GHz CPU On Board Laptop Industrial Motherboard With DDR3 4G For All-in-one
ordersssssssssss!!!
Product Description
1.Windows7 mini car pc with dual display
2.Support RS-485 & WIFI & 3G, it's a multi-function industrial embedded computer.
3. With Intel Core I5/I7 CPU
| Features | |

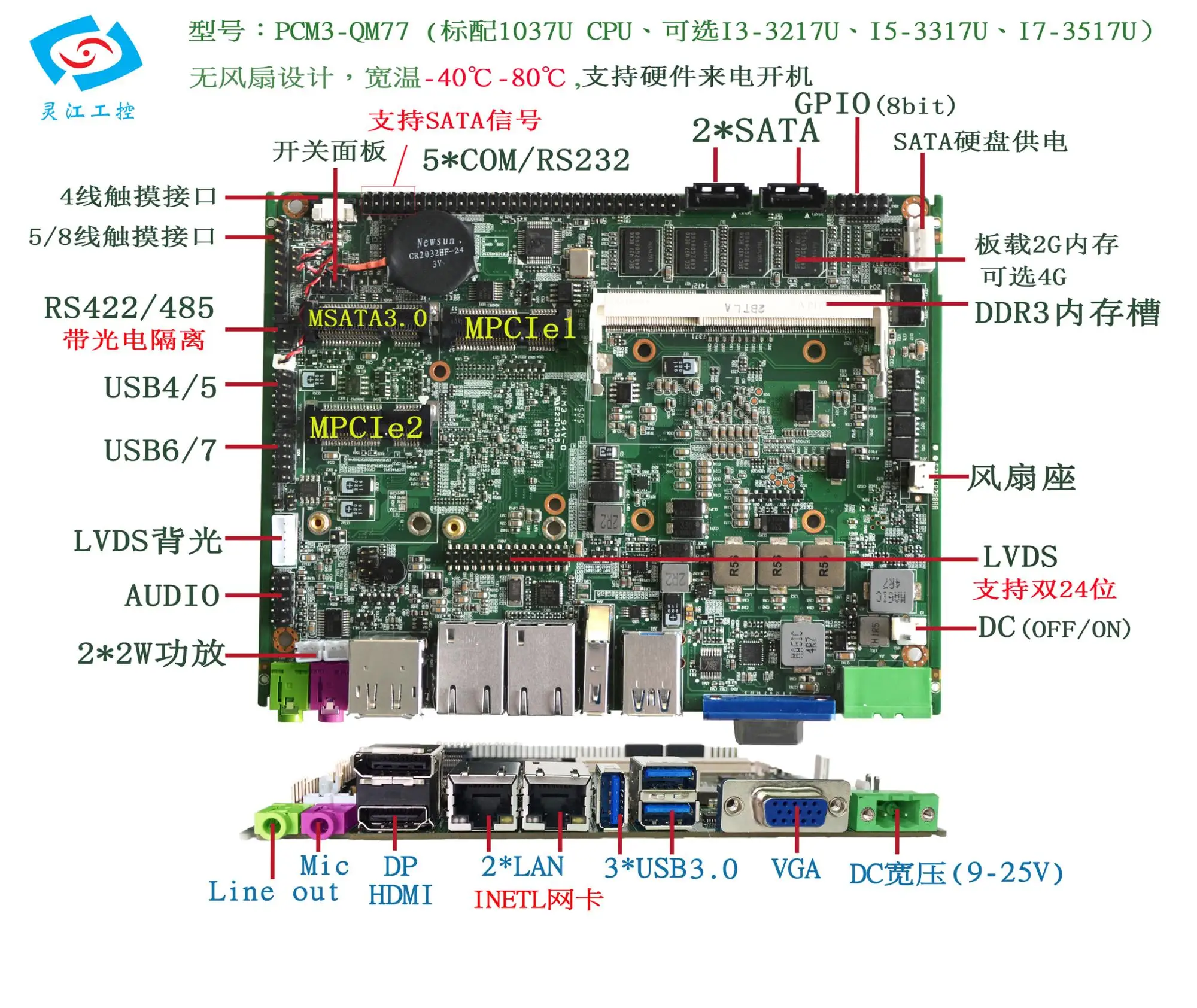

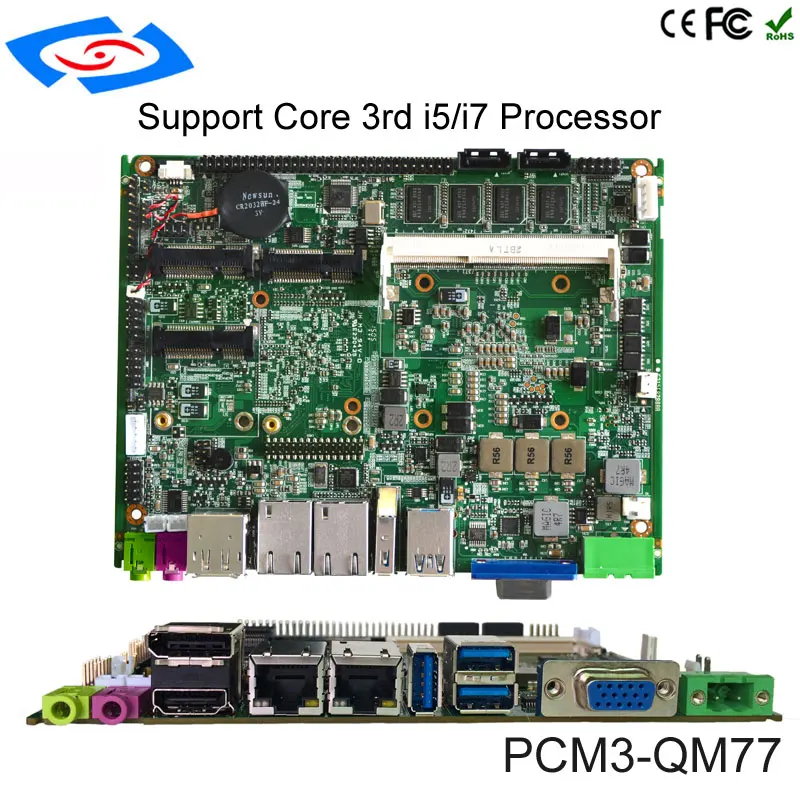

| Model Name | PCM3-QM77 |
| Mechanical | |
| Dimensions | 158 ×125(mm) |
| Power supply | 9V-25V |
| Watchdog timber | 0-255s |
| Net weight | 0.55kg (Including heatsink) |
| Thermal methods | Fanless |
| Working Temp | Working Temperature:-40℃-80℃,Working Humidity:5% - 95% |
| Storage Temp | Storage Temperature:-40℃-80℃,Storage Humidity:5% - 95% |
| System | |
| CPU | I5-3317U 1.7GHz/17W; I7-3517U 1.9GHz/17W |
| Chipset | Intel QM77 |
| Memory | Onboard 4G / Optional:8G |
| SATA | 2×SATA,1×M-SATA3.0 |
| System | XP/Win7/Linux/Win8 |
| I/O | |
| Lan | 2×10/100/1000Mbps RJ45,Integrate intel 82583V/82579LM chip |
| Serial ports | 6×COM (PIN)(1×RS485/422, 5×RS232) RS485 with Photoelectric isolation |
| USB | Onboard 3×USB 3.0 4×USB 2.0 (PIN) |
| GPIO | 1×GPIO 8 Bits(4In/4out) |
| Display | Onboard 1×VGA,1×DP,LVDS(18/24 Bits),Integrate Intel HD Graphics Video chipset |
| Audio | Onboard 1×MIC-in,1×Line-out,Integrate sound card ALC892,2×2W AMP(Inner) |
| Touch function | 1(4/5/8 Wire) |
| Others | Switch,Fan connector, 2×min-PCIE(Wifi/3G/4G),1×SIM slot |
| Warranty | |
| Warranty | 12 months |
| Order information | |
| Model Name | PCM3-QM77 |
| Standard Configuration | I5-3317U CPU SO-DIMM:Onboard 4G 3 × USB 3.0, 4 × USB2.0, 5 × RS232, 1 × RS422/485 Photoelectric isolation,2×LAN,1×VGA, 1×DP,1×GPIO, 1×MSATA, 2×MPCIE. |

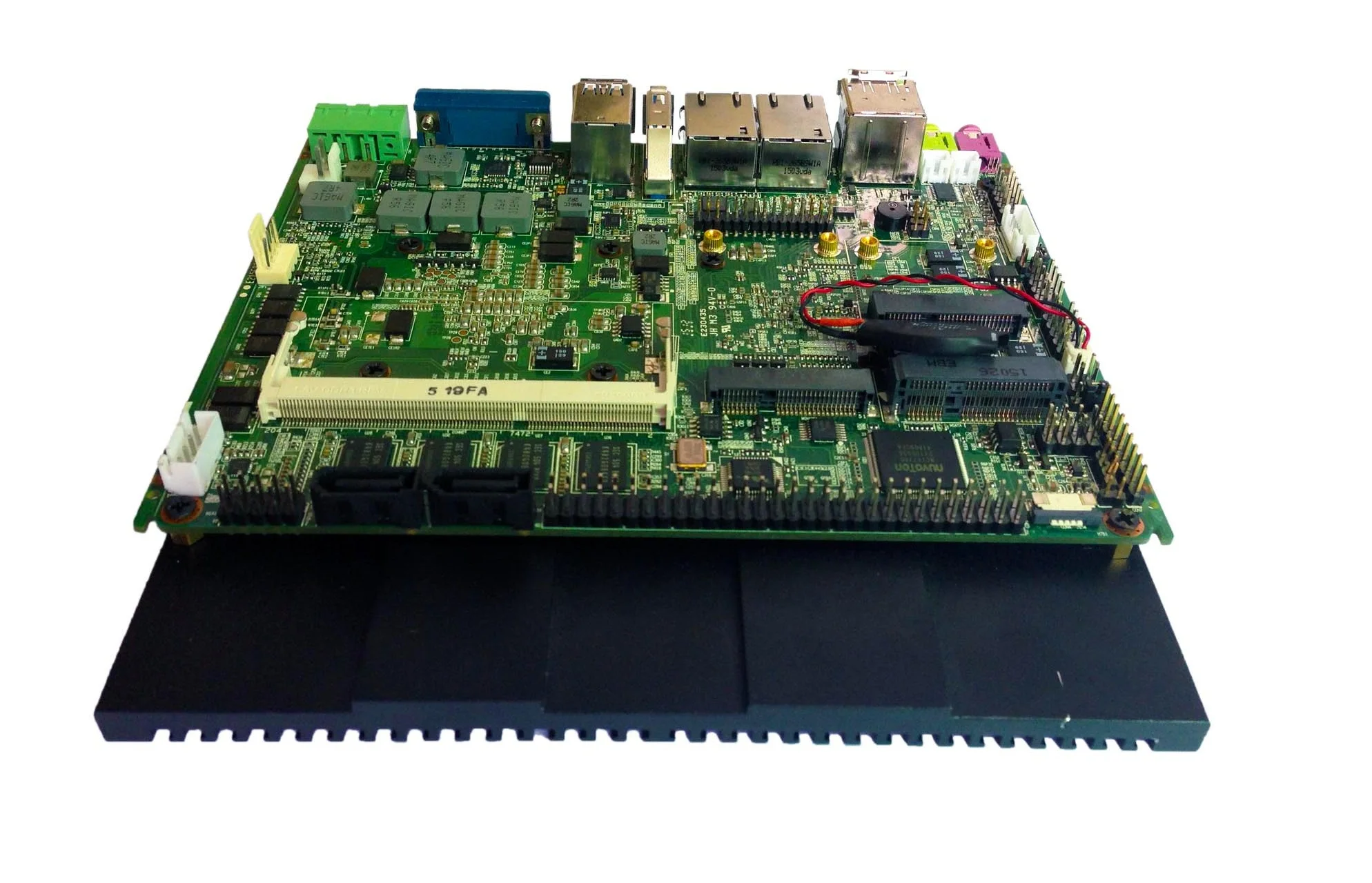

| Standard Accessories | Heat sink,Serial port extension cable,Sata cable,switch,Power connector |
| Optional | I5-3317U CPU,1.7GHz 17W(consumption) I7-3517U CPU,1.9GHz 17W(consumption) Update optional:SO-DIMM 8G WIFI/3G/4G/Bluetooth SSD 32G/64G/128G |
