High frequency Eccentric Electric Portable Concrete Vibrator

Product Overview

Description

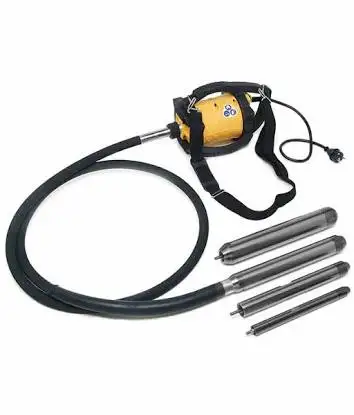

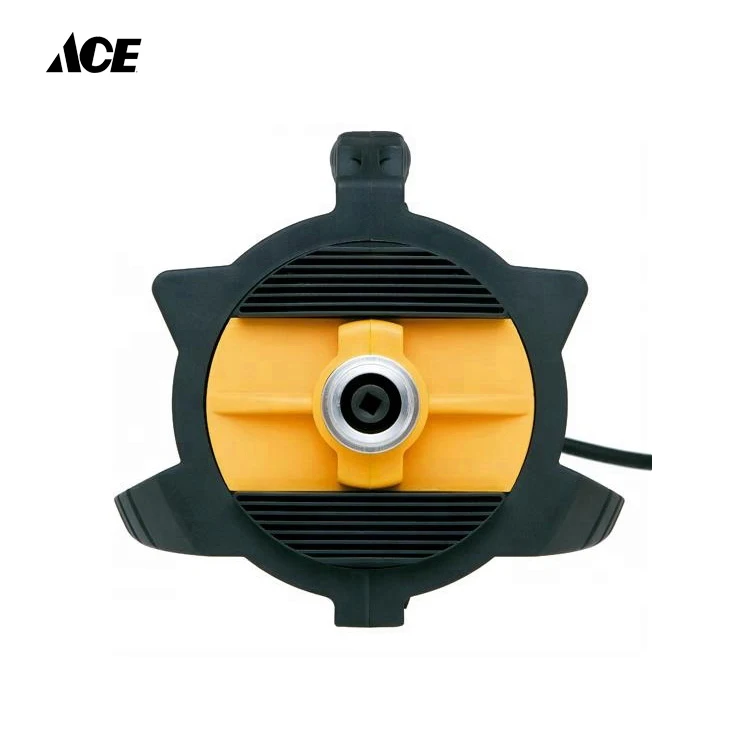

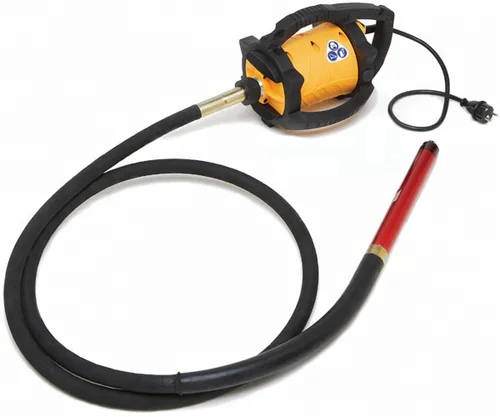

High frequency Eccentric Electric Portable Concrete Vibrator





1.The ZID Series high frequency concrete vibrator is an immersion type vibrator. During operation, the vibrating poker that is attached to the vibrator has to be immersed into the concrete. The poker has an eccentric vibrating element inside it.



2. The vibrator incorporates off-centered weights into the 18000rpm electric motor to generate high frequency vibration. Via the flexible tube,the vibrator transmits the vibration to the poker via the flexible tube. It is spun as much as 12000 times per minute, which makes it easy to cause resonance with the poured concrete.



3. The lightweight vibrator only weights to 5.2kgs to 6kgs, giving ease of operation. It is one of the most widely used products, know for its low noise,energy efficiency, reliable functioning,high safety, and good vibrating performance.



High-frequency Concrete vibrator



Type	Dingo type	Picture
Model	ZID--230D
Rated input power	2300W
Rated voltage	220V
Rated Frequency	50HZ
No-load speed	18000 r/min
Weight	6 kgs
Packing size	35*25*24cm



Match concrete vibrator shaft



Item	High-frequency vibrator shaft
Model	(mm)	ZX-35	ZX-38	ZX-45
Diameter of head	(mm)	35	38	45
Length of head	L (mm)	330	370	390
Vibrating Frequency	(HZ)	200	200	200
Vibrating Ampitude	(mm)	0.91	1.2	1.2
Diameter of flexiable hose	D(mm)	30	30	30
Diameter of flexiable shaft	D(mm)	10	10	10
packing size	cm	75*75*5.5cm











Q1:Are you manufacturer?
A: Yes, we are factory, but not just a factory, as we have sales team, own designers, own showroom, can help buyers to decide which products are their best choice, and all your inquiry will be replied within 24 hours.

Q2: How can I get a sample to check your quality ?
A: After price confirmation, you can require for samples to check our quality. We will charge for the sample cost, but the sample cost will be refundable after quantity order confirmation.

Q3: How long for the delivery time ?
A. Sample will be ready for delivery in 3~10 days. Quantity order will be ready for delivery in 20~45 days .

Q4:Could you do OEM Service?
A: Yes, we can do it. But you need give us your letter of authorization.

Q5: Can I buy other factory's products directly from you?
A: Yes, of course. There are already many customers cooperating with us in this way. We have over 12 years in the business with extensive knowledge of technology and market. Our good reputation in China has been awarded by Alibaba Group as its selected business partner.

Q6:What is the convenient way to pay?
A: Trade Assurance, L/C, T/T, Western Union and Escrow are accepted, and if you have a better idea, please feel free to share with us.
