ANSHI Single line Over current over voltage protector unit for 10 pairs krone block

Product Overview

Description

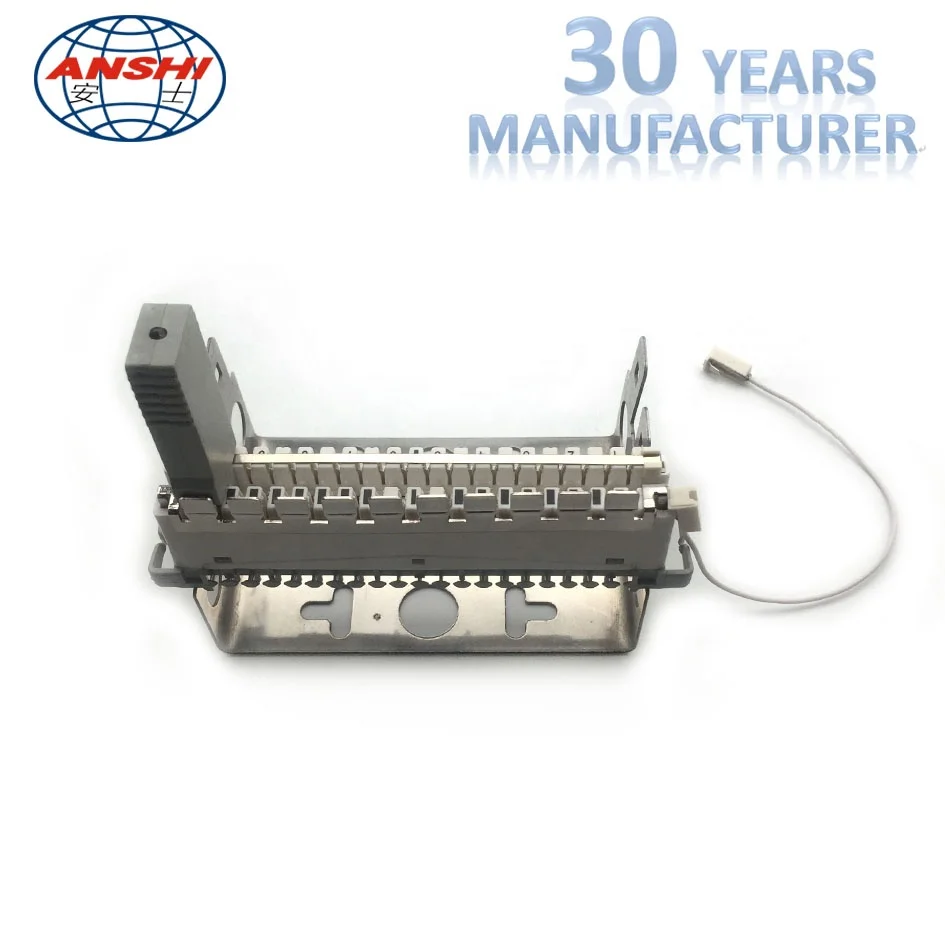

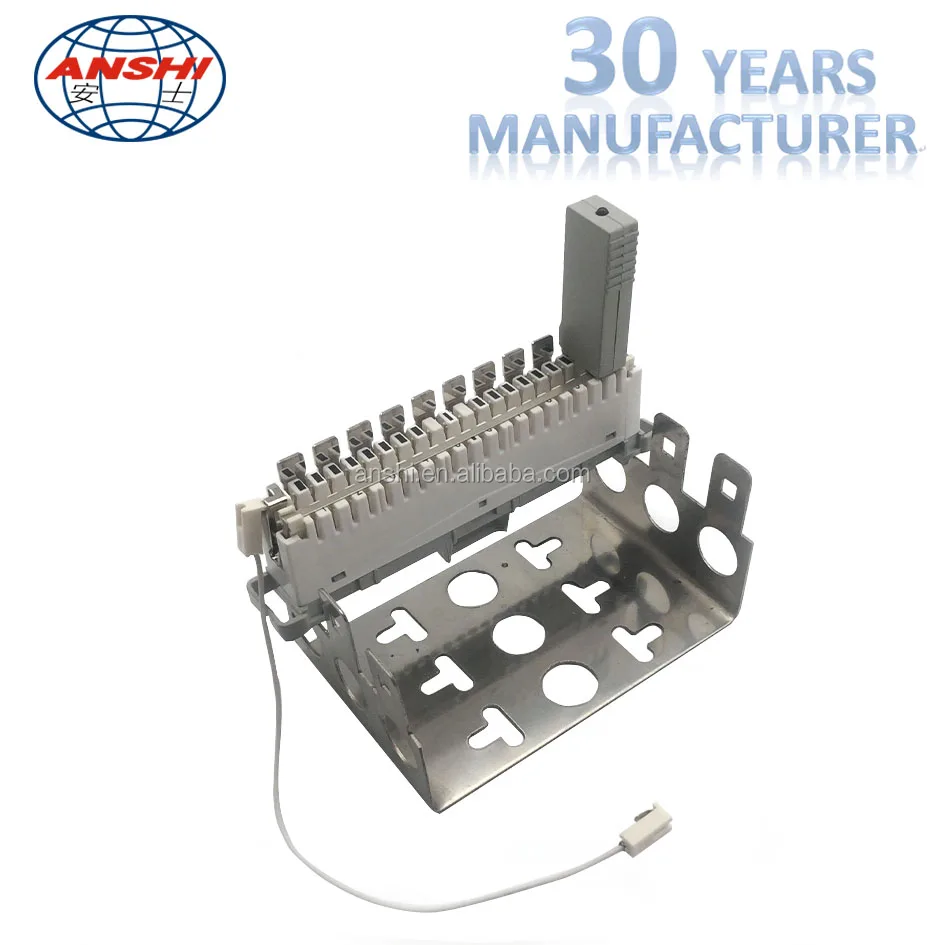

 ANSHI Single line Over current over voltage protector unit for 10 pairs krone block

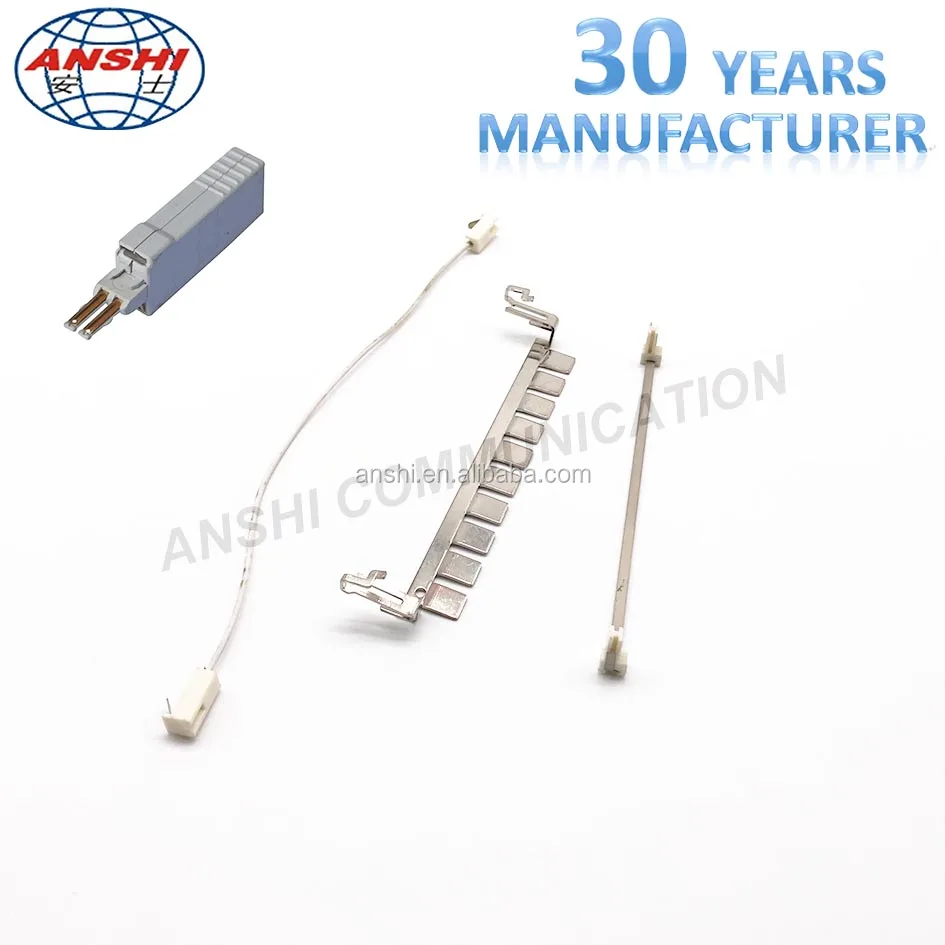

1  Mainly consist of crust, gas or solid tube arrester, thermalresistance PTC, reed and base pin Perfectand reliable over-voltage and over-current protection with sound and lightalarm, and self resulming fail protection.

2  Size (mm): XL-017: L x W x H: 60.5 x 18 x 9.5 XL-017B: L x W x H: 50 x 9.5 x11.5

3Theperformance of anti-burn: PPT(UL94V-0) or anti-burn ABS(UL94V-0),combustibility achieved GB/T 5169.7-1985 standard

4DCpuncture voltage: 190-260V

5Pulsepuncture voltage: ≤800V(1KV/us  voltage increasing rate)

6Insulationresistance: 1000MΩbetween any twoseparable modules

7Normaltemperature resistance: ≤22ΩR≤2Ωover-currentprotection

8Contactresistance: ≤3mΩ

9Contactresistance between reeds: ≤7mΩ

10Normaltemperature current: I=falling from 500mA to 150mA  t20s

I=fallingfrom 1A to 500mA     t1.3s

I=fallingfrom 2A to 500mA     t0.5s

I=fallingfrom 3A to 500mA     t0.2s

11Sactivetime: I=2.5A  t15s(220V/AC), When discharge achieve 2.5Ar.m.s, the a line or b line should be5-15S internal earthing in the discharge loop

12resistanceto voltage: ≥1000V(AC)/1minwithout breakdown or arc
