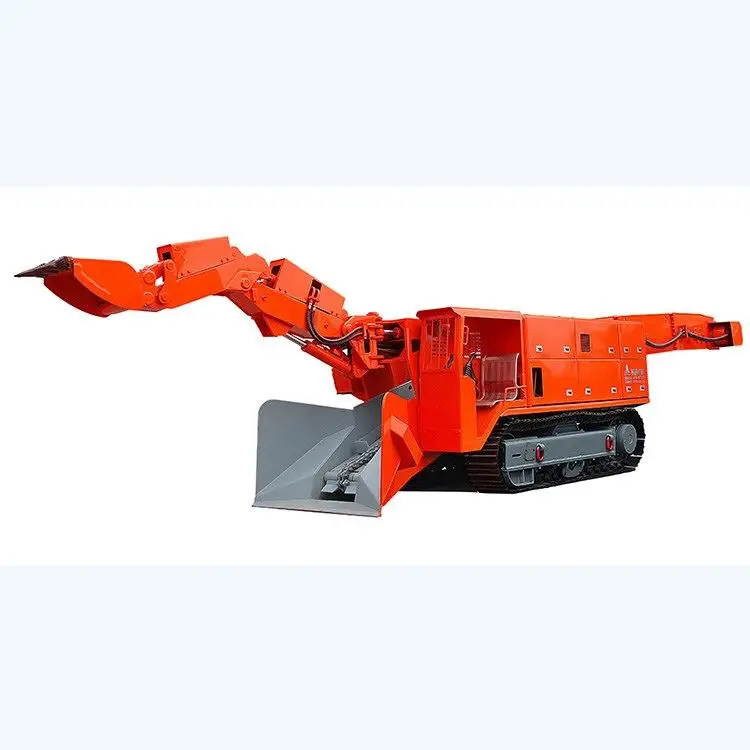

Crawler Mucking Loader For Sale Ore Rock Digging In Tunnel
- Category: >>>
- Supplier: Hebei Gimarpol Machinery Technology Co. Ltd.
Share on (60846668880):
Product Overview
Description

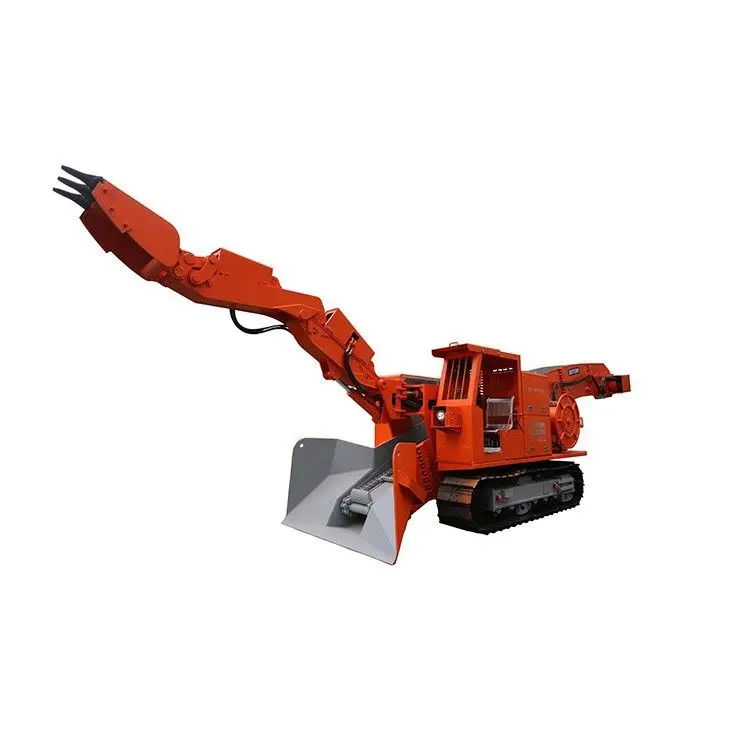

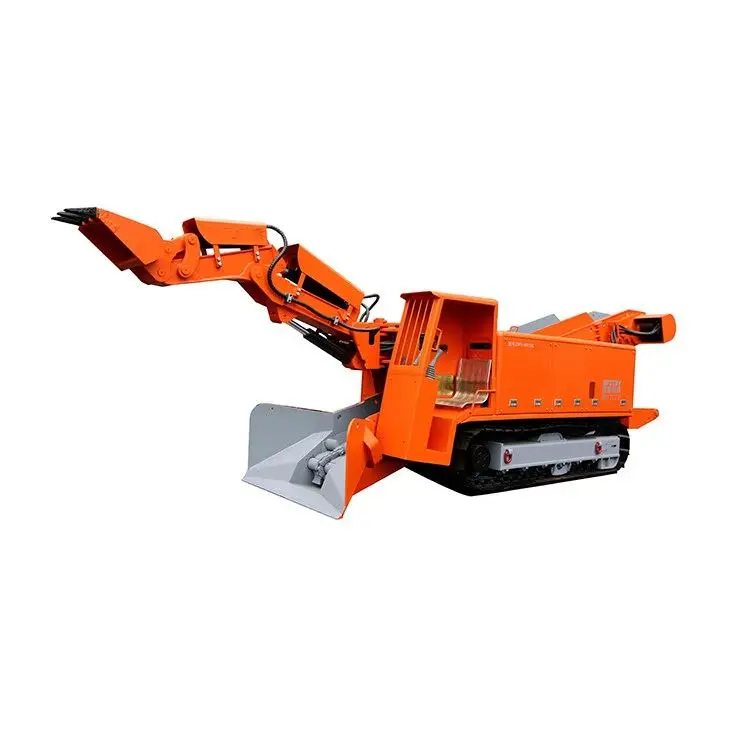

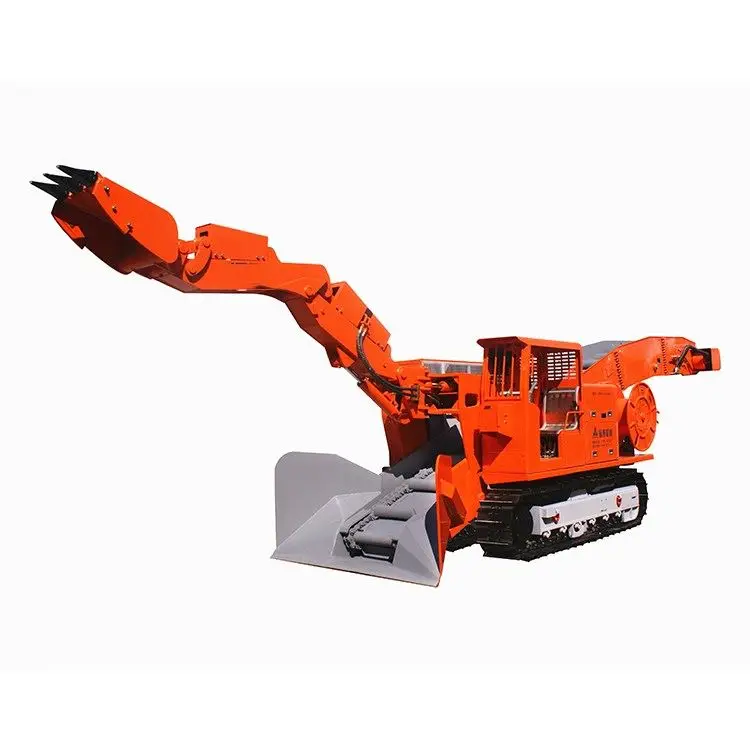

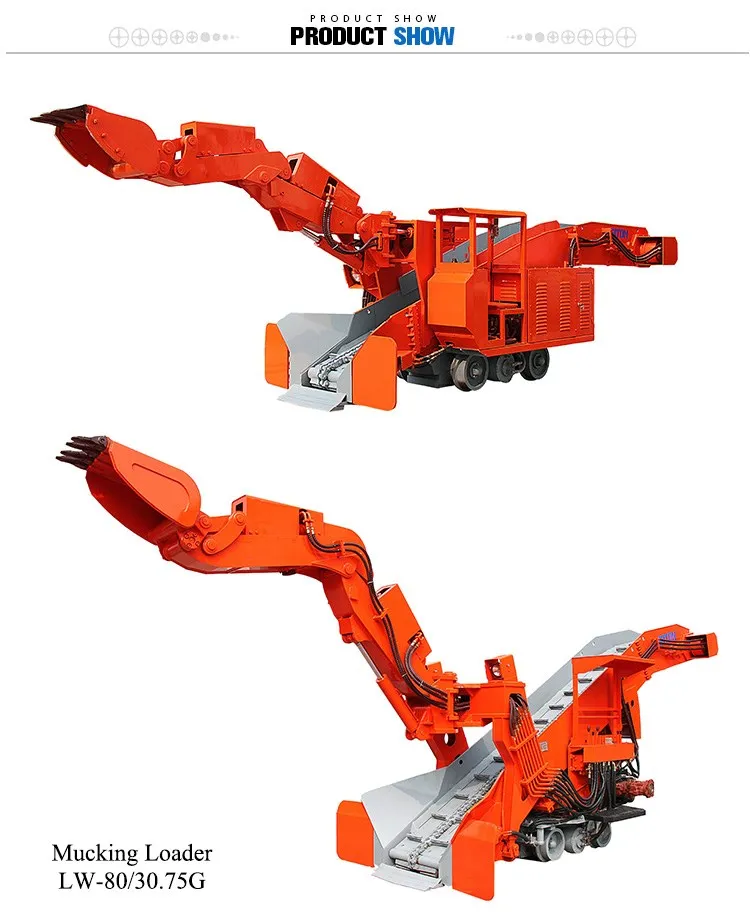

Crawler Mucking Loader For Sale Ore Rock Digging In Tunnel
Full hydraulic system powered by electric motor. |

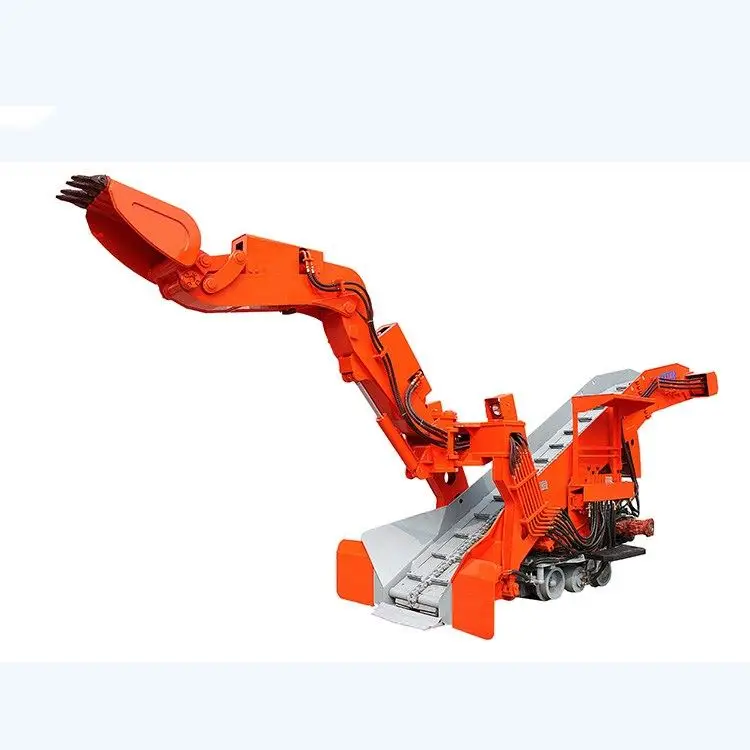

Special model for tunnel with track , it can suit different track gauges as custom’s requirement . |
The electro-hydraulic drive provides low installation and energy cost, and maintains good air quality. |
The dozer blades clean mucking face effectively thus eliminating the need of manual clean up. |
The service brake is hydraulic in traveling mechanism. |
Dumping height and distance of conveyor can be custom design. |
The chassis and conveyor are made of heavy duty plate joint together with continuous welds for max. fatigue strength. |
The mucking loader is controlled by hydraulic joysticks. |
Double wings’ doors are good for maintaining, also with safety electrical bells and emergency switch. |

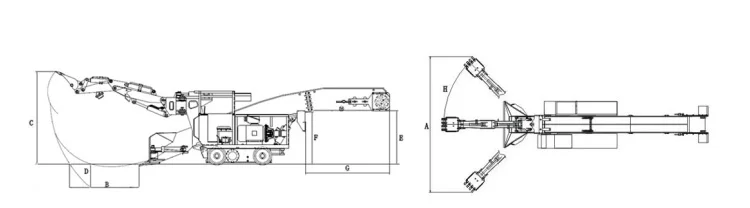

A | Digging width | 4800 mm |
|
B | Digging distance | 1840 mm | |
C | Digging Height | 2400 mm | |
D | Digging depth | 550 mm | |
F-E | Dumping height | 1250 mm(Variable)(Variable) | |
G | Dumping distance | 2050 mm(Variable) | |

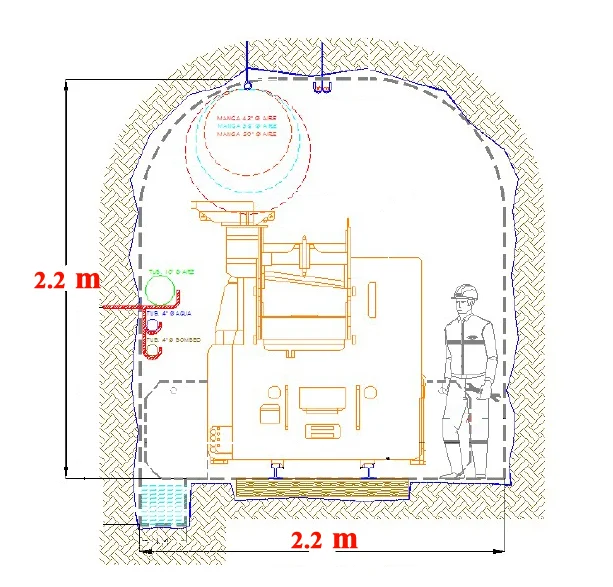

| Adaptive tunnel size | ≥2.2×2.2 m |
Functional Parameters | Main Overall Dimension | |||
Weight | 6800 kg | Steering |
Hydraulic | |
Loading ability | 80 m3/h | Track gauge |
600 /7 62/ 900 mm | |
Traveling speed | 0.37 / 0.75 | Conveyor inner width |
480 mm | |
Speed of scraper chain | 26 m/min | Max. boom angle |
± 55° | |
Scraper chain | Single chain single motor | Dimension(Transportation) | L | 6800 mm |
Adaptive tunnel slope | 0° | W | 1480 mm | |
Min. turning radius | ≥12 m | H | 1780 mm | |
Max. working pressure | 20 Mpa | Dimension (Operating) | L | 8260 mm |
Distance bewteen bearings | 1111 mm | W | 1940 mm | |
Clearance from track | ≥ 27 mm | H | 1855 mm | |
General power | 30.75 KW | |||
