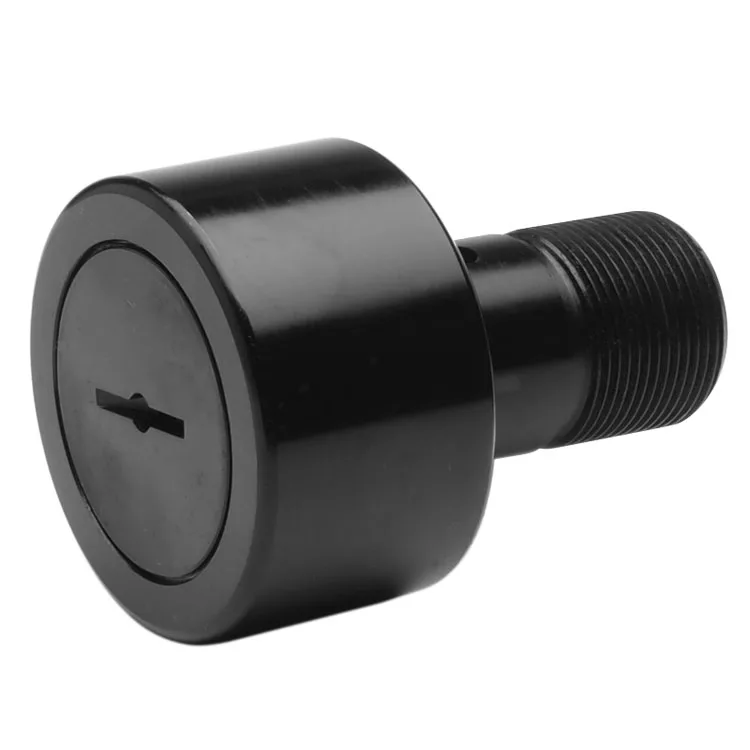

CFH 2 1/2 SB / HR 2 1/2 XB / CRHSB 40 / CRH 40 VBUUR Inch Sealed Cam Followers With Crown OD and Heavy Stud

Product Overview

Description



 CFH- 2 1/2  -SB / HR- 2 1/2-XB / CRHSB-40 / CRH 40 BUU Inch Dimension Cam Followers With Heavy Stud

Features:

• cylindrical or crowned OD

• sealed or unsealed

• screw drive slot or hex socket

• full complement roller sets or caged

• temperature resistance ranging from -30 °C up to 100 °C

• with or without oxide black finish

Dimensions (inch)		Interchange
Roller diameter:	2.5	IKO	CRH 40 BUU
Roller Width:	1.5	INA
Stud Diameter:	1.25	McGill	CFH- 2 1/2  -SB
Stud Length:	1 1/8	RBC	H-80-LW
Thread (UNF Class 2A):	1-1/4-12 X 1-1/8	Smith	HR- 2 1/2  -XB
Approx Weight (lbs):	2.954	Torrington	CRHSB-40

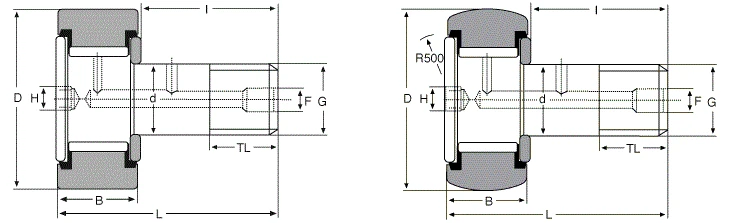

CF Cam Follower - Inch Dimensions - Full Complement Needle Roller Set - Sealed - Cylindrical O.D.- Hex Socket
C&H	d	F	D	B	L	I	TL	G	H	Wgt. lbs
CFH-1/2-SB	0.25	-	0.5	0.375	1.0312	0.625	0.25	1/4-28	0.125	0.043
CFH- 5/8 -SB	0.3125	-	0.625	0.4375	1.2187	0.75	0.3125	5/16-24	0.125	0.075
CFH- 3/4 -SB	0.4375	0.1875	0.75	0.5	1.4062	0.875	0.375	7/16-20	0.1875	0.131
CFH- 7/8 -SB	0.4275	0.1875	0.875	0.5	1.4062	0.875	0.375	7/16-20	0.1875	0.156
CFH-1-SB	0.625	0.1875	1	0.625	1.6562	1	0.5	5/8-18	0.25	0.287
CFH-1 1/8 -SB	0.625	0.1875	1.125	0.625	1.6562	1	0.5	5/8-18	0.25	0.331
CFH-1 1/4 -SB	0.75	0.1875	1.25	0.75	2.0312	1.25	0.625	3/4-16	0.25	0.581
CFH-1 3/8 -SB	0.75	0.1875	1.375	0.75	2.0312	1.25	0.625	3/4-16	0.25	0.725
CFH-1 1/2 -SB	0.875	0.1875	1.5	0.875	2.4062	1.5	0.75	7/8-14	0.3125	0.828
CFH-1 5/8 -SB	0.875	0.1875	1.625	0.875	2.4062	1.5	0.75	7/8-14	0.3125	0.917
CFH-1 3/4 -SB	1	0.1875	1.75	1	2.7812	1.75	0.875	1-14	0.3125	1.305
CFH-1 7/8 -SB	1	0.1875	1.875	1	2.7812	1.75	0.875	1-14	0.3125	1.389
CFH-2-SB	1.125	0.1875	2	1.25	3.2812	2	1	1 1/8-12	0.4375	1.967
CFH-2 1/4 -SB	1.125	0.1875	2.25	1.25	3.2812	2	1	1 1/8-12	0.4375	2.295
CFH-2 1/2 -SB	1.25	0.1875	2.5	1.5	3.7812	2.25	1.125	1 1/4-12	0.5	3.236
CFH-2 3/4 -SB	1.25	0.1875	2.75	1.5	3.7812	2.25	1.125	1 1/4-12	0.5	3.671
CFH-3-SB	1.5	0.25	3	1.75	4.2812	2.5	1.25	1 1/2 -12	0.625	5.44
CFH-3 1/4 -SB	1.5	0.25	3.25	1.75	4.2812	2.5	1.25	1 1/2 -12	0.625	6.1
CFH-3 1/2 -SB	1.75	0.25	3.5	2	4.7812	2.75	1.375	1 3/4 -12	0.75	8.58
CFH-4-SB	2	0.25	4	2.25	5.7812	3.5	1.5	2-1/2	0.75	13.34
CFH-5-SB	2.5	0.25	5	2.75	7.874	5.0625	2.5625	2-1/2	0.875	25.28
CFH-6-SB	3	0.25	6	3.25	9.3125	6	3	3-12	1	36.41
CFH-7-SB	3.5	0.25	7	3.75	11.4995	7.6875	4.125	3 1/2-4	1.25	68.03

.
