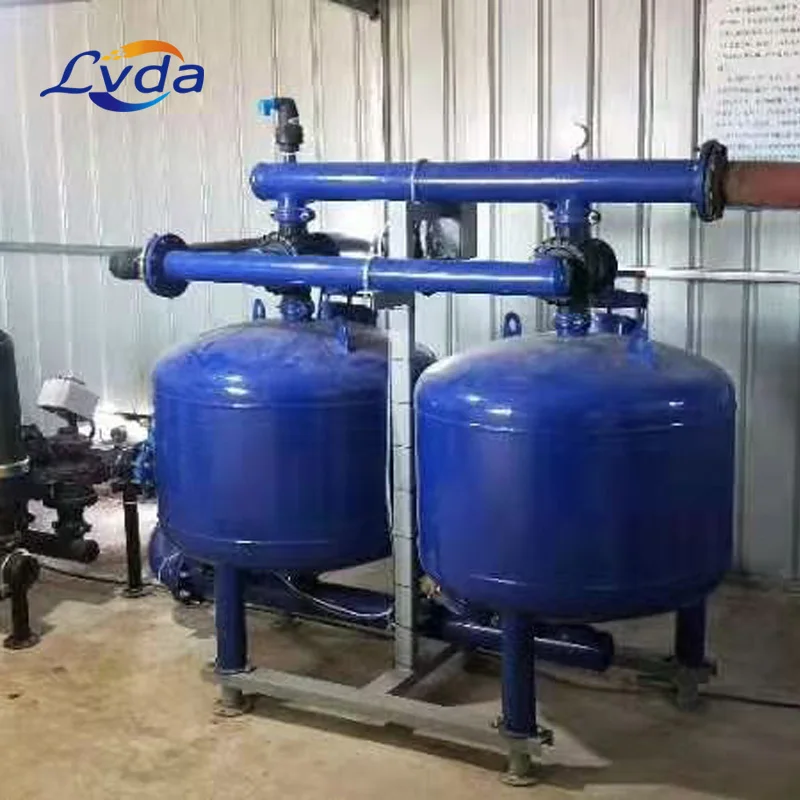

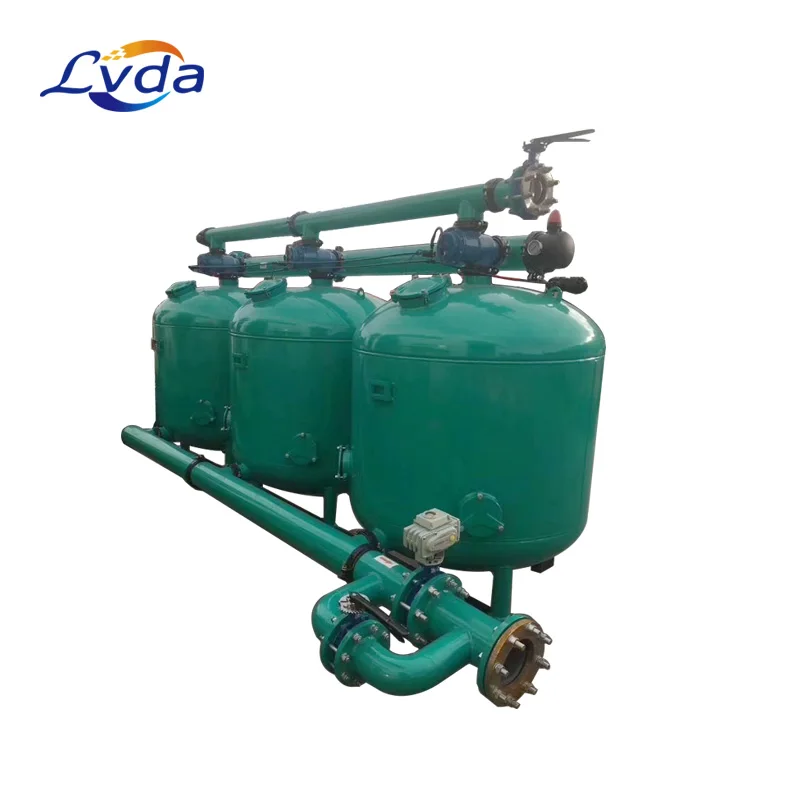

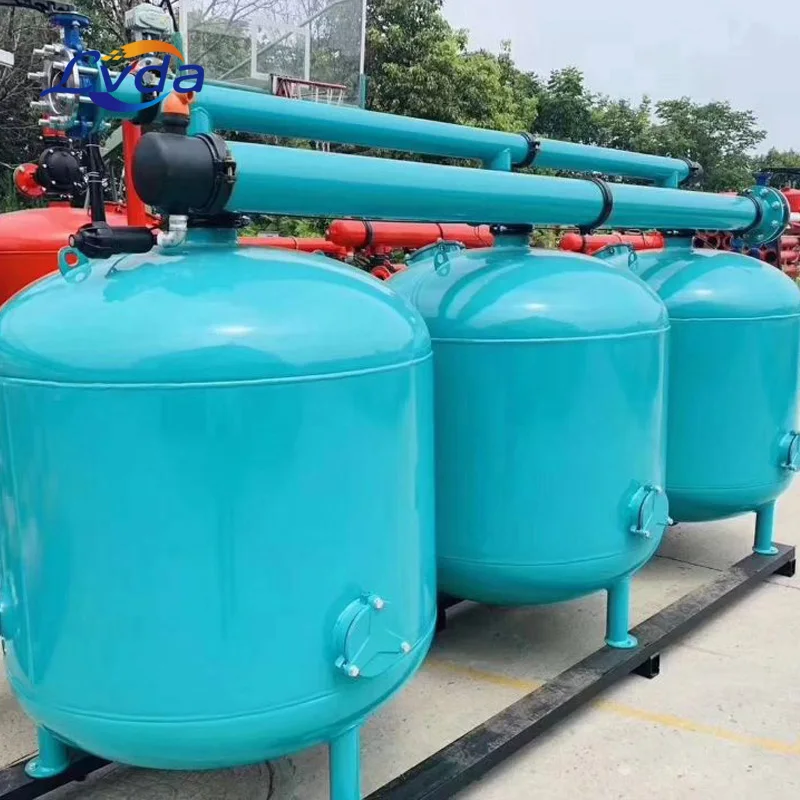

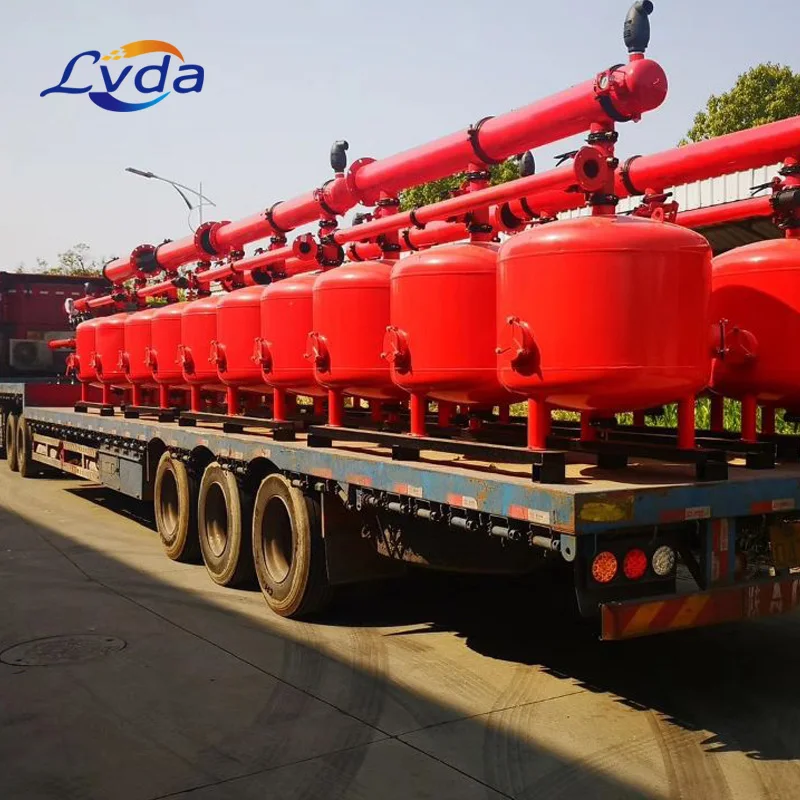

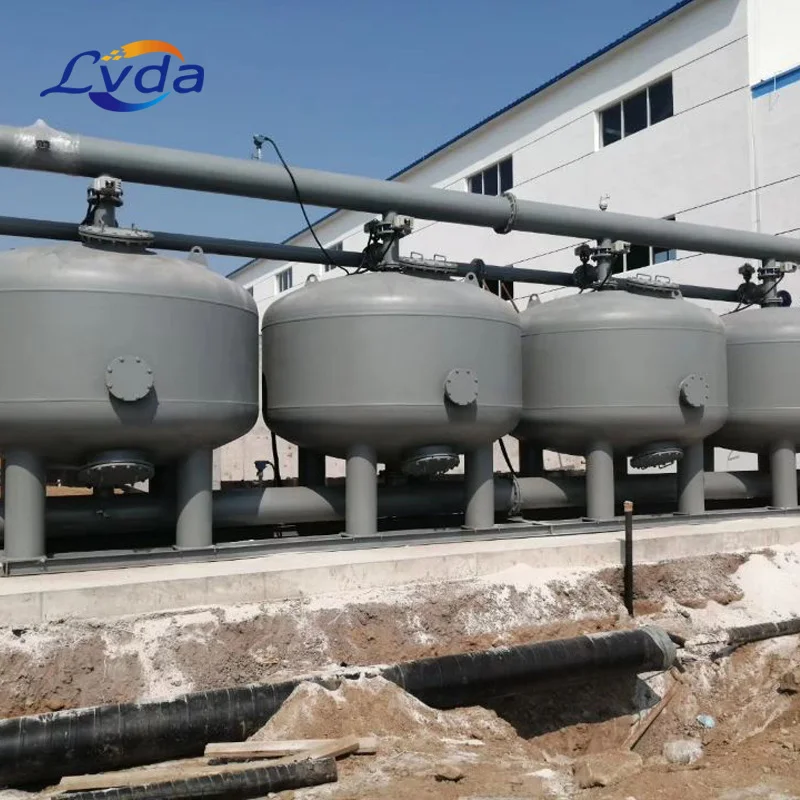

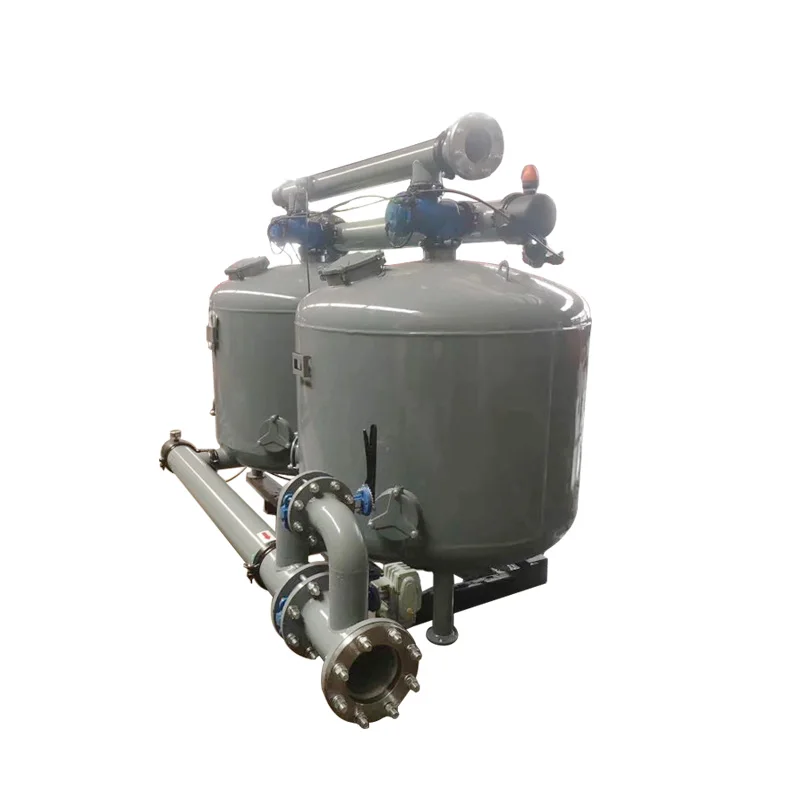

Shallow medium filter (English: Shallow medium filter), it is the use of quartz sand as a filter medium, under certain pressure, the higher the turbidity of water through a certain thickness of the granular or non-grain Quartz sand filter, the effective removal of suspended solids in the water, organic matter, colloidal particles, microorganisms, chlorine, smell and some heavy metal ions, and ultimately to reduce the water turbidity, water purification effect of a high efficiency filtration equipment.
Influent turbidity
<20FTU
Effluent turbidity
<3FTU
Sewage interception capacity
5-15Kg/m3 (filter material).
Working temperature
5-60℃ (special temperature can be customized)
Working pressure
≤0.6MPa
Inlet water pressure
≥0.04MPa
Backwash water inlet pressure
≥0.15 MPa
Pressure difference between inlet and outlet
0.01-0.015MPa
Working method
pressure type
Operation mode
water flow from top to bottom
Filtration speed
15-100m3/h
Operating cycle
2-7 days
Backwashing method
water washing, or air-water combined backwashing
Water consumption for backwashing
1-3%
Backwash intensity
4-15L/s·m2
Backwash time
5-7 minutes
Backwash expansion rate
40-50%
The scope of application
1. Used to require industrial water turbidity ≤ 5mg / L to meet the drinking water quality standards of industrial water, domestic water and municipal water supply system; 2. Removal of suspended solids and solids in industrial effluents; 3. Can be used as ion exchange method softening, desalination system in the pretreatment equipment, the water quality is not demanding industrial water supply coarse filtration equipment; As well as in the swimming pool recycling system, cooling the circulating water purification system.
Feedback

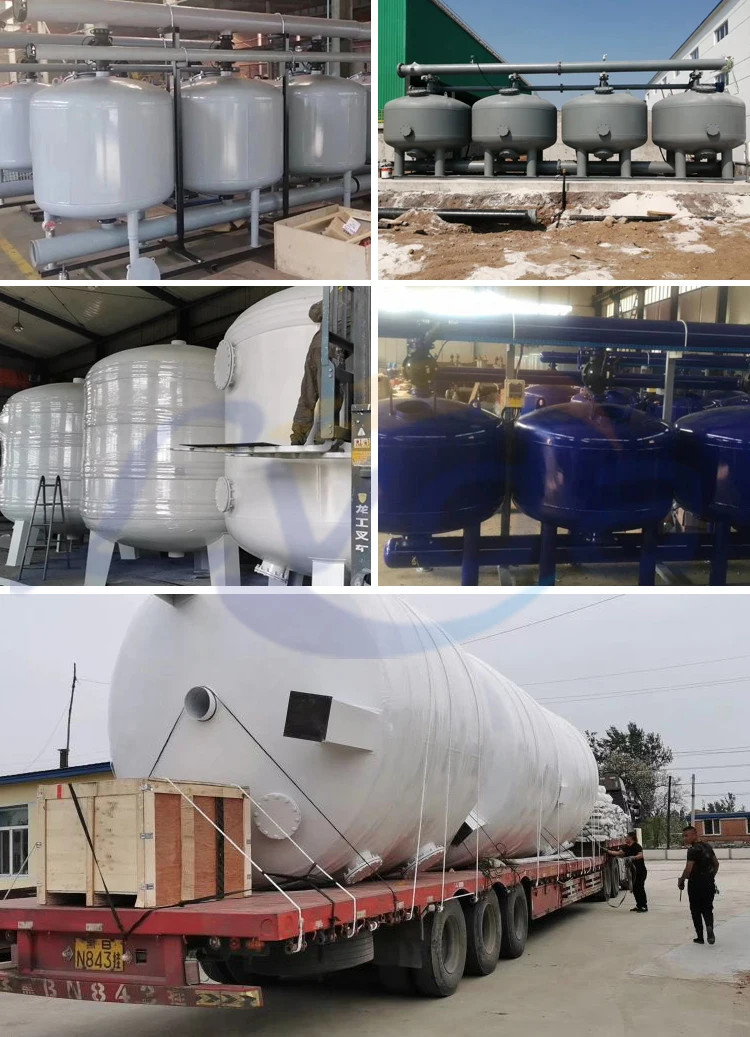

Customer Photos
Company Profile
LVDA
Xinxiang Lvda Purification Equipment Co., Ltd. is a factory with more than 20 years of production experience. We specialize in the production, development and sales of filters, hydraulic filter elements, air compressor filters, oil filters, water filters, metal filters, oil filters and other products, and can also be customized according to customer requirements. Customers in more than 100 countries including Asia, Europe, North America, South America, Africa, etc. lvda has been recognized in the professional field and has been continuously praised by customers.
FAQ
1. Do you accept OEM? A: Yes. we can produce according to your requirement.
2. Can you print my company logo and package?How long does it take to produce? A: Yes, of course we can print your company loge and package, you just show your logo to me, and then we will do it for you. Normally, we produce it need 4-6 working days.
3. What is your MOQ? A: We can accept 1pcs sample. If more quantities, more favorable price.
5. What is our shipping ways? a. By sea and by air. b. If you always import goods from different city in China, we suggest you to cooperate with a shipping agency to collect goods for you from different location. If it's necessary, we can recommend someone for you.
6. How long is your Delivery Time? A:If there has stock, the delivery time is about 5 working days after receiving your payment.
Order Tips If you are not sure about the filter needed exactly,please advise its exact working environment and usage.We help you choose certain suitable filter.
