Экструзионная Машина для экструзии пластиковых ПП одноволоконных волокон
- Category: >>>
- Supplier: Qingdao Jinfuxin Plastic Machinery Co. Ltd.
Share on (60847302475):
Product Overview
Description
Plastic PP monofilament yarn fiber extrusion machine plastic machine extruder Production line
Product Description
Italy design type
I. Advantage of plastic monofilament machine pp monofilament machinery/extruder/extrusion machine/extruding machine:
-Great Dehumidifying and Crystallizing System
-High quality PP Final Filament
II. Introduction of plastic monofilament machine pp monofilament machinery/extruder/extrusion machine/extruding machine::
1. Installation power: 120kw, real electricity consumption 70% of it.
2. Material: PP granual
3. Machine Dimension: 30*5*5m
4. Product Dimension: diameter: 0.07-4.0mm
5. Manpower: 2-3 persons required to operate whole plant
III. Production Process of plastic monofilament machine pp monofilament machinery/extruder/extrusion machine/extruding machine:
Material→ Dehumidifying and Crystallizing → fan feeding machine → extruder → double way screen changer → metering pump→pet filament extrusion die head →stainless steel water tank cooling system → water suction device→the first seven rollers haul off→ water heating oven →water suction device → the second seven rollers haul off → heating oven → glazing machine→ shaping machine→ the forth seven rollers haul off ---winding machine
IV. Equipment List of plastic monofilament machine pp monofilament machinery/extruder/extrusion machine/extruding machine:
| No | Machine name | Q'ty |
| 1 | Dehumidifying and Crystallizing Equipment | 1 set |
| 2 | SJ-75/33 Single Screw Extruder | 1 set |
| 3 | Automatic Screen Changer | 1 set |
| 4 | Mold | 1 set |
| 5 | Water Tank Cooling System | 1 set |
| 6 | The first seven haul off machine | 1 set |
| 7 | Water heating oven | 1 set |
| 8 | the secend seven haul off machine | 1 set |
| 9 | Glazing machine | 1 set |
| 10 | Air oven | 1 set |
| 11 | the third seven rollers haul off machine | 1 set |
| 12 | winding machine | 1 set |
| 13 | shaping machine | 1 set |
| 14 | cutting machine | 1 set |
| 15 | packaing machine | 1 set |

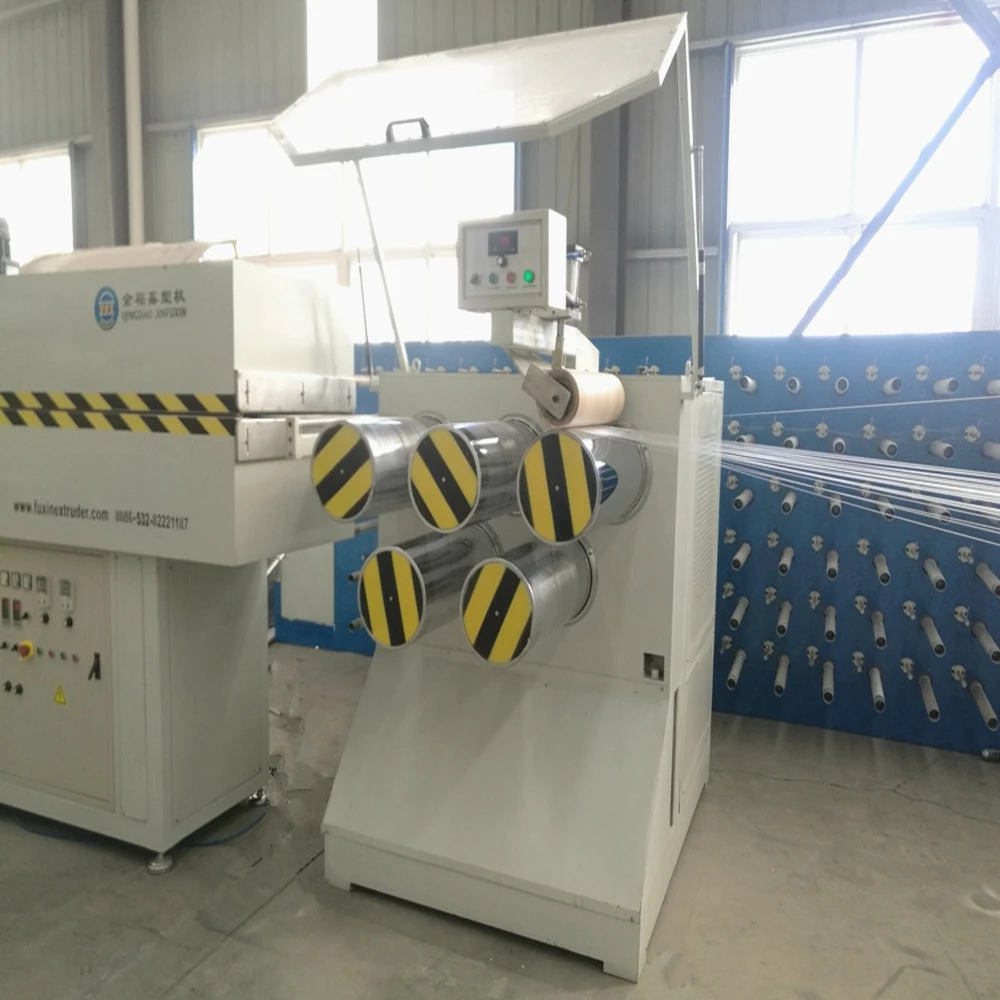

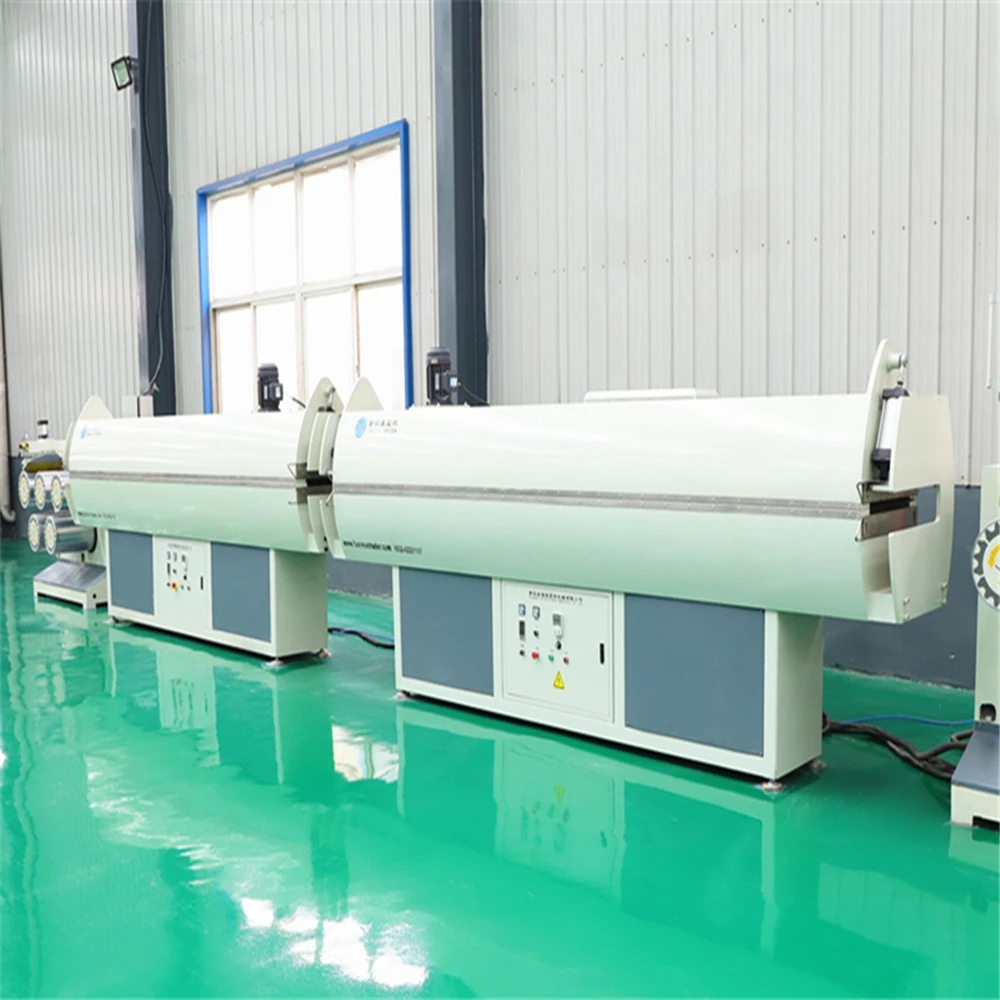

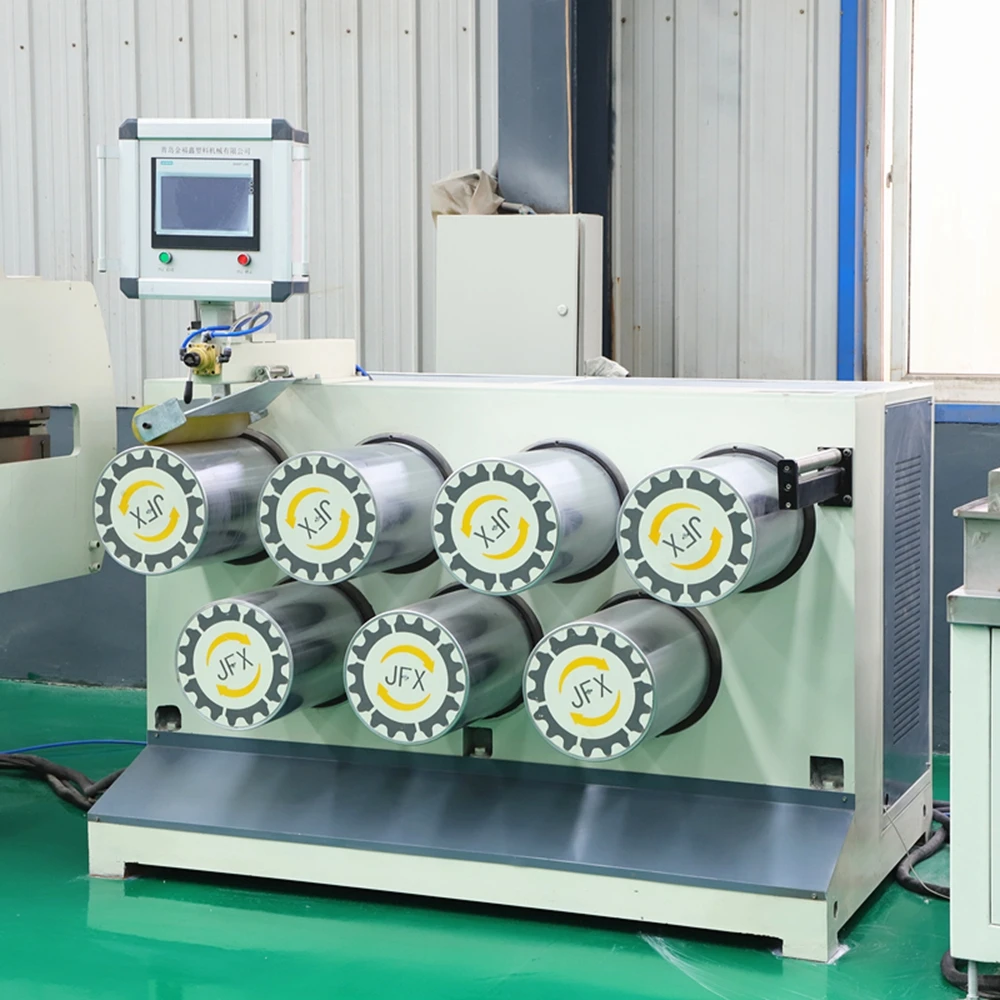

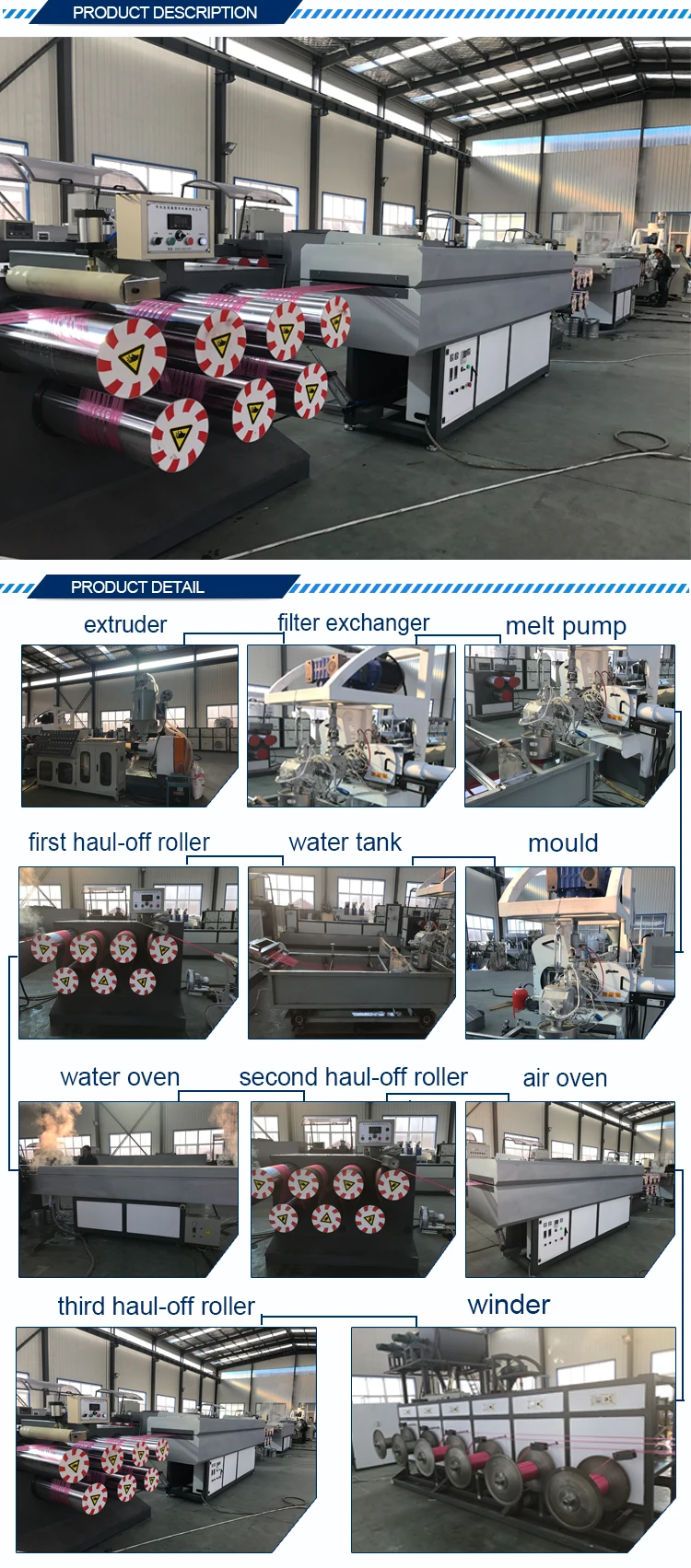

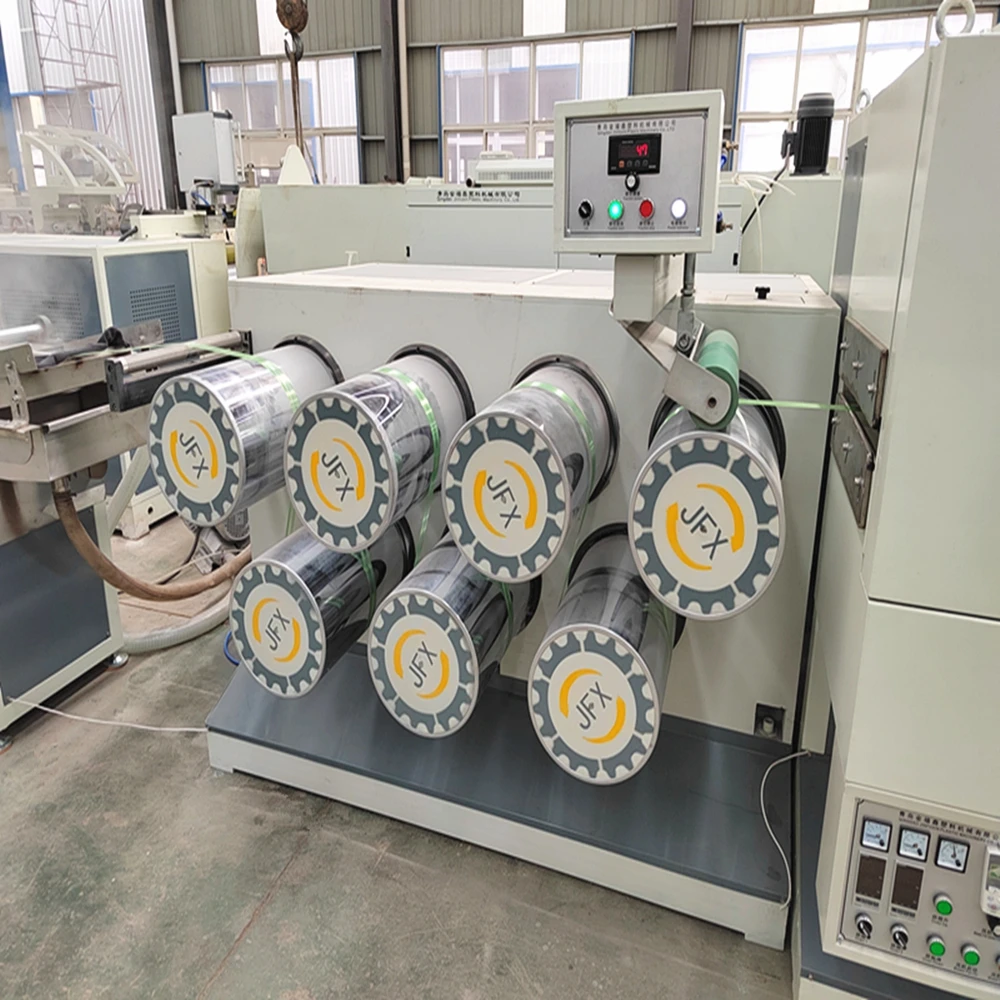

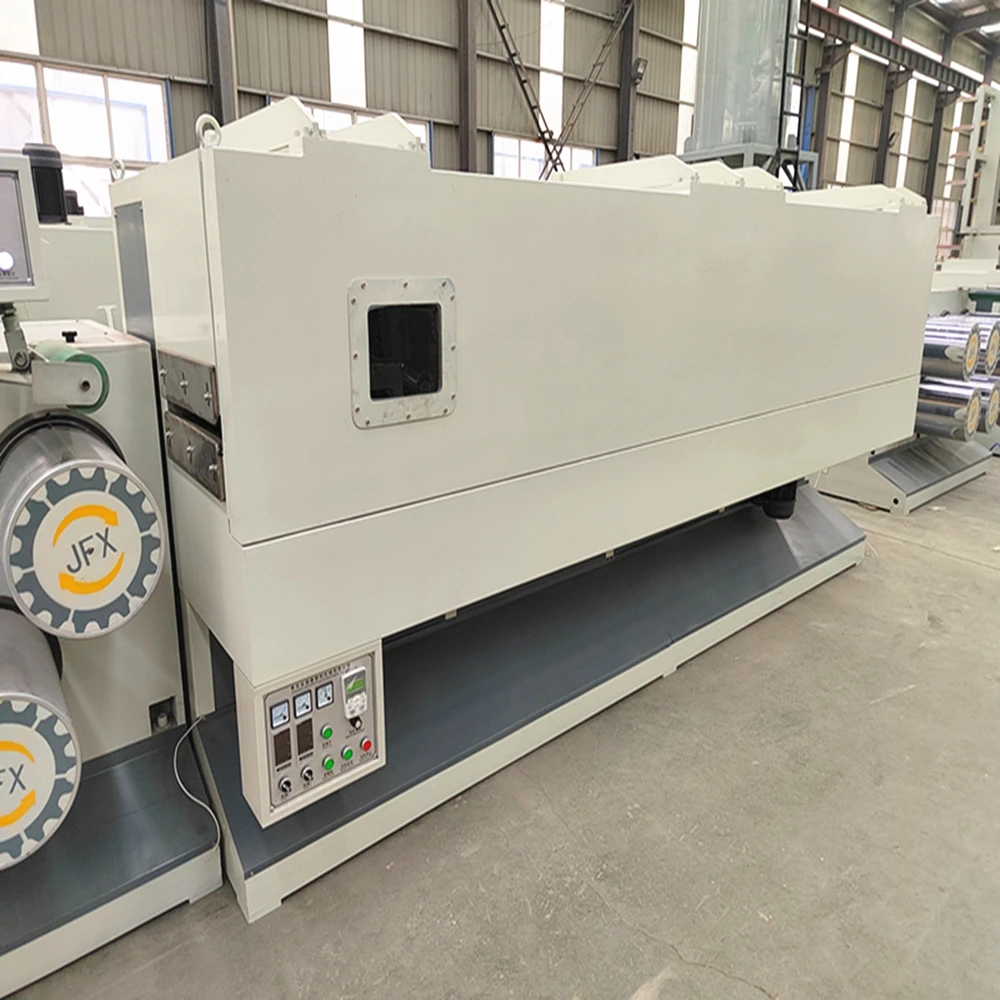

V. Machine pictures of plastic broom monofilament machine pp monofilament machinery/extruder/extrusion machine/extruding machine:
IV. Final Products of plastic broom monofilament machine pp monofilament machinery/extruder/extrusion machine/extruding machine:
Company Information
Qingdao Jinfuxin Plastic Machinery Co., Ltd is a state designated enterprise producing plastic machinery and high-tech enterprise in Qingdao. Mainly engaged in research & development, manufacturing, sales, and after-sale service of new plastic machinery. Products consist of PVC crust foamed board production line, artificial turf production line, PET/PP strapping line, plastic round wire drawing machine, Plastic extruding flat film stretching line,HDPE huge diameter hollowness wall spiral pipe production line, double-wall corrugated pipe extrusion line etc. and all kinds of plastic pipe, profiles, board, bar extrusion line and auxiliary equipment. Our machines are popular with the customers, which are sold all over the country and exported to Southeast Asia, Latin America, middle east, Russia, Ukraine and other countries. Jinfuxin company aim “morality for the surplus, credit management, service oriented, joint development, shaping the future” .
1.A simple overall operation of whole machine.
2. High performance and accuracy of our Machine, to reduces the chances of equipment failure during operation of the equipment , and brings greater benefits to the customer.
3. Automated design; can reduce manpower and production costs, increase productivity, improve final product‘s quality.
4. Low maintenance rate.
5. Full time PLC control.
6. High energy efficiency, environmental protection and energy saving, safe and reliable.
7. Exclusive design, variety of invention patents; for example, our device can effectively reduce
the Die Head changing time from 2 hours to 30 minutes
Service tenet :customer satisfaction is our greatest pursuit !
A.pre-sale service:
To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on.
Pre-sale service's main purpose is to assist the clients prepare the project planning and system requirments analysis, enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits.
B. After-service
1 Free installation and debugging
2 Provide all kinds of product formyla, technology and chemical material manufacyurer information
3 According to the customer's requirments, provide technical guidance
4 Technical training for employees of customers
5 Reponsible for maintenance sevice,door to door sevice if necessary.
Packaging & Shipping
Contact Information
FAQ
| Q:Is your company factory or trade company? A: we are factory, we are engaged in this business for 20 years, we also have our own trade company. |
Q: Can you guarantee your quality? Best quality is our principle all the time. You can be assured on our production completely. We are Trade Assurance by Alibaba ,we can make business by Trade Assurance. |
Q : What is the payment term? will testing the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T,L/C,D/P,O/A, Western Union etc..) |
Q:What about after service? parts or repair service to our customer anytime and anywhere, we will sent our technician to your factory if necessary. |
Q: How to reach our factory? arrange our driver to pick you to our factory anytime. |
