stainless steel sanitary high pressure motorized 4 inch 3 way 1.5 inch ball valve
- Category: >>>
- Supplier: Jiegang Technology Co. Ltd.
Share on (60847432034):
Product Overview
Description
Description
stainless steel sanitary high pressure motorized 4 inch 3 way 1.5 inch ball valve
Application
The ball valve based on biological , food and beverage, wine, chemical and other pipeline design.
Feature
No retention of high-clean, long life characteristics of small torque, the number of normal switching up to 20 million times, high temperature 180 ℃, pressure 30bar, Easy dismantling and cleaning. No polishing treatment, all forging production.
Widely used in food, beverage, bioengineering, water treatment, daily chemical, petroleum and chemical industries.

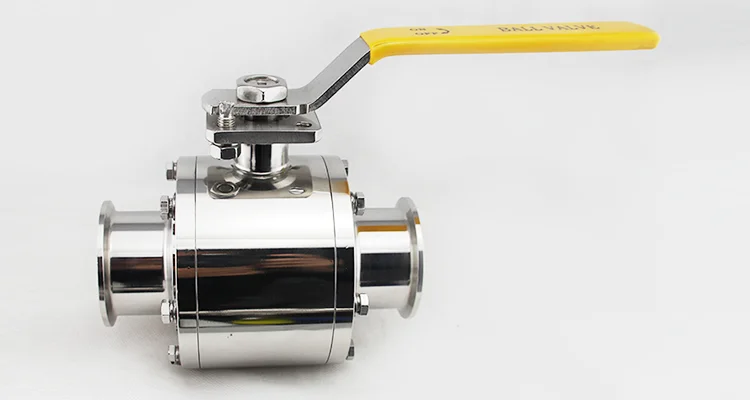

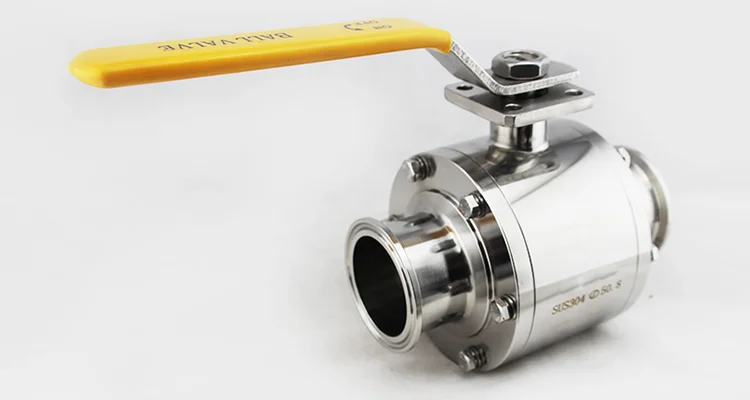

Product Show

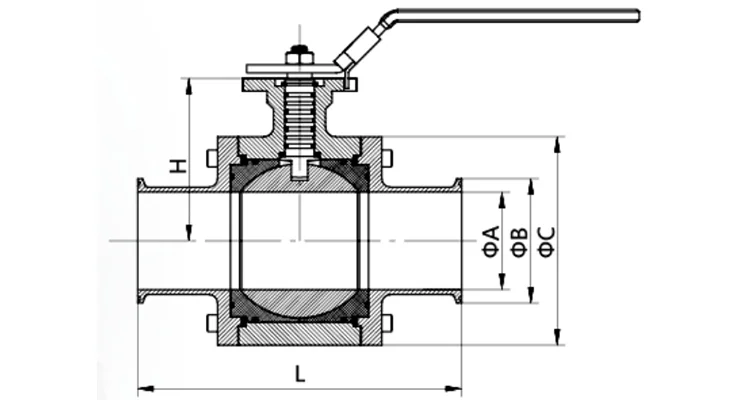

How To Choose
NO | SIZE | A | B | C | L | H | ||||||
1 | 1/2" | 9.7 | 50.5 | 56 | 89 | 59 | ||||||
2 | 3/4" | 16 | 50.5 | 62 | 89 | 61 | ||||||
3 | 1" | 22.4 | 50.5 | 70 | 114 | 66 | ||||||
4 | 1 1/2" | 35.1 | 50.5 | 92 | 142 | 80 | ||||||
5 | 2" | 47.8 | 64 | 108 | 156 | 91 | ||||||
6 | 2 1/2" | 59.5 | 77.5 | 130 | 197 | 103 | ||||||
7 | 3" | 72.2 | 91 | 158 | 221 | 114 | ||||||
8 | 3 1/2" | 81 | 106 | 158 | 229 | 123 | ||||||
9 | 4" | 97.6 | 119 | 192 | 241 | 135 | ||||||
10 | 5" | 120 | 145 | 230 | 260 | 160 | ||||||
Please contact us for more details. | ||||||||||||

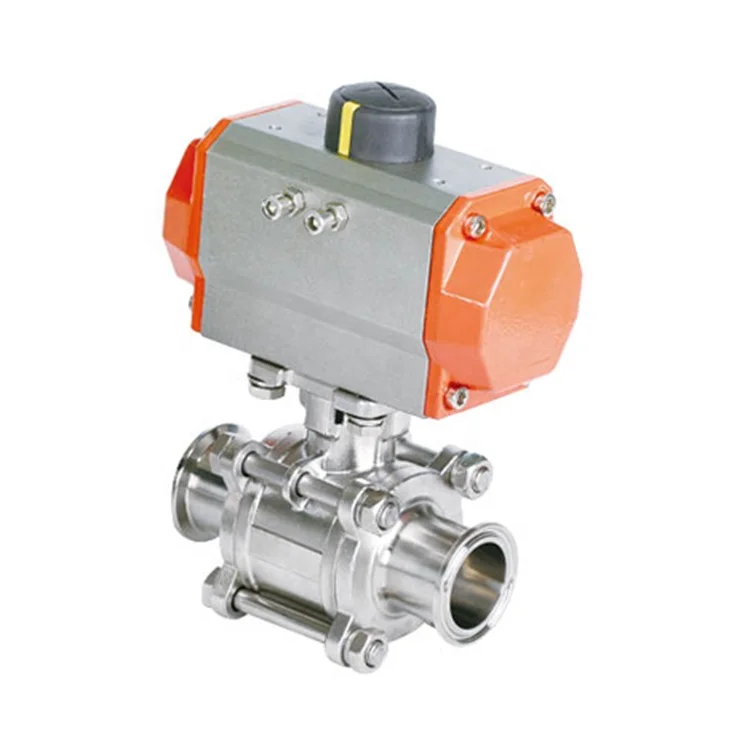

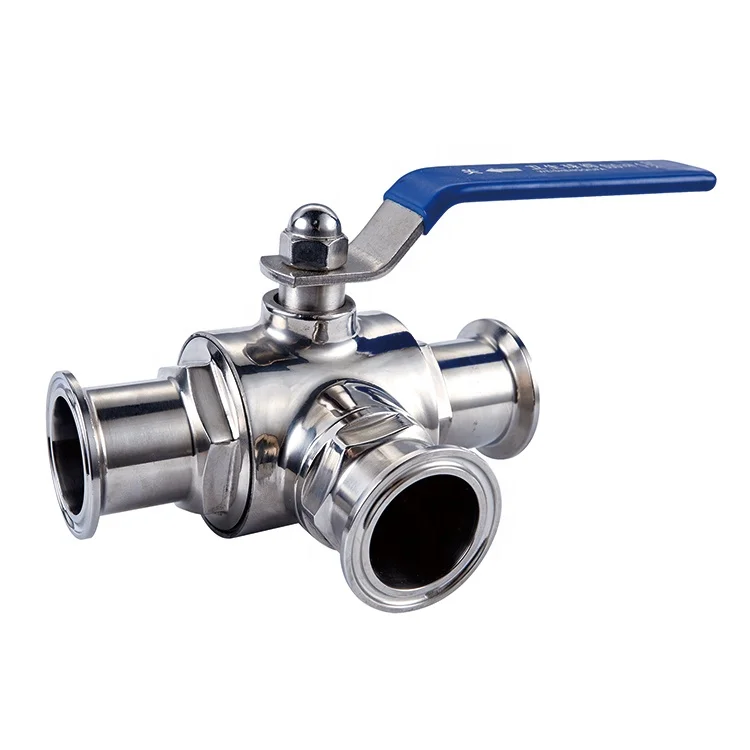

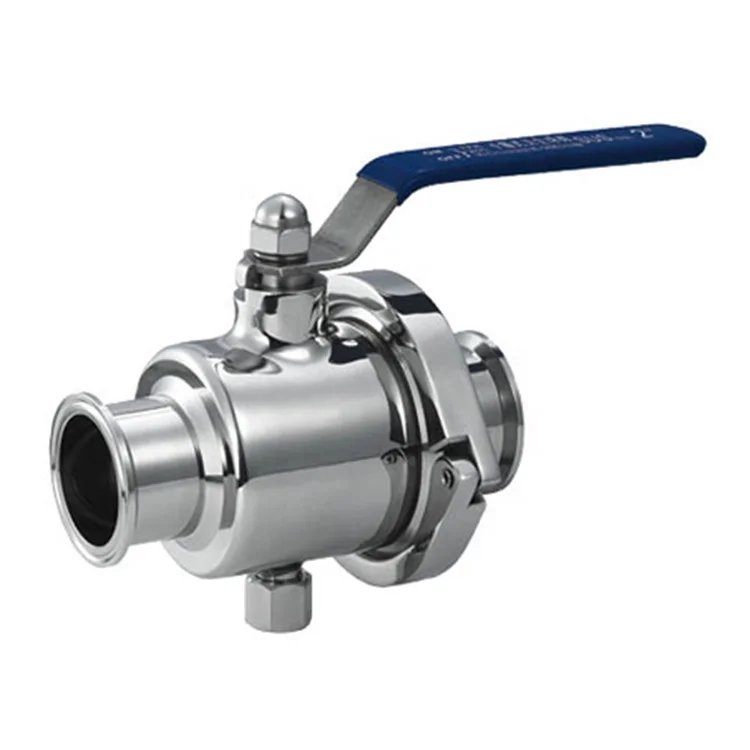

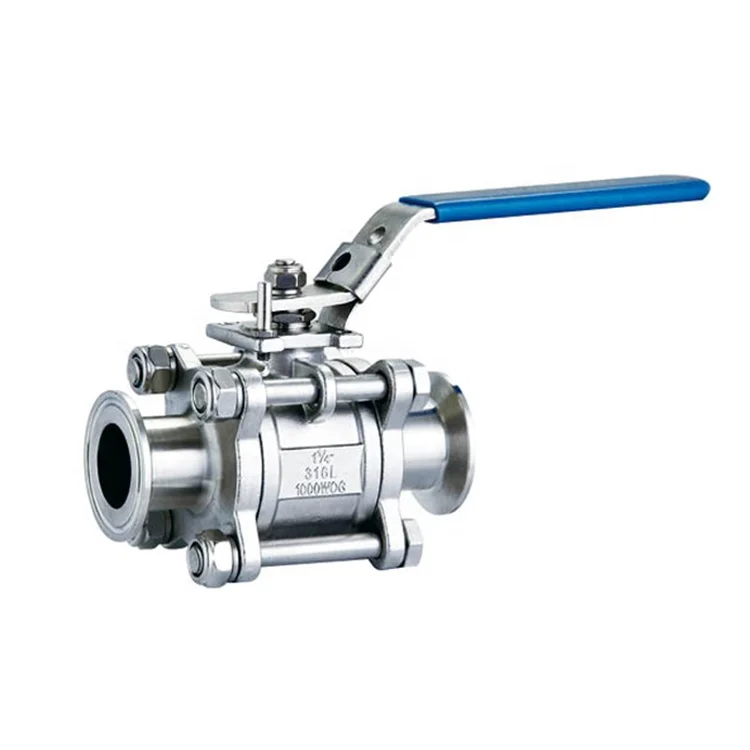

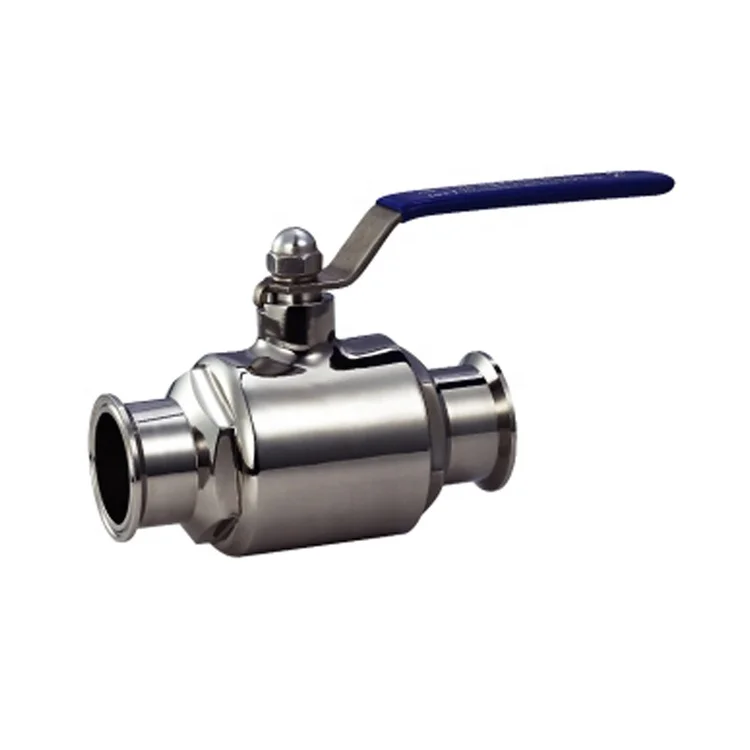

Related Products
