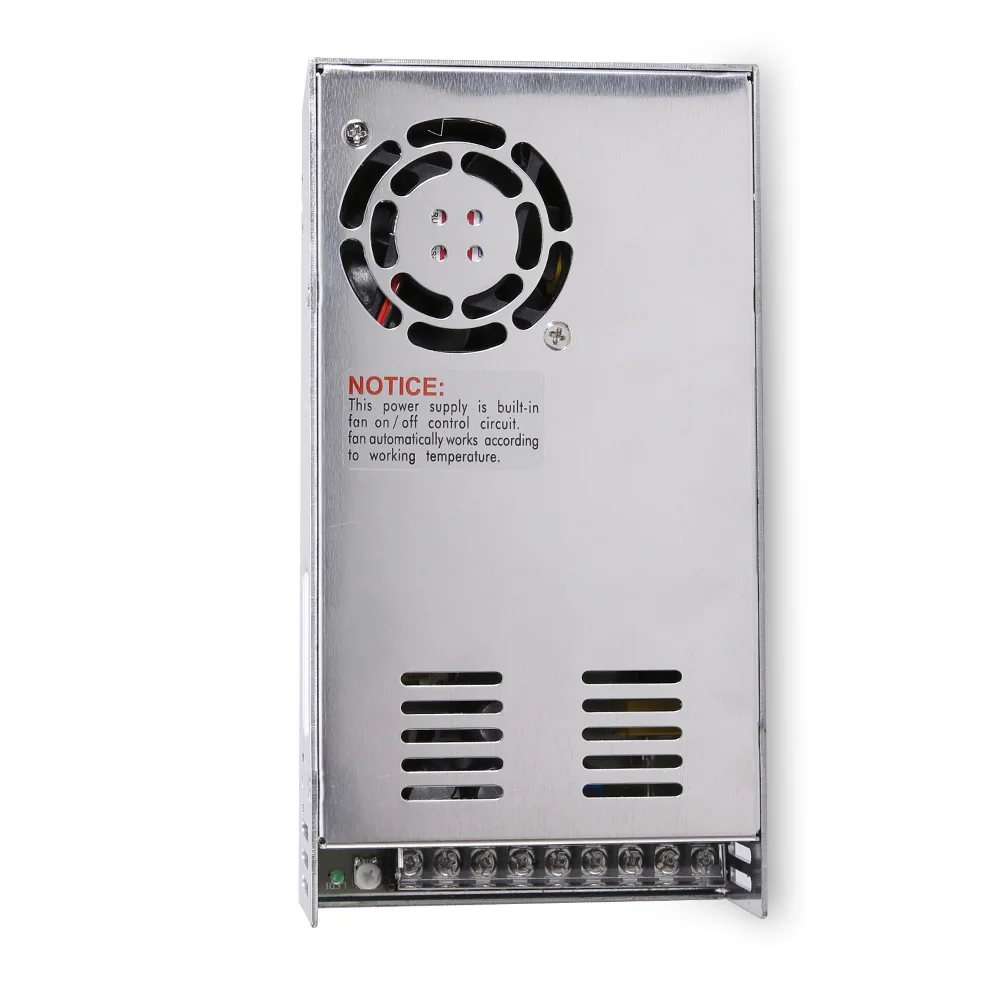

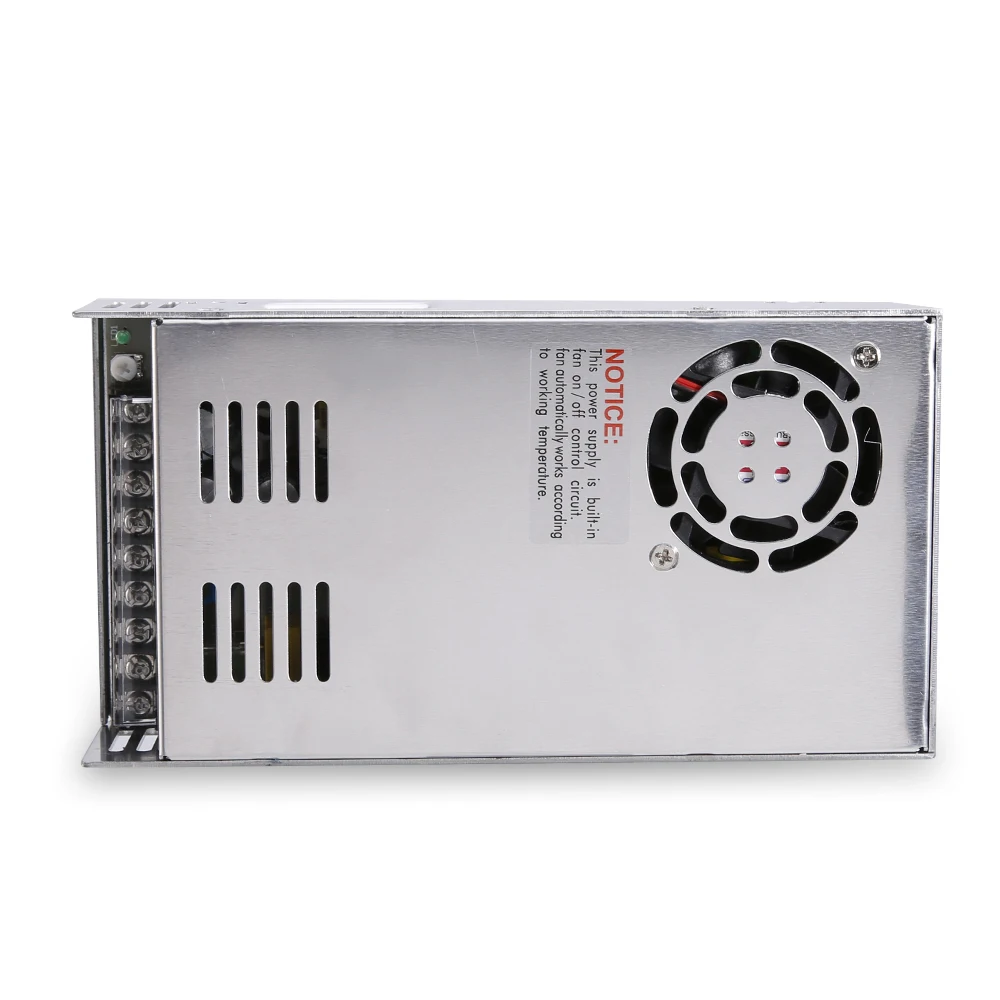

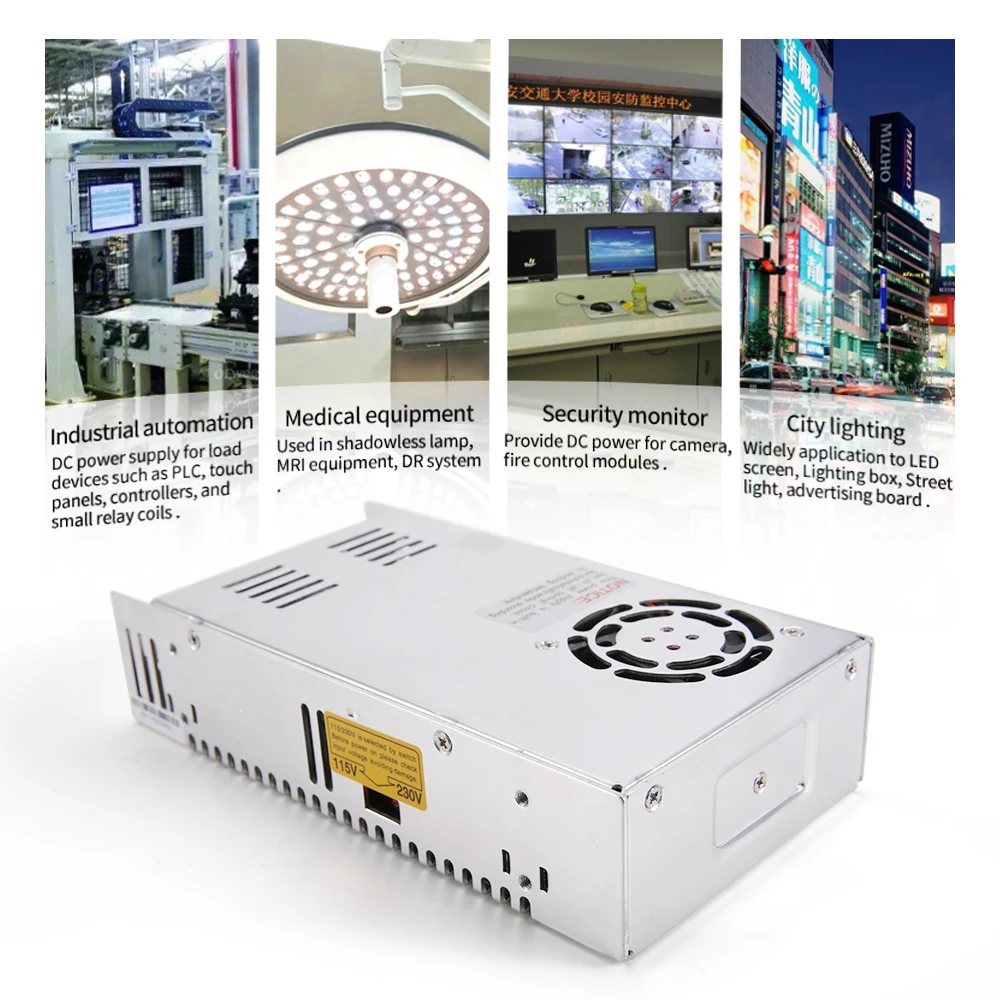

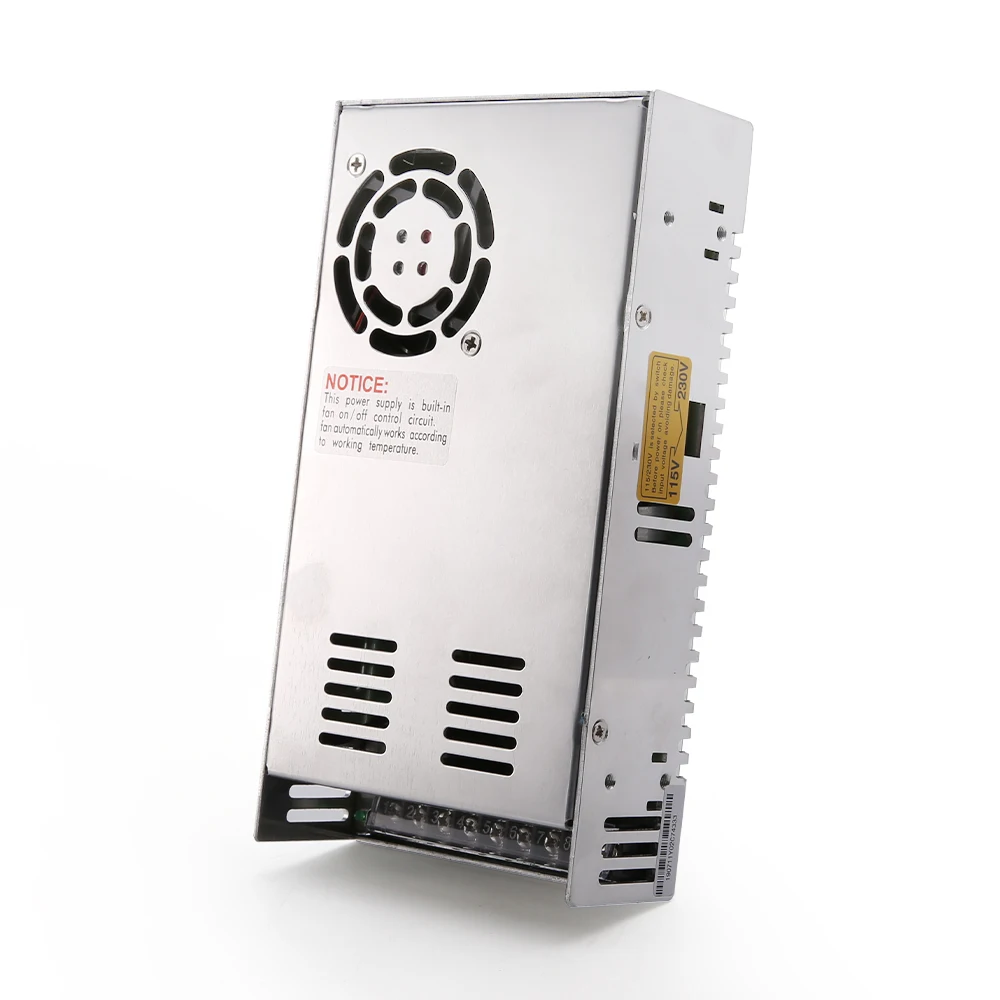

S 400 15 Single Output 400W 15V 26.6amp power supply 110V 220Vac to dc 12V 24V Single output Switching Power Supply
- Category: >>>
- Supplier: Yueqing Leyu Electric Automation Co. Ltd.
Share on (60847436847):
Product Overview
Description
S-400-15 Single Output CE ROHS Approved 400W ac to dc transformer
400W Single Output Switching Power Supply S-400 series
Features:
High efficiency, high reliability, lost cost
AC input range selected by switch
100% full load burn-in test
Protections: Short circuit / Over load
Cooling by free air convection
Fixed switching frequency at 37KHz
2 years warranty
Model Series:
| SPECIFICATIONS | |||||
| OUTPUT | |||||
| Model | S-400-12 | S-400-15 | S-400-24 | S-400-27 | S-400-48 |
| DC Voltage | 12V | 15V | 24V | 27V | 48V |
| Rated Current | 33A | 26.6A | 16.6A | 14.8A | 8.3A |
| Current Range | 0-33A | 0-26.6A | 0-16.6A | 0-14.8A | 0-8.3A |
| Rated Power | 396W | 399W | 398W | 399W | 398W |
| Ripple & Noise | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p |
| Voltage Adj. Range | -16%,+10% | -10%,+20% | -16%,10% | -4%,+18% | -15%,+17% |
| Voltage Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% |
| Setup, Rise, Hold Up Time | 200ms,50ms,20ms at full load | ||||
| Voltage Range | 90~132VAC/180~264VAC selected by switch 47~63Hz; 254~370VDC | ||||
| AC Current | 6.5A/115V 4A/230V | ||||
| Efficiency | 79% | 78% | 81% | 82% | 83% |
| Inrush Current | Cold start 50A/115V 50A/230V | ||||
| Leakage Current | <3.5mA/240VAC | ||||
| Over Load | 105%~135% | ||||
| Protection type: Fold back current limiting, recovers automatically after fault condition is removed. | |||||
| Over Voltage | 115%~135% | ||||
| Protection type: hiccup mode, recovers automatically after fault condition is removed. | |||||
| Over Temp. | RT3≥55℃ Fan On, ≤45℃ Fan Off, ≥80℃ Output Shutdown (5~7.5V) | ||||
| RT3≥65℃ Fan On, ≤55℃ Fan Off, ≥80℃ Output Shutdown (12~15V) | |||||
| RT3≥70℃ Fan On, ≤60℃ Fan Off, ≥85℃ Output Shutdown (24~48V) | |||||
| Working Temp., Humidity | -10℃~+50℃; 20%~90%RH | ||||
| Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH | ||||
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | ||||
| Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||||
| Safety Standard | Design refer to UL1950 | ||||
| EMC Standard | Design refer to EN55022, EN55024, EN61000 | ||||

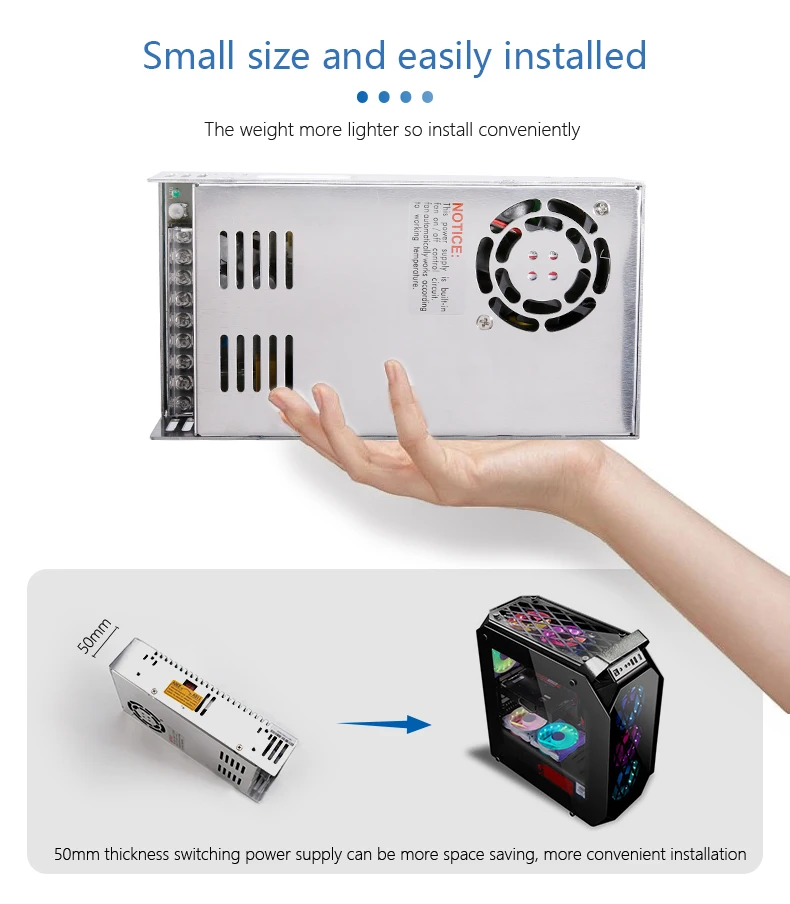

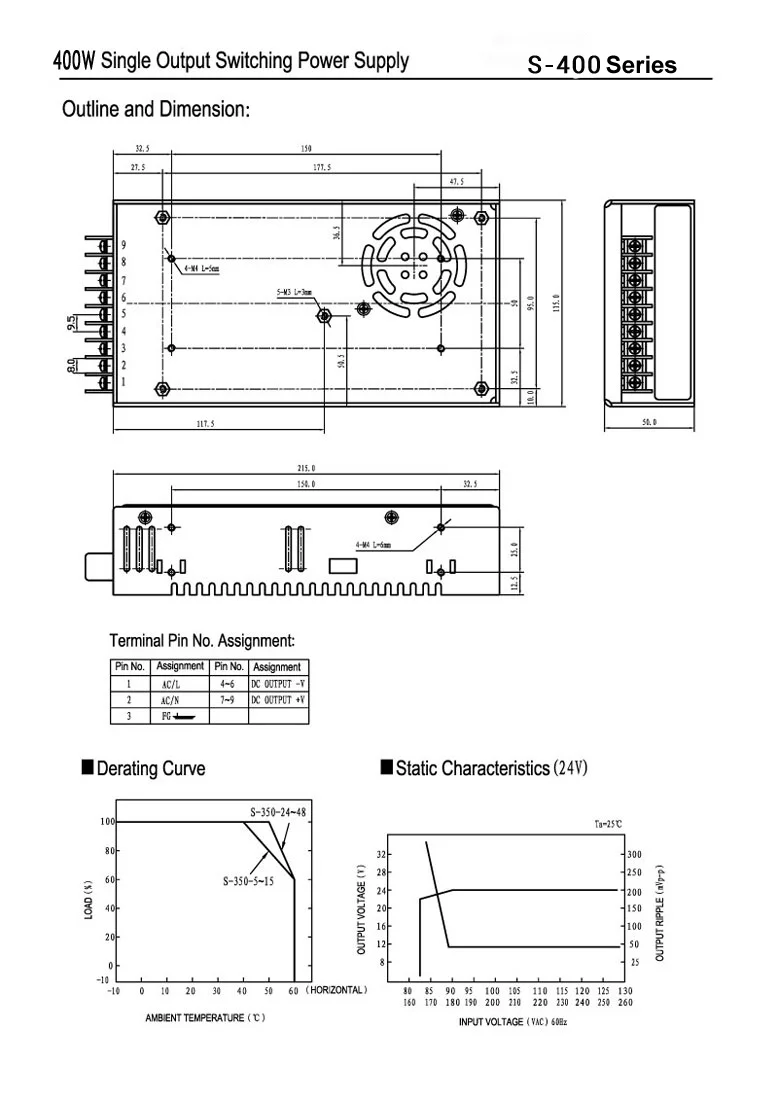

| Dimension | 215*115*50mm(L*W*H) | ||||
| Weight | 1Kg | ||||
| Packing | 20pcs/20Kg | ||||
| NOTE | |||||
| 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation | |||||
