New arrival truck start switch start stop push button one click start button
- Category: Auto Switches >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (60847452045):
Product Overview
Description
Product Overview

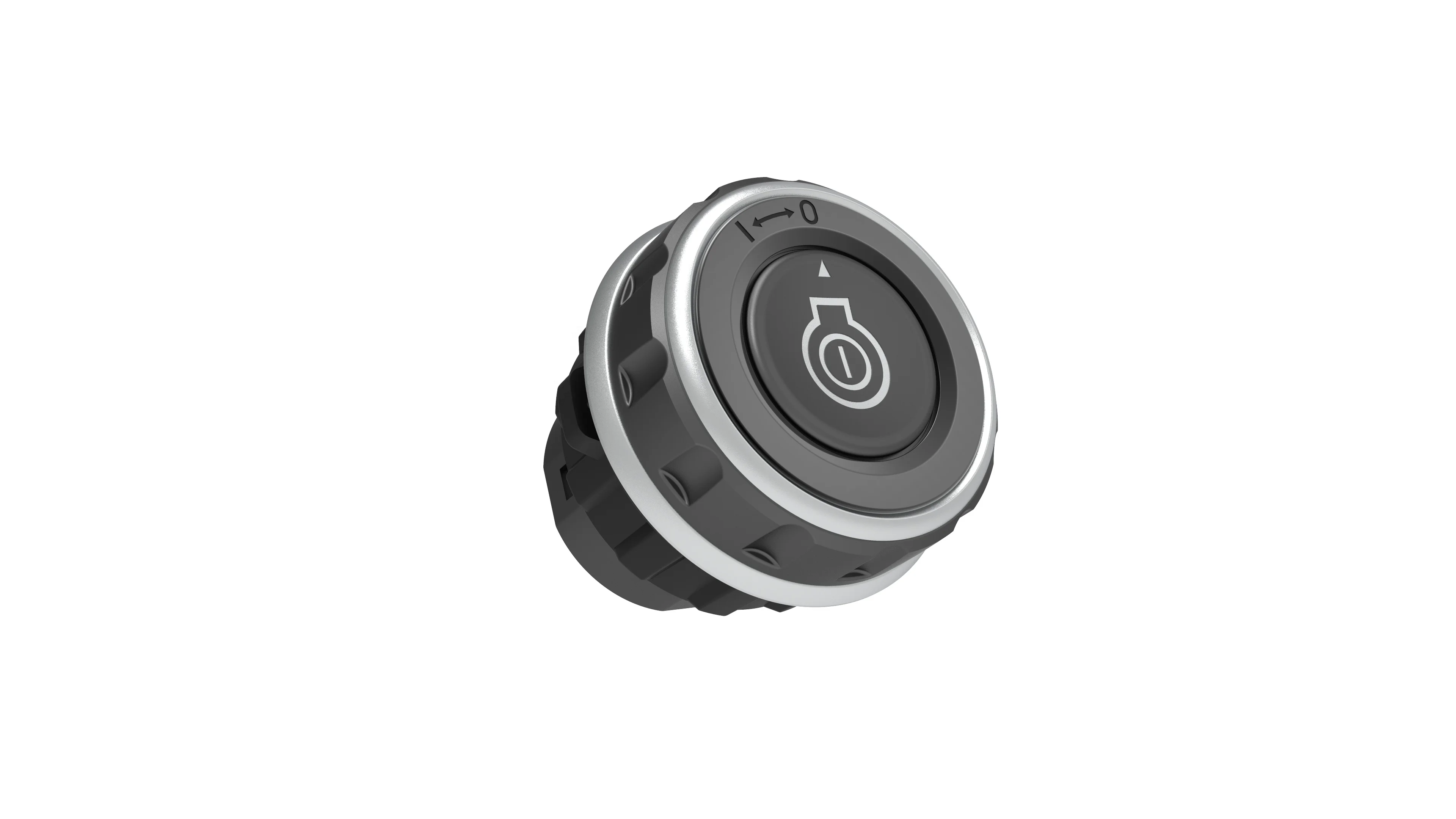

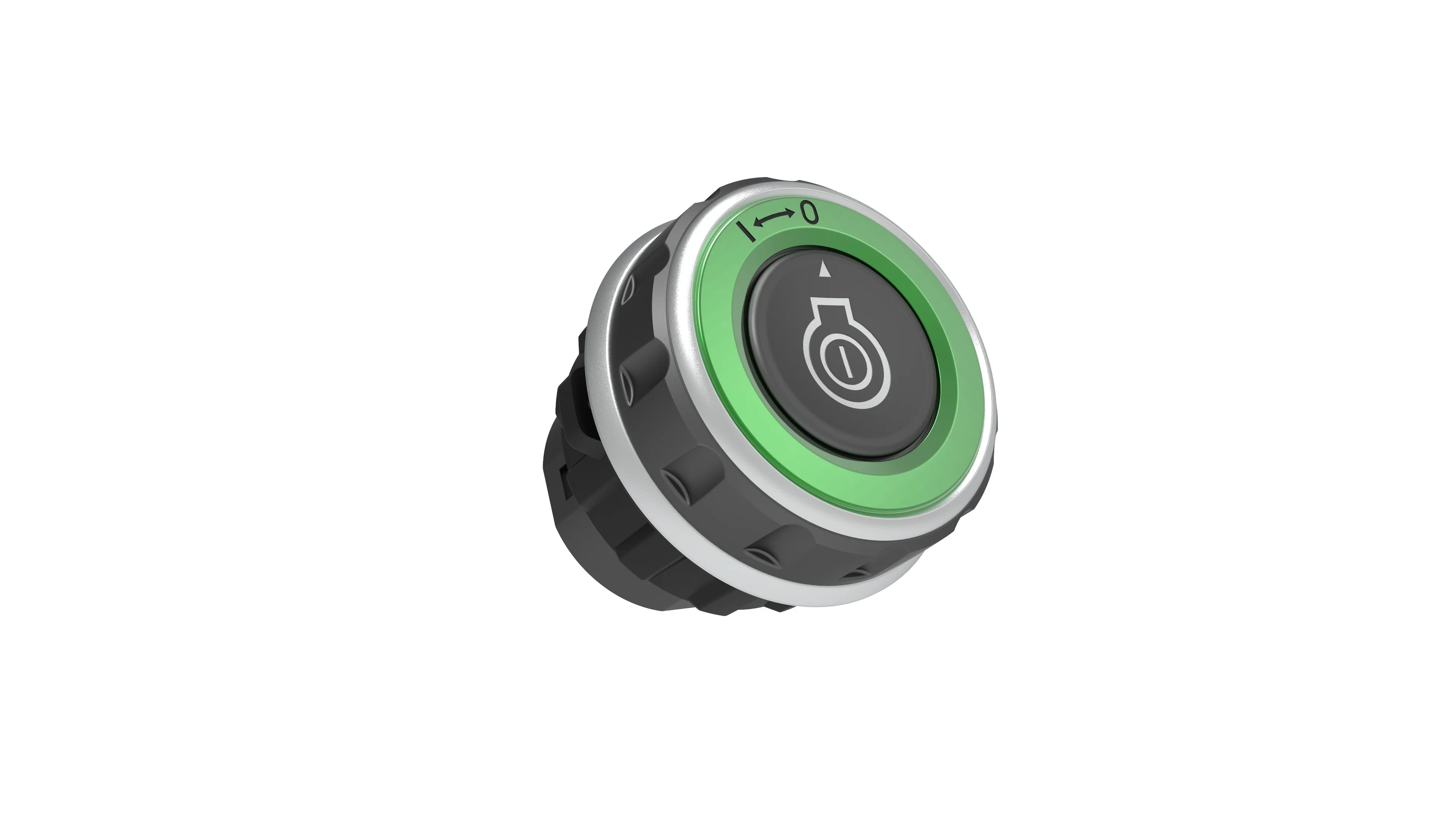

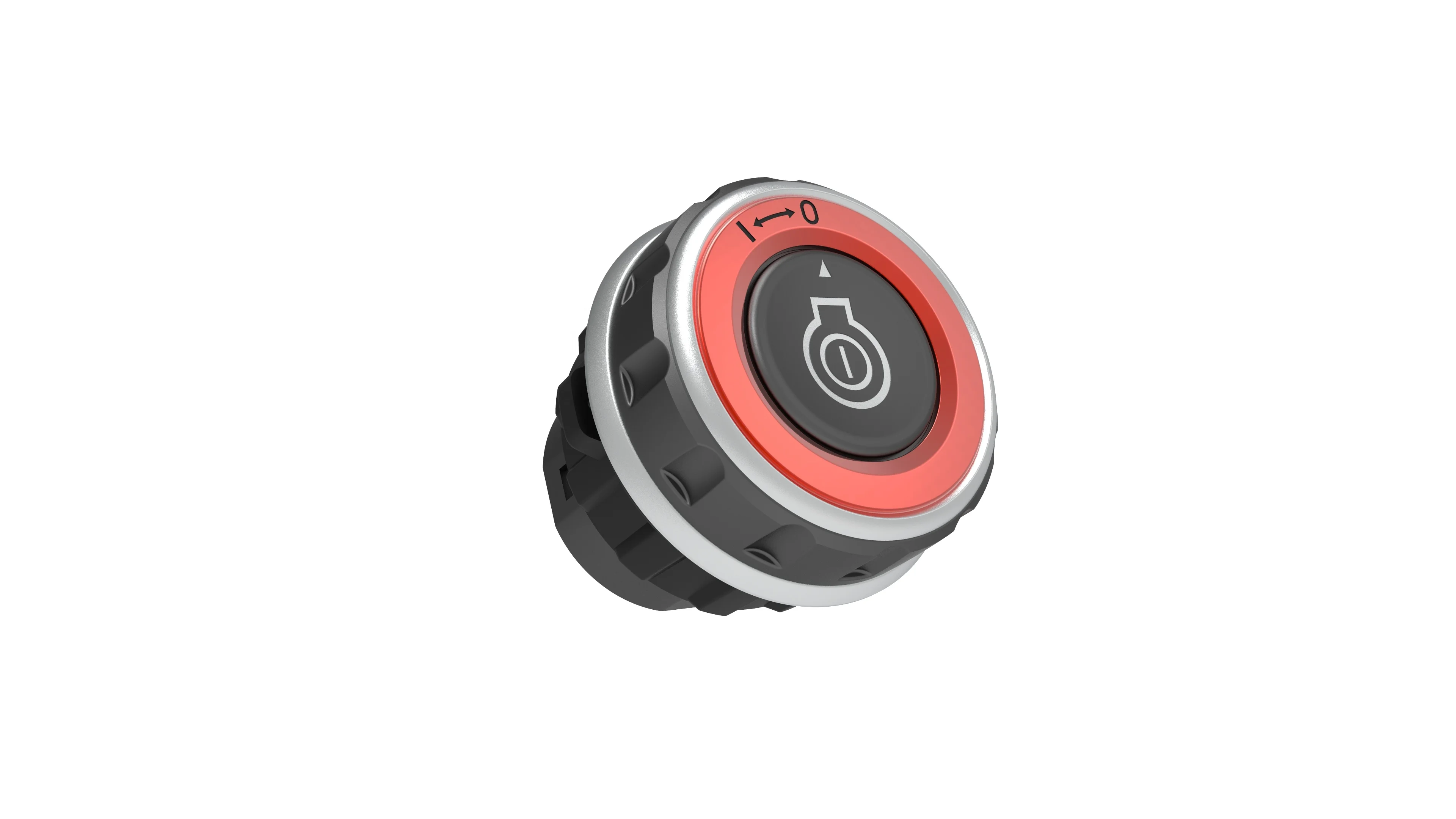

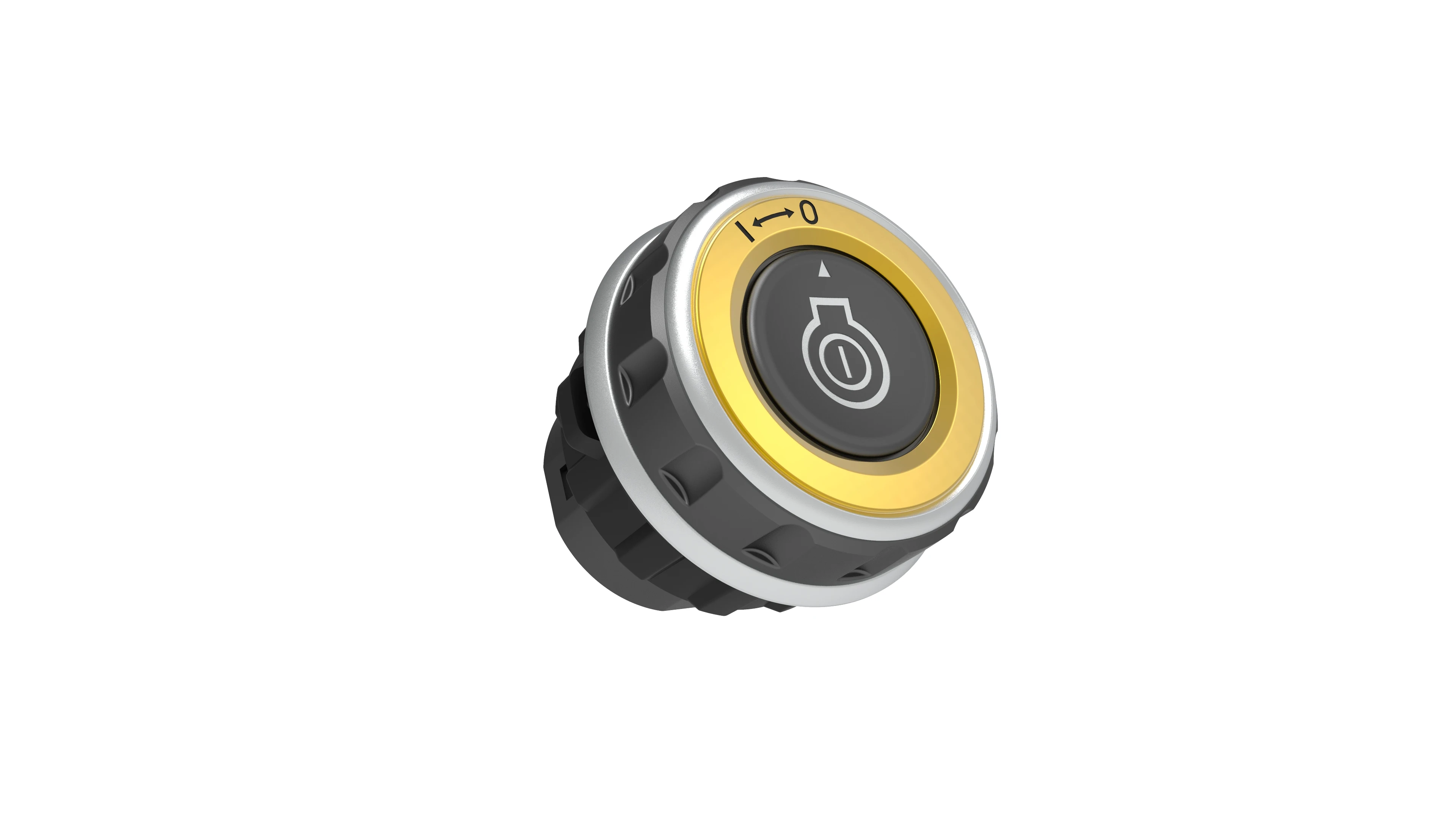

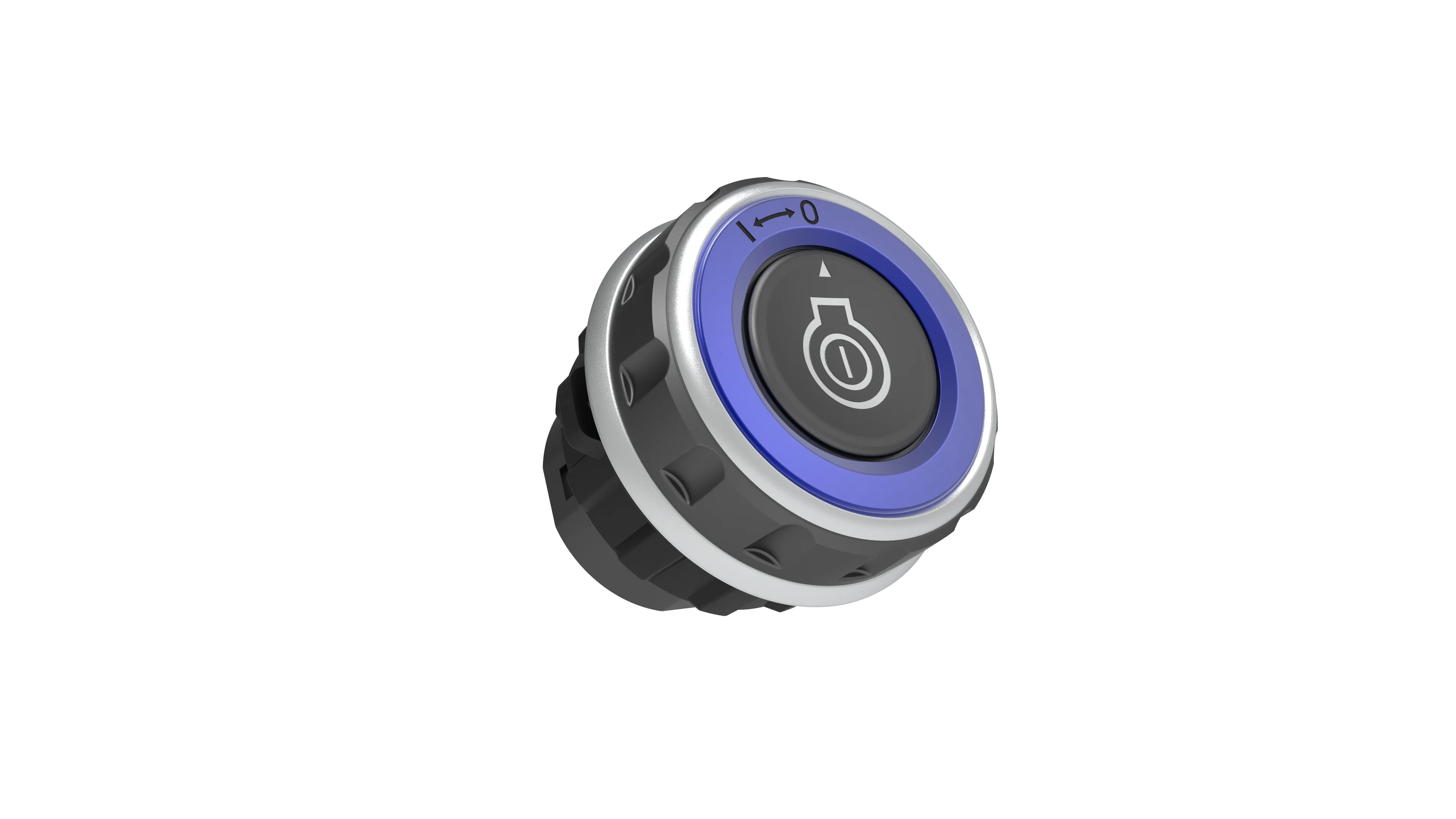

CJK-Y39A one-click start button switch
-Mounting hole size: Φ39mm

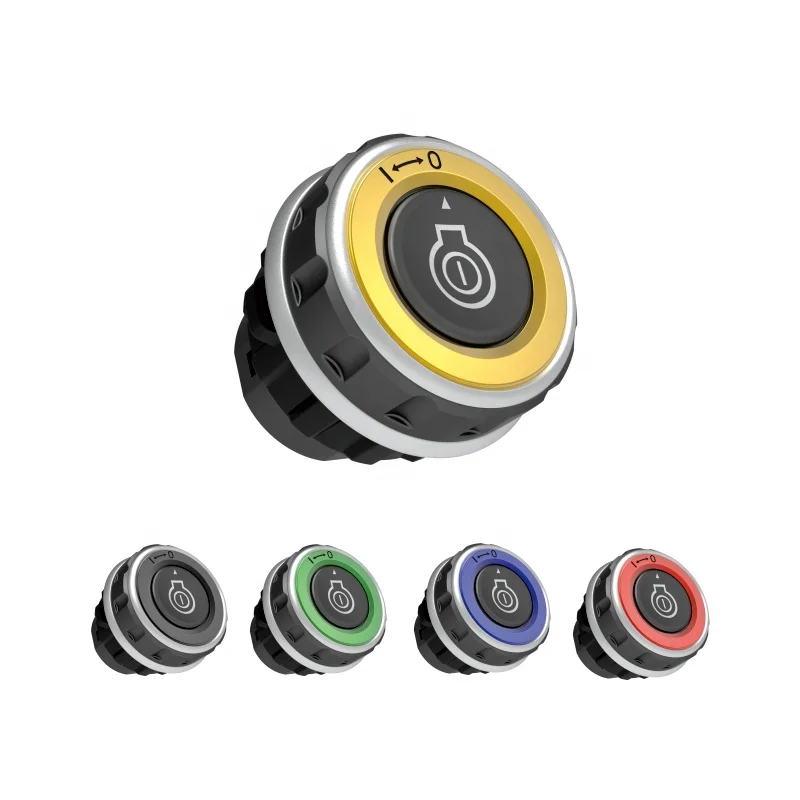

-Colour: red, green, yellow, blue, black
-Colour: red, green, yellow, blue, black
Product Specification
Product Name | one-click start button switch | ||||||||||
Product Type | CJK-Y39A | ||||||||||
Products Standard | GB/T14048.5 | ||||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | |||||
≤2000m | -25℃～+55℃ | -40℃~+70℃ | ≤90% | 3 | Ⅲ | ||||||
Main technical index | Common Parameter | Rated insulated Voltage | 60V | ||||||||
Load Currect | 8A(24V) | ||||||||||
Insulated resistance | ≥10MΩ | ||||||||||
Protection grade | IP55 | ||||||||||
Power Frequency Withstand Voltage | 1000V/5S | ||||||||||
Electrical life | ≥100,000 times | ||||||||||
Mechanical life | ≥200,000 times | ||||||||||
Light Parameter | Rated working Voltage /Current | DC 24V/8A | |||||||||
Life of indicator light | ≥30,000, hours | ||||||||||

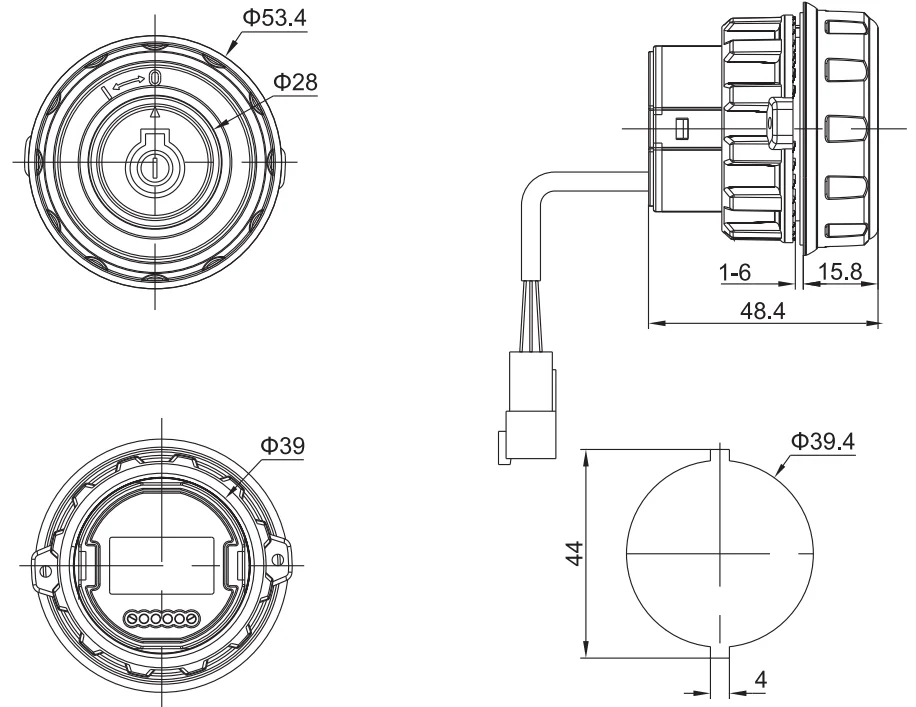

Outline drawing of button(mm) Size of mouting hole（mm）
Instructions For Use

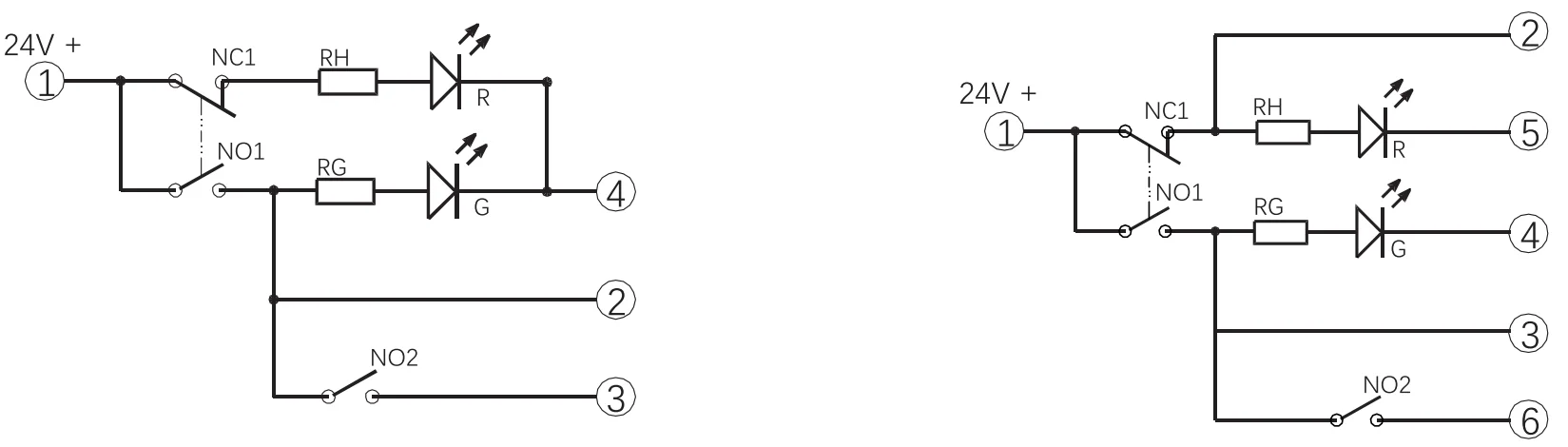

Electrical schematic diagram
Instruction
2. When the ring switch rotates from "O" to "I", NC1 is disconnected, NO1 is on, NO2 is disconnected; When the button is pressed under this position, NO2 will be conducted.
3. When the ring switch rotates from "I" to "O", the initial state is restored: NC1 is on, NO1 is disconnected, NO2 is
disconnected.
disconnected.
