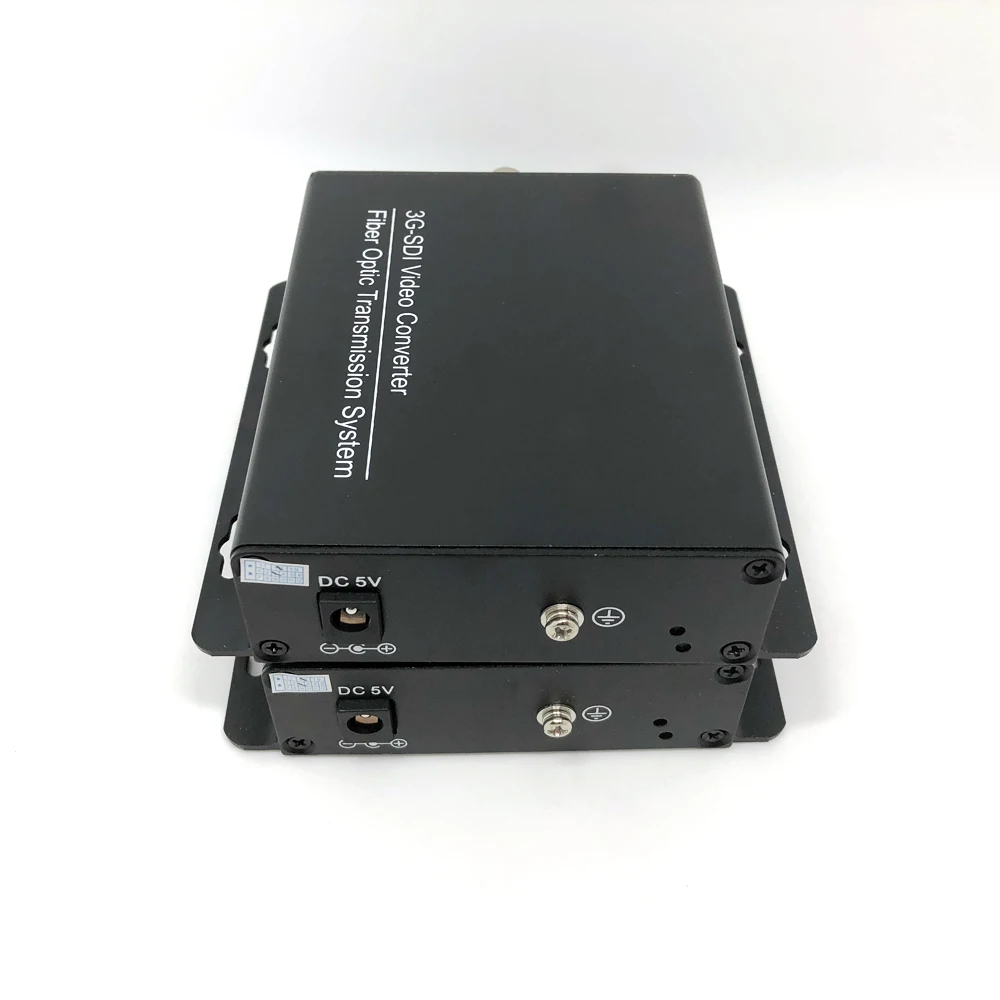

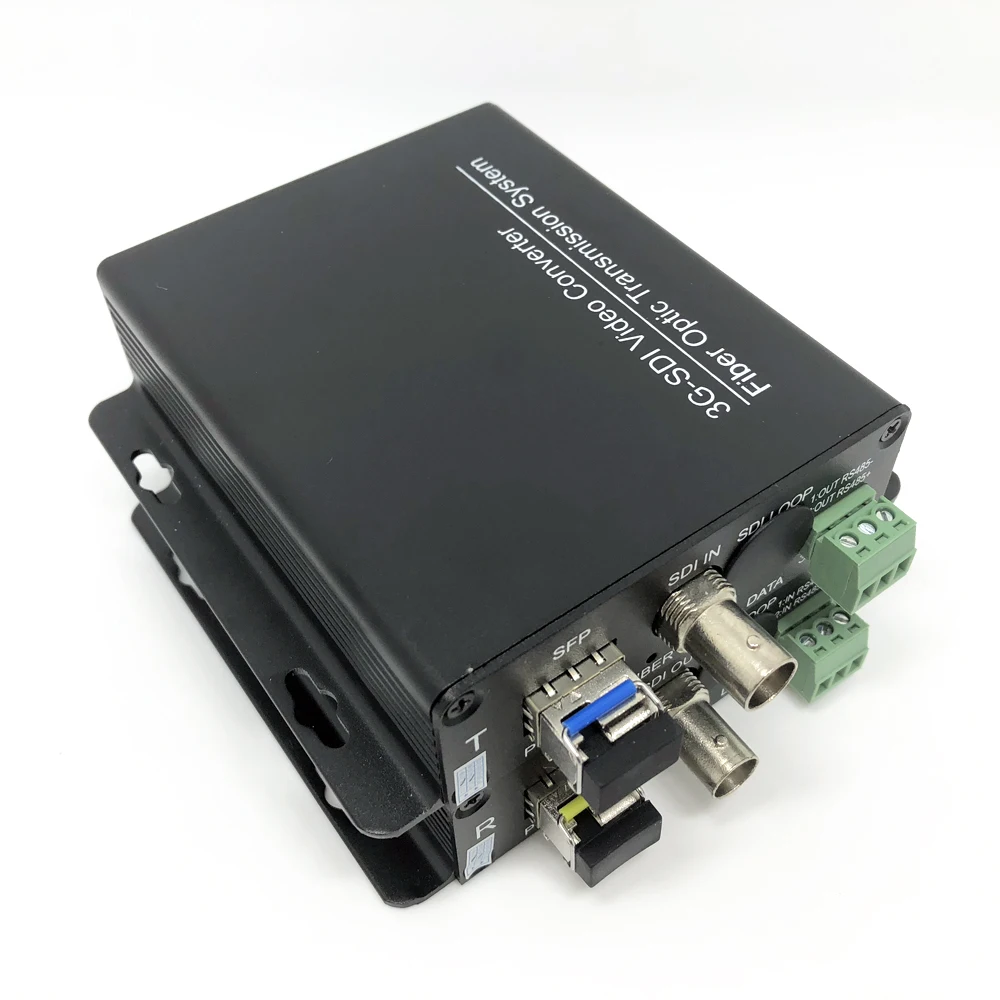

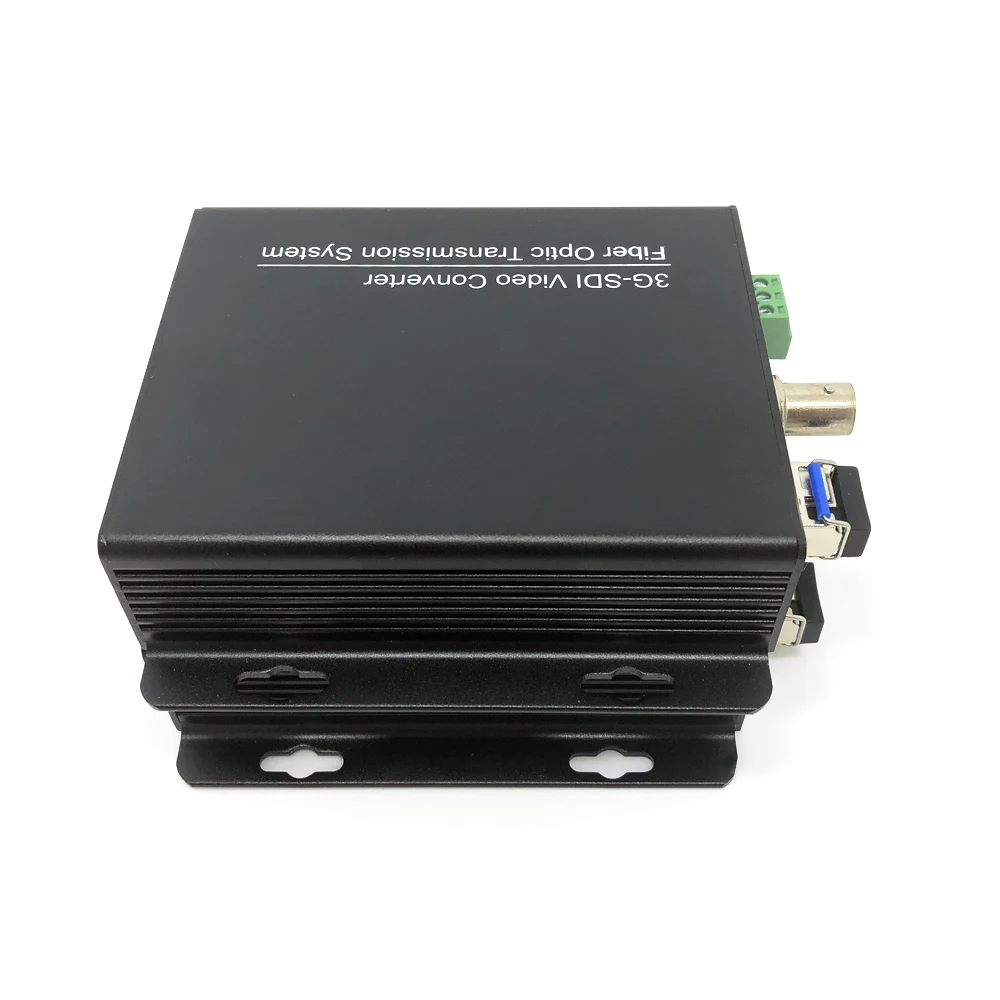

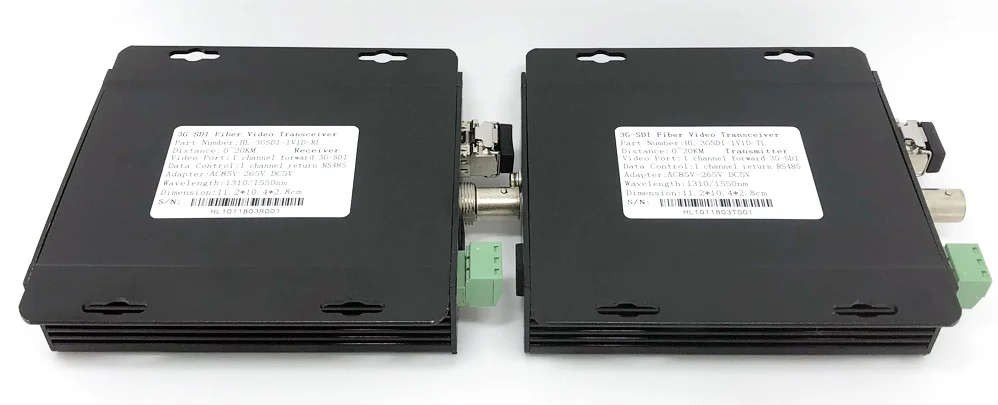

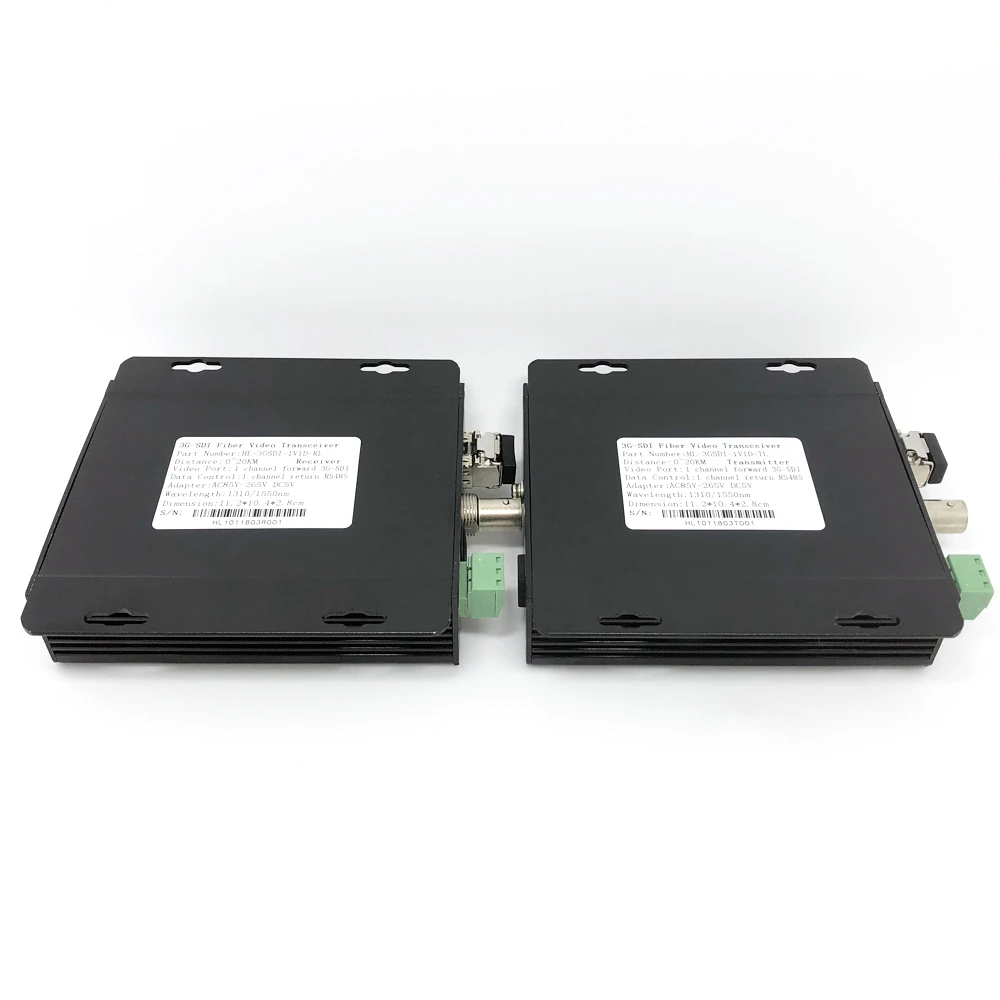

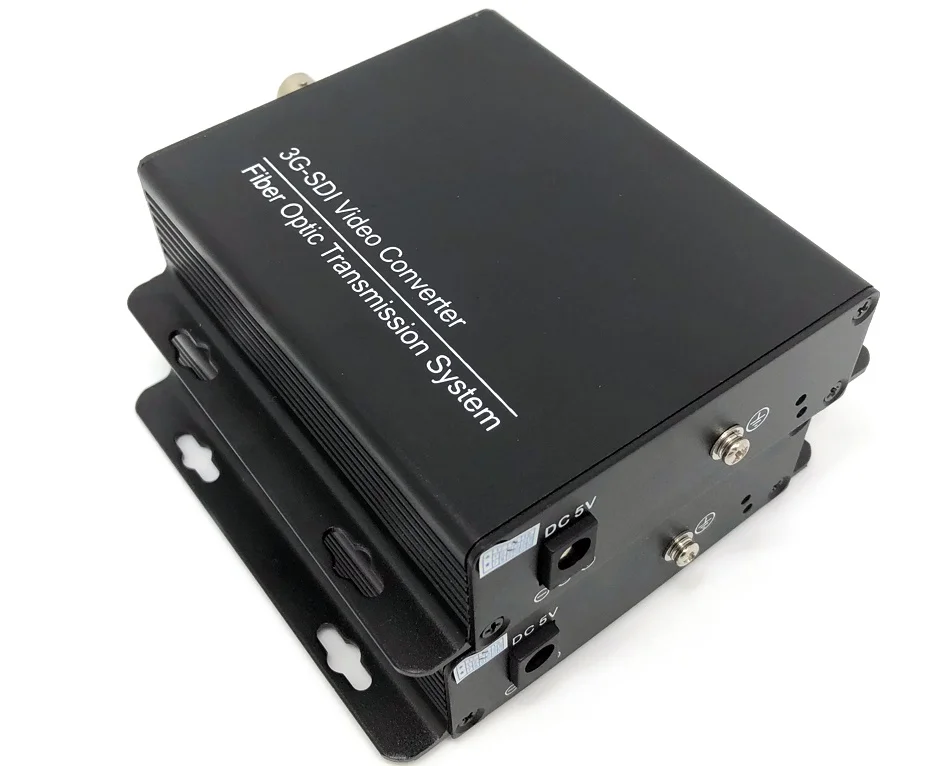

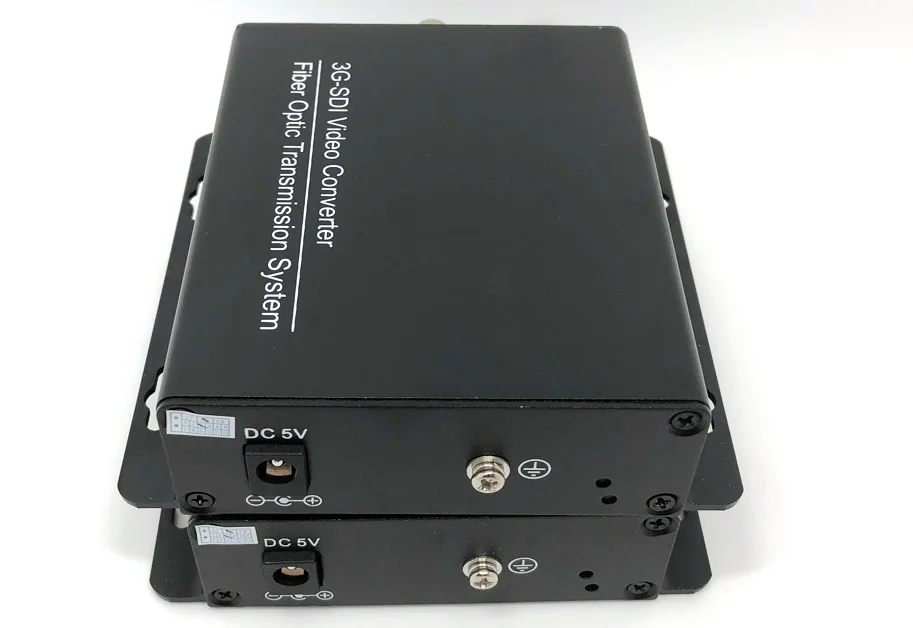

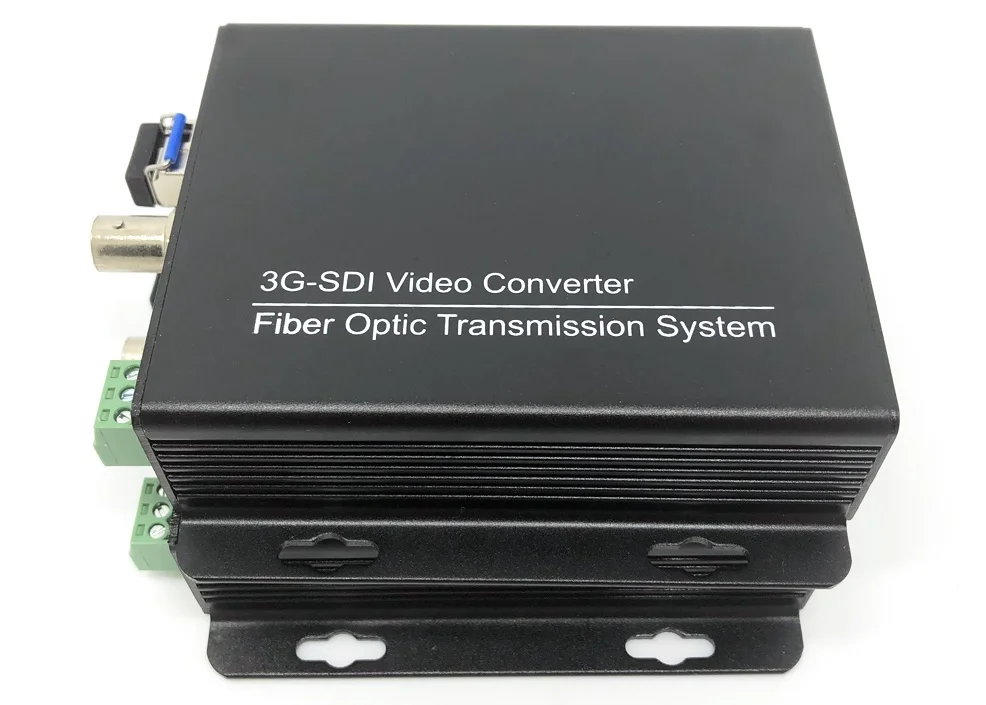

 SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber optic converter hd-sdi video transmitter



-----------------------Main Fiber video Converter--------------------------



  ----------------------------------Features---------------------------------

•1 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

• The Max rate of work is 3.2Gb/s

• Support SMPTE 292M (2.9Gb/s) clock recovery

• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

• LED Status Indication to monitor the working conditions

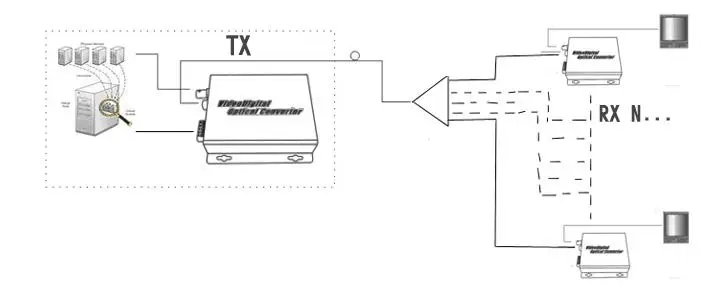

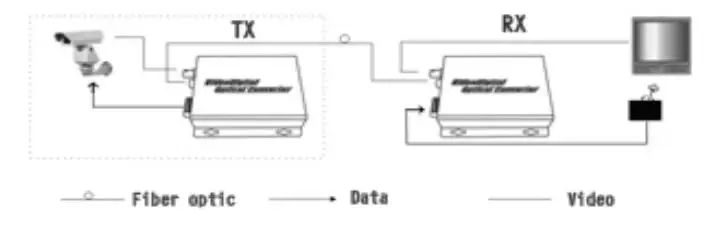

• Video transmission system can support many application branches structure

•The fiber port Support SFP transceiver hot-plugged

•The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94



 ----------------------------------Specification------------------------------

 Video

Number of channels : 1  channels

Input/out put Connector : BNC 75Ω

Input/output voltage: 1.0 Volt p-p

Video Bits Rate: Max 3.2Gb/s

Video SDI Standards: 270Mbps(SD-SDI)

1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)



Data( Optional)

Data encode : RS485/RS422/RS232/Manchester

Physical interface : Industrial standard screw terminal

Frequency/Rate support : 0~400K bps



Fiber Optic

Number of Optical port : 1 SFP

Connector : Simplex LC

Transmission Distance: Multi-mode 550m

Single-mode 20Km – 80Km

Wavelength: Mulitmode:850/1310nm;

Single-mode:1310/1550nm (Option)



Connectors

Video : BNC 75Ω

Fiber Optical : Simplex LC

Stand-alone power: DC JACK

Rack power: AC line cord



Electrical & Mechanical

Power adaptor : AC 100-240V to DC 5V 2A

Power consumption : <3W



Environmental

Operating Temperature : - 5C~+75 C

Storage Temperature : - 5 C~+85 C

Relative Humidity : 0%~95% (non-condensing)

MTBF : >100,000 hours



Remark: To meet the needs of our customers and help them to realize their projects, we also can manufacture the products according to customers' requirements.

----------------------------------Application------------------------------

Remark:

•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization
