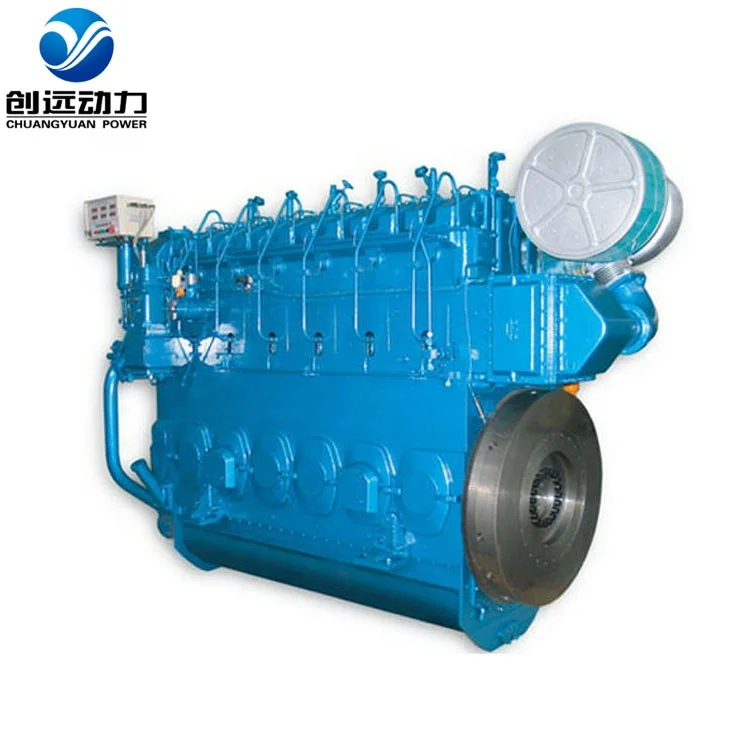

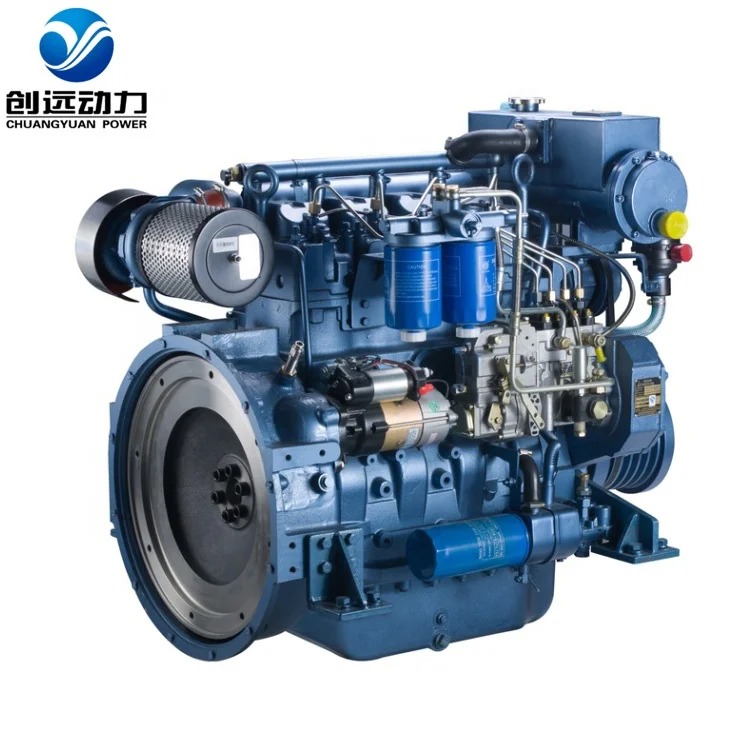

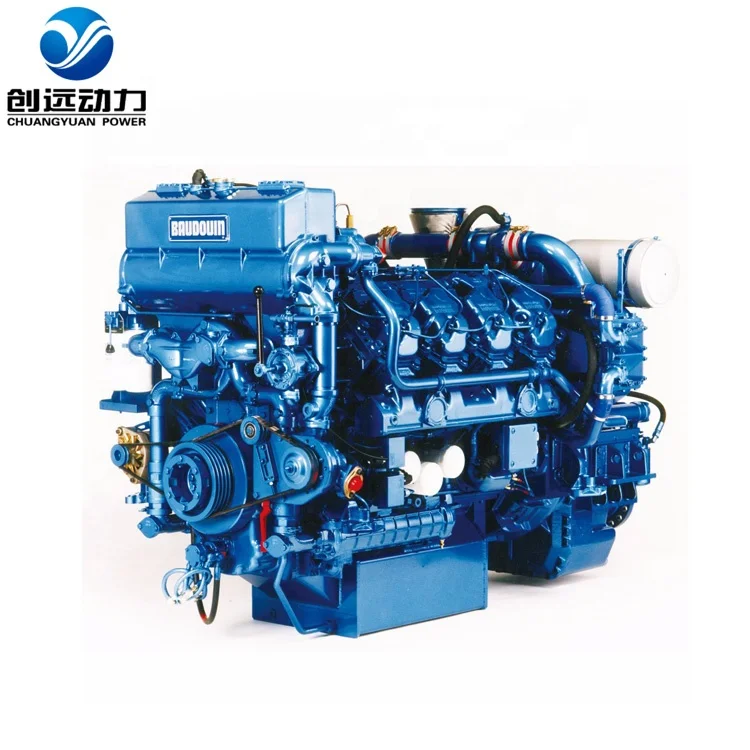

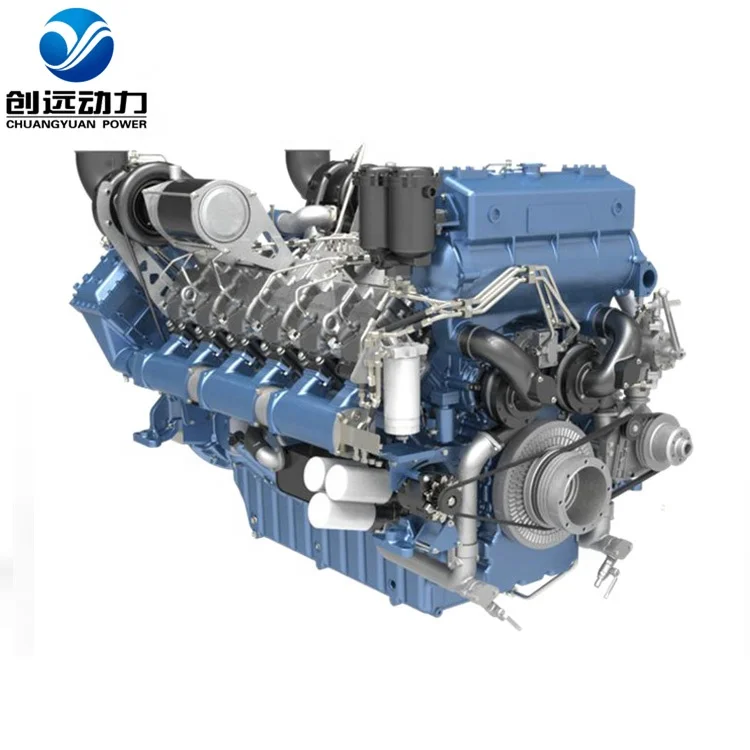

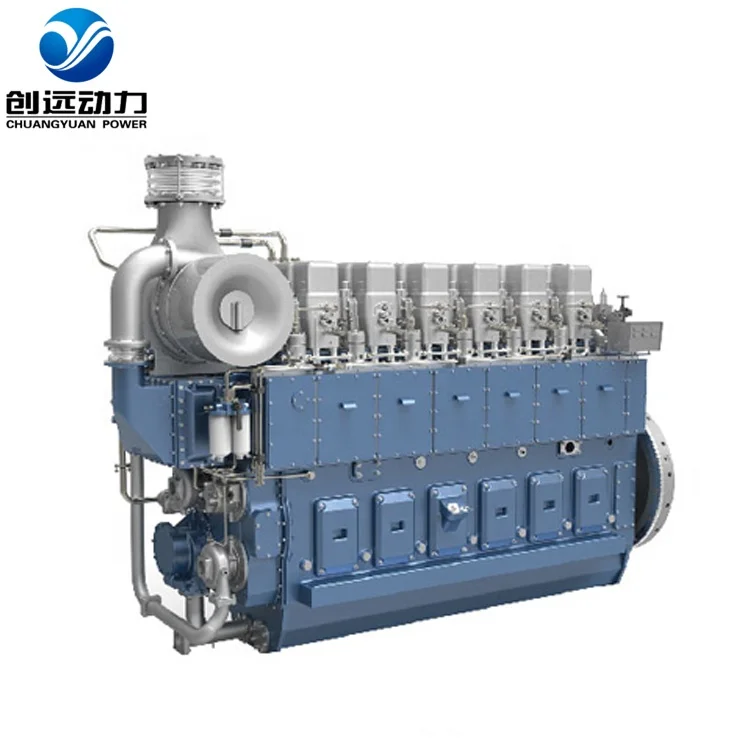

Zd30 190hp 9 cylinders air started system heat exchanger jichai small wp4 boat marine engine
- Category: >>>
- Supplier: Zhongshan Chuangyuan Power Equipment Co. Ltd.
Share on (60848290475):
Product Overview
Description
Products Description
Zd30 10 hp 9 cylinders air started system heat exchanger jichai small wp4 boat marine engine with gearbox
ENGINE SPECIFICATION | ||
Engine Type | Inline-9Cylinders, V-type 12Cylinders,4-stroke Diesel Engine | |
Bore x Stroke | 260 mm x 320 mm | |
Combution System | common Rail Injection System | |
Aspiration | Two Stage Super Turbocharged&Intercooled | |
Starting System | Air Started | |
Cooling System | Heat Exchanger,HT< F.W Closed Circuit Cooling | |
Displacement | 153/204 L | |
Rotation | Clockwise Facing Flywheel | |
Size of Flyingwheel Housing & Flywheel | Maker Stander | |
Emissions | IMO TIER II | |
Dry Weight | (9L)29,(12V)30t | |
Dimension(L x W x H) | (9L)6300*2160*3450 , (12V)5830*2240*3355 mm | |
Main specification:
Model | power (kw/hp) | Rated Speed(r/min) | Specific Fual Consumption(g/kw.h) | Specific Oil Consumptiong/ (kw.h) | Overall dimension L×B×H(mm) | Net weight(kg) |
Z12V190BC1 | 800/1080 | 1500 | <209.4 | <1.6 | 2642×1588×2070 | 5300 |
Z12V190BC2 | 882/1200 | 1500 | <209.4 | <1.6 | 2642×1588×2070 | 5300 |
Z12V190BC8 | 1000/1360 | 1500 | <209.4 | <1.6 | 2642×1588×2070 | 5300 |
Z12V190BC9 | 882/1200 | 1500 | <209.4 | <1.6 | 2642×1588×2070 | 5300 |
Z12V190BC10 | 900/1225 | 1450 | <209.4 | <1.6 | 2642×1588×2070 | 5300 |
Z12V190BC11 | 882/1200 | 1500 | <209.4 | <1.6 | 2642×1588×2070 | 5300 |
G12V190ZLC1 | 1000/1360 | 1450 | <209.4 | <1.6 | 2642×1588×2070 | 5300 |
G12V190ZLC2 | 1000/1360 | 1450 | <209.4 | <1.6 | 2642×1588×2070 | 5300 |
Main technical data:
No.and layout of cylinders | 12,60.Vee |
Type | Four stroke,water cooled,turbocharged and aftercooled,direct injection |
Bore | 260mm |
Stroke | 320mm |
Total displacement | 71.45L |
Compression ratio | 14:1 |
Direction of rotation | counter-clockwise(facing to flywheel) |
Starting method | Air motor,electric motor |
Lubricating method | Pressure and splash lubrication |
