110mm closed loop motor easy servo nema 42 stepper motor with digital display
- Category: >>>
- Supplier: Shenzhen Bobet Technology Co. Ltd.
Share on (60848386459):
Product Overview
Description

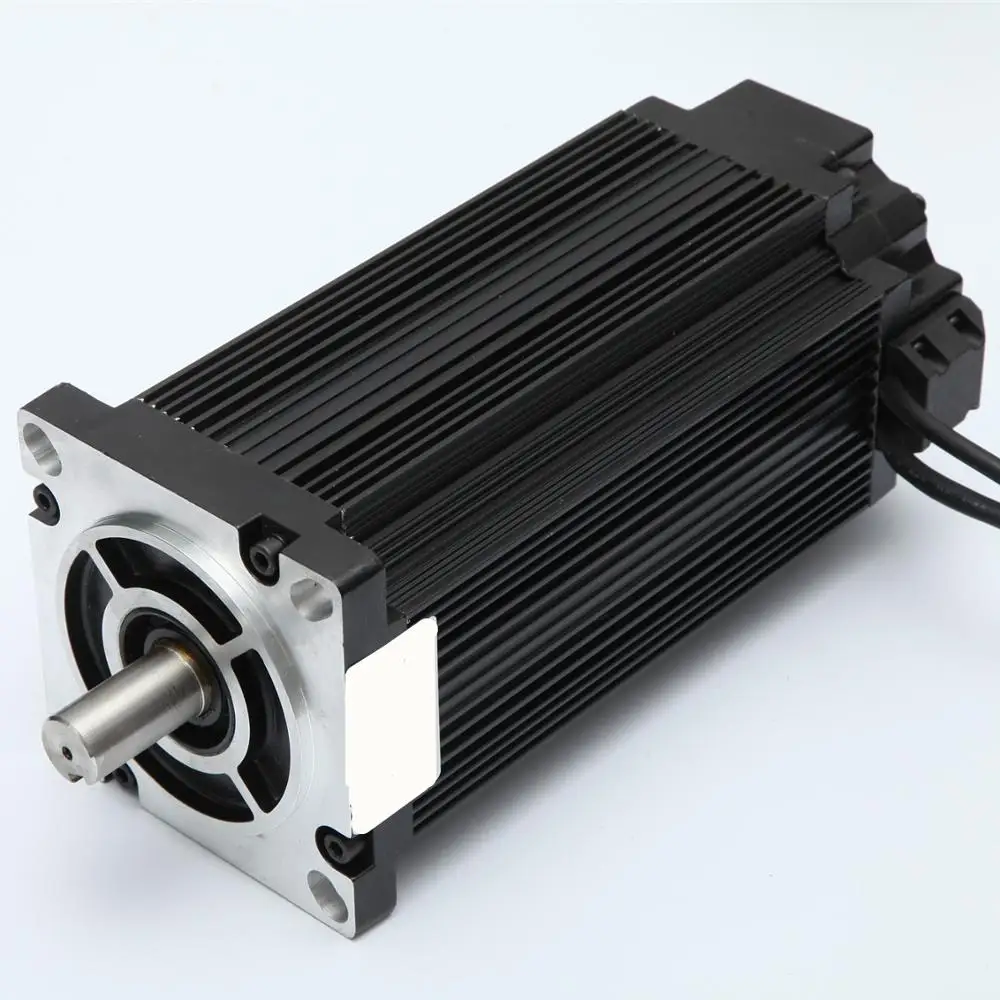

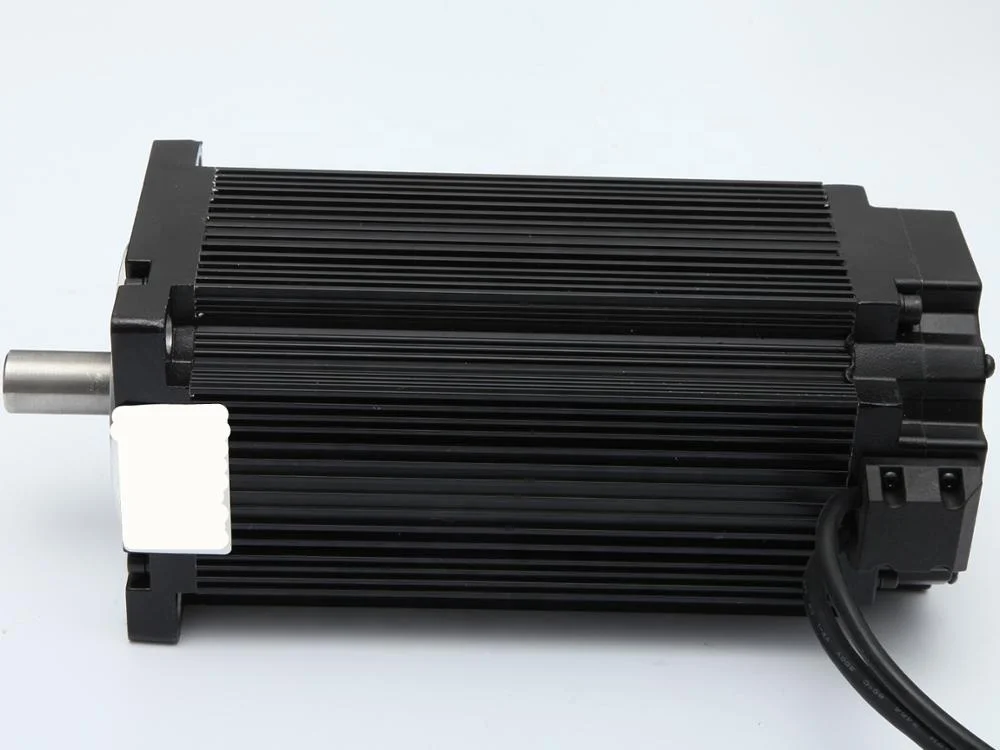

Nema 42 3phase hybrid easy servo closed loop stepper motor with digital display
Motor Electrical Parameters
| Model No. | Phase No. | Step Angle (°) | Current (A) | Resistance (Ω±10%) | Inductance (mH±20%) | Holding Torque (N.m) | Motor Length (mm) |
| BST110L221E | 3 | 1.2 | 4.2 | 1.88 | 18 | 20 | 221 |

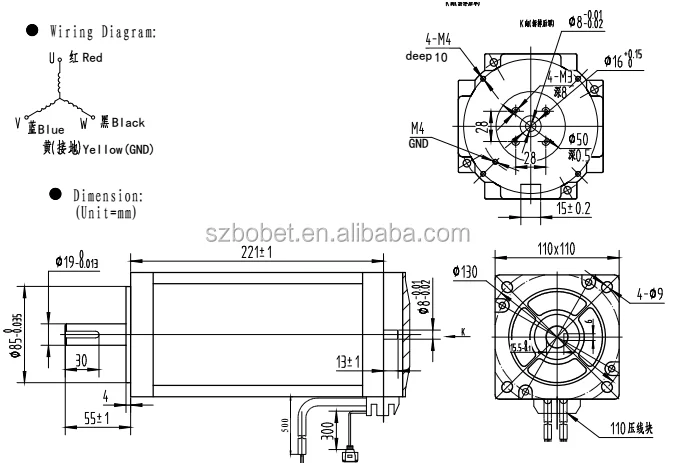

Motor Dimension (unit=mm)

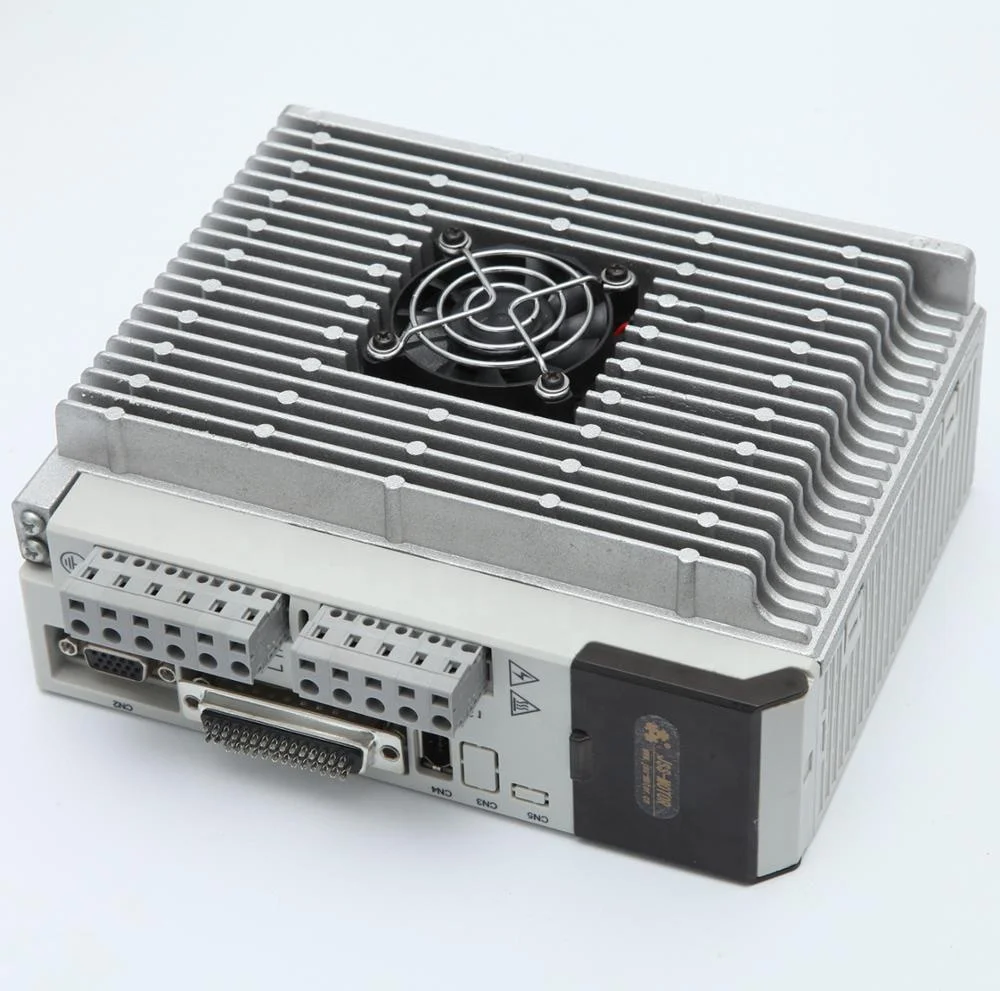

Nema 42 3phase hybrid easy servo closed loop stepper motor with digital display HSS2206 stepper driver
Features
1. 32-bit DSP and vector closed-loop control technology
2. Without losing step, high accuracy in position
3. Improve the motor output torque and working speed
4. Variable current control technology, restrain motor temperature rise
5. Adapt to variety of mechanical load conditions(including low-rigidity pulleys), no need to adjust the gain parameter
6. Smooth and reliable moving, low vibration, great improvement in accelerate and decelerate
7. The ability of zero speed static without vibration
8. Adapt to 3-phase 86(NEMA34) and 110(NEMA 42) hybrid servo motor
9. Maximum step-pulse frequency 200KHZ
10. Micro step 400-60000 pulse/rev
11. Voltage range AC150-240V
12. Over current, over voltage and over position protection
13. Six digital tube display, easy to set parameters and monitor the motor running state
Electrical Specifications:
| Input Voltage | AC150~240V |
| Current output | Peak 6.0A(current variable based on load) |
| Logic Current Input | 7~20mA |
| Frequency | 0~200KHz |
| Suitable motor | 3-phase NEMA34 and NEMA42 hybird servo motor |
| Encoder Resolution | 1000 |
| Insulation Resistance | >=500MΩ |
Environment Index
| Cooling Method | Natural cooling or forced air cooling |
| Working Environment | Avoid dust, oil fog and corrosive gasses |
| Working Temperature | 0~50℃ |
| Humidity | 40~90%RH |
| Vibration | 5.9m/s2Max |
| Storage Environment | -20℃~65℃ |
| Weight | Approximate 1500g |
Dimension:

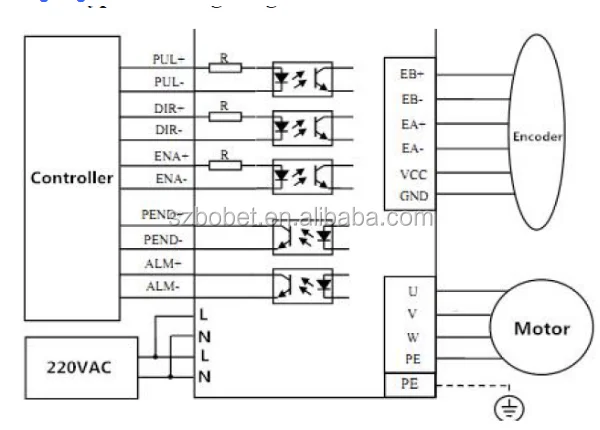

Wiring diagram:
Lead time:
Quantity under 50 sets we have in stock, 51-200 sets lead time will be 7 days.
Payment:
T/T, Paypal, western union, money gram, L/C can be accepted.
Shipping method:
1)International Express delivery DHL&FEDEX 4-7days, TNT&ARAMEX 7-10days
2)Shipping by air 7-10 days
3)shipping by sea, delivery time depends on the destination port.
Technical Support:
We can provide you professional technical support. And our products quality guarantee is 18 months. Also we accept products customize.
Quantity under 50 sets we have in stock, 51-200 sets lead time will be 7 days.
Payment:
T/T, Paypal, western union, money gram, L/C can be accepted.
Shipping method:
1)International Express delivery DHL&FEDEX 4-7days, TNT&ARAMEX 7-10days
2)Shipping by air 7-10 days
3)shipping by sea, delivery time depends on the destination port.
Technical Support:
We can provide you professional technical support. And our products quality guarantee is 18 months. Also we accept products customize.
