Расширенная макетная плата IMX6Q с MIPI CSI DSI USB SATA LVDS PCIe

Product Overview

Description

Advanced IMX6Q Development Board  with MIPI CSI DSI USB SATA LVDS PCIe

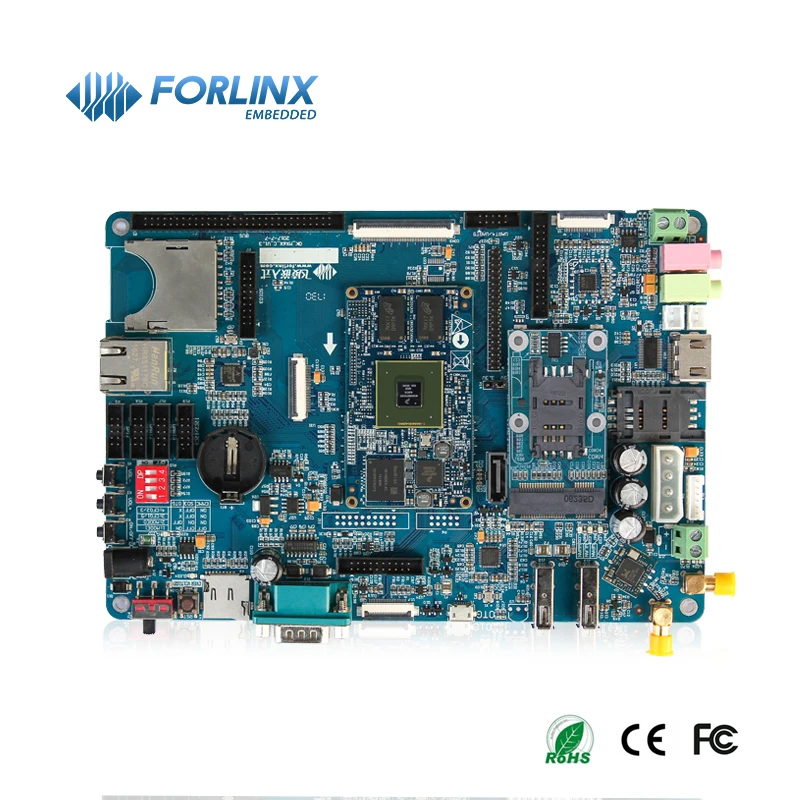

OKMX6DL-C development board consists of carrier board and CPU module FETMX6DL-C. The carrier board was designed as a 4-layer PCB and on-board connectors such as Gigabit Ethernet, CAN bus, parallel cammera, WIFI&BT, etc. What's more, the CPU featured MIPI, MLB and EMI are also drawn out. Tested by EMC and high&low temp to guarantee the SoM to run stable in harsh working environment.

CPU module with ultra compact size and thin connecots to make designing free

couples of ultrathin connectors 80 pins in total are available on SoM. with height only 2mm and golden ratio dimensions of 40*70mm, all of these to make it to be applied more widly.

Exelective 12-layer ENIG PCB designing, make stability

CPU pins all drawn out to meet mostly users' demand

one-board connectors Gigabit Ethernet, parallel camera, audio and SDHC are all ready-to-use for users,

besides, MIPI, MLB and EIM bus(27-bit address bus and 32-bit data bus) are also supported.

Hardware:

SoM FETMX6DL-C
CPU	Freescale i.MX6DL processor	USB HOST	1×USB2.0
Architecture	Cortex-A9	USB DEVICE	1×OTG2.0
Main Frequency	1GHz	SD/MMC/SDIO	3×SD/MMC
RAM	1GB DDR3 1066MHz/2GB optional	Ethernet	1-ch Gb Ethernet port
FLASH	8GB eMMC/4GB eMMC	UART/IrDA	5-ch(1 for debug)
Input voltage	4.2V	Video Codec	Hardware codec
2D/3D	Support	EBI	27-bit data bus and 32-bit address bus
GPU	Vivante GC355/ Vivante GC320	JTAG	1-ch
PMU	MMPF0100NPEP	Camera	1×5MP parallel camera, 1x MIPI
Size	40mm*70mm	PWM	4x PWM
Connection Method	Board-to-board connectors	HDMI1.4	1-ch
OS	Android4.4/ Android6.0 Linux3.0.35 QT4.8.5/ Linux4.1.15 QT5.6	SATA	1(SATA-II)(Only support quad core processor)
Display	RGB24bit(2-ch 8bit LVDS interface), HDMI, MIPI	Keypad	8*8
MIPI	3x MIPI_CSI MIPI_DSI MIPI_HSI	miniPCIE	1x miniPCIE
IIC	3x IIC	Audio	IIS interface
SPI	5x SPI	MLB	1x MLB
CAN	2x CAN	SPDIF	1x SPDIF

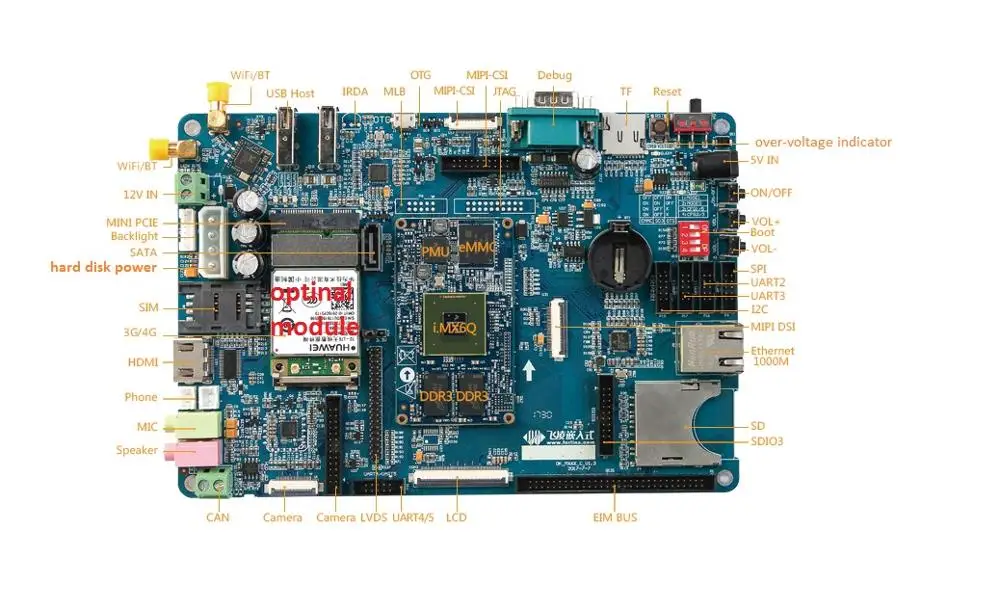

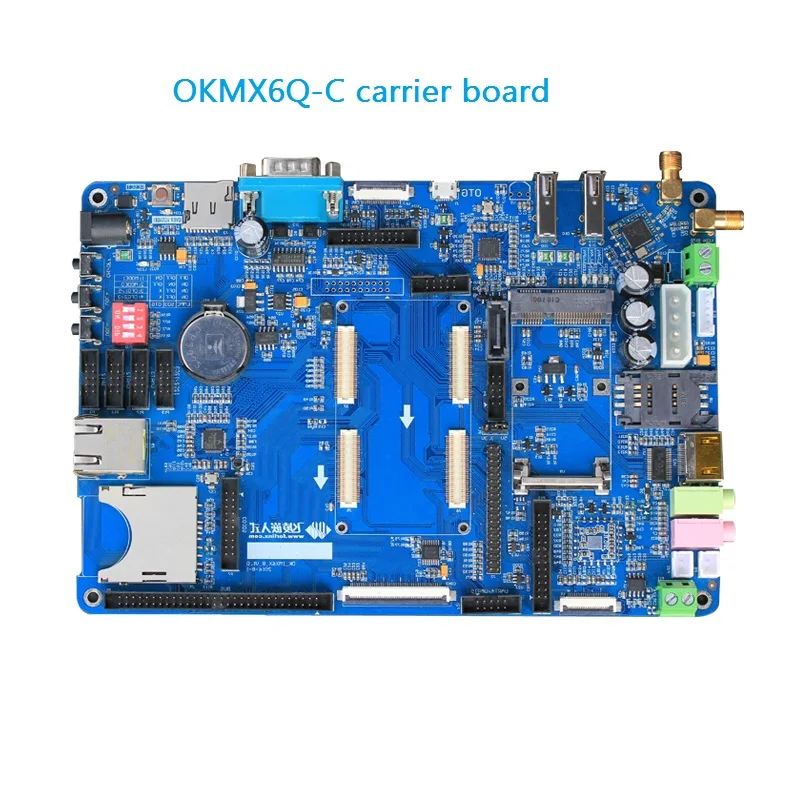

OKMX6DL-C Carrier Board
Audio	1x phone, 1x MIC, 2x speaker	Key	3x key
IIC	3x IIC	DIP	for setting up of booting mode
SPI	3x SPI	Reset	1x reset
CAN	1x CAN	PWM	4x PWM (1 for backlight)
MIPI camer	1x MIPI camera OV5640	LCD	1x LCD resistive/capacitive
DVP camera	1x DVP camera OV5640, 5.0Mg	EINT	supported
SD/MMC/SDIO	2x SD/MMC/SDIO	GPIO	Supported
USB Host	2x USB 2.0 host	LVDS	2x LVDS
USB OTG	1x USB2.0 OTG	HDMI1.4	1x HDMIv1.4
Ethernet	1x Ethernet 10/100/1000M	MIPI Display	1x MIPI
UART	5x UART (1x debug, 3x 3-wire, 1x 5-wire)	SATA	1x SATA
IrDA	1x IrDA	EIM	Supported
Power Adapter	5V	3G/4G	mini PCIE interface
RTC	CPU RTC and on-board RTC	WIFI&BT	1x WIFI&BT
ADC	external expand resistive touching controller, empty solderred	JTAG	Supported



OS Supporting
