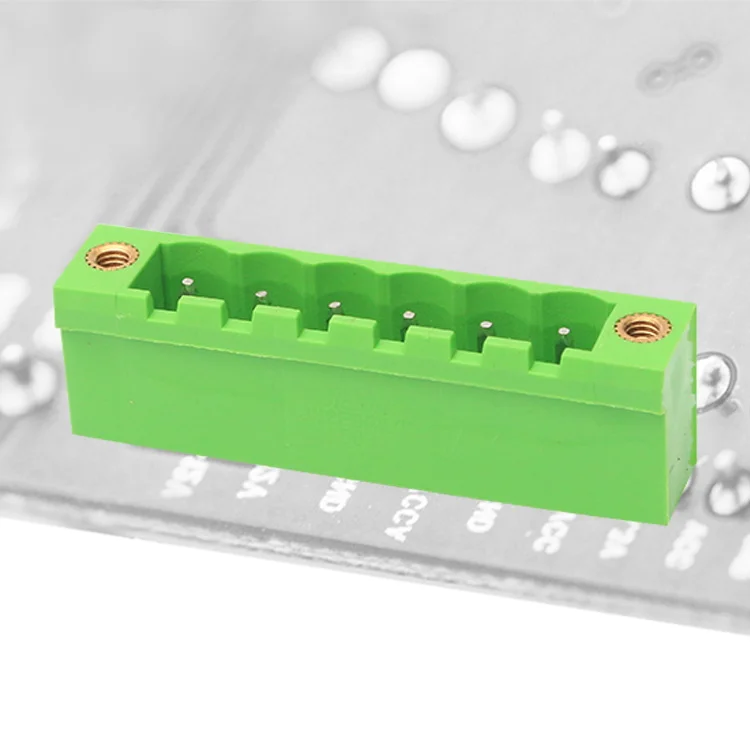

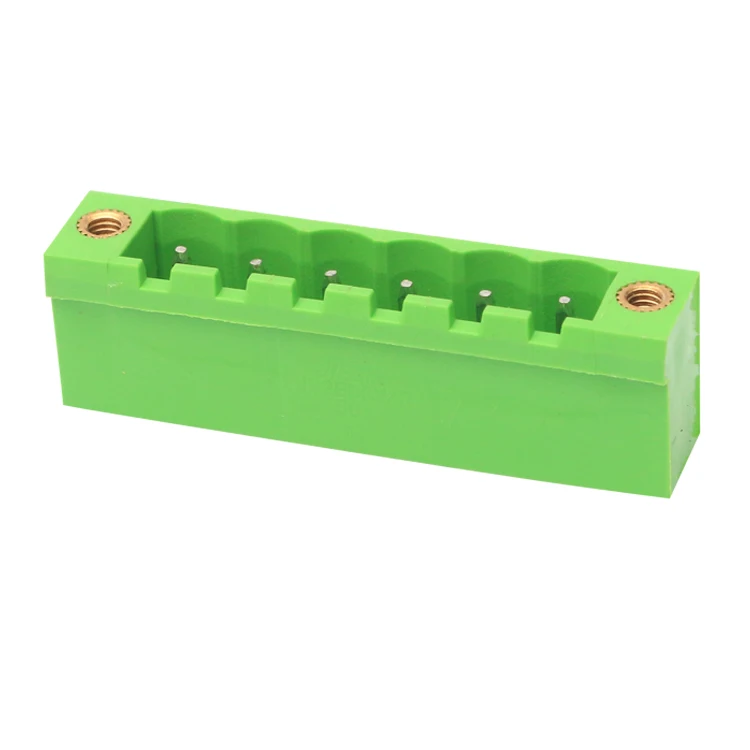

Male pluggable terminal block V/T type 5.08mm pitch wire to board with ears replace Phoenix
- Category: >>>
- Supplier: Cixi Wan Hai Electronics Co. Ltd.
Share on (60848783268):
Product Overview
Description
Product Description
Male Pluggable Terminal Blocks with 5.08mm pitch
| Material and plating | ||
| Pin header | Brass,Tin plated | |
| Plastic | PA66,UL94V-0 | |
| Electrical Performance | ||
| Reference Standard | UL | IEC |
| Rated voltage | 300V | 450V |
| Rated current | 15A | 20A |
| Contact resistance | 20mΩ | |
| Insulation resistance | 500MΩ/DC500V | |
| Withstand Voltage | AC2000V/1Min | |
| Mechanical | ||
| Temperature range | -40°C~+105°C | |
| Instantaneous temperature | +250°C 5S | |
| Size | ||
| Pitch | 5.0mm(.197"),5.08mm(.200") | |
| Poles | 2P-24P | |
Product Categories
Company Information
Production Process
Quality Assurance
Certifications
Market & Services
FAQ
1. What kinds of products are you supply ?
Our main products are screw terminal blocks, spring terminal blocks, barrier terminal blocks, feed through terminal blocks, din rail terminal blocks, pin header, female header,Box Header,Shrouded Header,Switch,IDC socket,FD Connector,Cable Gland,Micro Jack,Cable Ties,MINI DIN,Flat Cabel,IC socket, D-SUB connector, DIN41612 socket , etc. .
2. Your products according to which kind of stardard certificates ?
All products are in line with the RoHS directive, in full accordance with CE, UL, VDE, SGS, REACH and other standard production.
3. What is your payment terms ?
We accept TT, paypal , L/C , etc.
4. What your MOQ ?
For regural items , we do not request for MOQ , for special items , can discuss later .
5. Can you supply free samples ?
Yes , we can supply 5-10 pcs samples as free .
6. How about your delivery time ?
3-15 days working time , depends on the quantity that you need .
Our products have been sold to Germany, Italy, Denmark, Belarus, Lithuania, Hungary, Poland, Turkey, America, Canada, Argentina, Malaysia, Singapore, Thailand, Australia, South Africa ……more than 30 countries and regions and launched a good cooperation with the customers .
8. Can we as your agent ?
7. Which countries do you export for your products ?
Our products have been sold to Germany, Italy, Denmark, Belarus, Lithuania, Hungary, Poland, Turkey, America, Canada, Argentina, Malaysia, Singapore, Thailand, Australia, South Africa ……more than 30 countries and regions and launched a good cooperation with the customers .
8. Can we as your agent ?
If your quantity is workable , we can sign agent contract between us .
9. What is your package ?
We usual pack the goods in bag+box+carton , can protect the goods very well .
10. Can you do OEM/ODM service ?
Yes, if your quantity is workable , we can make OEM/ODM service for you .
