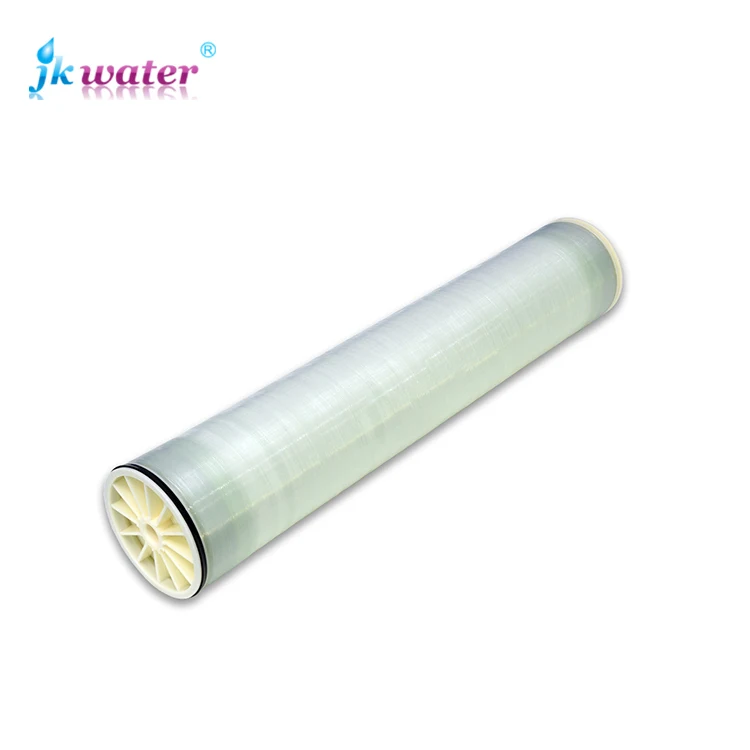

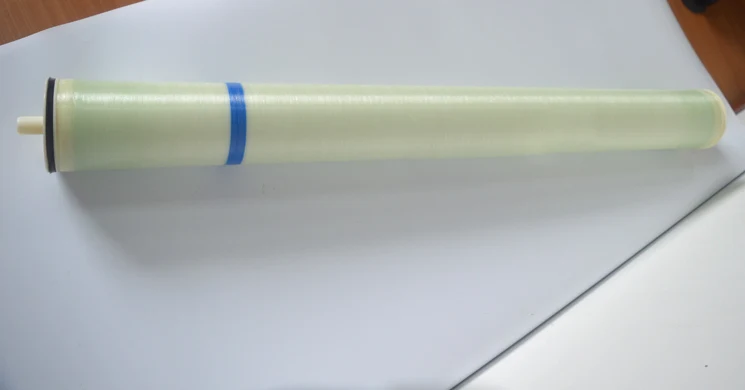

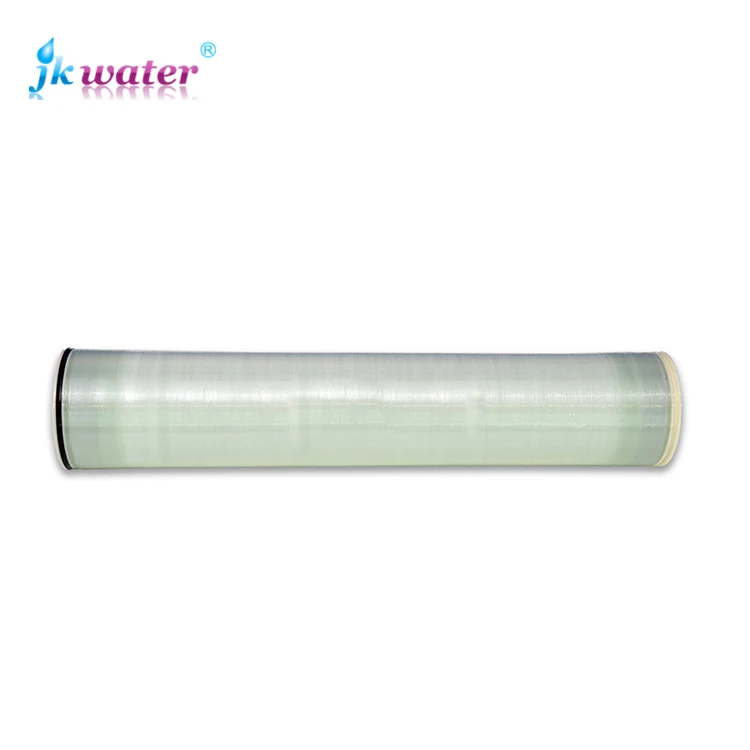

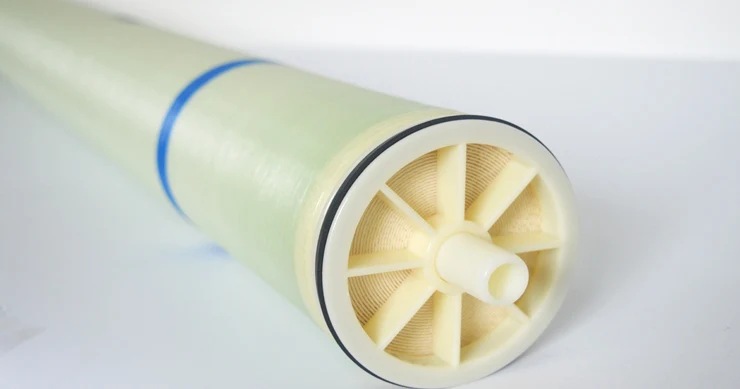

Reverse osmosis 8 inch ro membrane 8040 for seawater ro system
- Category: >>>
- Supplier: Yancheng Yongkang Environmental Protection Equipment Co. Ltd.
Share on (60848795236):
Product Overview
Description

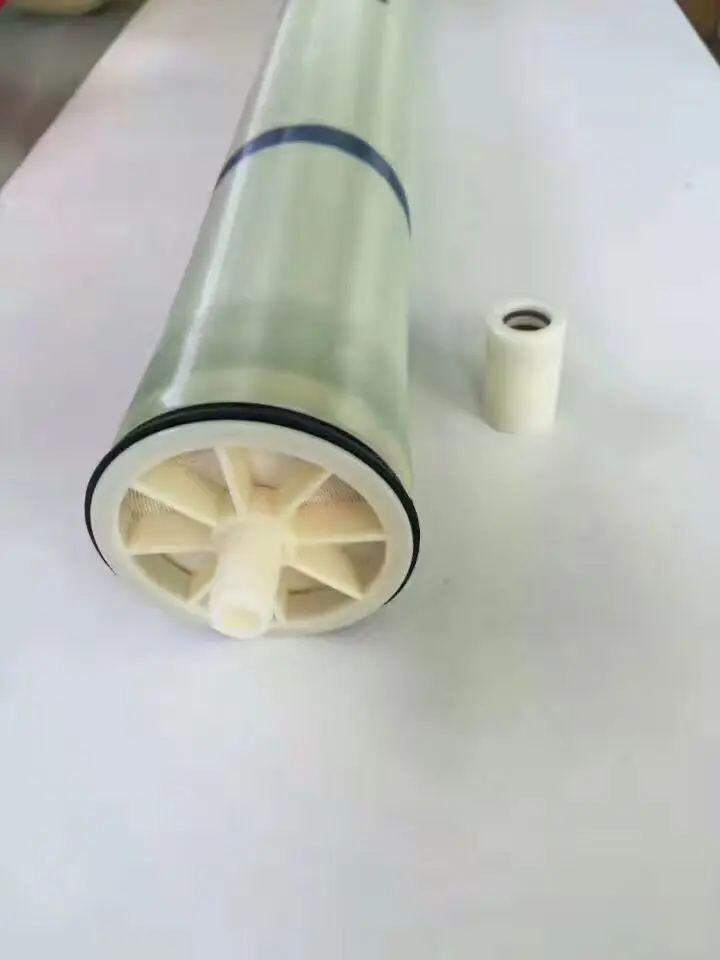

Reverse osmosis 8 inch ro membrane 8040 for seawater ro system
Specification
| Model | XLP-4040 | XLP-8040 | ULP-4040 | ULP-8040 | BW-4040 | BW-8040 | SW-4040 | SW-8040 | ||
| Model | 4inch | 8inch | 4inch | 8inch | 4 inch | 8 inch | 4 inch | 8 inch | ||
| Effective membrane area ft²(m²) | ft² | 85 | 400 | 85 | 400 | 85 | 400 | 85 | 400 | |
| m² | 7.9 | 37.2 | 7.9 | 37.2 | 7.9 | 37.2 | 7.9 | 37.2 | ||
| Performance | Salt Rejection | % | 99 | 99 | 99 | 99.5 | 99.6 | 99.6 | 99.7 | 99.7 |
| Permeate Flow | GPD | 2000 | 9000 | 2600 | 10000 | 2400 | 10500 | 1600 | 7500 | |
| m3/d | 7.6 | 34.1 | 9.8 | 37.8 | 9.1 | 39.7 | 6.1 | 28.3 | ||
| Test Condition | Test Liquid | 500 | 500 | 1500 | 1500 | 2000 | 2000 | 32000 | 32000 | |
| Concentration (as Nacl)mg/L | ||||||||||
| Test Liquid Pressure psi(Mpa) | 100(0.69) | 100(0.69) | 150(1.03) | 150(1.03) | 225(1.55) | 225(1.55) | 800(5.5) | 800(5.5) | ||
| Test Liquid Temperature(℃) | ||||||||||
| 25 | ||||||||||
| Test liquid pH | 7.5-8 | |||||||||
| Service Conditions | Recovery rate(%) | 15 | ||||||||
| Max.Working pressure | 600psi | 1200psi | ||||||||
| Max.water temperature(℃) | 45 | |||||||||
| Continuous running water PH range | 3 - 1 0 | |||||||||
| Chemical cleaning water PH range | 2 - 1 2 | |||||||||
| SDI15/Max.inflow SDI15 | <5 | |||||||||
| Free chlorine concentration(mg/L) | <0.1 | |||||||||
| Min rate of Concentrate water permeat water | 5 : 1 | |||||||||
