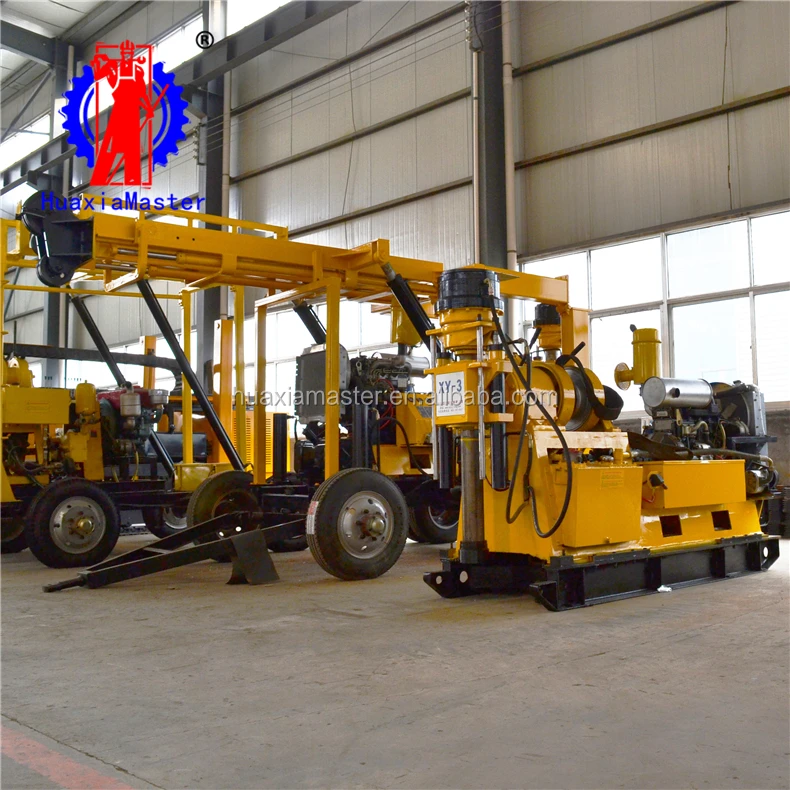

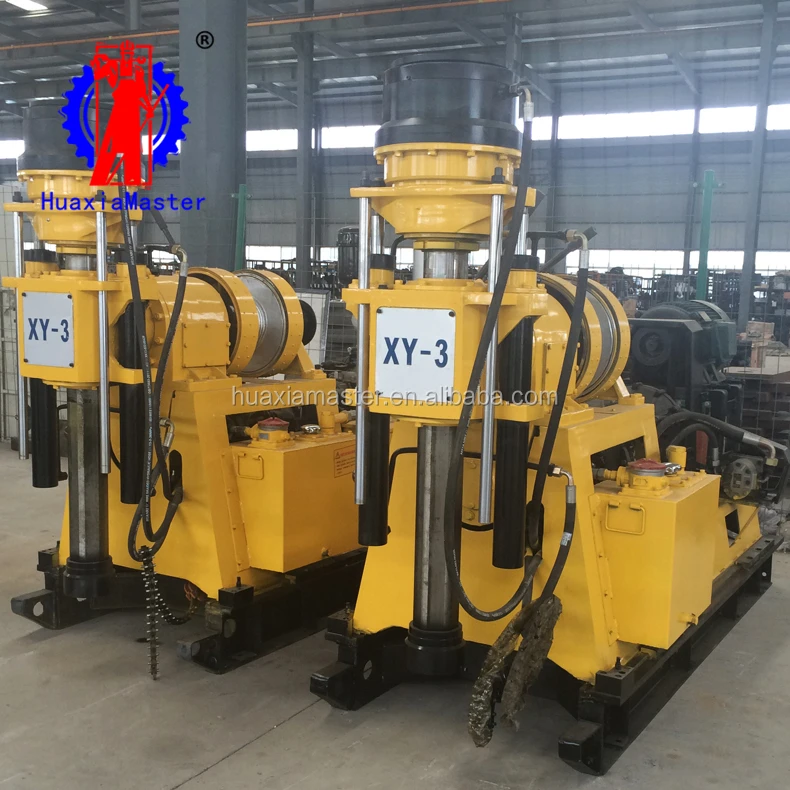

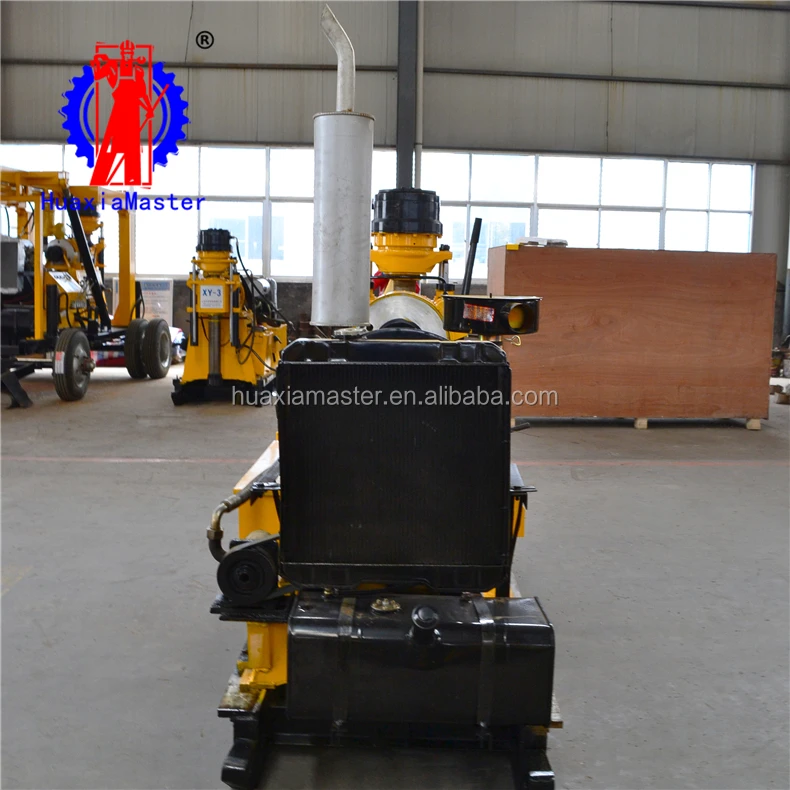

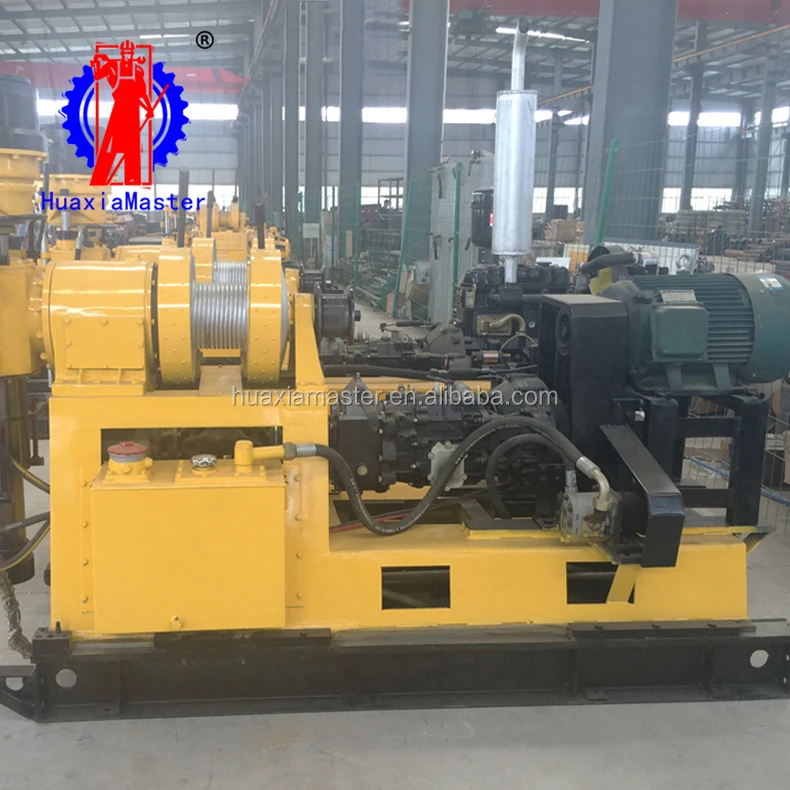

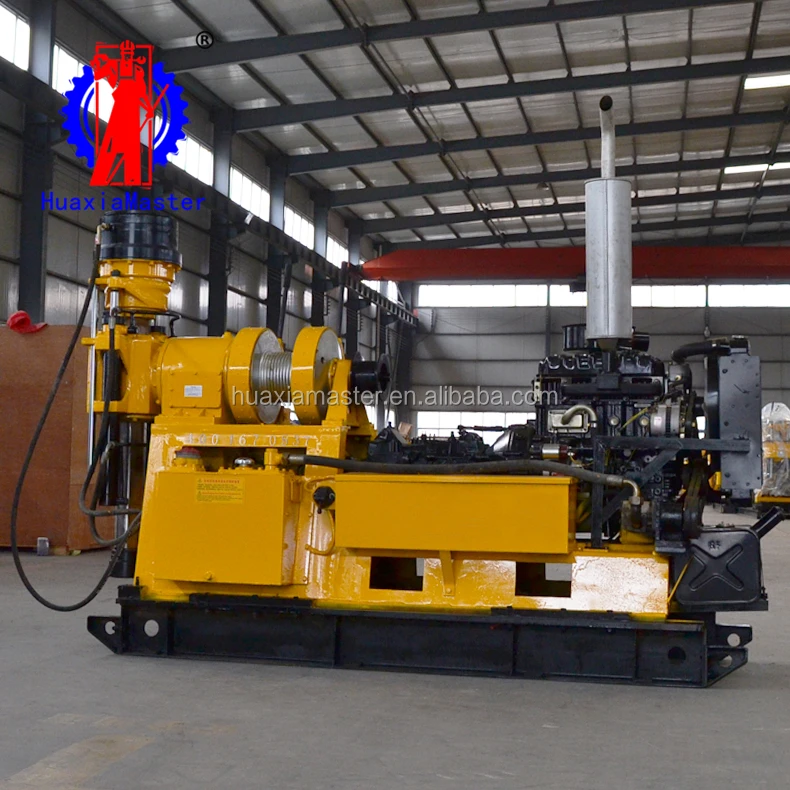

Cost effective XY 3 water well auger drill / oil drilling rig / bore well drilling machine price

Product Overview

Description

1. The features of XY-3 bore well drilling machine

XY-3 water well drilling machine adopts CG140 model auto transmission,  with 10 rotation speed series and reasonable speed range, with eight forward rotation gears and two reverse rotation gears, it’s high speed, strong stroke and wide scope of application.

With large torque, strong bearing capacity, it can realize long distance control speed change,and convenient operation.

The power of the installation is large, with two reverse speed, which is convenient to deal with accidents.

Equipped with normally closed hydraulic chuck, operation is flexible and reliable

It can realized the independent operation of the vertical shaft and the hoist

The diameter of the vertical shaft through the hole is large and can be replaced with a large six party active drill rod

2. The specifications of XY-3 bore well drilling machine

Drilling depth	600m
Borehole diameter	300-75mm
Maximum open hole diameter	300mm
End hole diameter	75mm
Drilling pipe diameter	60
Drilling angle	90°-65°
Spindle
Rotating speed	30-1050r/min
Rotating stroke	29-137r/min
Stroke	60mm
Inner diameter	96mm
Lifting force	6000kg
Winch
Max.single line lifting speed	0.5-1.9m/s
Wire rope diameter	12.5mm
Max.single line lifting force	4000kg
Roll length	50m
Mud pump
Type	horizontal three cylinder BW-250
Displacement	250L/min
Work pressure	80kgcm²
Water inlet pipe diameter	75mm
Water outlet pipe diameter	50mm
Gear Oil pump
Duplex gear oil pump	CBF-F63/25
Displacement&pressure	63l/min&20mpa
Water outlet pipe diameter	25l/min 20mpa
Power
Diesel engine	39kw
Electric motor	22kw
Weight size
Weight	1800kg
Dimension	2500*900*1800mm
