Motorized belts cylindrical cleaning roller brush cleaner belt conveyor
- Category: >>>
- Supplier: Jiaozuo Debon Technology Co. Ltd.
Share on (60848846421):
Product Overview
Description
Product Description

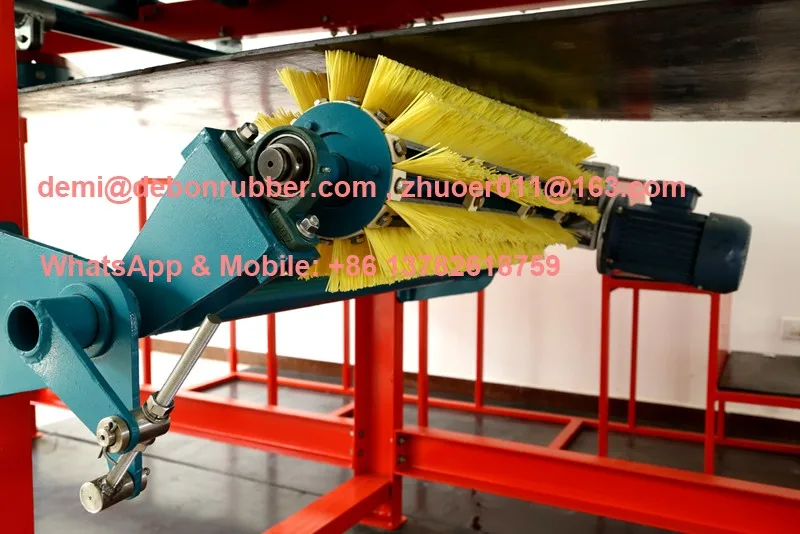

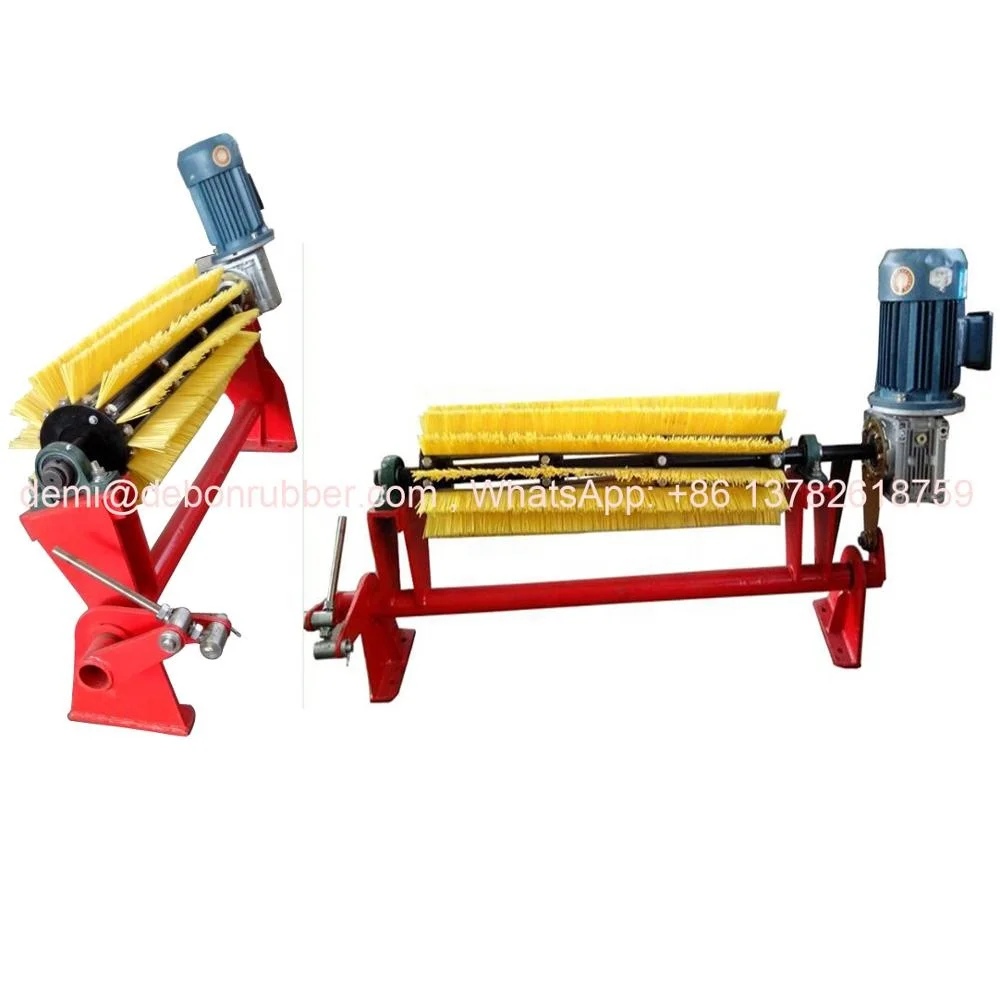

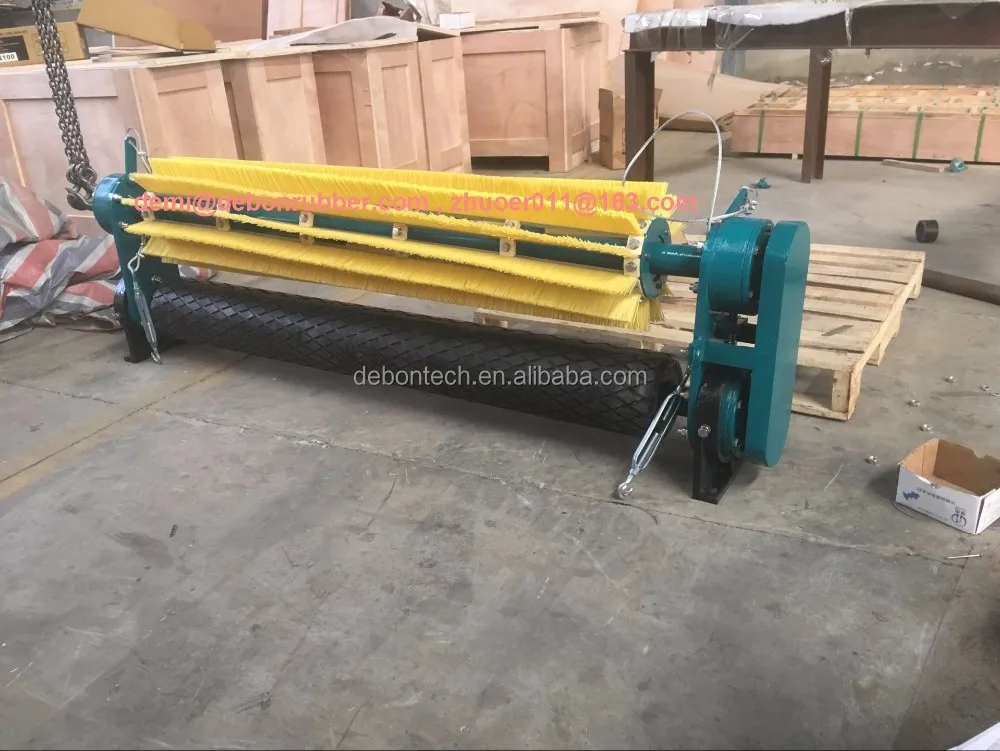

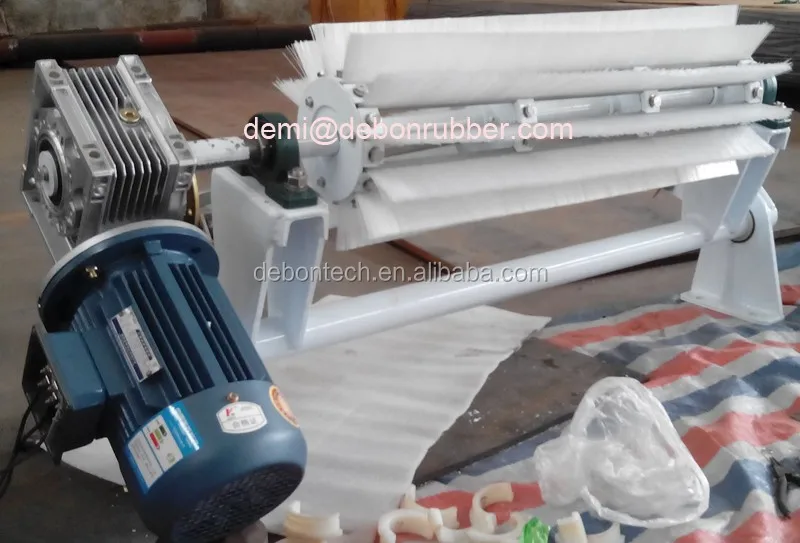

Motorized Brush Belt Cleaner (DB-XQ-I)
DB-XQ-I is a motorized brush style conveyor belt cleaner installed under the return belt of the conveyor.It has cylindrical nylon brush and tips of the brush touch the belt surface gently. The rotating brush turns in the opposite direction of the belt.Therefore, it brushes away the sticky materials into the funnel.
Features:
1) Replaceable brush tips: 12 brush strips for each brush roller, just remove worn strips and insert new strips, no need replace whole brush roller, very cost-efficient.
2) Spiral brush cleaner uses 1.5mm nylon 66 bristles wrapped in spiral around the hub
3) Specialty brush cleaner: food grade, high temperature, fertilizer, etc.
Advantages:
1. Replaceable brush strips, total 12 brush strips. Easy installation, and you just need remove worn strips and insert new strips.
2. Continuous contact, efficient cleaning, good results.
5. Nylon brush produced by special production process, non material sticking.
6. Gentle contact without any wear-out to the belt, extending service life of belt.
Application
1.Belt Width:400~2000(mm)
2.Material humidity:≤5%
3.Applicable for ribbed, flighted, grooved or chevron conveyor belts.
4. Working temperature: -40~90 C
5. Handled material: dry and fine material
Our advantage
1) 22-Year Manufacturer, rich experience ensure quality and consistency.
2) Customer feedback is very good: still new after working for 1 year
3) Superior scraper blades, high wear resistant
4) strict control in QC, advnaced facilities, mature production line
5) 9-Year exporter,ceramic rubber liner got very good feedback.Repeated orders from worldwide customers.

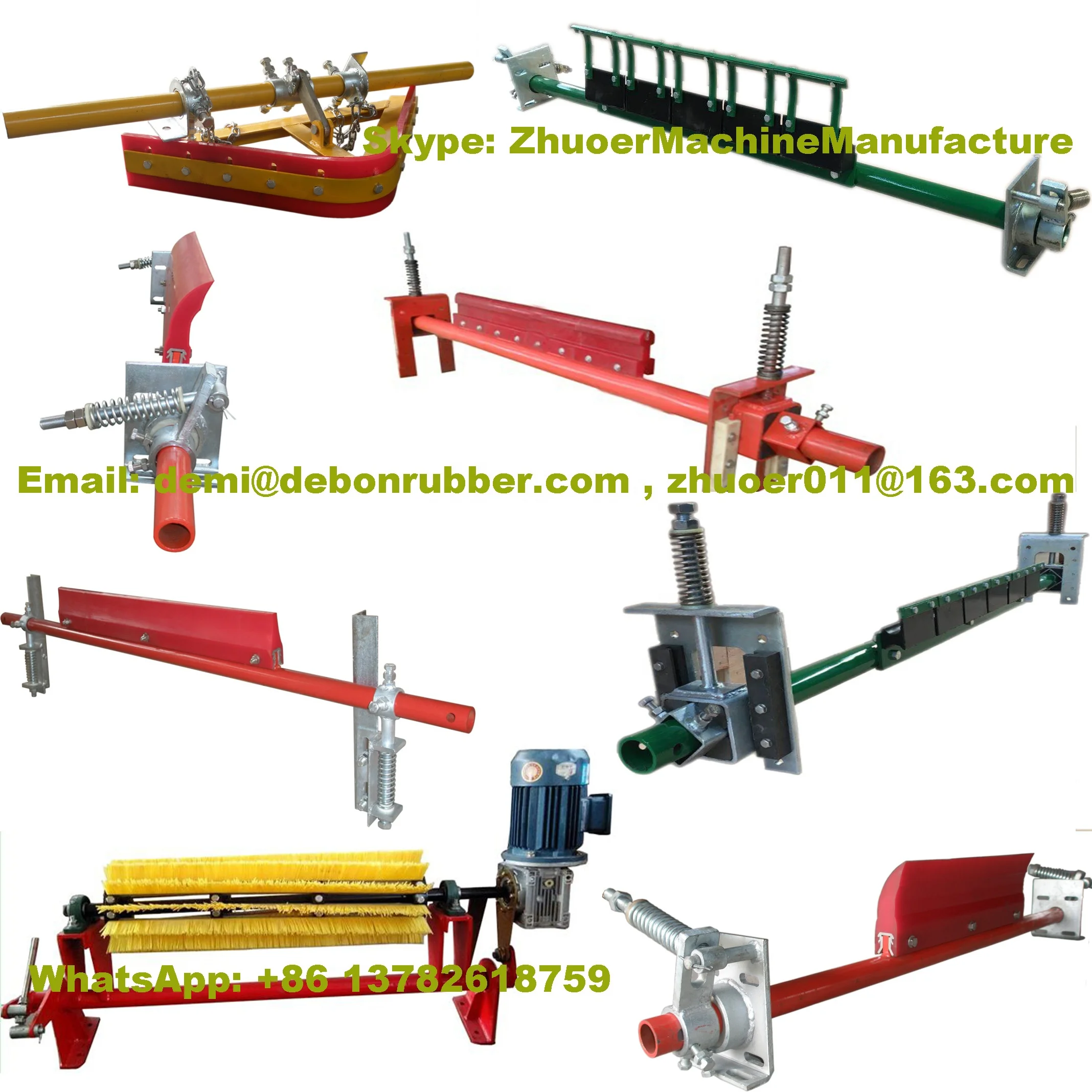

Related Products
Motorless Brush belt cleaner
The rotating direction of the nylon brush is opposite to that of the return belt,
Therefore, it brushes awaymaterials adhered to the belt surface into the funnel.

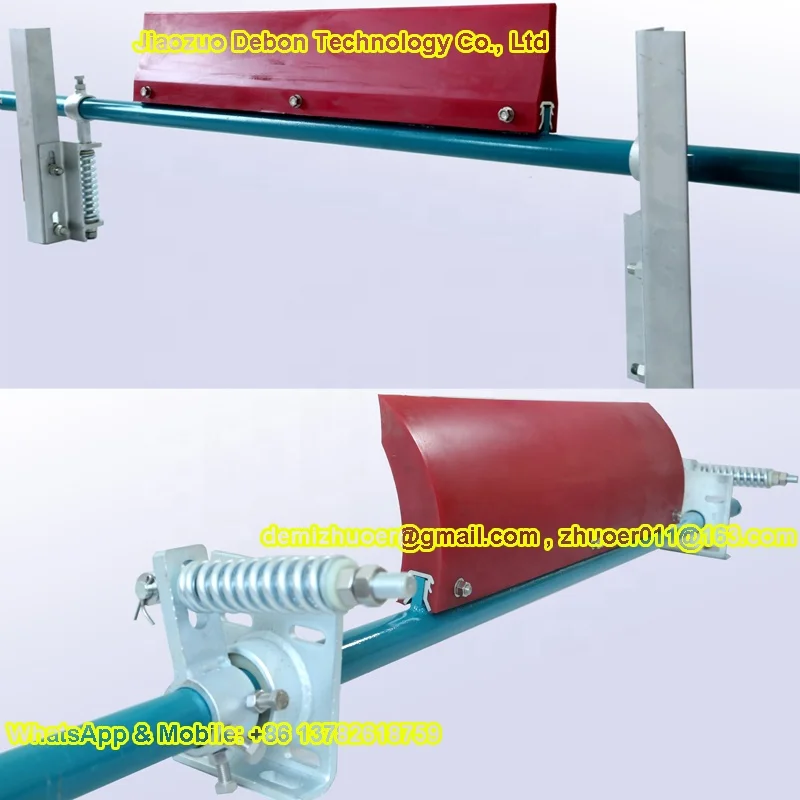

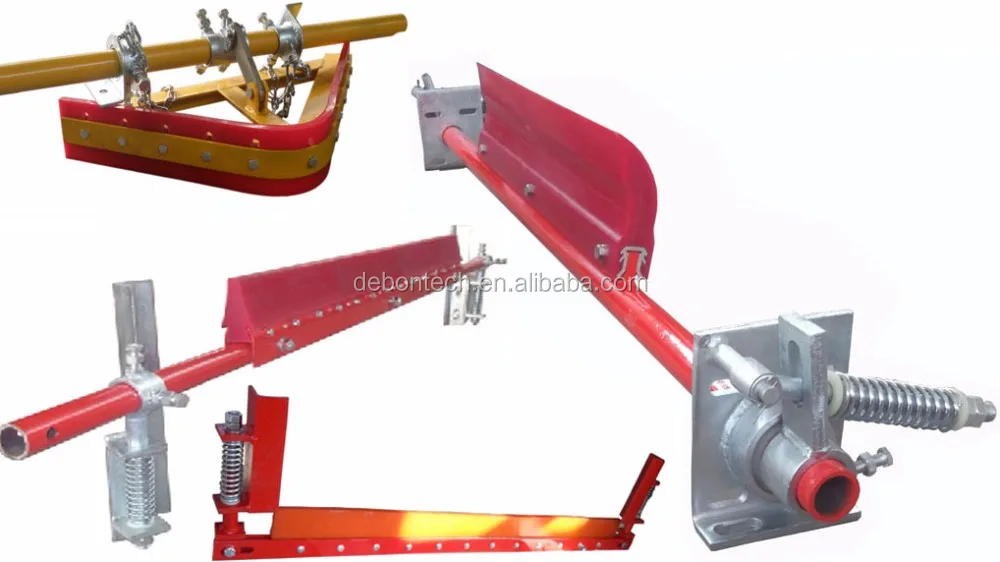

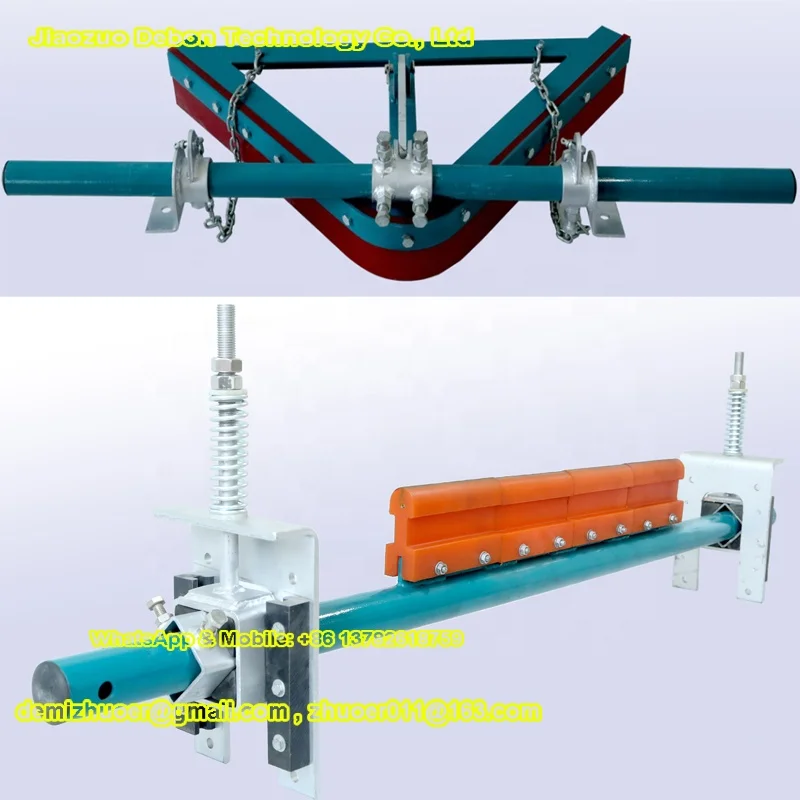

Polyurethane Belt Cleaner
1. One-piece & segmented PU blades available
2. Replaceable PU blades
3. High abrasion resistant PU blades and durable framework
4. Spring tensioner ensure constant contact to belt
5. Primary, secondary, V plow, diagonal belt cleaner available

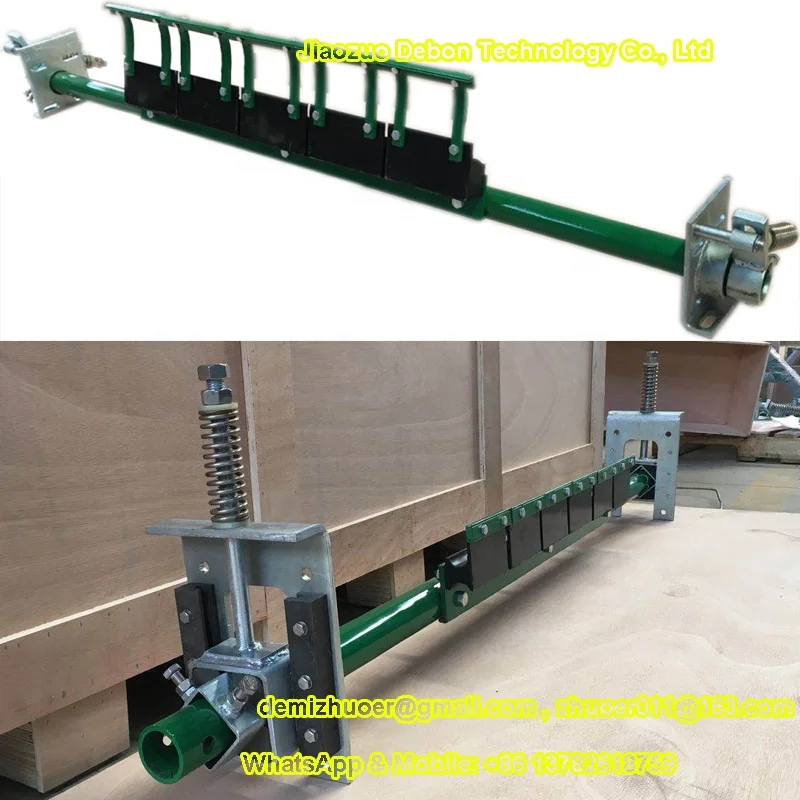

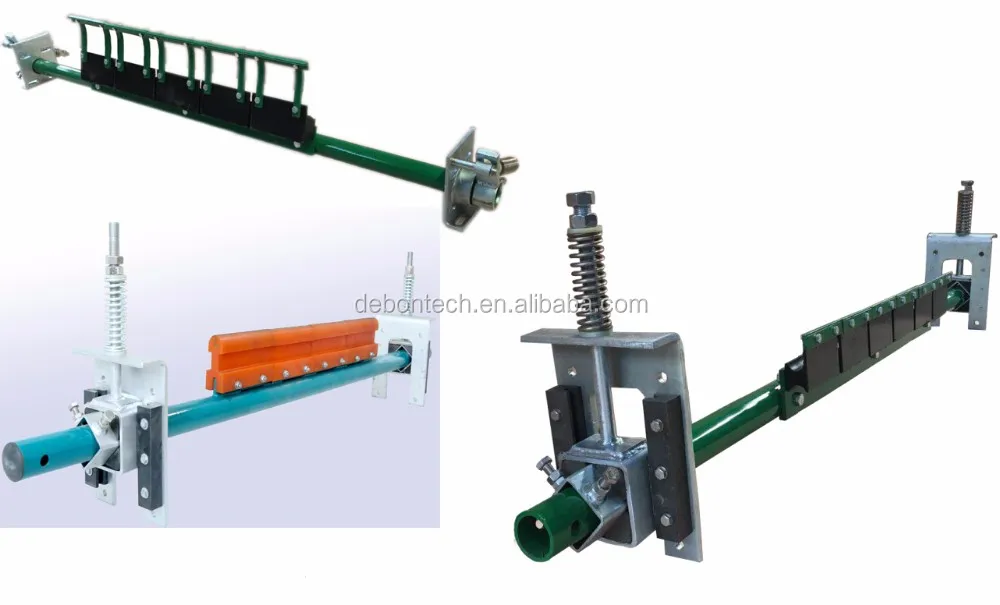

Alloy Belt Cleaner, PU & Alloy Belt Scraper
1. Segmented tungsten carbide blades, long-lasting
2. Self adjusting system includes: spring tensioner, individual rubber cushion,etc
3. P type and H type are applicable with only vulcanized belt
Factory
Factory since 1996
1) Over 22 Years experience of producing and developing, Debon Technology have become top 10 belt conveyor accessories factory in China
2) Export since 2009, export to over 45 countries, repeated orders from worldwide customers
3) We've been Alibaba 10 million e-businessman since 2013
4) Rich experience, mature production, strict QC ensure quality and consistency
Main Products:
All types of belt cleaners and pulley lagging
Skirt board, Impact bar, Wear liner, Cord stripper, Custom Rubber & PU products
Production Line & Facilities
Advanced facilities and mature produciton line ensure productivity, quality and consistency. Your reliable partner
Rubber Machine: Internal Mixer
10m x 2m Vulcanizing Machine for Rubber Sheet/ Rubber lagging
Our rubber lagging size is produced in 10m x 2m without any splices
Facilities for rubber and Polyurethane products
Our Laboratory & Testing Machine
Certificate
Safety Certificate of Approval for Mining Products
Technical Data
Voltage | 380V AC/-10% |
Power | 1.5 Kw |
Output speed | 140 r/min |
Trasmission ratio | 10i |
Output torque | 88Nm |
Lubricant oil | L-CKD |
