Vertical injection plastic moulding machine
- Category: >>>
- Supplier: Dongguan Qiaoen Precision Machinery Technology Co. Ltd.
Share on (60849144079):
Product Overview
Description
Product Description
QE-S1

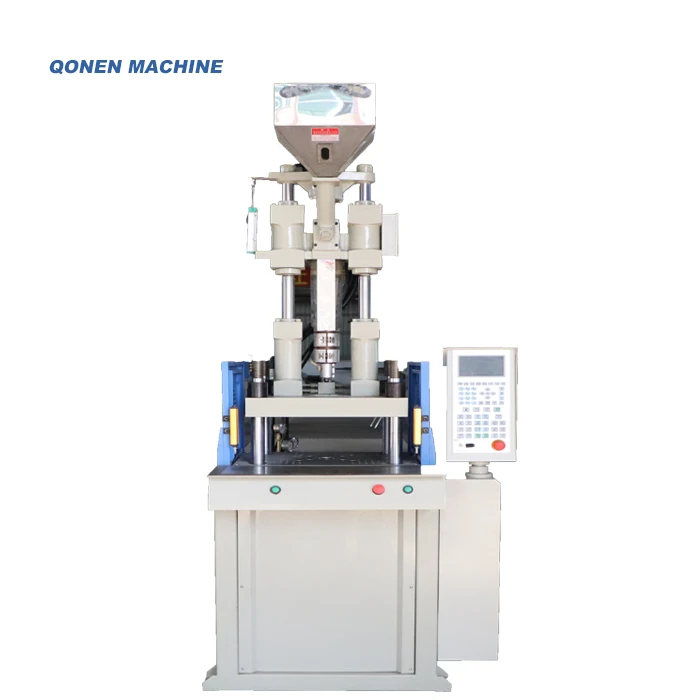

Vertical injection plastic moulding machine
| SPECIFICATIONS FOR VERTCIAL INJECTION MACHINE | |||
| Injection system | Station | / | 1 |
| No. of screw | / | 1 | |
| Clamping force | Ton | 85-350 | |
| Clamping systme | opening force | ton | 13.5-23.7 |
| Screw Diameter | mm | 32-75 | |
| Capacity of Injection | g | 144-1077 | |
| Hydraulic system | MAX. Pressure of system | Kgf/cm2 | 1194-2180 |
| MAX. Power Consume | KW | 15.5-56.8 | |
| Ejector force | ton | 2.7-7 | |
| Machine dimension and weight | Machine Dimension(L*W*H) | mm | 2.0*1.3*2.9 4.5*1.8*5.1 |
| Machine weight | Ton | 3-13 | |
Main Cento:
Fixed lower mold plate,mocable upper plate.it's good for location of insert objects.
With ejection device after finished injection.no need worry about displacemrnt.
Vertical comp resion clamping system,fast close mold with lower pressure.safety operation.
Advantages:
1.Small standard machine make production flexible.
2.One worker opearte only.
3. High output for injection capacity.

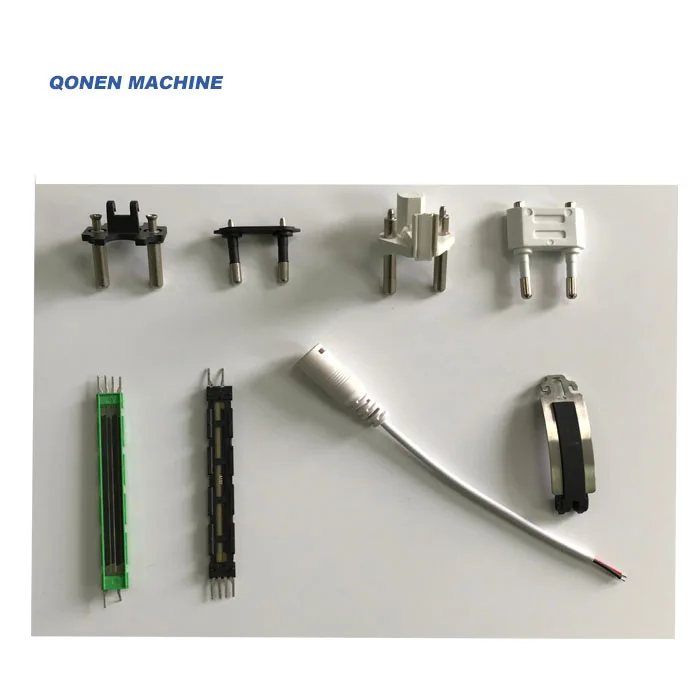

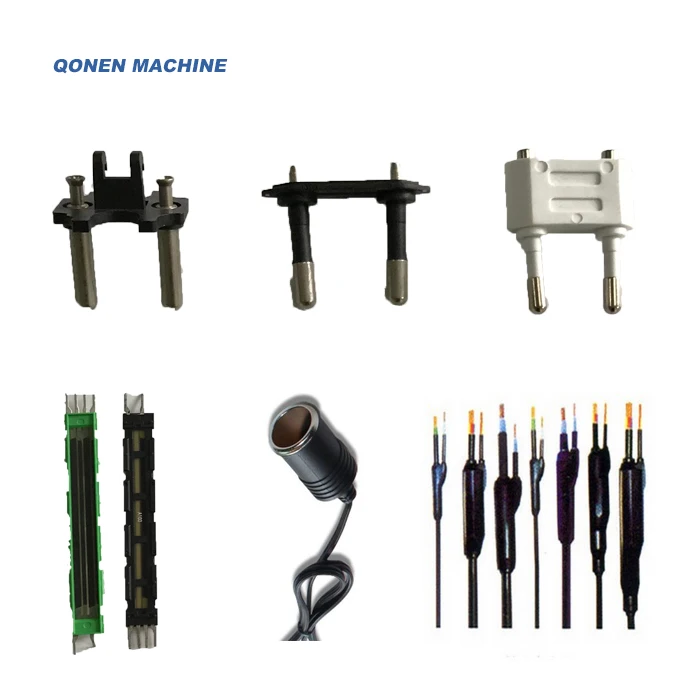

4. Focus on plastic LCP/PC/ABS/POM/PP/PE/PBT/TPU/TR/PVC/PPA/PPS/DC etc injection products.
5.Low electricity power consuming.
6.User friendly and low maintenance.
Detailed Images
NSK BEARING
Name: Bearing
Brand:Japan
Original:Japan
Porcheson Computer
Name: computer
Brand: Taiwan
Original: Taiwan
YUKEN Valve
Name: Valve
Brand: YUKEN
Original: Japan
Schneider electric
Name:electric swtich
Brand: Schnelder
Original: Germany
Certifications
ISO:9001 & ISO14001 approved
Our fair and service
After-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*Inspection before shipment.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
| Packaging | |
| Size | 2000 (L) * 1200 (W) * 2700 (D) |
| Weight | 2 T |
| Packaging Details | Machine with plastic film packing and stabled by steel rope in container. |
| Packaging | |
| Size | 2000 (L) * 1200 (W) * 2700 (D) |
| Weight | 2T |
| Packaging Details | Machine with plastic film packing and stabled by steel rope in container. |
Related Products
Rotary table injection machine
91.8% Response Rate
Standard injection machine
91.8% Response Rate
Two station injection machine
91.8% Response Rate
FAQ
1. Factory or trading company?
Factory
2.Machine warranty?
One year warranty,life-long service
3.How about after service?
Engineer over abroad to install machine and training for 7 days no need salary.Buyer charge for engineer's round-trip tickets,food and accommodation.
