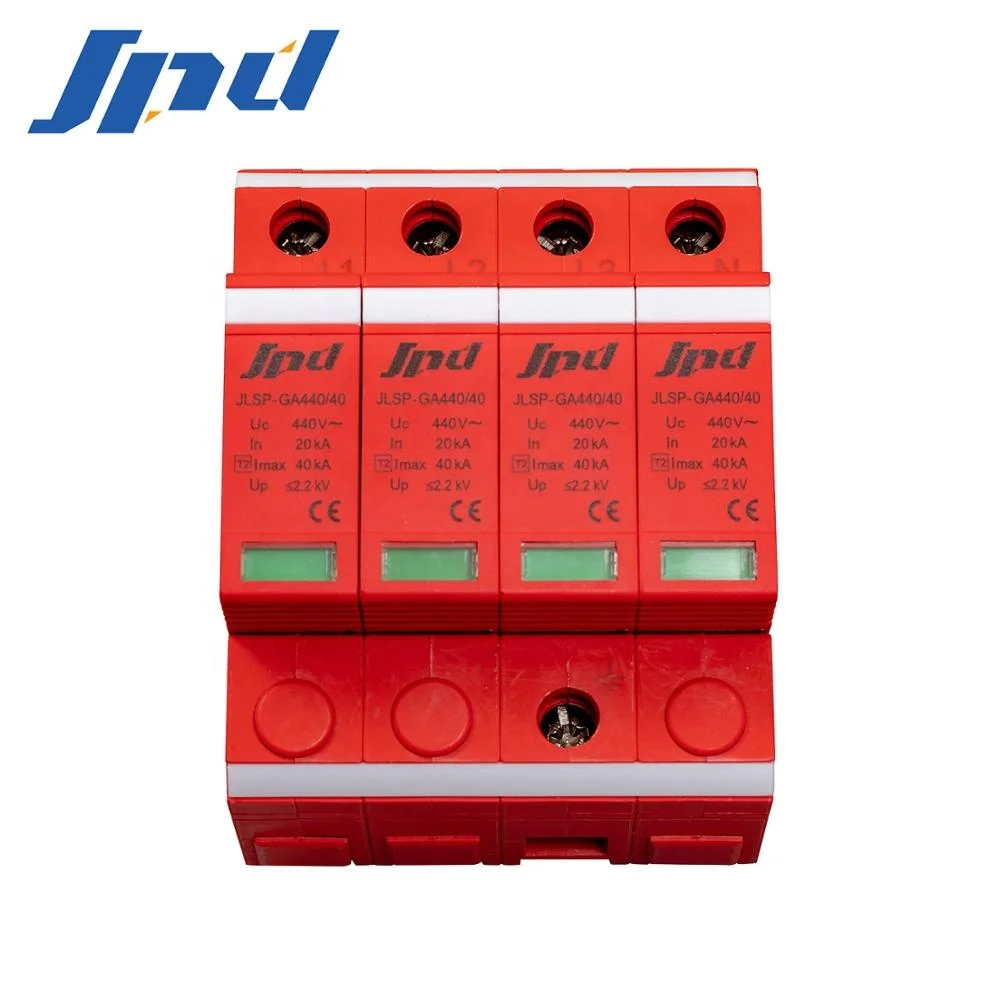

Jinli type 2 AC spd 4 poles lightning surge protector 40kA SPD ac surge protection device
- Category: >>>
- Supplier: Anhui Jinli Electric Tech. Co. Ltd.
Share on (60849204079):
Product Overview
Description
Company Information
Product Description
Model
| JLSP-GA440/40 | JLSP-GA440/80 | JLSP-GA440/100 |
IEC Classification
| Class II | Class II | Class II |
AC Network Un (50/60Hz)(V)
| 230/400, 240/415(TN/TT/IT) | 230/400, 240/415(TN/TT/IT) | 230/400, 240/415(TN/TT/IT) |
Max. continuous operationg voltage Uc (V)
| 440 | 440 | 440 |
Nornimal discharge current In (kA)
| 20 | 40 | 60 |
Max. discharge current(8/20us) Imax (kA)
| 40 | 80 | 100 |
Voltage protection level Up (kV)
| ≤2.2 | ≤2.3 | ≤2.5 |
Max. backup fuse (A)
| 100 (gG) | 100 (gG) | 100 (gG) |
Response time tA
| ≤25ns | ≤25ns | ≤25ns |
Capacity of withstand short circuit
| 25kA | 25kA | 25kA |
Operating temperature
| -40°C∼+85°C | -40°C∼+85°C | -40°C∼+85°C |
Relative humidity
| ≤95%(25°C) | ≤95%(25°C) | ≤95%(25°C) |
Max. cross-sectional area of wire
| 16mm2 multi-strand cord | 25mm2 multi-strand cord | 35mm2 multi-strand cord |
Dimensions (1P) (W*L*H) (mm)
| 18X90X62 | 27x90x62 | 36x90x65 |
Mounting
| DIN Rail 35mm | DIN Rail 35mm | DIN Rail 35mm |
Protection rating
| IP 20 | IP 20 | IP 20 |
Housing material
| PBT | PA66 | PA66 |
Flame retardant rating
| UL 94V-0 | UL 94V-0 | UL 94V-0 |
Capacity of remote signaling contact
| 250VAC/0.5A 30VDC/3A | 250VAC/0.5A 30VDC/3A | 250VAC/0.5A 30VDC/3A |
Max.cross-sectional area of wire for remote signaling contact
| 1.5mm2 multi-strand cord/single cord | 1.5mm2 multi-strand cord/single cord | 1.5mm2 multi-strand cord/single cord |
Status indicator
| Normal: Green Malfunction: Red | Normal: Transparent Malfunction: Red | Normal: Transparent Malfunction: Red |
Standards compliance
| EN50539-11 IEC61643-31 GB/T 18802.31 | EN50539-11 IEC61643-31 GB/T 18802.31 | EN50539-11 IEC61643-31 GB/T 18802.31 |
