uv curing and uv printing and Medical lighting 365-405nm 20W/cm2 high power array 365nm uv led array

h_






1



























































Controller Specification:

Model

         XYUV-2

Channel

           two

The size of controller

   L400*W360*H110mm

Terminal I/O

Input

   Pedal switch & serial RS-232 communication signals

Output

serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

KEY Panel

Ambient temperature and

humidity

Ambient temperature:-10℃—50℃  Relative humidity:25%—85%RH



Dimming/Exposure control

Digital Debugging,Manual exposure control,Foot control or timing control (0.1~9999S)

Setting operation

Using the operating switch is set,Power key parameter switch,RS-232

2

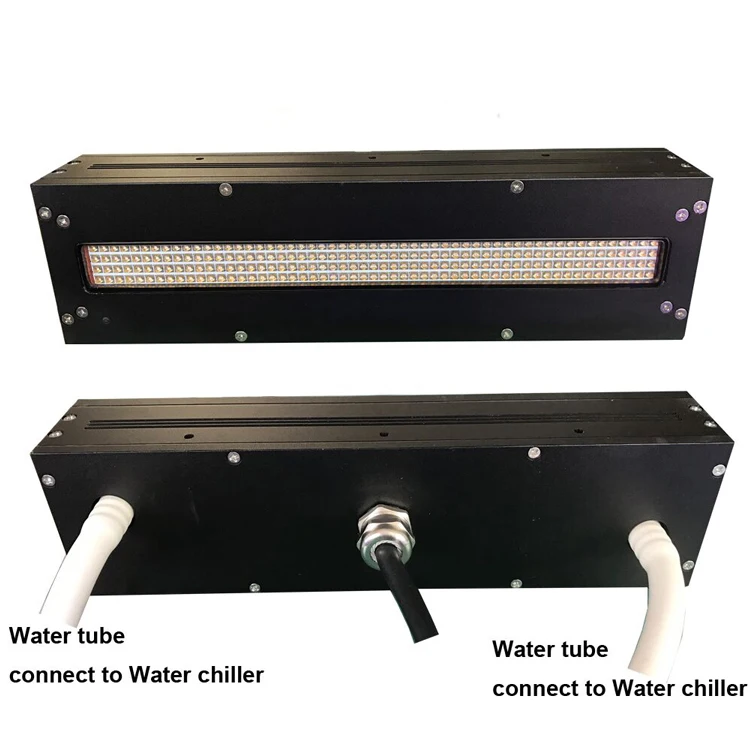

Irradiation Head detailed parameters
Modelwavelengthoptic powercuring areacooling methodirradiation distance
HTLD-S220-20X250395nm10w/cm220x250mmwater cooling10-20mm

More different uv led curing system can be customized

by your requirement.

And more high –power products waiting for your attention

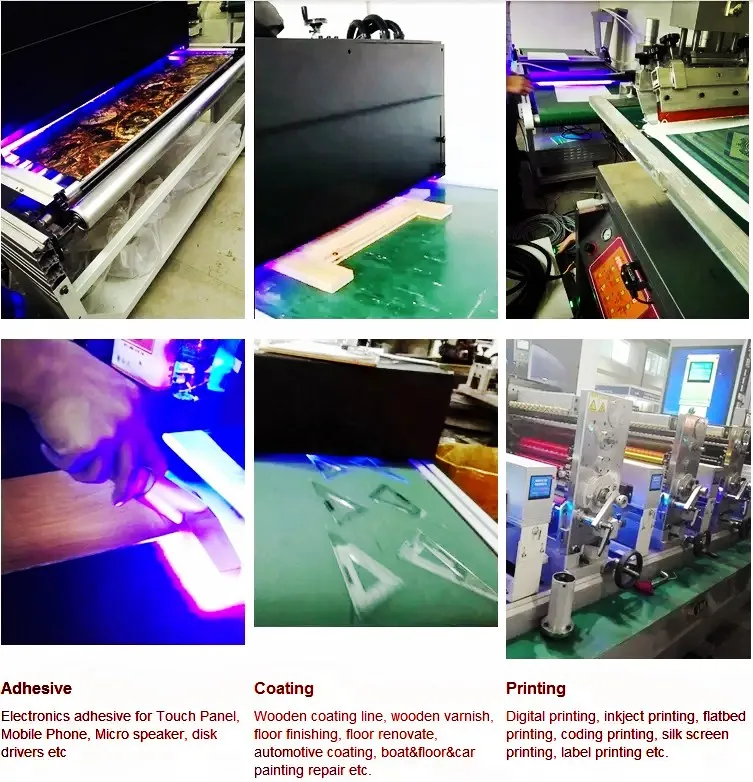

Product application



HTLD-S220-250x20 is a high quality UV LED area light source curing system, the system includes the controller,

UV LED irradiation head . UV LED head with imported high-intensity UV LED integrated UV spectral wavelength of 365nm, 385nm, 395nm, 405nm, the effective curing area of 250x20mm, support for external signal input and trigger, can be equipped with semi-automatic or fully automated production line .

It can be used to cure different materials,such as UV glue, UV ink, UV varnish, UV paint.



Product Advantages

Replace the mercury lamp



  • Extra-long life: 25000h~30000h
  • Energy saving: save 80%  electrical energy than  Mercury lamp
  • UV output adjustment: From 1% to 100%
  • Multiple control modes :  Constant current, pedal control, intelligent optical and manual modes
  • Photoelectric induction, instant on/off, no preheating required.
  •  No mercury, No Ozone, eco-friendly
  • Cold light source, low temperature
  • Stable output, high uniformity.



Company information
Shenzhen Height-LED Opto-electronics Technology Co., Ltd located in Shenzhen, Guangdong, China. Starting in 2007, Height-LED engaged in UV-LED curing UV ink, UV adhesive UV paint, UV varnish and other UV sensitive materials. Our team has more than 10 years combined experience in UV curing systems and can meet the requirements of each client.



FAQ

Q1: Why choose HTLD UV LED curing system?
A:The team has over 10 years combined experience in UV LED curing industry and can meet the requirements of each client.
Q2: What's the application of HTLD UV LED curing system ?
A:HTLD UV LED curing system can be used for curing UV glue, UV ink, UV adhesive, UV paint, UV varnish and other UV sensitive materials.
Q3: What is the major advantages of UV LED curing system’s than other UV curing system?
A:Extra-long life, energy saving and environment friendly.
Q4: Which wavelength do I need?
A:It depends on your  UV sensitive materials.
Q5: What's the emitting window do I need?
A:It depends on your product’s size that need to be cure.
Q6: What's the Peak Irradiance do I need?
A:It depends on your UV sensitive materials and your Production efficiency.
Q7: The common  emitting window and  Peak Irradiance can not meet my requirements?
A:Do not worry! Any sizes of emitting window and Peak Irradiance can be customized .
Q8: Where is your company located?
A: 2/F, Towel B, Sanhe international science and technology Building, Da Lang Road,Long Hua District, ShenZhen, Guang Dong Province, China.
