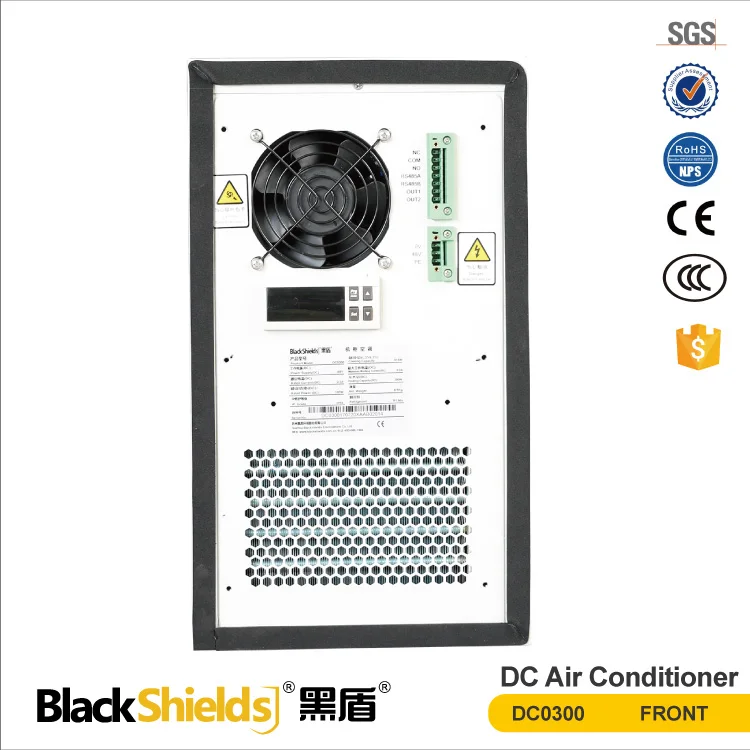

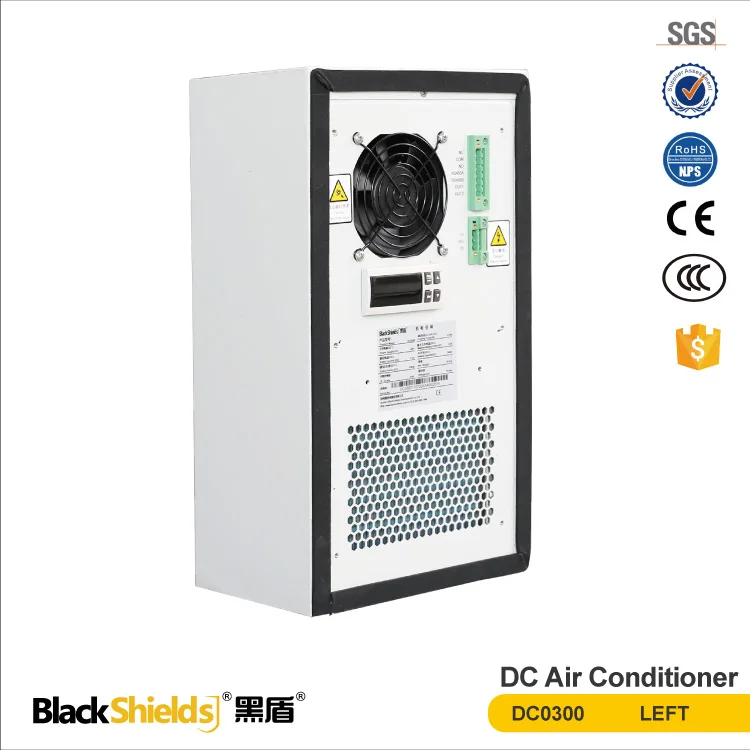

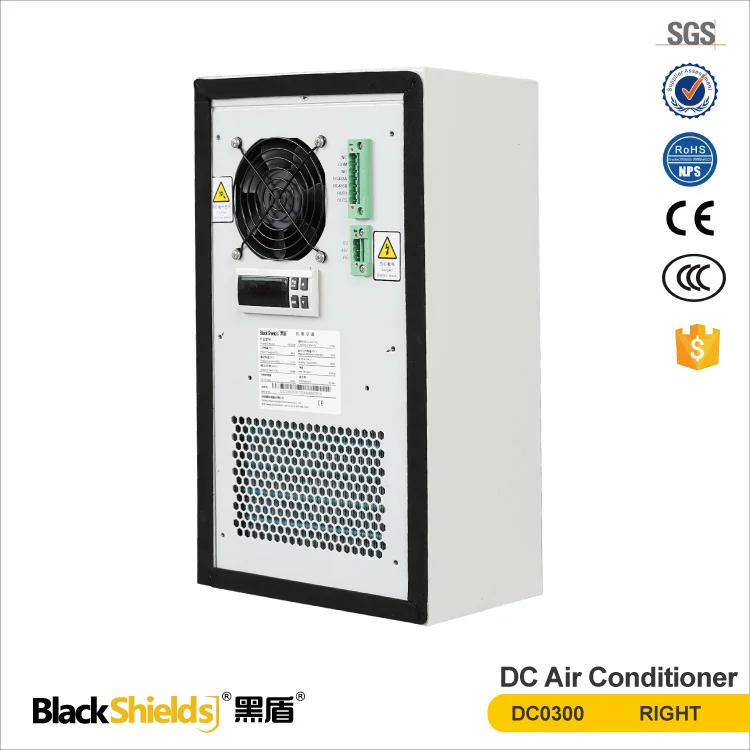

BlackShields manufacturers DC 48V 300W small outdoor telecom cabinet type

rittal cabinet air conditioner price


BlackShields Cabinet air conditioner is thermal control unit with integrated design. With this design, the air conditioner is small in volume and light in weight. Thus the cabinet air conditioner is usually embedded

into door for installation. Besides, the cabinet air conditioner can also be fixed on the door or on the top of

the cabinet.

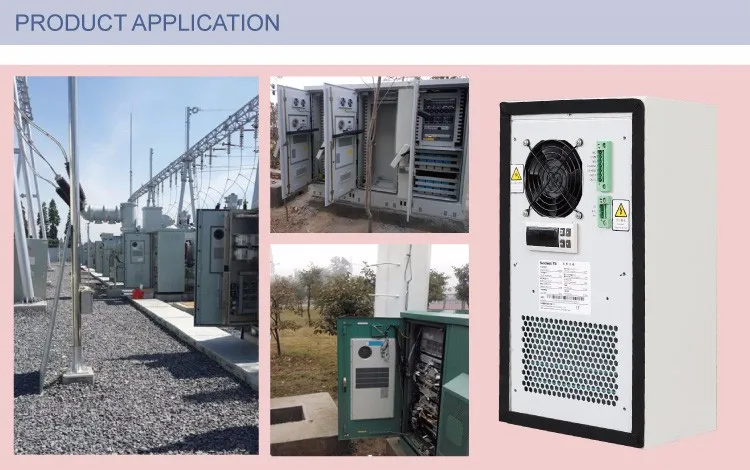

Cabinet air conditioner is widely used for various cabinets like: telecom base station cabinet, electric

control cabinet, multimedia advertising machine, card dispenser, prefabricated house in electricity industry, dust control system cabinet, charging pile for new energy, etc.

Features


1. Energy Conservation and Environment Protection

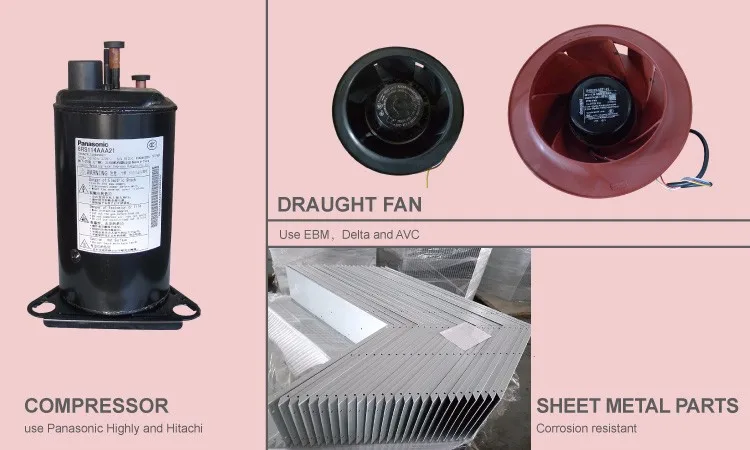

1.1 International brand's high energy efficiency compressor

1.2 International brand's low-power centrifugal fan

1.3 Environmentally friendly CFC-free refrigerant R134a.

1.4 High energy efficiency ratio (EER) design

1.5 High volume of wind, small enthalpy variance, high sensible heat ratio design

\t
Model Number
\t
DC0300
\t
Brand Name
\t
Blackshields
\t
Product name / Type
\t
300W DC Cabinet Air Conditioner
\t
Power supply
\t
-48VDC
\t
Cooling capacity / Heating capacity (W)
\t
300
\t
Power consumption(W)
\t
105
\t
Range of working temperature(℃)
\t
-40 ~+55
\t
Running current (A)
\t
Cooling : 2.2            /            Heating :7.0
\t
Starting  type
\t
Soft start-up
\t

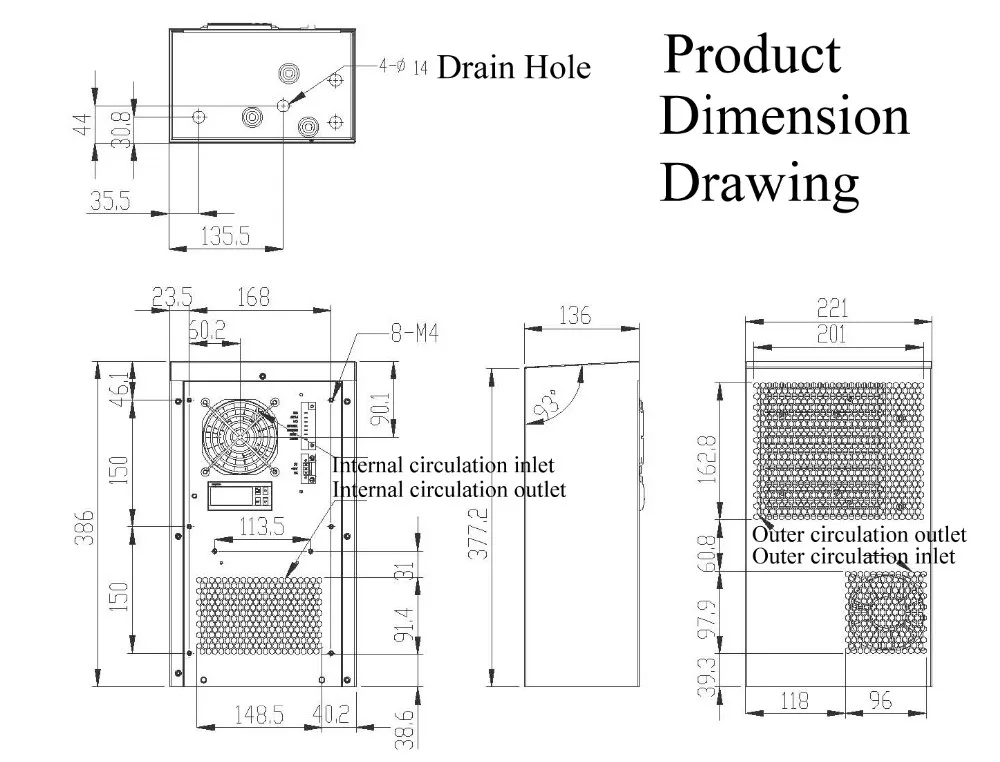

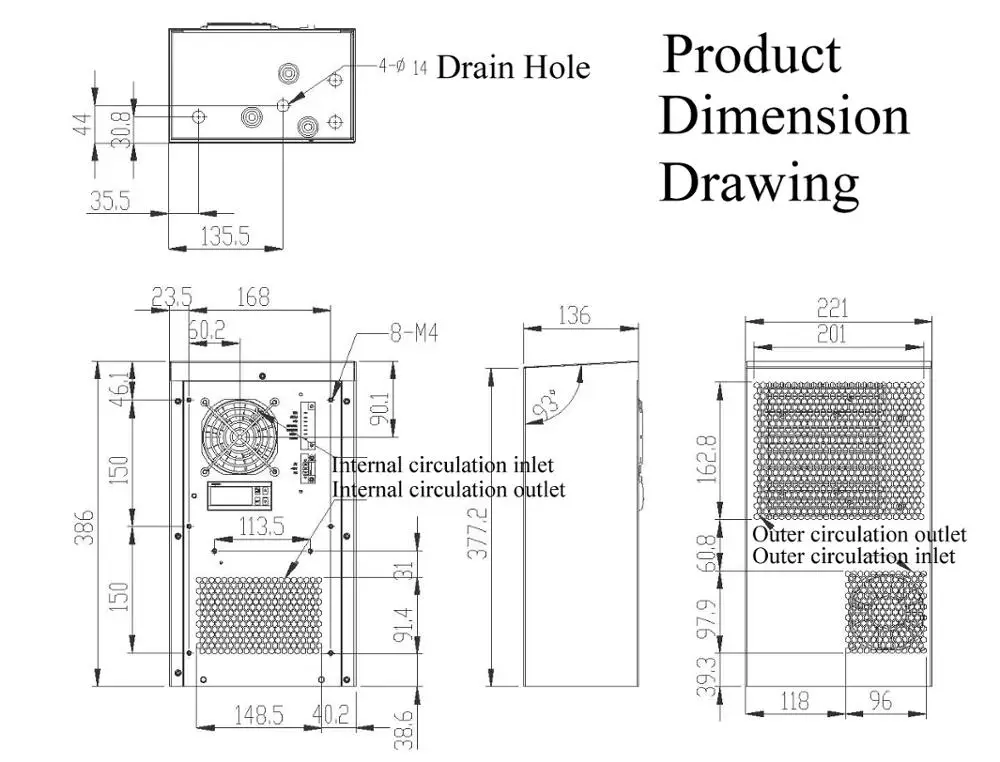

Dimension (mm)
\t
386*221*136
\t
Refrigerant type
\t
R134a
\t
IP level
\t
IP 55
\t
Noise level (dB)
\t
60
\t
Net Weight (Kg)
\t
8.5
\t
Installation
\t
Door mounted (Hang)
\t
Certification
\t
CE
\t
Color
\t
Electrostatic coating (RAL7035)
\t
Ambient set temperature (℃)
\t
20~40
\t
Temperature control mode
\t
Digital display thermostat
\t
Power supply connection
\t
Three-core conductor (2~5m long)

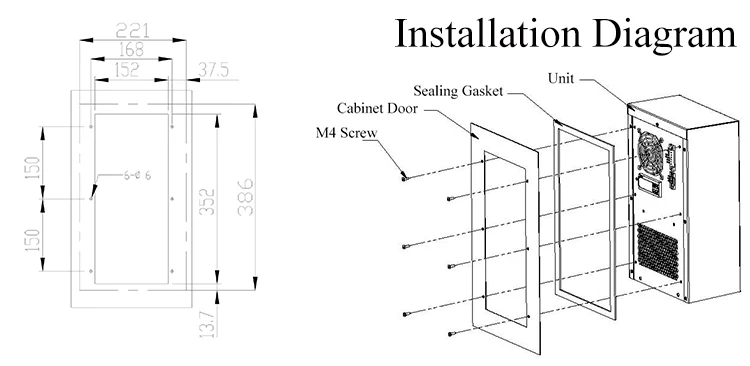

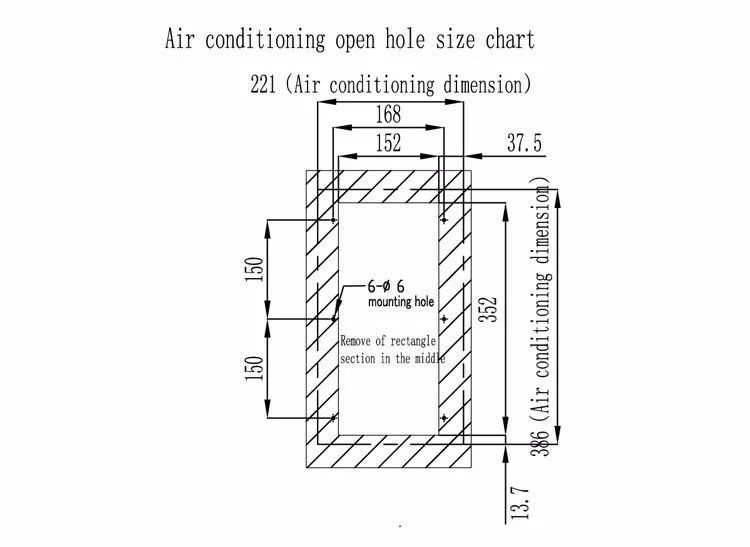

Install Drawing
Packing & Delivery
\t
Packing material
\t
Carton and ply-wooden pallet
\t

Single packing information
\t
Net weight: 8.5Kg
Gross Weight: 10Kg
Size: L316*D187*H480mm
\t

Multi packing information
\t
Packing quantity: 32pcs/pallet
Net weight: 272Kg
Gross Weight: 332Kg
Size: L1200*W1100*H1080mm
DC Air Conditioner
\t
Description
\t
Cooling Capacity
(W)
\t
Power Consumption (W)
\t
Dimension
(mm)
\t
Heater
Optional(W)
\t
Noise
(dBA)
\t
Net Weight ( KG )
\t
DC0300
\t
300
\t
105
\t
386*221*136
\t
300
\t
60
\t
9
\t
DC0500
\t
500
\t
180
\t
550*320*170
\t
500
\t
62

\t
15

\t
DC1000
\t
1000
\t
320
\t
746*446*200
\t
500
\t
65
\t
28
\t
DC1500
\t
1500
\t
500
\t
746*446*200
\t
---
\t
65
\t
28
\t
DC2000
\t
2000
\t
665
\t
746*446*200
\t
---
\t
65
\t
31
\t
DC3000
\t
3000
\t
920
\t
1300*500*230
\t
---
\t
65
\t
48
\t
DC4000
\t
4000
\t
1125
\t
1332*545*251
\t
---
\t
65
\t
75
Our Company

Warmly Welcome to Suzhou Blackshields Environment Co., Ltd.

In 1958, Blackshields was founded in California, USA. It is a high-tech enterprise dedicated to providing temperature control solutions for computer room and equipment. It has been providing the world's leading technical service for Telecommunication, Electric Power, Finance, Energy, Transportation and Eco-friendly Industries for more than half a century.

As full membership of China Communications Standard Association, Blackshields actively participates in the development of relevant industry standards. We provide temperature-humidity and energy-saving solutions for Data Center, medium and small-sized computer room, micro module, container and modular data center, communication base station and cabinets.

Blackshields is qualified for ISO9001 Quality Management Certificate, ISO14001 Environmental Management Certificate and OHSAS18001 Occupational Health Management Certificate. Our products are certificated with 3C, CE ,UL and TUV . The company, short for Blackshields shares with code 839800, was listed in NEEQ in 2016.

With the duty to create a cooler world, we continuously innovate and explore to work hard for protecting the human common homeland.

National Level Air Conditioning Comprehensive Performance Laboratory

We have large stroehouse , the standard model air condition in stock now.

All the equipment in our company has been tested strictly before leaving the factory.

One year free warranty , life time guarantee .

Professional technical team. Any problem , quickly feedback in 2 hours.

FAQ

Quality is our culture . With us your money and business in safe.

For more information or customized industrial cooling solutions,please contact US for free.


Q1.Do you have any MOQ limit for air conditioner?
A: Low MOQ, 1pc for sample checking is available.

Q2.How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 10 days to arrive. Airline and sea shipping also optional.

Q3. Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.

Q4: Where the application?
A: Our products have been widely used in many industries, like machine tool, data processing, telecommunications, financial, metallurgy, petrification, building materials, cars and war industry etc.

Q5: Are your products can be customized?
A: Yes. Also welcome to customized non-standard products.
