Brackish Water Treatment Vontron RO Membrane ULP21 4040 ULP31 4040 Reverse Osmosis
- Category: >>>
- Supplier: Henan Mega Electronics Co. Ltd.
Share on (60849576877):
Product Overview
Description

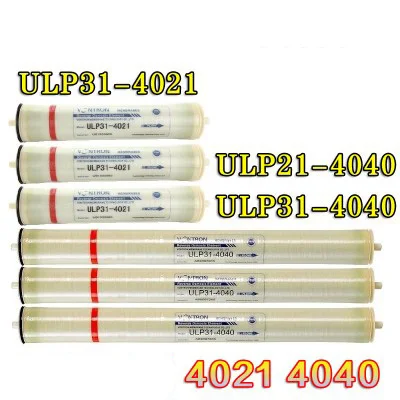

Brackish Water Treatment Vontron RO Membrane ULP21-4040 ULP31-4040 Reverse Osmosise
We supply water purifier spares to water purifier factories and wholsalers for more than 10 years, we are professional, trustable, sincere,with lower price basis on same quality product and excellent after-sale service!
Fresh life, from Mega!
Product Description :
ULP (Ultra Low Pressure) series is the latest development of the era of Walton's ultra low pressure
aromatic polyamide composite membrane components used in surface water and groundwater
desalination, can achieve the same high water flux and high desalination rate under ultra low
operating pressure conditions. The operating pressure is about 2/3, which is about 99.5% of the
conventional low pressure composite film. So as to reduce the cost of investment and reverse
osmosis system of pump, pipeline, container and so on.
Specification:
Model | Active Membrane | Average Permeate | Stable Rejection | Min. Rejection |
ULP21-4040 | 90(8.4) | 2400(9.1) | 99.0 | 98.5 |
ULP31-4040 | 90(8.4) | 1900(7.2) | 99.4 | 99.0 |
ULP11-4040 | 90(8.4) | 2700(10.2) | 98.0 | 97.5 |
ULP31-4021 | 36(3.3) | 850(3.2) | 99.4 | 99 |
ULP21-2540 | 30(2.8) | 750(2.84) | 99 | 98.5 |
ULP21-8040 | 365(33.9) | 11000(41.6) | 99.0 | 98.5 |
ULP12-8040 | 400(37.2) | 13200(49.9) | 98.0 | 97.5 |
ULP22-8040 | 400(37.2) | 12100(45.7) | 99.0 | 98.5 |
ULP32-8040 | 400(37.2) | 10500(39.7) | 99.5 | 99.0 |
Testing | Testing Pressure Testing Solution Temperature Concentration of Testing Solution (NaCl) pH value of Testing Solution Recovery Rate of Single Element | 150 psi (1.03MPa) | ||
Operation Limits & | Max. Working Pressure Max. Volume of Feed water Max. Temperature of Feed water Max. Feed water SDI15 pH Range of Feed water during Continuous Operation pH Range of Feed Water during Chemical Cleaning Residual Chlorine Concentration of Feed Water Max. Pressure Drop of Single Membrane Element Max. Pressure Drop of Single Pressure Vessel with Six RO Membranes | 600psi(4.14Mpa) 16gpm(3.6 m3/h) 45℃ 5 2~11 1~13 <0.1ppm 15psi(0.1Mpa) 50psi(0.34Mpa) | ||
Storage:
Installation:
