CE Rohs Dc12v 2835 Smd Led Module Backlight Mini Led Module Sign Module with Lens Lighting and Circuitry Design 3 YEAR

Product Overview

Description

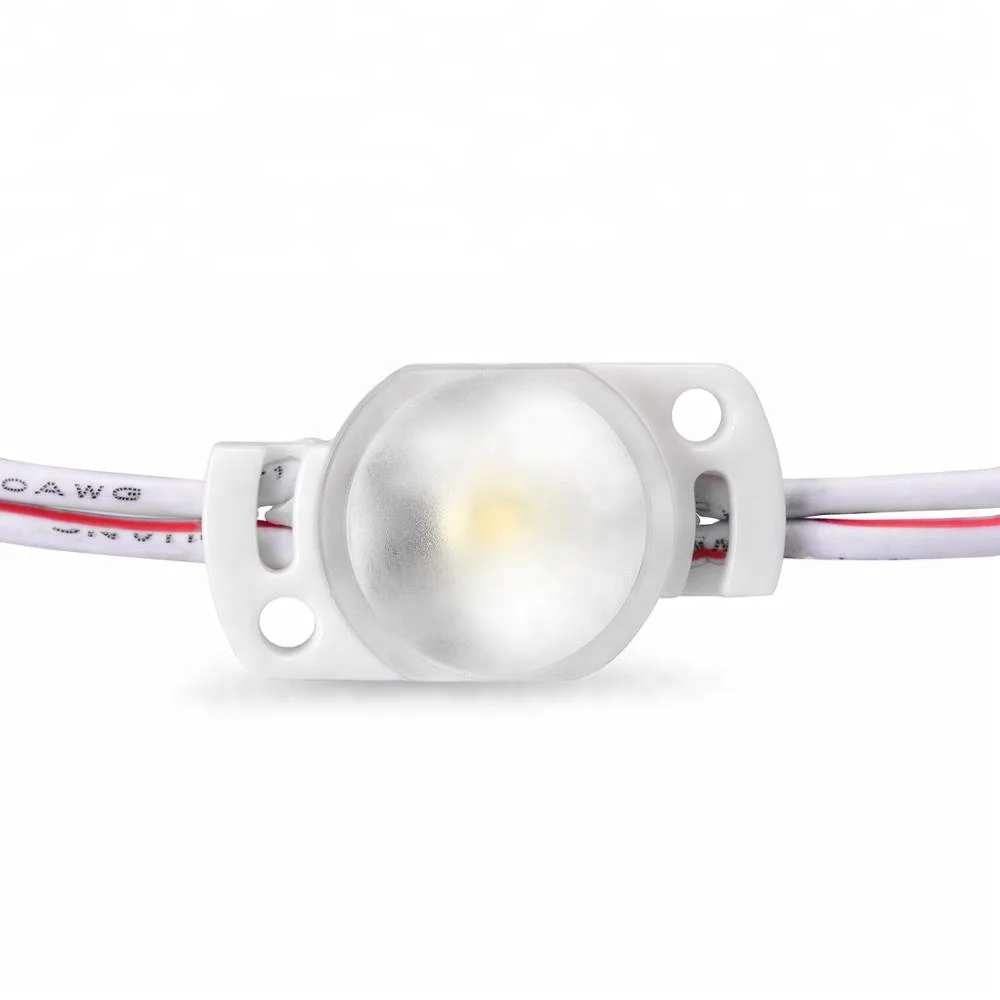

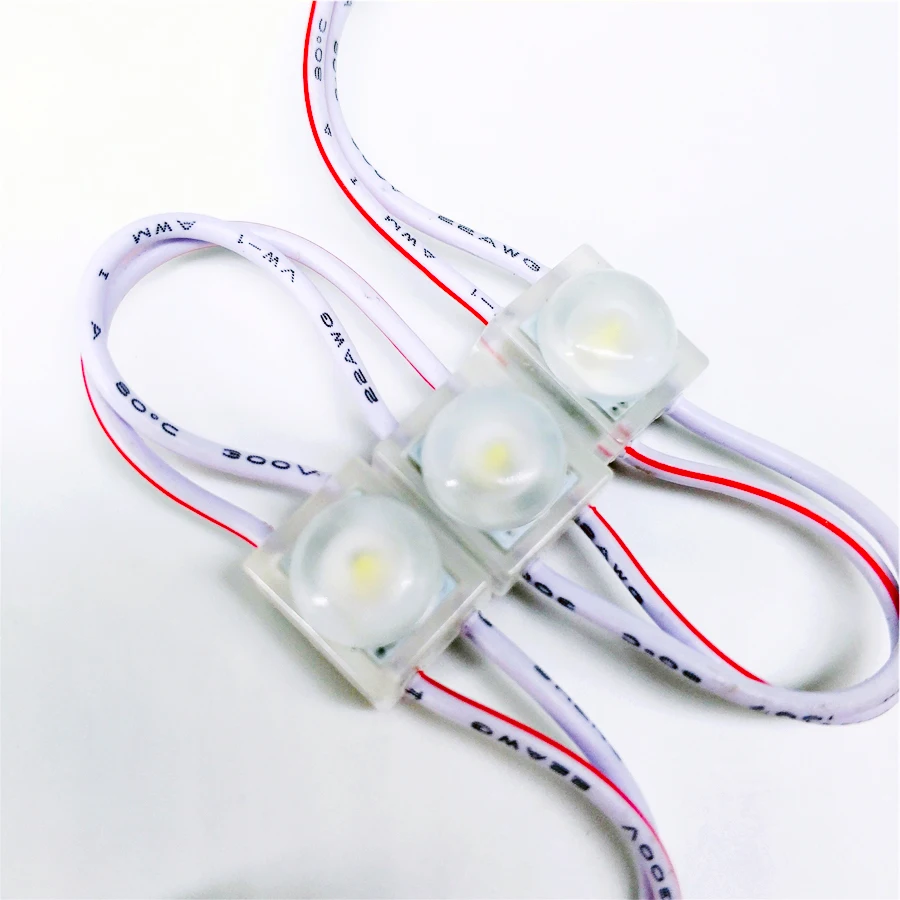

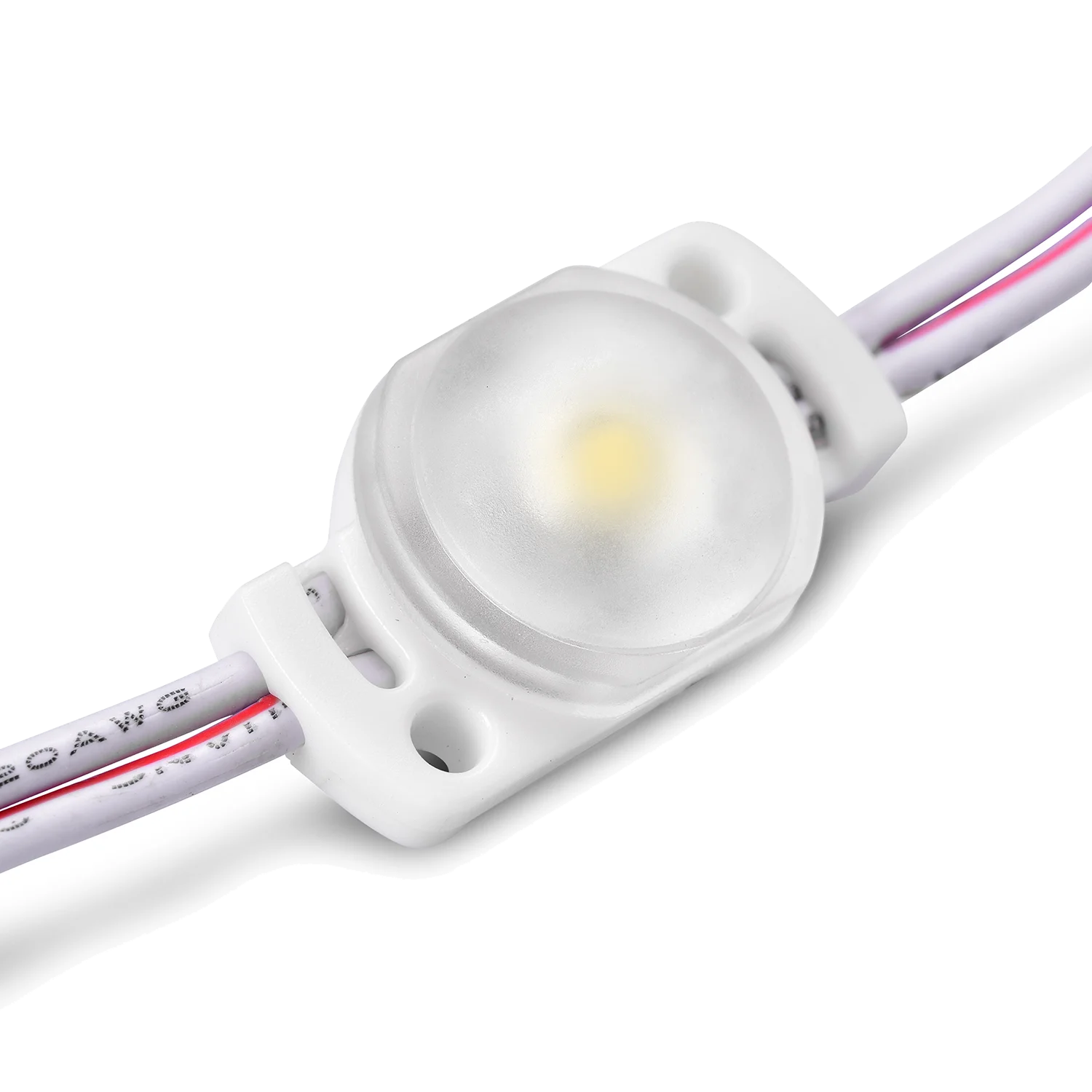

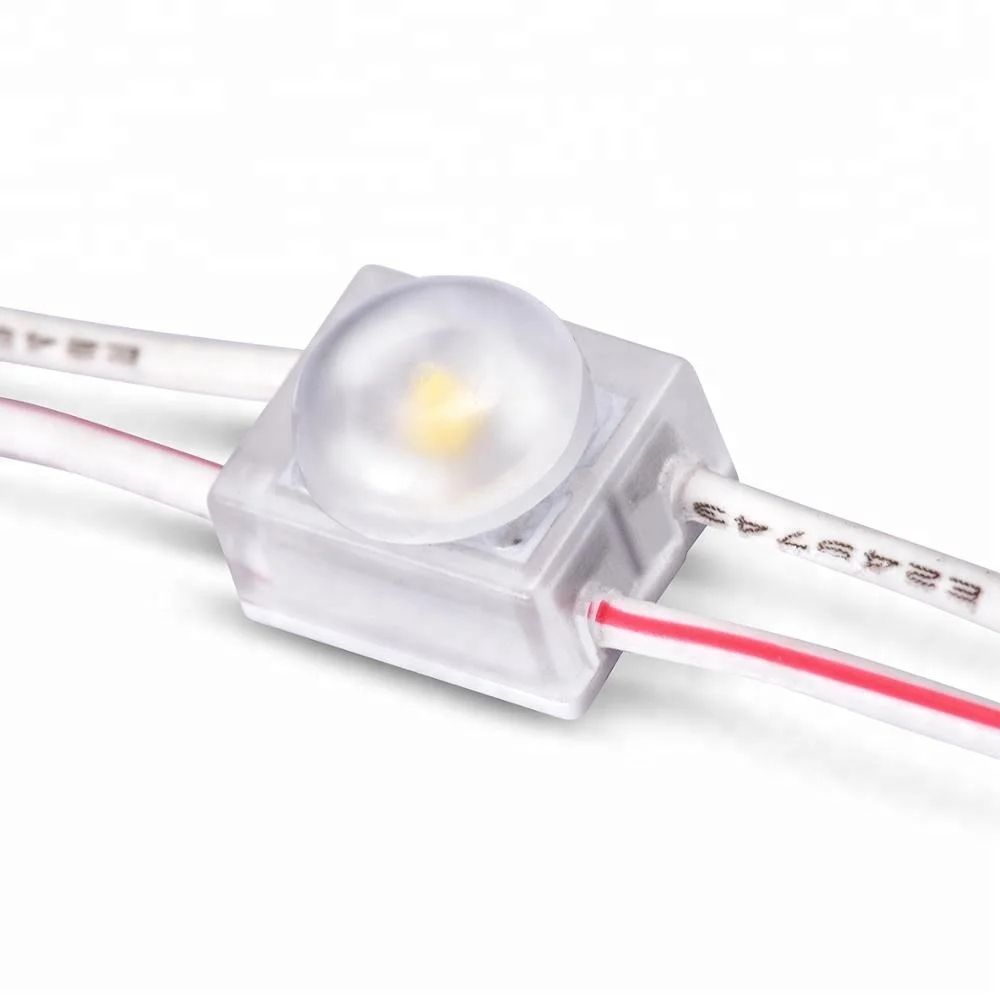

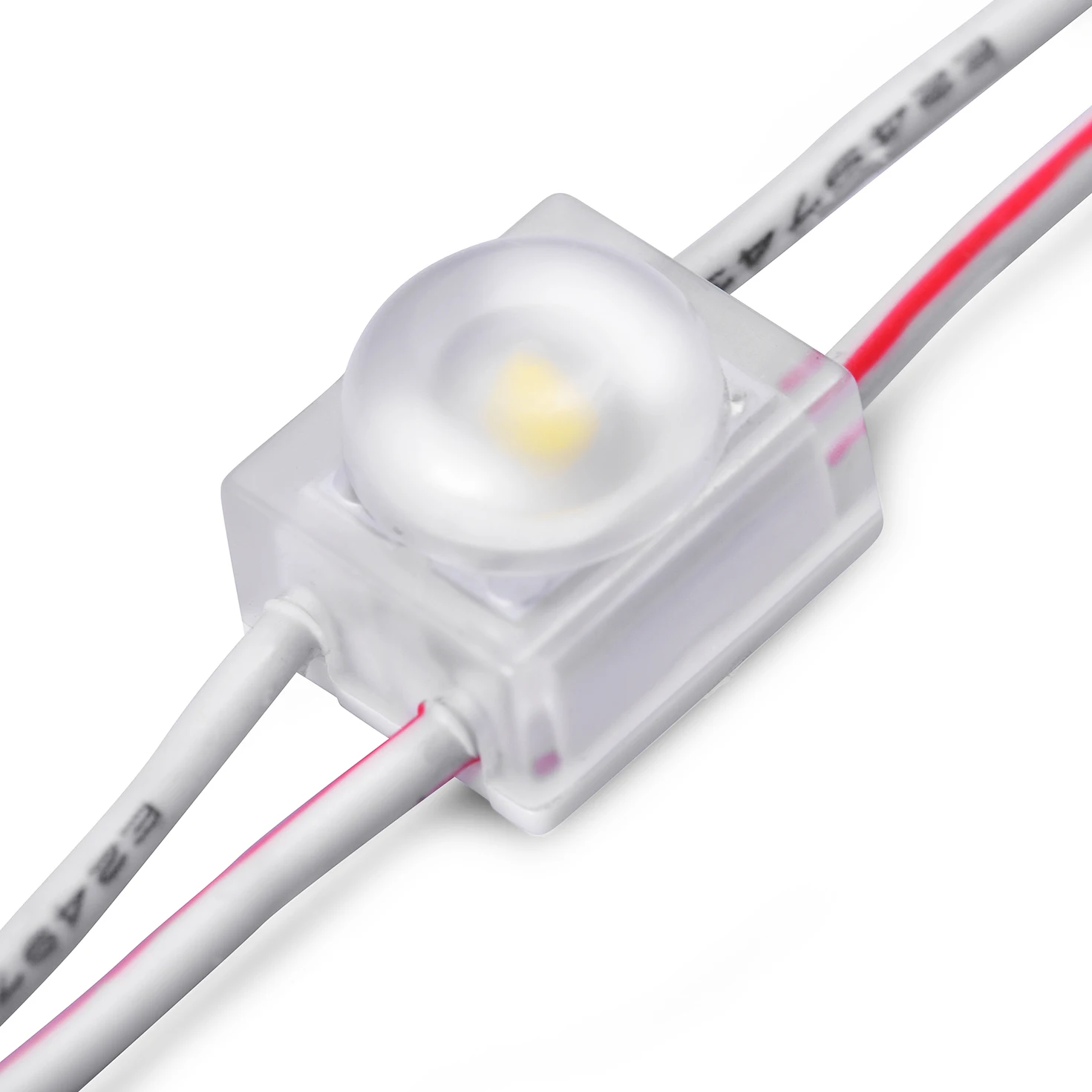

CE Rohs dc12v 2835 smd led module backlight mini led module sign module with lens



mini led module feature

aluminum PCB for good heat dissipation
low power consumption save energy
low light decay/long lifespan/high brightness
single module can be cut/waterproof

Model No.	BD-FH3XF-28M
Light source	super bright 2835 SMD
Dimension	19*14*9.7mm
Input voltage	DC 12V
Power consumption	0.36W
Luminous flux	26~28 Lm
Beaming angle	160 degree
Forward current	25 mA
IP rank	IP67
Color	red, green, blue, yellow, warm white, pure white and cold white
Application	small advertising signs and channel letters
Warranty	3 years

Features:

1.Powered by Epistar 0.36W led
2.Aluminium base for good heat sinking
3.Beam angle:160°
3.Brightness:40-45LM
4.Driven by constant current
5.If powered maximun 12 hours a day, 4 years warranty
6.Application:Backlighting for display case,channels letter depth is 60-100mm



Items	Parameter
LED type	2835
LED Quantity	1
Beam angle	160
Dimensionmm	68.2x19.5x5.7 mm
Power	0.5w
Input V.	DC12V
Input C.	0.125
Surface Temp.	< 40
Working Temp.	-20 ~ +45
Storage Temp.	-30 ~ +60
Protect Level	IP68

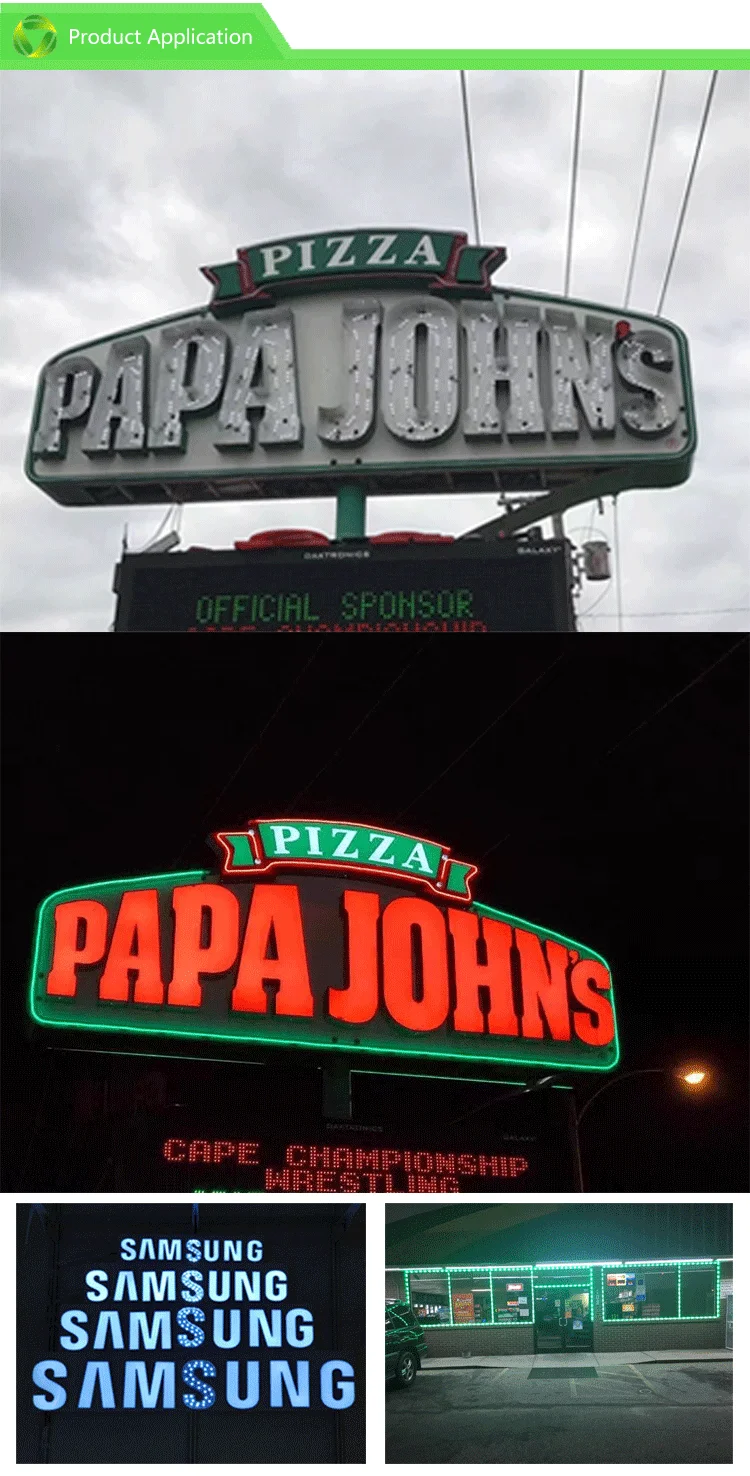

Application for led module

1), Adversting signs,channels ,light box sign, illuminated sign (silm ) box, solid light,platsic characters ,other adversting lighting ,ect.



 2), Hotel ,KTV, shopping malls,entertainment room,exterior  lighting ,landscape layout, stage decoration ,city lighting ,ect



 3), family shoe closet ,ceiling concealed ,showrooms,art hall ,museum ,office,reading room and other local decorative lighting.
