hight quality 250 300kw biogas generator set (150 200 cubic meters)biogas scrubber with Biogas desulfuration system

Product Overview

Description

hight quality 250-300kw biogas generator set (150-200 cubic meters)biogas scrubber Biogas desulfuration system

1. Necessity of Biogas scrubber

Biogas scrubber with  Biogas desulfuration system is designed to clean biogas by removing sulphur, dust and water from biogas, stablize biogas pressure so that stable and clean biogas can be used on biogas engine.

Biogas is a mixture of various gases, its main component is methane (40% ~ 70%) and carbon dioxide (30% ~ 60%), hydrogen sulfide, saturated water vapor and higher hydrocarbons (from ethane C2H6 to heptane C7H16). Besides, it also contains an oxide of ammonia, nitrogen, oxygen, sulfur, etc., and even particles. These impurities can result in damage to gensets, related equipment and environment during gas application process.

Furthermore, biogas flow, pressure, temperature, density are very unstable, they will cause deep corrosion and abrasion to gas engine if directly used for gas generation. Thus the life span of gas equipment will be shortened, while there will be also environmental pollution. So before using biogas, its purification and treatment must be done.



2.The main function of this system

1. Desulfurization
2. De-dust
3. De-water
4. Increase pressure
5. Steady pressure
6. Change desulfurizer without stopping genset



3. Technical Characteristic

Technical Characteristic:

stable desulfuration efficiency which reaches beyond 99.3%. Combined with biogas features, the technology is improved and evoluted from mature gas desulfuration process which once is used in chemical industry and Fertilizer industry. Now the biogas purification and desulfuration system, adopting this technology, is equiped with Camda gas genset.



Desulfurization:

Wet scrubber is recommended for desulfurization. After gas goes through wet-process desulfuration, most of hydrogen sulfide is removed. In this technology, desulfurization solution is recycled. So no polluted water is discharged. The by products, sulphur, from this process can be sold to sulfuric acid factory. All the equipment and chemical agent are non-toxic, harmless and of easy operation without any potential safety hazard. Comparing with using sodium hydroxide and dry process desulfuration, Wet scrubber has the advantages of high efficiency and low running cost. This technology has been upgraded on the basis of tanning extracts desulfuration, which has reached the international advanced level.



Dehydration:

After gas by wet method desulfurization after and absorbing hydrogen sulfide, will bring less mist shape desulfurization liquid,the moisture content is too high, will be condensed in pipeline and accumulation in the lower position of pipeline that make gas circulation impeded,also winter easy cause frozen blocking phenomenon.Therefore need dewatering.Dewatering under atmospheric, first after centrifugal dewatering,and then after packing dewatering that can dewatering the liquid water of gas.

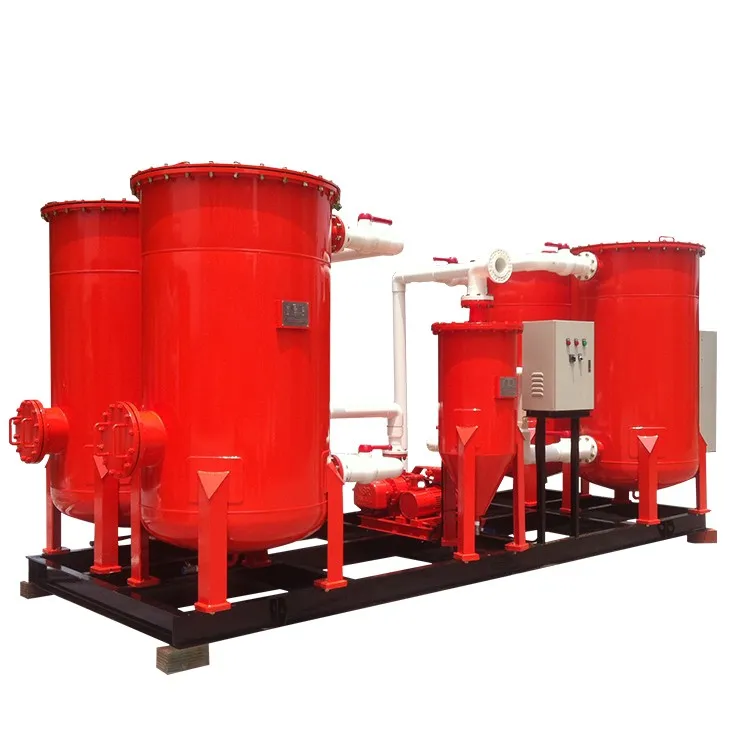

KDCL-300-WQ series biogas scrubber
1. Main Specificstions
Model	KDCL-300-WQ
The suitable genset power	250KW-300KW
Dimension	4200×2000×2280 (mm)
Weight	980kg
Gas flow	150~200Nm3/hr
Working pressure	4~40KPa
Desulfurizer amount	2×450kg
The changing time of desulfurizer	1500 hours
Parts per million after purifying	200ppm
The designed lifetime	15years
2. The Main Equipment
1. Name	Desulfurizing tower
Qty	4 unit
Model	KDTL-800-G
Specificstions	Φ800×2130
Function	Desulfurization
2. Name	Separator
Qty	1unit
Model	KDFC-200-G
Function	1. Gas buffter; 2. De-Dust
3. Name	Blower
Qty	1unit
Model	NSR100-100A
Specificstions	3KW
Function	Increase pressure and steady pressure
