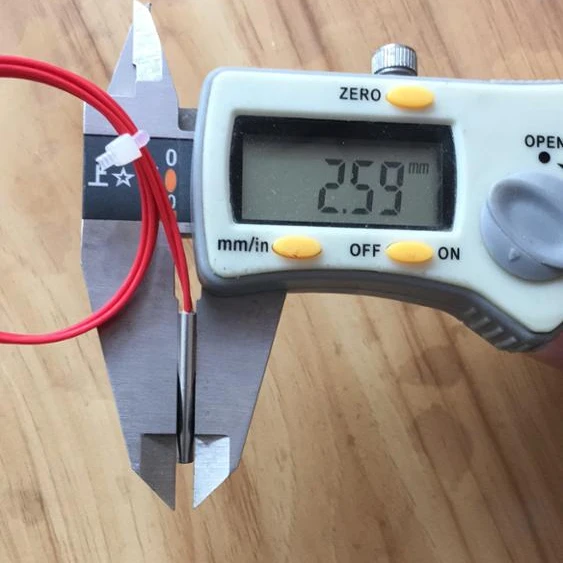

3.175 mm*16 mm 12V 12W Resistance Heater Cartridge Heating for Vacuum Equipment

Cartridge heater are cylindrical electrical heating element.Mostly used for heating up solids such as injection presses heating plates or various tools,they can also be used for heating up water of gases under certain conditions.Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry,etc.They are also commonly found used in the chemical,electronics,medical equipment and packing industries etc.

3.175 mm*16 mm 12V 12W Resistance Heater Cartridge Heating for Vacuum Equipment

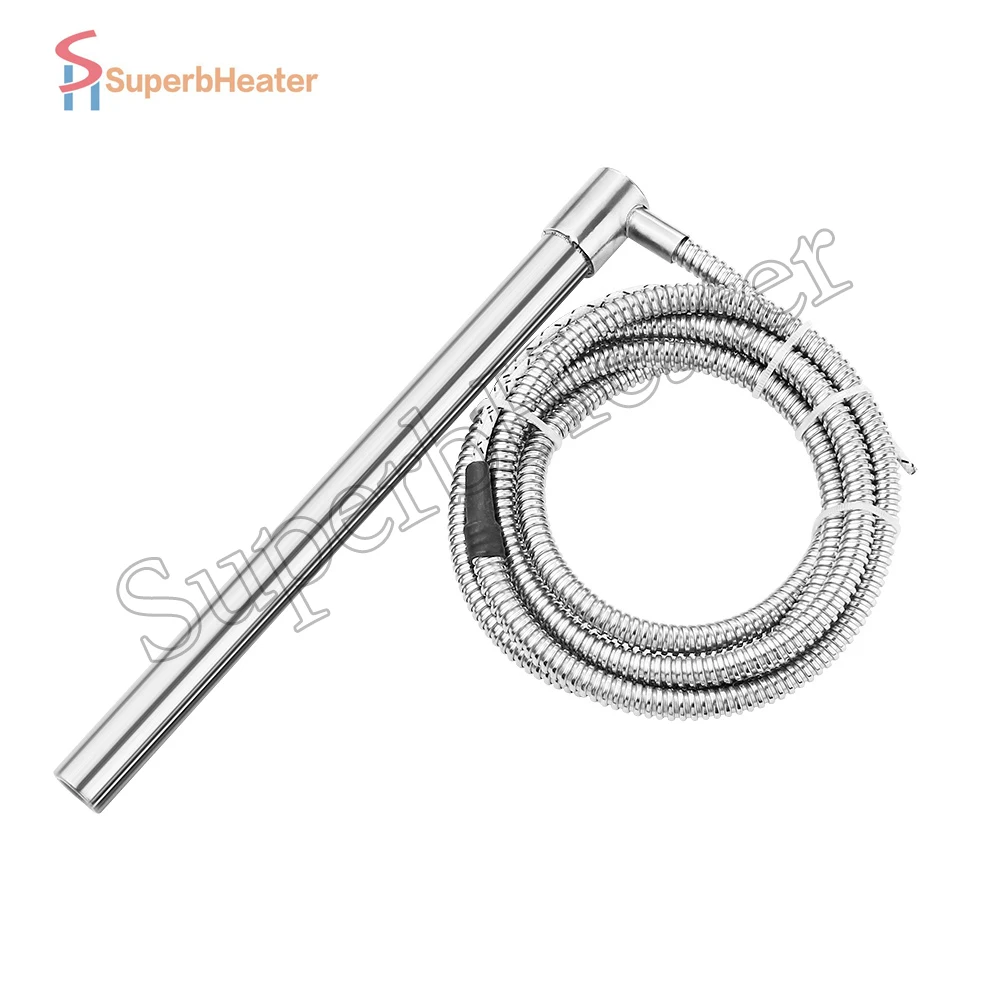

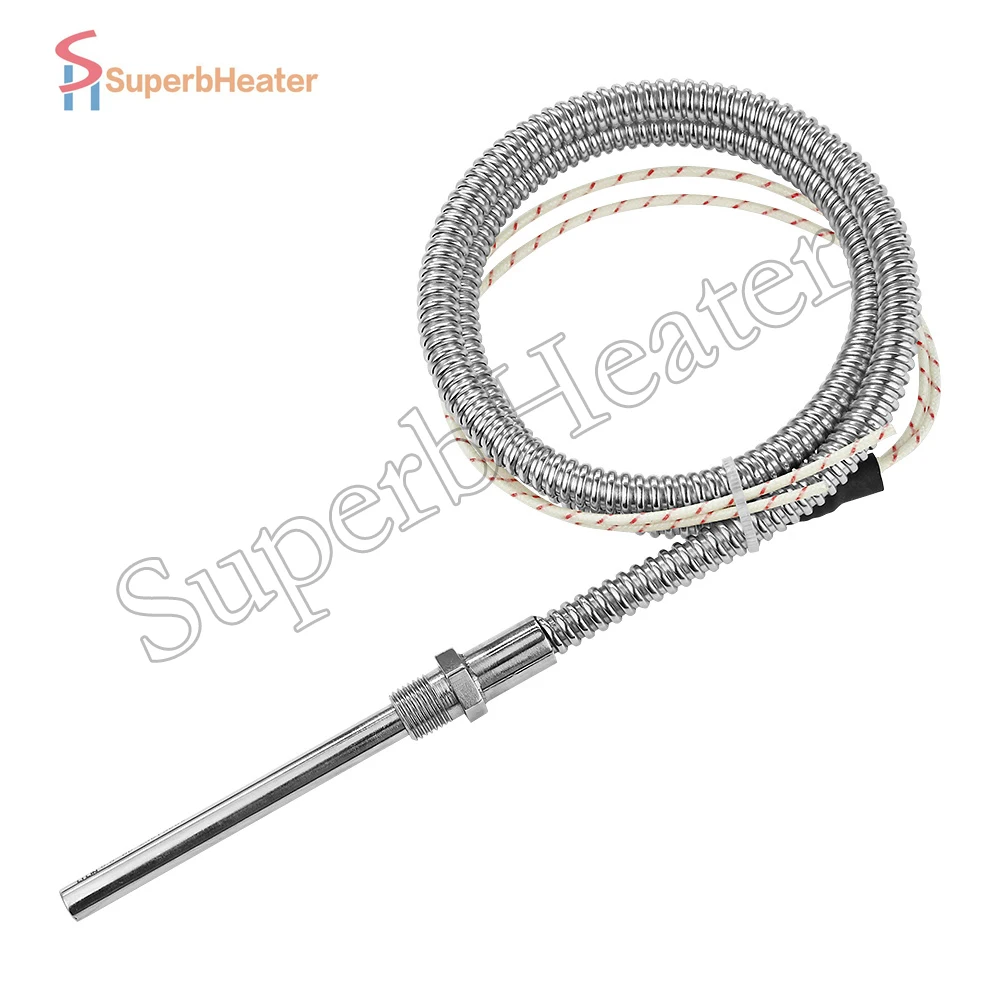

• Cartridge heater type as follows

Cartridge Heater Material Specification

• Tube Material: Seamless SS304, SS321, SS316L, SS310S, Incoloy 600/800/840 etc;


• MGO Rod: Imported from Japan Tateho, USA OTC;


• MGO Powder: Imported from UK UCM, Japan Tateho;


• Resistance Heating Wire: Sweden Kanthal, Germany BGH, NiCr8020;


• High Temperature Wire: Fiberglass wire, Pure Nickel Core wire, Telfon wire, Silicone wire;


• Terminal Pin: Nickel-manganese alloy, pure nickel wire.

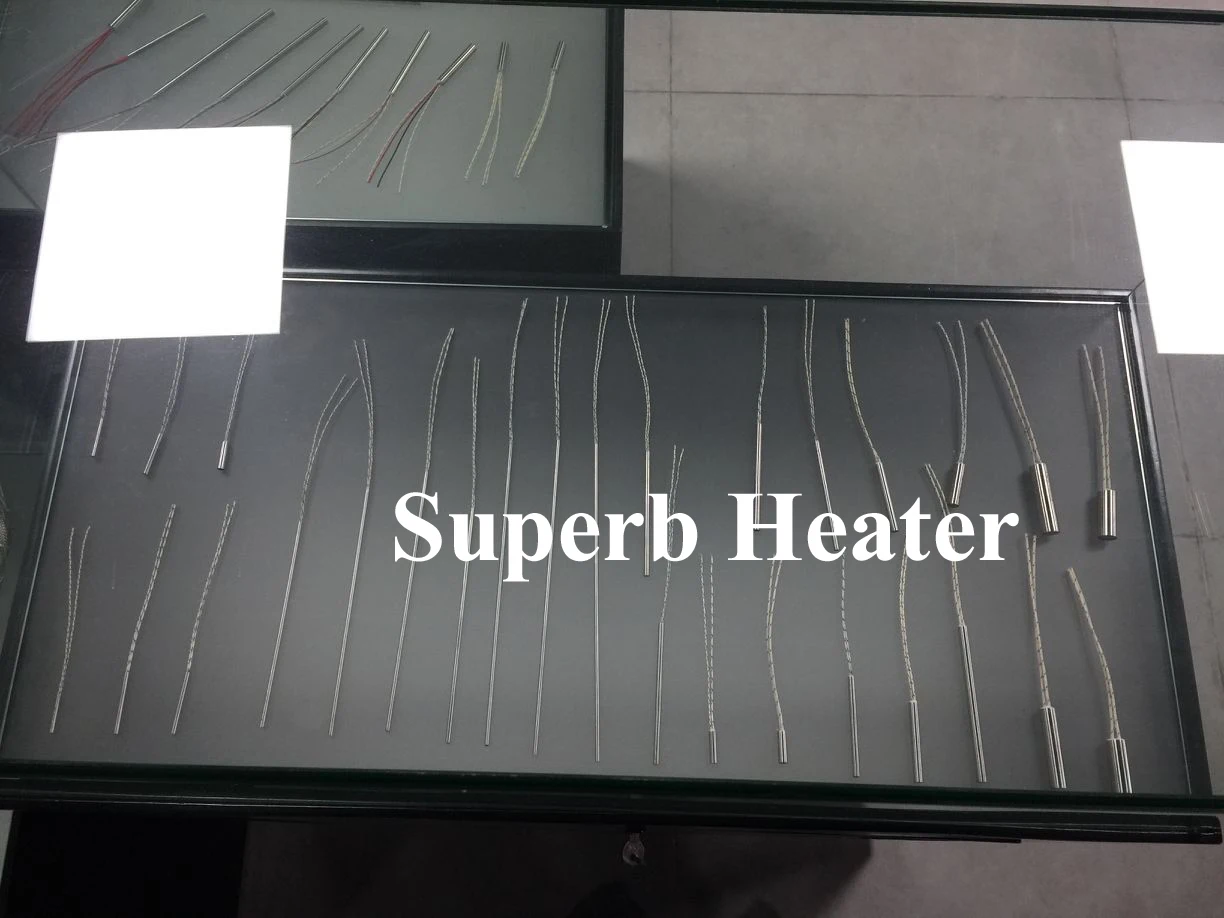

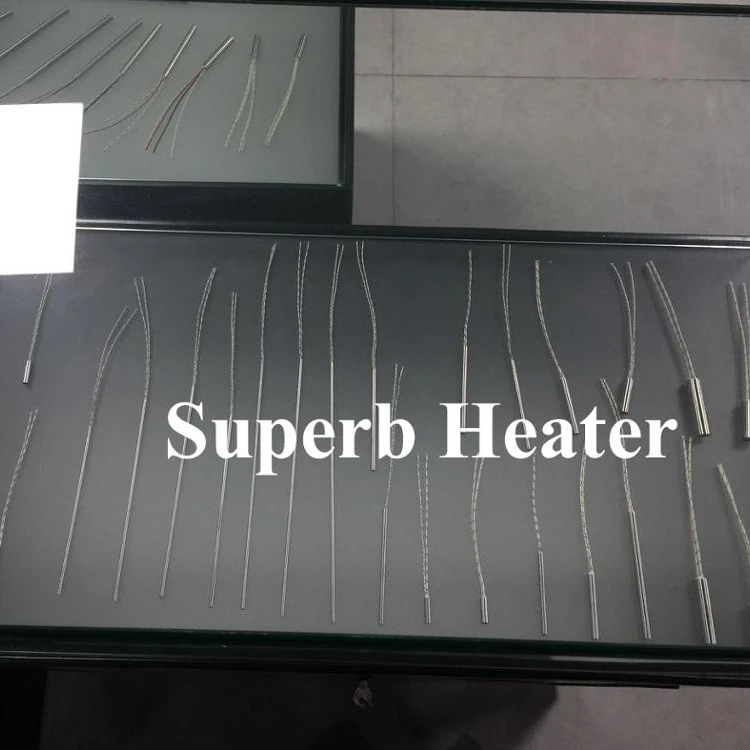

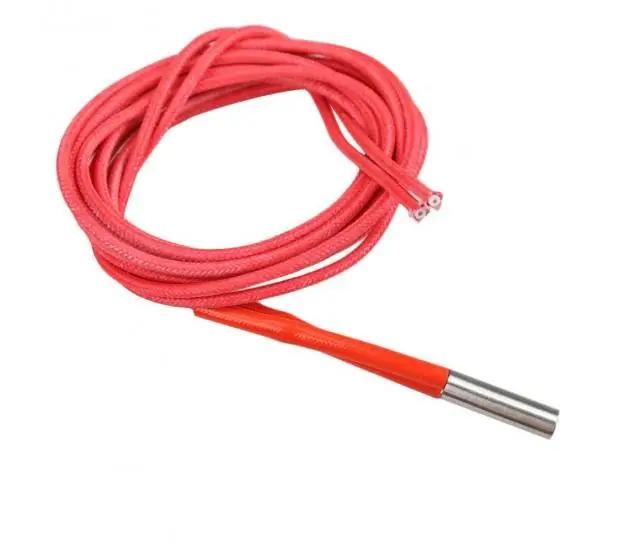

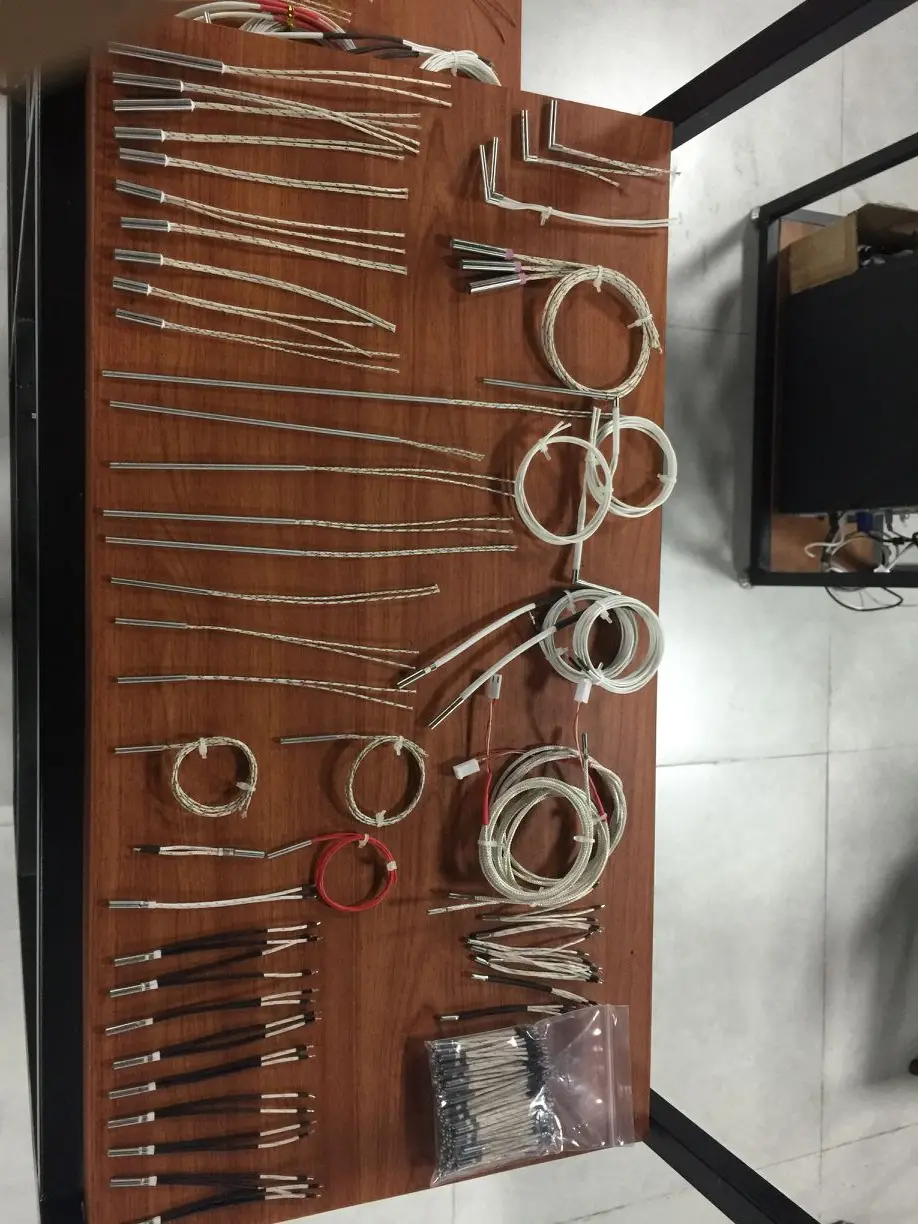

Product Shows

Cartridge Heater Applications

•  Injection moulding - Internal heating of nozzles


•  Hot runner systems - Heating of manifolds


•  Packaging industry - Heating of cutting bars


•  Packaging industry - Heating of hot stamps


•  Laboratories - Heating of analytical equipment


•  Medical - Dialysis, Sterilization, Blood Analyzer, Blood/Fluid Warmer, Temperature Therapy


•  Telecommunications - Deicing, Enclosure Heater


•  Transportation - Oil/Block Heater, Aircraft, Coffee Pot Heaters


•  Food Service - Steamers, Dish Washers


•  Industrial - Glass Bending Machine, Hole Punches, Hot Stamp


• PCB Equipment, Smokeless barbecue furnace etc.

Procedure for Sizing Cartridge Heaters

• Establish a maximum temperature at which the part will operate.


• Determine total wattage needed to produce this temperature.


• Establish the largest diameter and the length of the cartridge heater that is best suited to the dimensions of your part.


• Estimate the number of heaters needed for even heat. Divide the total wattage by the number of cartridge heaters to determine the wattage rating of each heater.


• Determine the watt density of the size selected (3.14 * diameter * heat length = area. Wattage / Area = watt density).


• Determine fit (subtract minimum outside diameter of the heater from maximum inside diameter of hole).

Cartridge Heater Technical Data

Related Products

When ordering Cartridge Heaters, please provide the following information:

• Material ( tube material and wire material)


• Diameter


• Overall sheath length


• Wire length


• Termination type --- Swaged-in type or Terminal type


• Power and Voltage


• Quantity

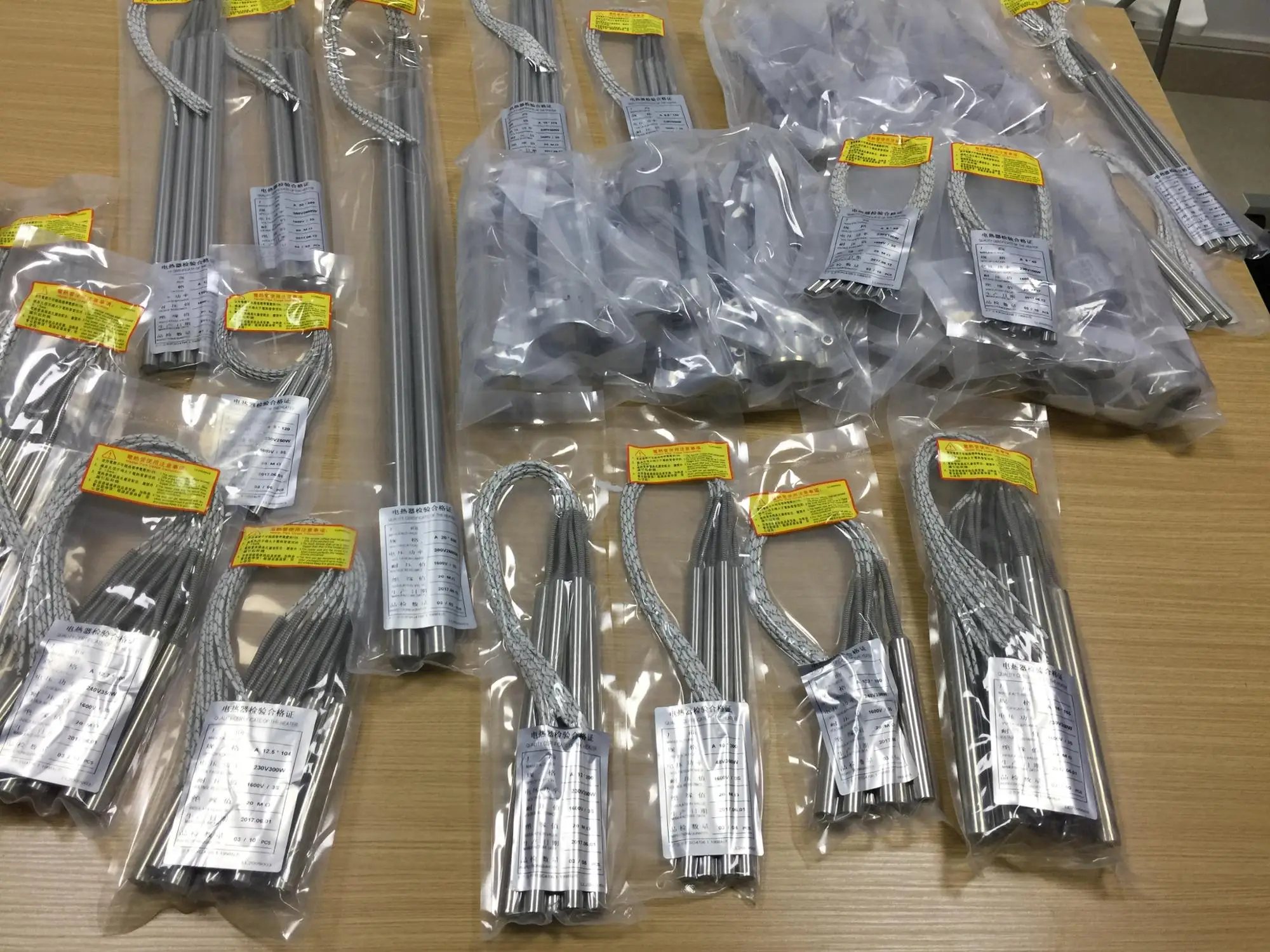

Packaging & Delivery

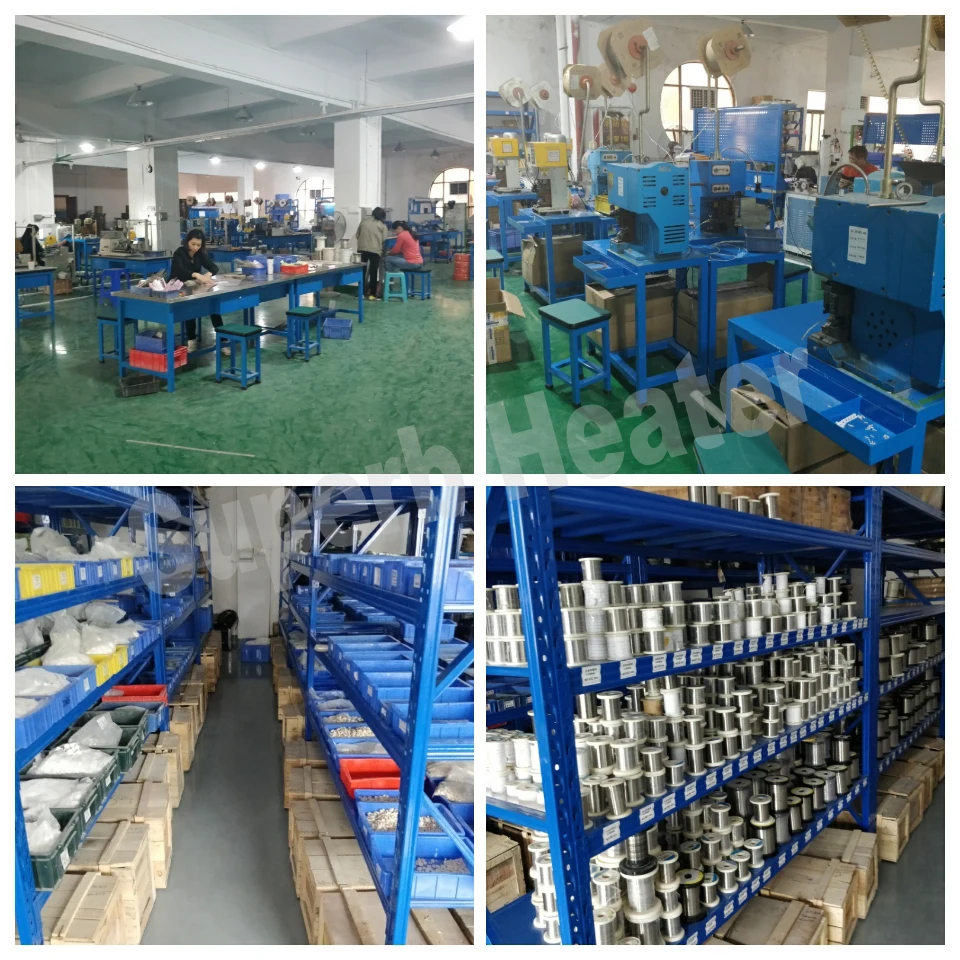

Since 1985 years, Superb Heater Technology Co., Ltd focused on the production of  cartridge heater 12v heating resistance heater element, which is well-known as one of the leading manufacturers and suppliers of 2mm - 35mm high quality cartridge heaters. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you have interested, please feel free to contact us.
