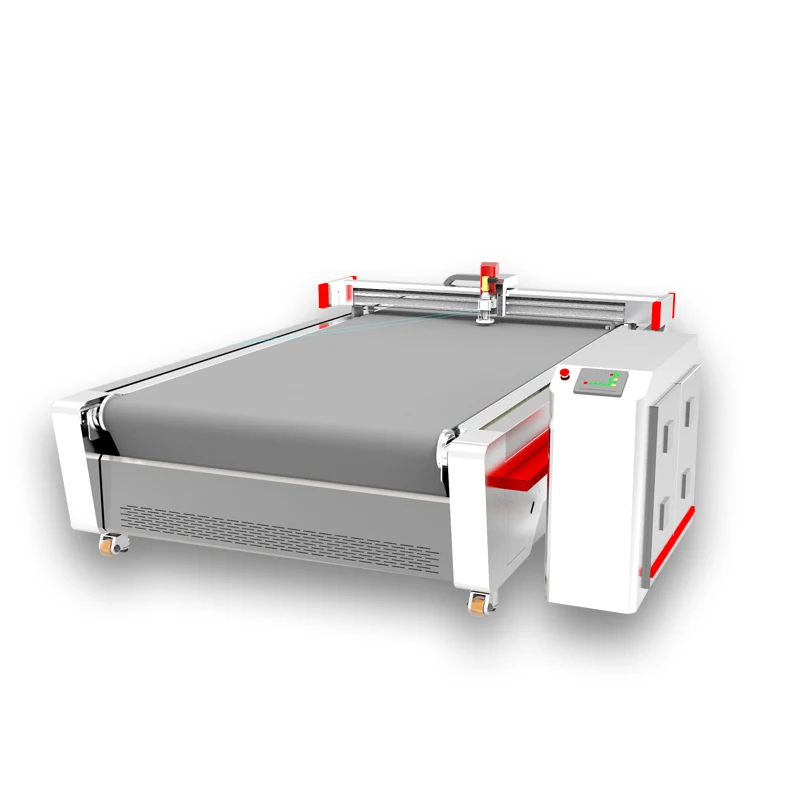

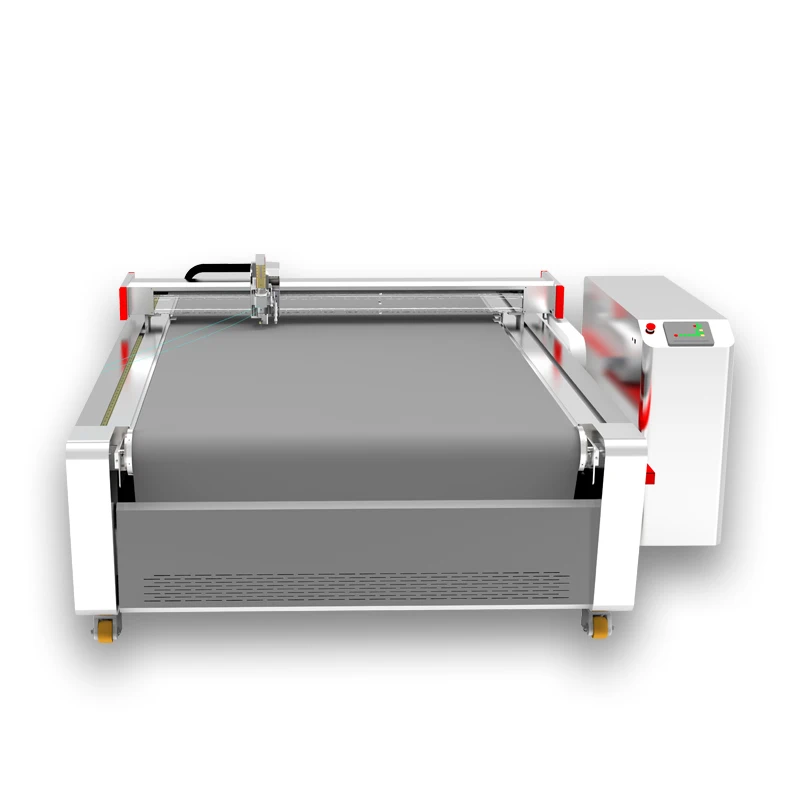

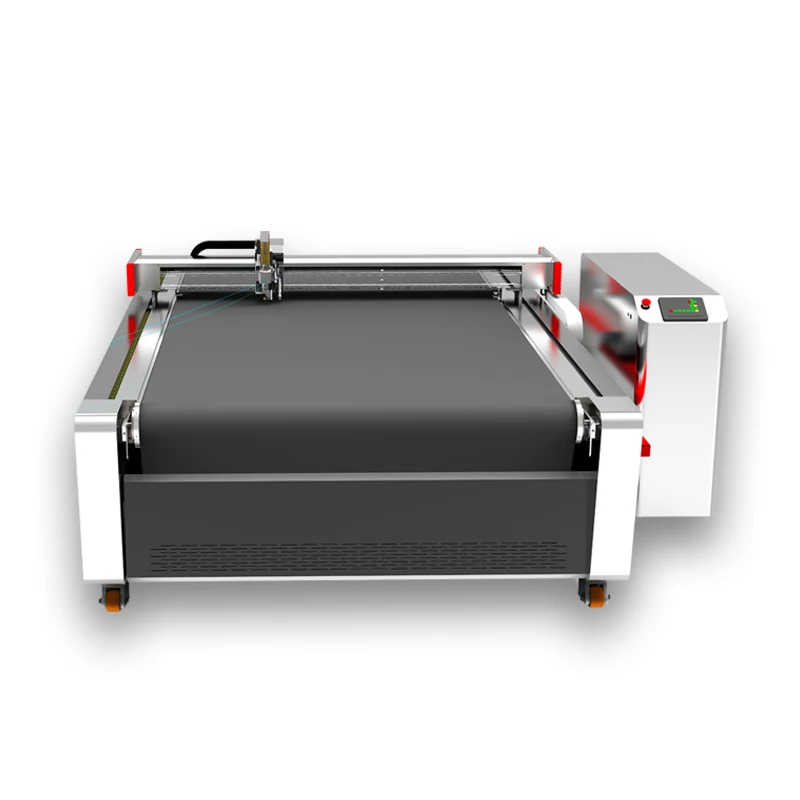

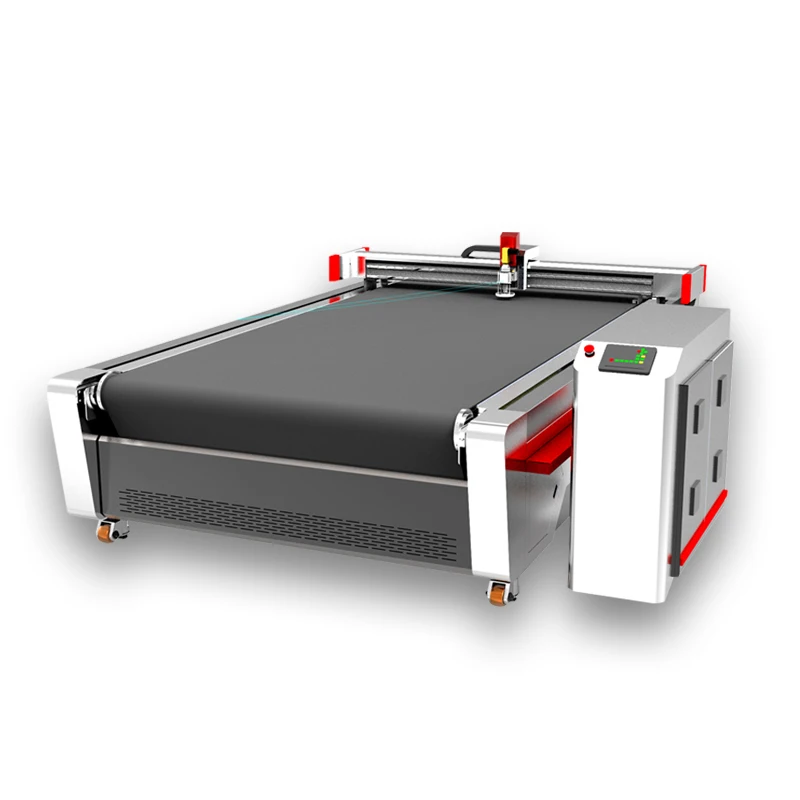

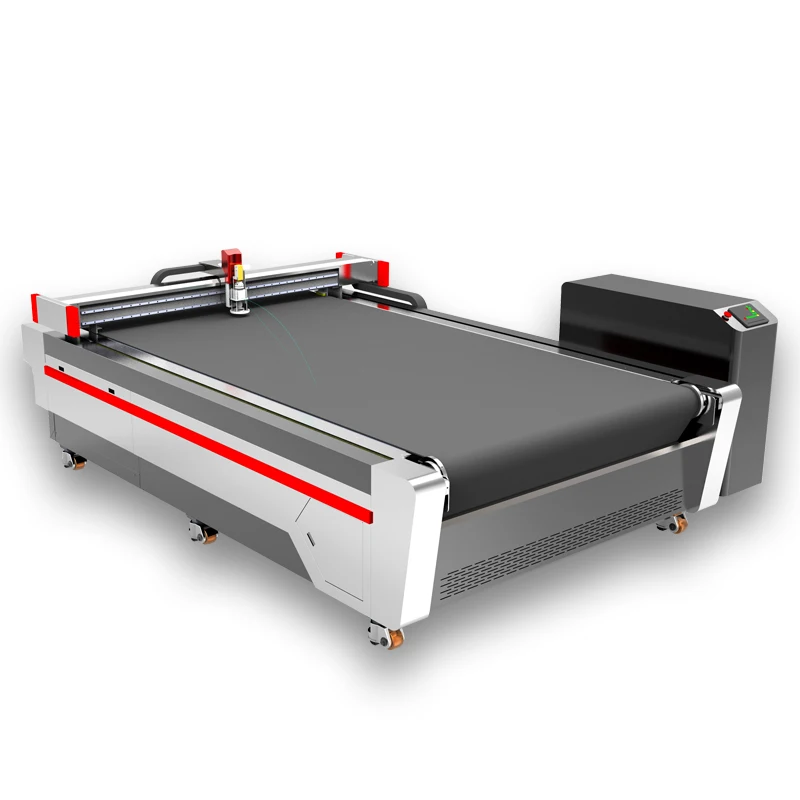

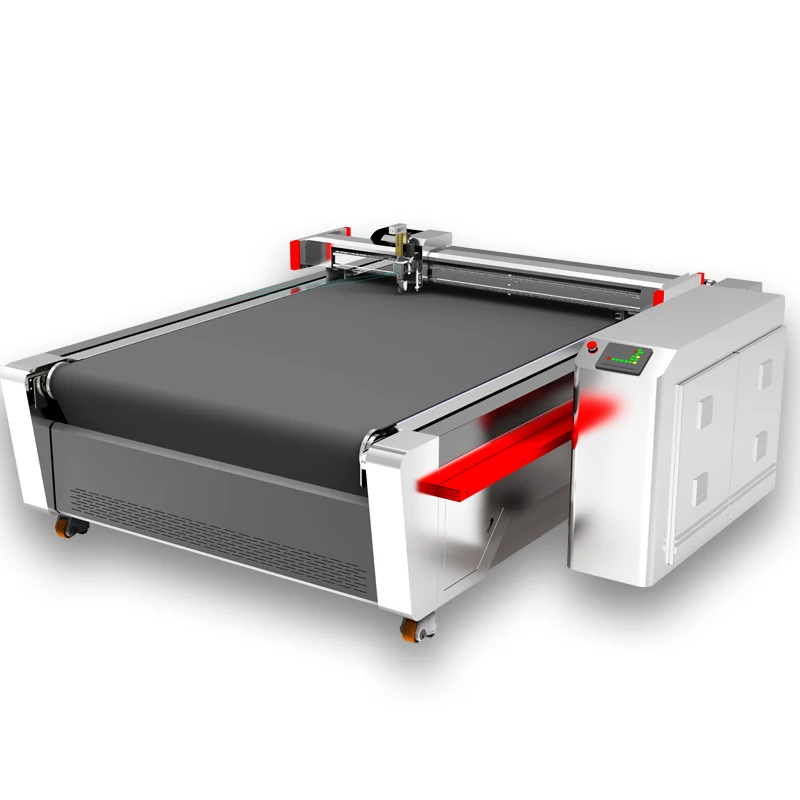

Promotional foam board cutting machine

Product Overview

Description

Promotional foam board cutting machine



product description  of  promotional foam board cutting machine

1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting. 2.Full automatical feeding with the function of automatic rectifying voluntarily, reduce labour, increase efficiency. 3.the rack is welded with high stability. 4.Double mute guide rail.Honey comb platform. 5.Servo motor, Japanese imported parts, infrared device. 6. Cutting material: Genuine leather, artificial leather, cardboard,plastic board, Gray cardboard, complex material,







Promotional foam board cutting machine   of  product parameters

Technical parameters / model	AOYOO-1325
Effective working area	1300x2500mm
Multi-function tool	Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power active round knife
safety devices	Safety devices use infrared sensing, safe and reliable
Cutting speed	200-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to the material
Applicable materials	Knitting, woven, fur (sheep shearing), PU leather, oxford cloth, canvas, sponge, imitation leather, cotton linen, blended fabric etc. All kinds of clothing, bags, sofa fabrics and carpet fabric etc
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	Yaskawa servo motor, linear linear guide, timing belt, lead screw
rated power	11kw
Rated voltage	380V±10%/220V±10% Optional
Control System	Chinese and English LCD touch screen
Operating environment	Operating environment Temperature 0-40°C Humidity 20%-80%RH
Support file format	AI,PLT,DXF,CDRetc
Overall size	3570x2290x1165mm





Promotional foam board cutting machine of Application industry



Automatic cutting machine applicable fabrics: cotton, linen, silk, blends, fibers, leather, wool, modal (pay special attention to poor fiber cut) Automatic cutting machine applicable industries: apparel, automotive interiors, home, luggage, footwear, home textiles, outdoor tents and other large-scale production and processing enterprises





Company Profile  of promotional foam board cutting machine

Shandong Aoyoo CNC Equipment Co., Ltd. is a professional manufacturer of intelligent cutting equipment. The company specializes in providing cutting and engraving integrated solutions for the non-metal industry. In the environment of advocating environmental cutting, the company replaced the laser with a smart blade and developed a vibrating knife, a drag knife, a round knife and a half cutter.
Various tools such as beveling cutters, pressure rollers, punching knives, milling cutters, etc., combined and equipped, coupled with the assistance of large cameras and projectors, have basically met the cutting and engraving needs of all flexible industries.
The company's main products are advertising material cutting machine, car interior cutting machine, clothing bag shoe and hat cutting machine, packaging carton cutting machine, composite material cutting machine, furniture home textile cutting machine, sound insulation material cutting machine.
The company attaches great importance to R&D innovation and excellence, and has won many national invention patents. It has passed ISO9001 international quality system certification, EU CE safety certification and US FAD safety certification, and its products are exported to more than 120 countries and regions.

Packaging Details OF new product distributor wanted Carpet cutting machine for sale 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests.

 FAQ  of  promotional foam board cutting machine

1. Are you a trading company or a factory?  We are manufacturers. 2. When can we arrange shipment? We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. 3. Do you provide equipment operation training after sale? Yes. We can send professional engineers to the working site for equipment installation, adjustment, and  operation training. All of our engineers have passport. 4. Can you customize the machine according to my request? Yes. We have experienced engineers and technical team, can provide personalized service
