Improved projected capacitive technology,nano-silver wireme shmatrix substitute ITO layer.
Product categories
MiNi-series
ME-series
Products series
Mini
ME-A
Touch points
points
10points
Available size
17"-100"
17"-70"
Suggestion size
17"-30"
32"-65"
Touch deviation
1~5mm
2mm
Sensors
5 6wires
TX58 RX96
Scanspeed
25ms/frame
10ms/frame
Energy consumption
0.5W
1.5W
Drive Type
Driver
Driver-free
Windows
Win7/8/8.1/10
Win7/8/8.1/10
Android
A20Kernel:liunx3.3.0 H83 Kernel:liunx3.4RK3188
Kernel:Liunx3.0.36+ RK3288Kernel:Liunx3.10.0
Kernel:3.10
and above
Linux
12.04.4>Kernel:3.11.0-1514.04.2,
Kernel:3.16.0-30
Kernel:3.10
and above
Mac
NO
10.9/10.10/10.11
Arm Reject
NO
YES
Support customize
irregular size/tail
NO
Bias calibration
Software calibration (3/ 5-point calibration)
Software calibration

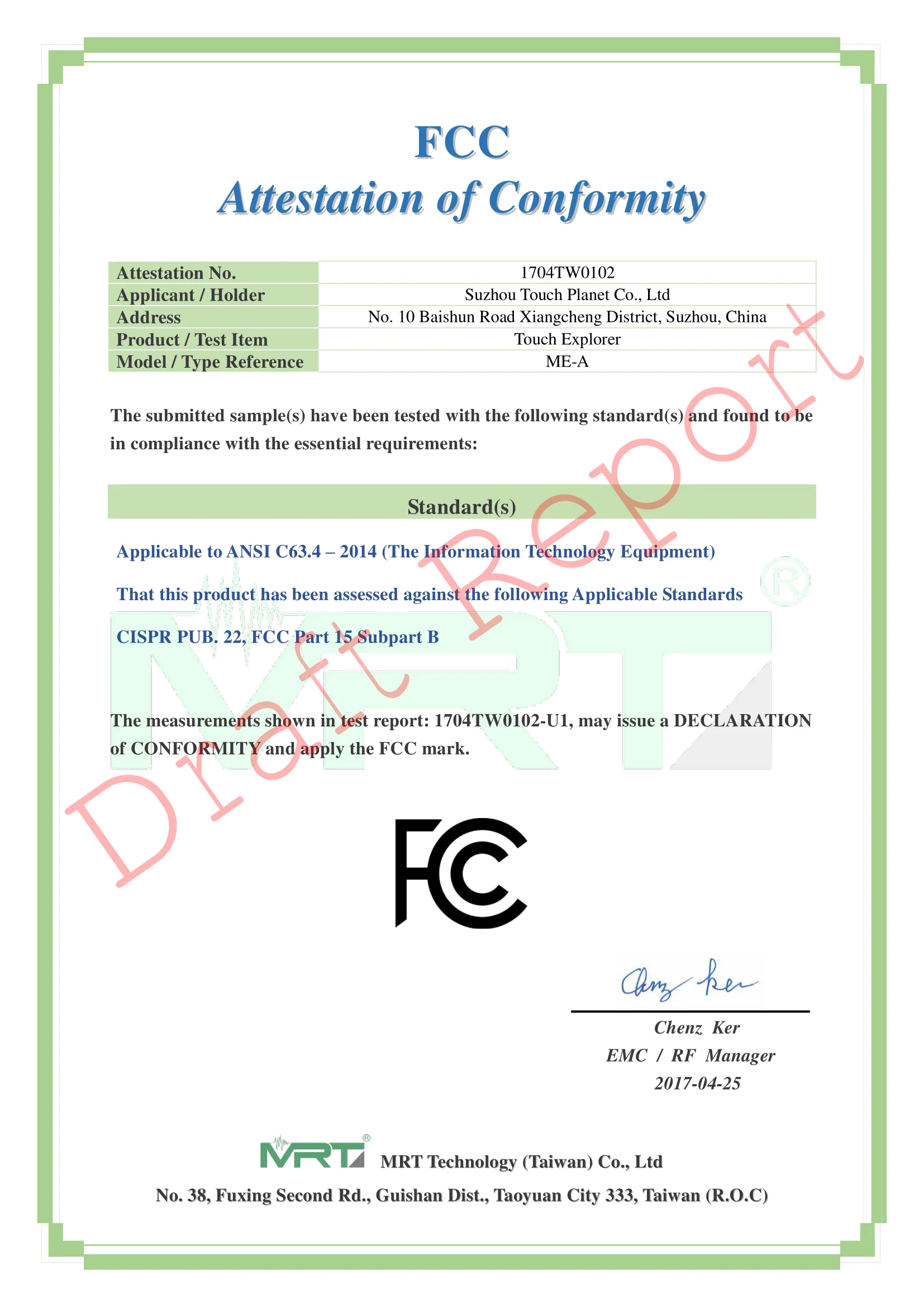

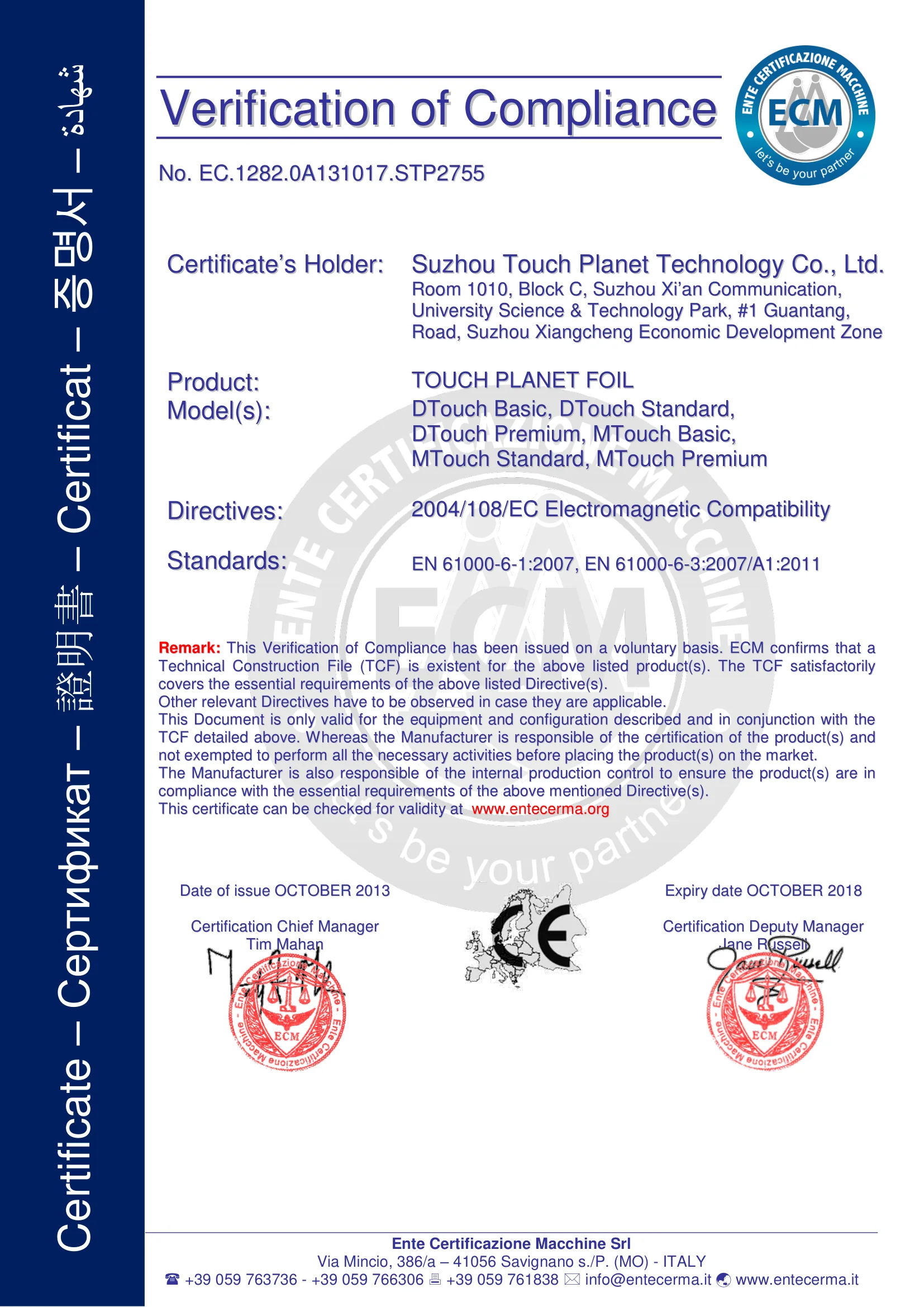

Technical Certification
CE >ilac-MRA >CNAS >CAL >CMA
Packing List

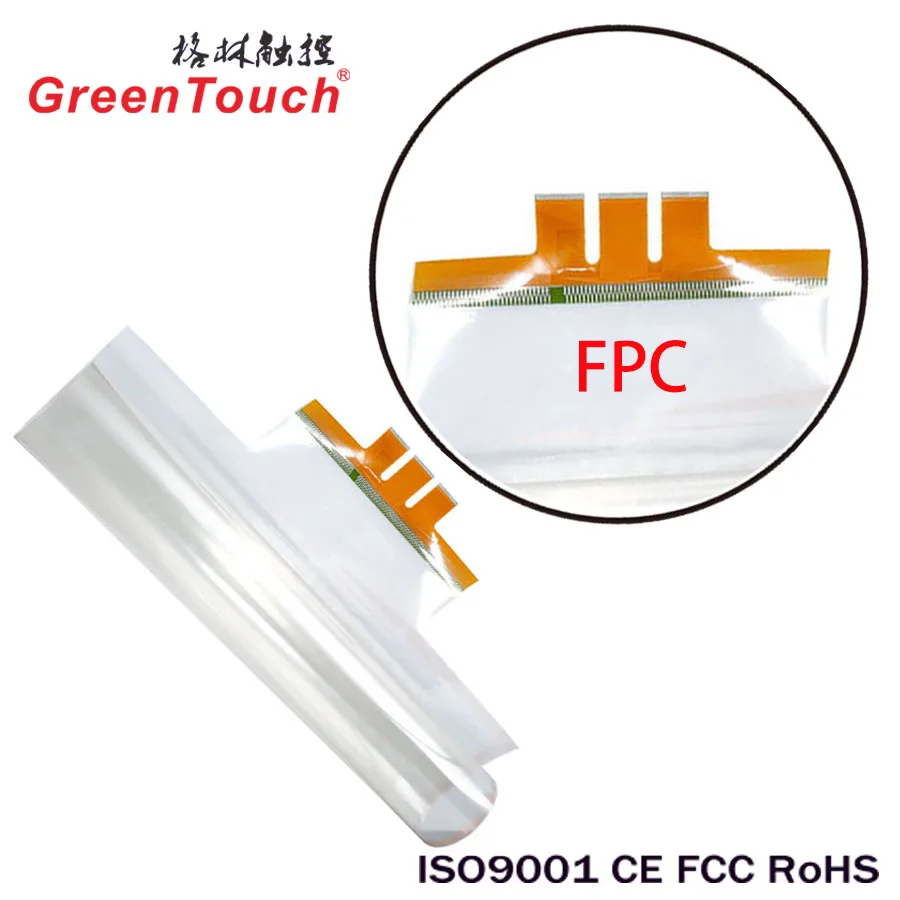

Touch foil*1 PCB board*1 USB cable*1
Film Thickness
100um
Transparency
93% above
Power supply
5V
Transfer way
USB2.0
Transfer distance
50m >Plus USB signal amplifier,
Safe distance
2mm-10mm(It refers to the distance between the LCD screen and the film )
Ambient temperature
Ambient light
The whole point of the anti-glare
Touch points support
Click, drag, zoom, rotate
Sensing distance
<20(if big than 8mm,please inform in advance)

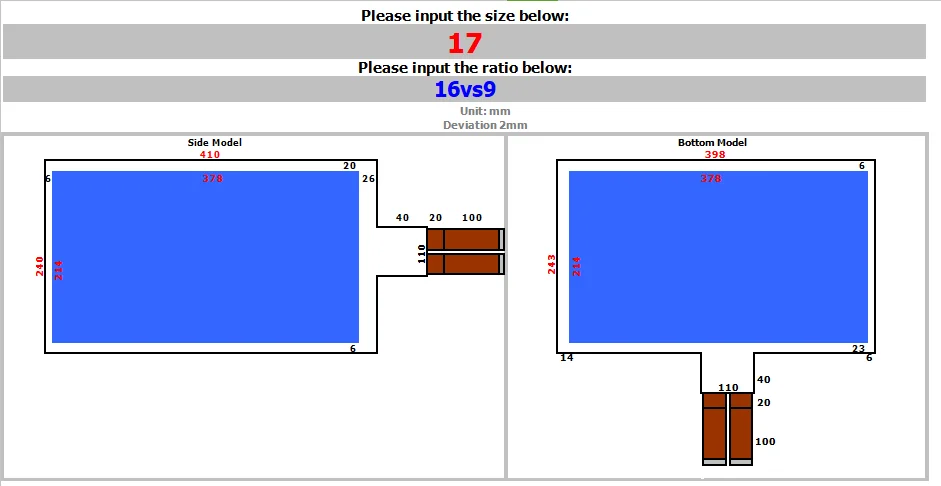

Drawing
Usage method
PC+Touch foil +Glass

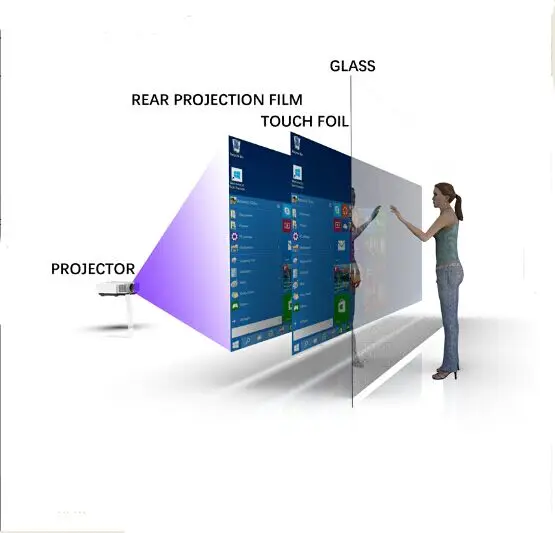

PC/Android board +Projector +Projection film +Touch foil +Glass
Company Information
GreenTouch Technology Co., Ltd.is a professional manufacturer of touch screen and a high-tech enterprise. Our company specializes in R&D, manufacture and marketing of high-grade touch screen and value-added touch screen. Our company has our own trademark GreenTouch and provides customers with touch screens including SAW touch screen, IR touch screen, four-wire touch screen, five-wire touch screen and various touch screen monitors. GreenTouch has automatic production lines and the sealed dust-free workshops and has been certified to ISO9001 Quality Management System and ISO14001 Environmental Management System. The products are inspected in strict accordance with the quality management system. Quality management becomes an essential part of operation. Our products have been certified to CE, FCC, ETL, ROHS and UL. The objective of GreenTouch is to become the most reliable supplier of touch screen, special products, high value-added products and touch solutions in the world!
