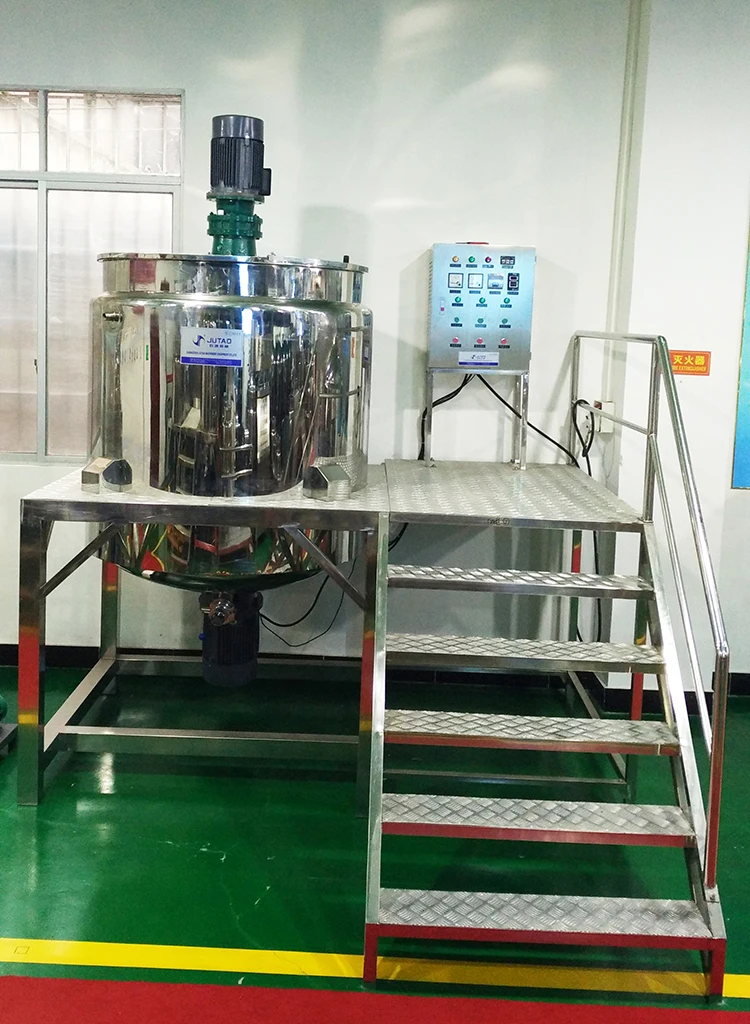

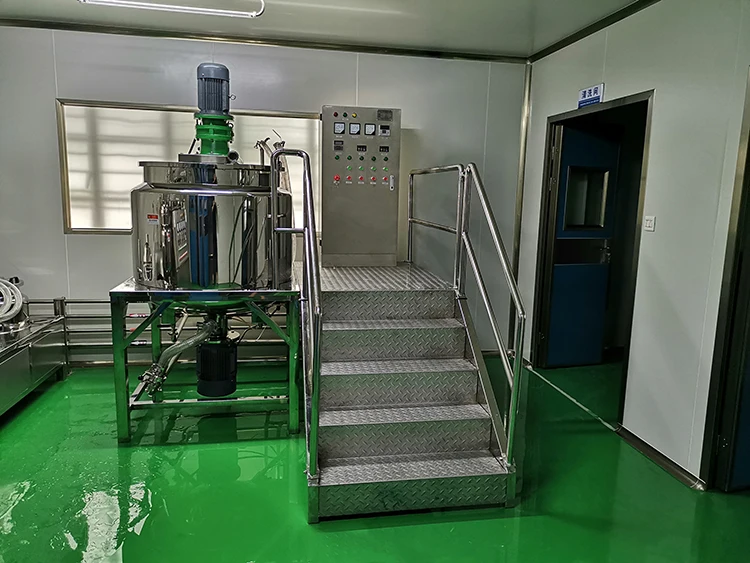

Good price toilet soap mixing machine liquid chemical mixer machine

Product introduction
This mixing machine is to mix, blend and homogenize the material to produce all kinds of liquid product. The mixer can be standardized and user-friendly according to the requirements of the production process, it is widely used in manufacturing liquid soap, dishwasher, handwashing, liquid detergent, laundry detergent, shower gel, hair conditioner, shampoo etc. It integrates mixing, homogenizing, heating, cooling, pump discharge finished products. It is the ideal equipment for liquid products in domestic and international factories.



Performance and features
1. The all-round wall scraping mixing adopts the frequency converter for speed adjustment, so that high quality products with different processes can satisfy customer requirements.
2. The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials (such as AES, AESA, LSA, etc.) during the liquid detergent production process so as to save energy consumption and shorten production period.
3. The pot body is welded by imported three-layer stainless steel plate. The tank body and pipes adopt mirror polishing, which fully onforms to GMP requirements.
4. The tank can heat and cool materials according to customer requirement. There are two heating methods for your choise, steam or electric heating.
5. Easy to discharge, bottom direct discharge or by transfer pump.
6. This mixing machine can be customized from 50-5000L.
7. It can also be customized without heating and homogenizing functions.
8. The body is mirror polishing, and with three layers stainless steel plate, inner material is SUS316L, outer and middle are SUS304.



Technical parameter

Model	Capacity(L)	mixing power(kw)	Mixing Speed(r/min)	Homogenizing power(kw)	Homogenizing speed(r/min)	Heating method
JT-200	200	0.75	0-65	2.2-4	3000	Steam Heating or Electric Heating (optional)
JT-300	300	0.75	0-65	2.2-4	3000
JT-500	500	2.2	0-65	5.5-7.5	3000
JT-1000	1000	4	0-65	7.5-11	3000
JT-2000	2000	5.5	0-53	11-15	3000
JT-3000	3000	7.5	0-53	18	3000
JT-5000	5000	11	0-42	22	3000
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.

Product pictures

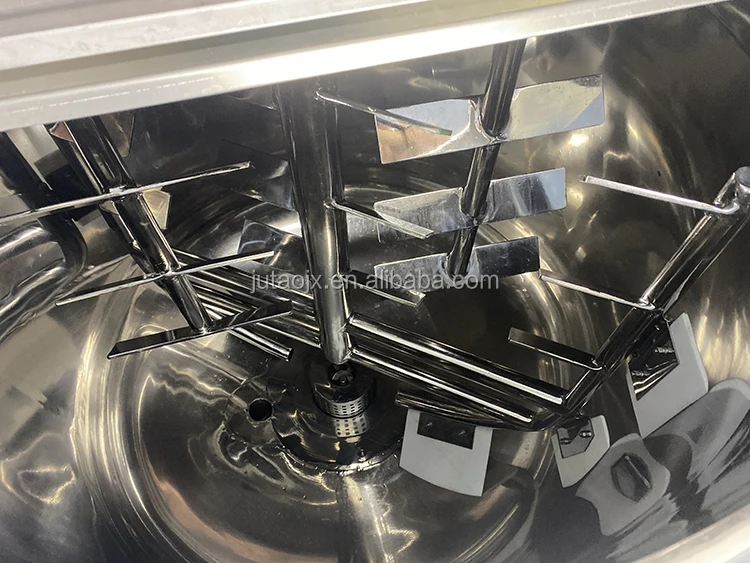

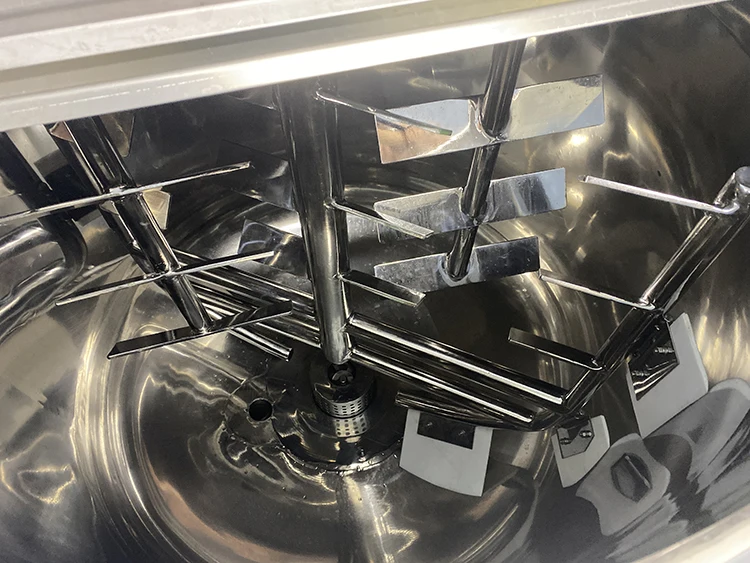

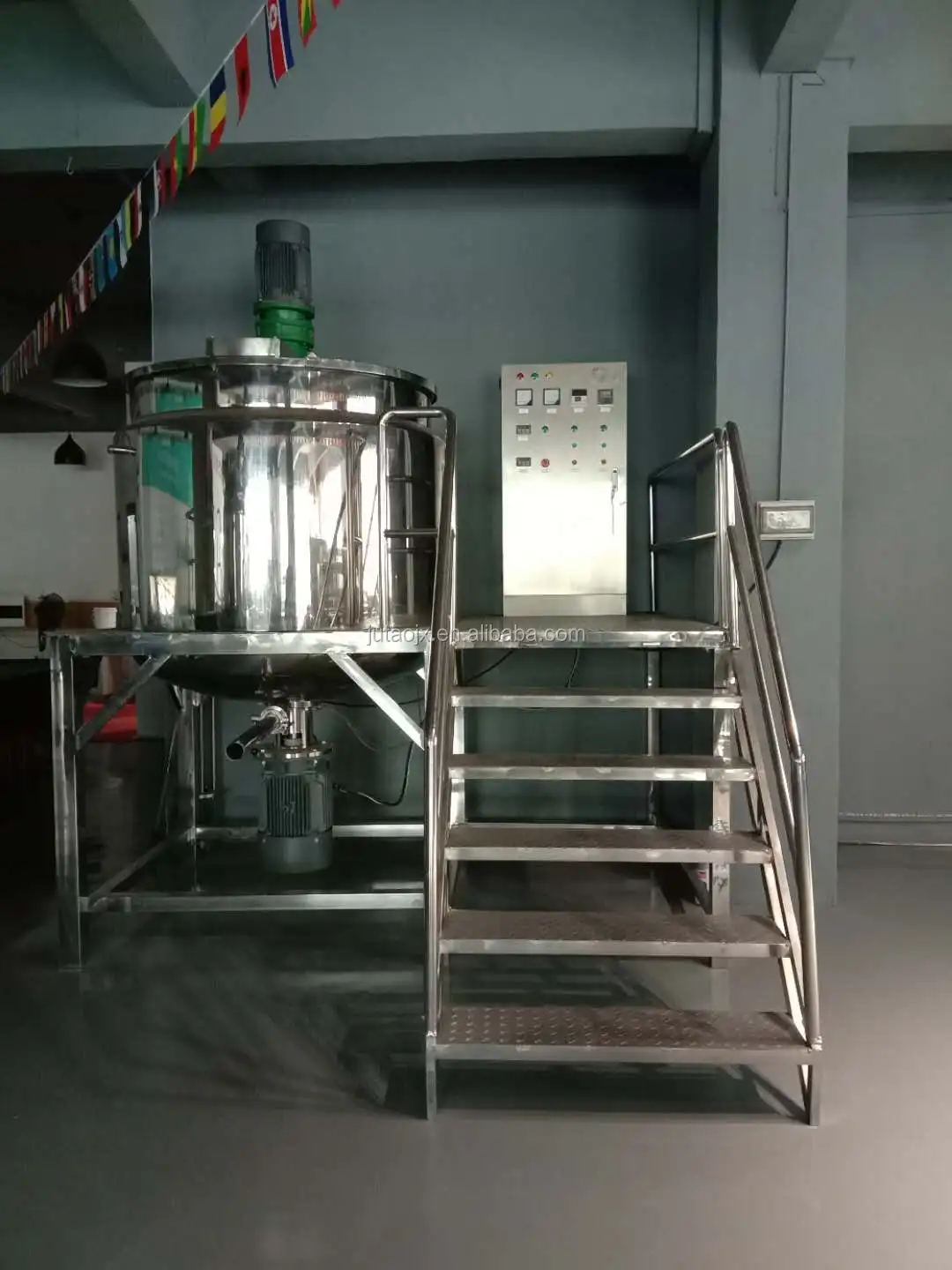

Mixing paddle, made of SUS316L, adopt the frame structure mixing paddle and wall scrap paddle. the ,mixing speed is 0-63 rpm. the tank body is mirror polishing. there are three layers of the tank, inner is SUS316L, middle and outer are SUS304 stainless steel.

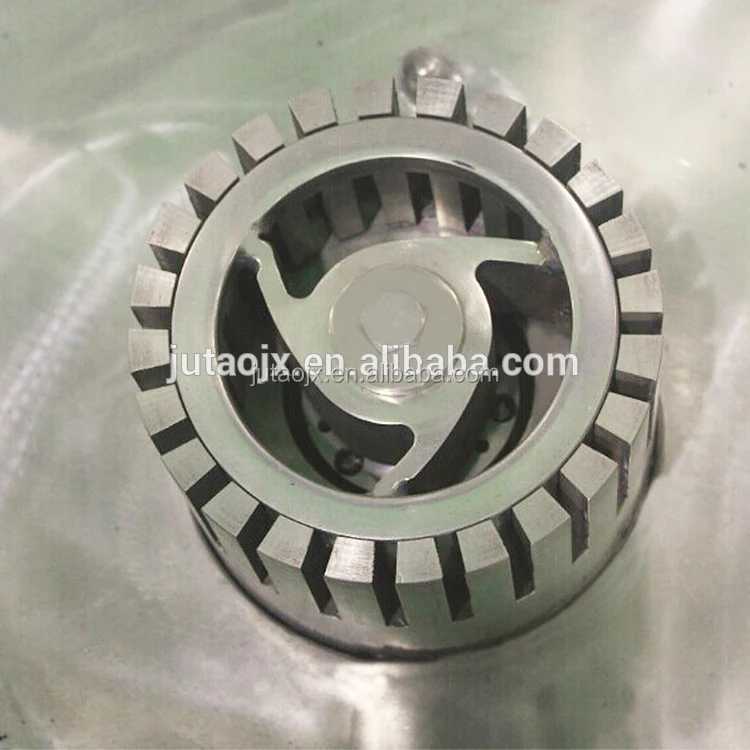

Homogenizer, made of SUS316L, the rotation speed is 0-3000 rpm.

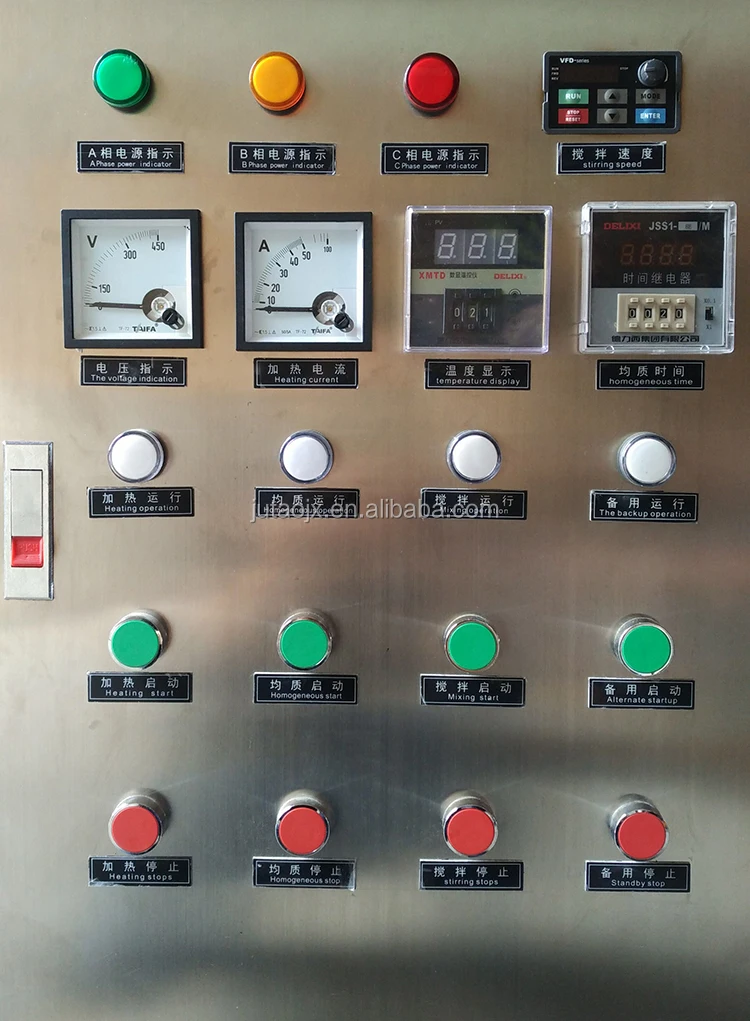

Button control panel, push the button to adjust the mixing, homogenizing, heating etc. easy to learn and operate.

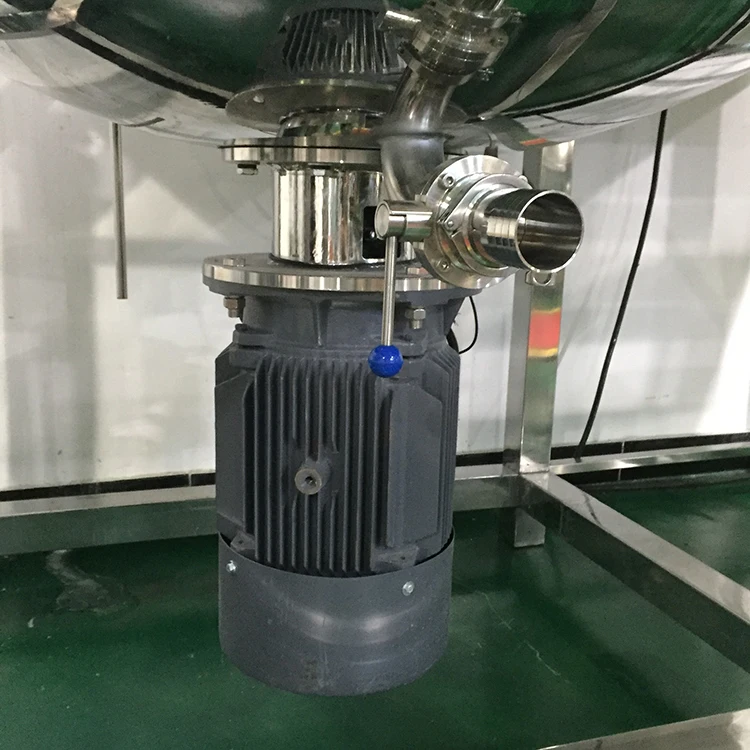

Bottom discharge, open the valve, the material can discharge directly. If the material is with high viscosity, it is better to connect the pump to transfer the material. Bottom motor, provide the power to homogenizer, stable and powerful.

Application

Recommend Products

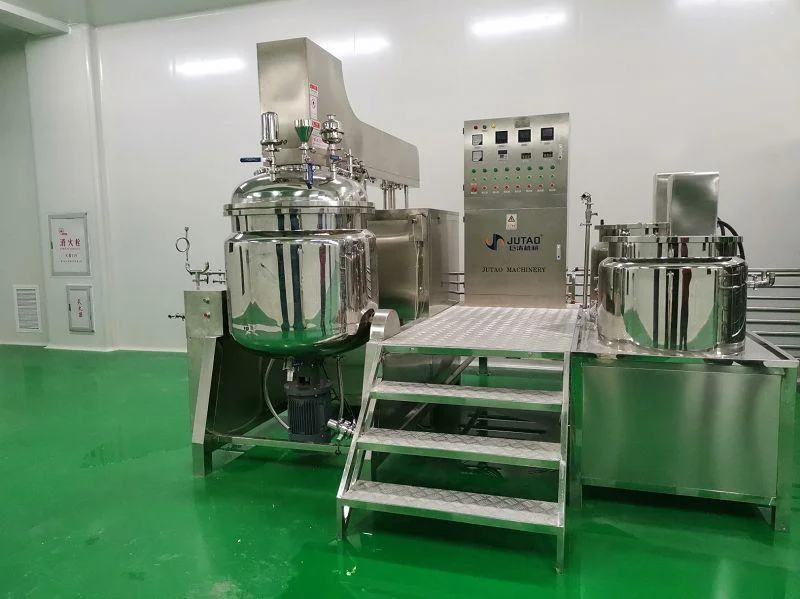

Vacuum emulsifying mixer

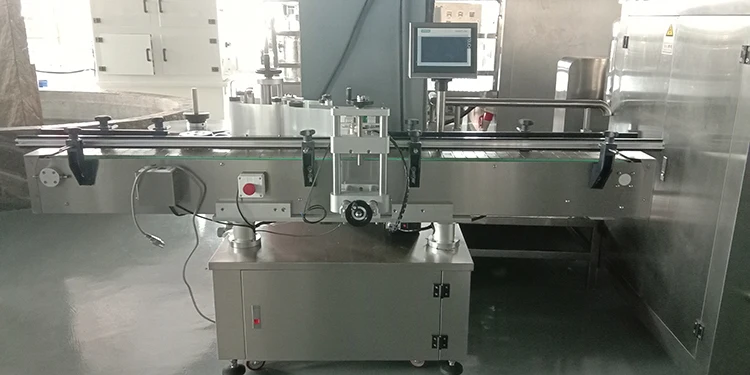

Automatic labeling machine

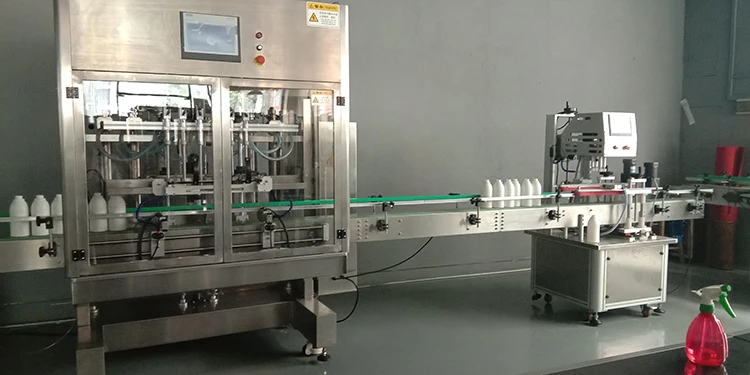

Automatic filling and capping machine



Company Profile

Jutao Machinery is a professional manufacturer of chemical machinery and equipment, accumulating more than ten years of manufacturing experience since its establishment in 1997. Our wide range of products can meet diversified demands of customers. The products include vacuum homogenizing and emulsifying pot series, liquid mixer series, reverse osmosis treatment series, various types of ointment filling machines, liquid filling machines, powder filling machines, labeling machines and other color cosmetic equipment and perfume manufacturing equipment. Our company adheres to the quality concept of "advanced technology and quality foremost", and implements scientific management and continuous improvement. We have won trust from customers with advanced performance, excellent quality, reasonable price and considerate service.

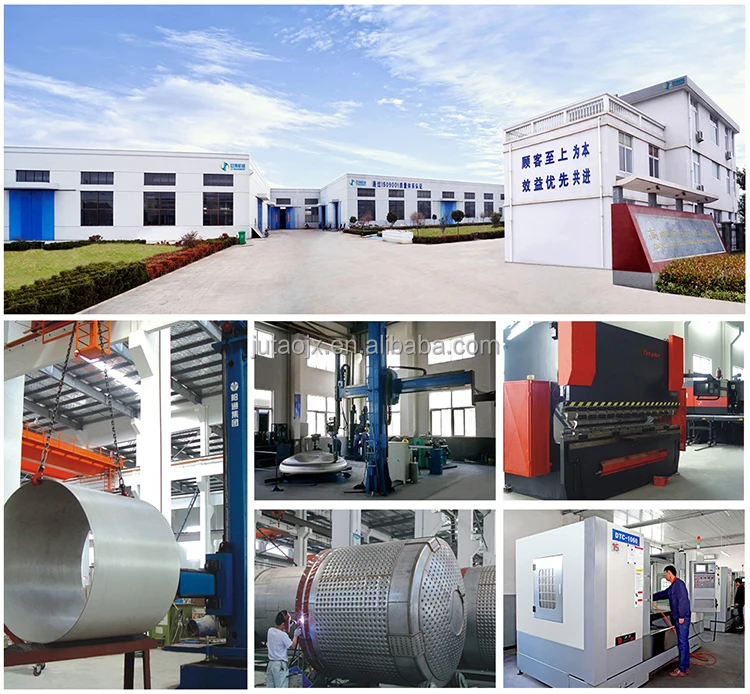

Our Factory

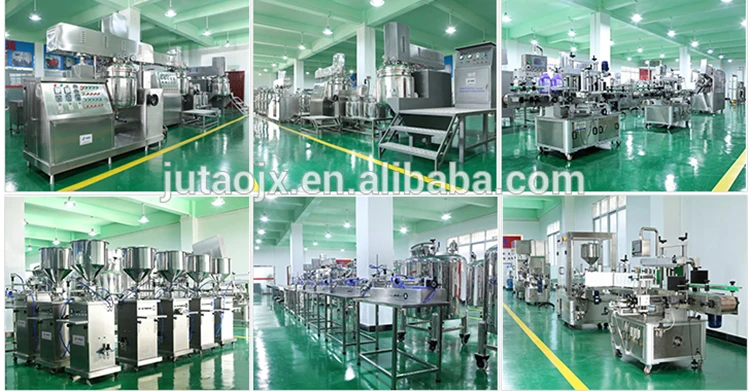

Exhibition Center

Certifications

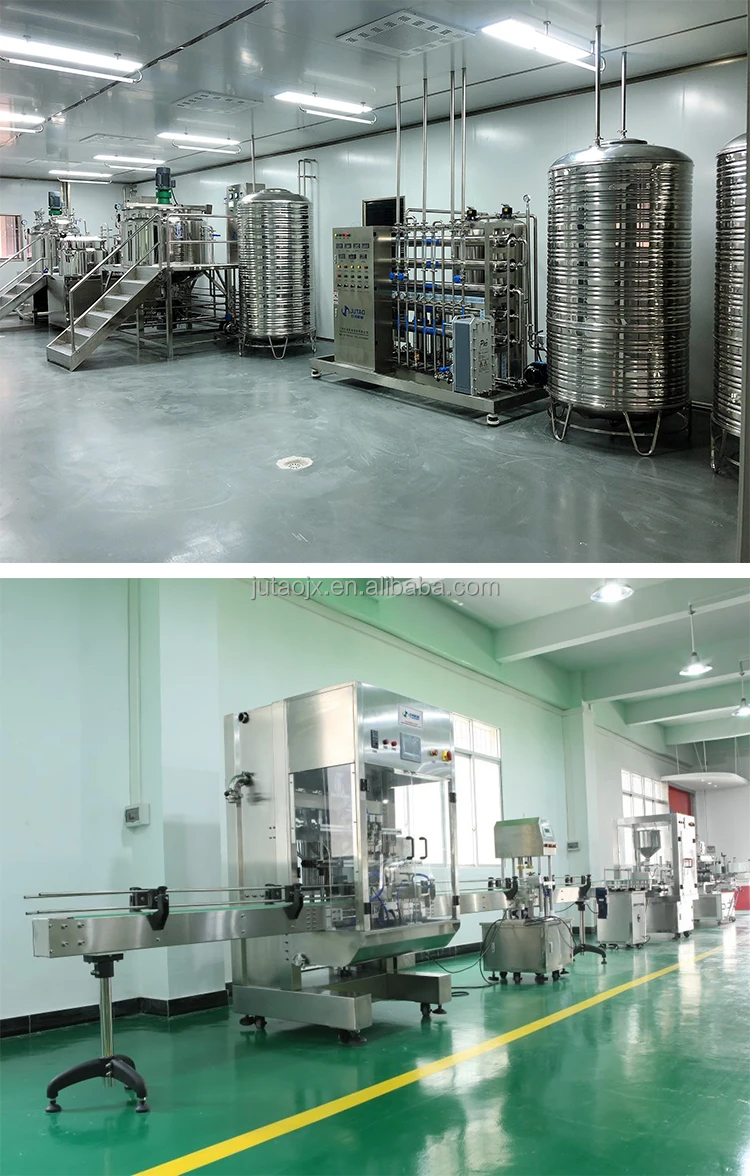

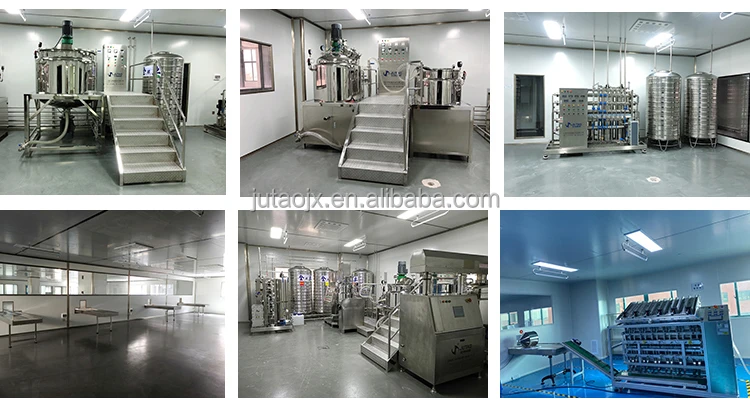

Project Case

We have exported our machines to lots of countries. We supply the vacuum emulsifying mixer machine, liquid washing homogenizing machine, filling machine, capping machine, labeling machine, inkjet printer, packing machine, facial mask filling machine etc. We can supply the whole production line, such as cream, ointment, liquid soap, shampoo, hand wash, lotion, detergent etc. And if you only need the single machine, we can also accept.



Our Visitor

We have exported our machine to lots of countries and have world-wide customers over 45 countries.

Product Packaging

We use the wooden case to pack the machine. It looks beautiful and safe. It is good way to transport the machine to further place. The wooden case can protect the machine during the shippment. And it is suitable for long distance ocean transportation.



FAQ

1.What about your factory?

    Our factory is located in Jiangsu province and the showroom is in Guangzhou, China. We have over 17 years experience on cosmetic machinery making.

2.What do we do if we encounter problem about the machine ?
   Show us the picture or video of the problem. If the problem can be solved by your workers, we will send you solution by video or pictures. If the problem is out of your control, our engineer will be sent to your factory (customer will pay for the fee during the trip).

3.What about after sale service?
   We provide one year warranty period for all equipment, such as vacuum emulsifying mixer machine,  liquid washing mixer machine, automatic filling machine, semi auto filling machine, etc. During the warranty time, if you have some questions about the machine, you can contact us and we will try our best to help you.

4. How to finish installing?
   Our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.



5. How can you control the quality and delivery?
    All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery.
