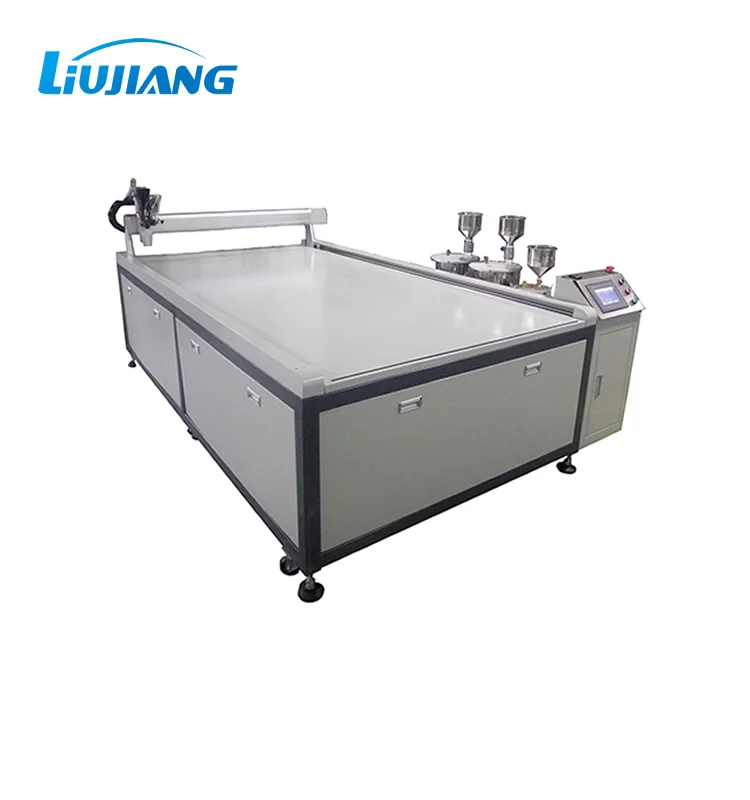

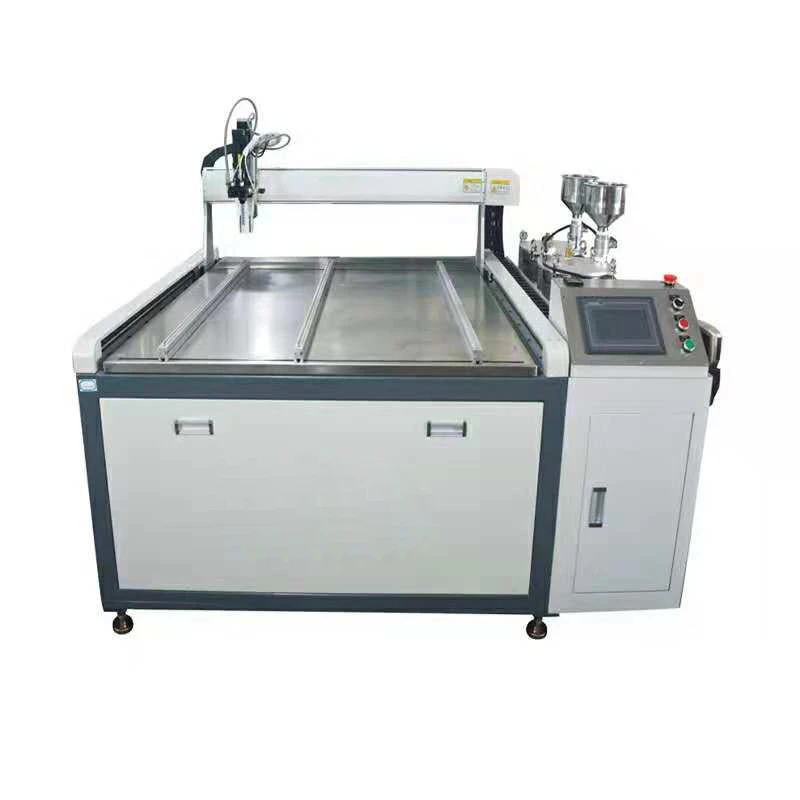

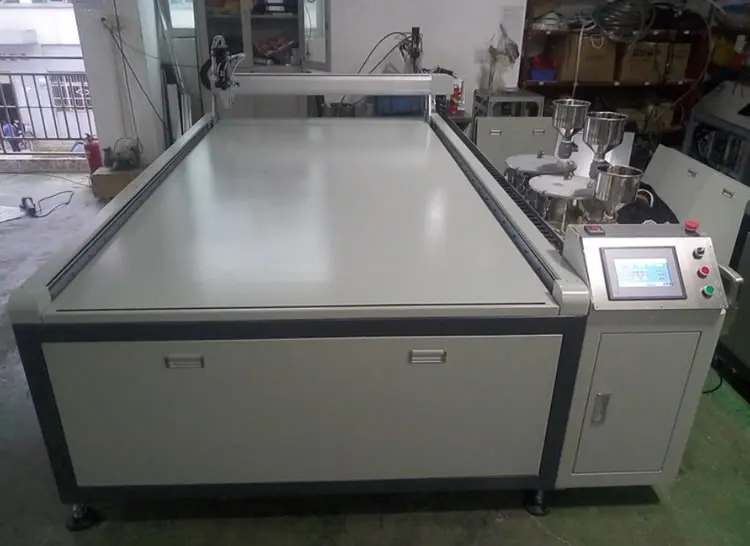

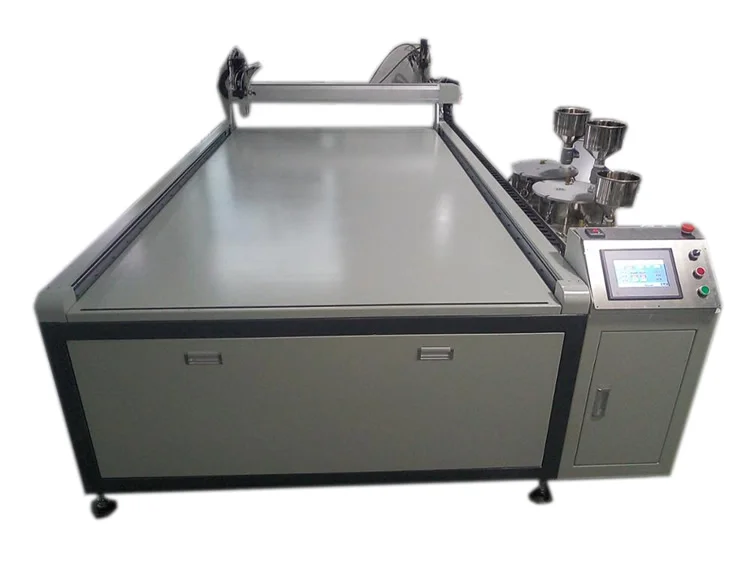

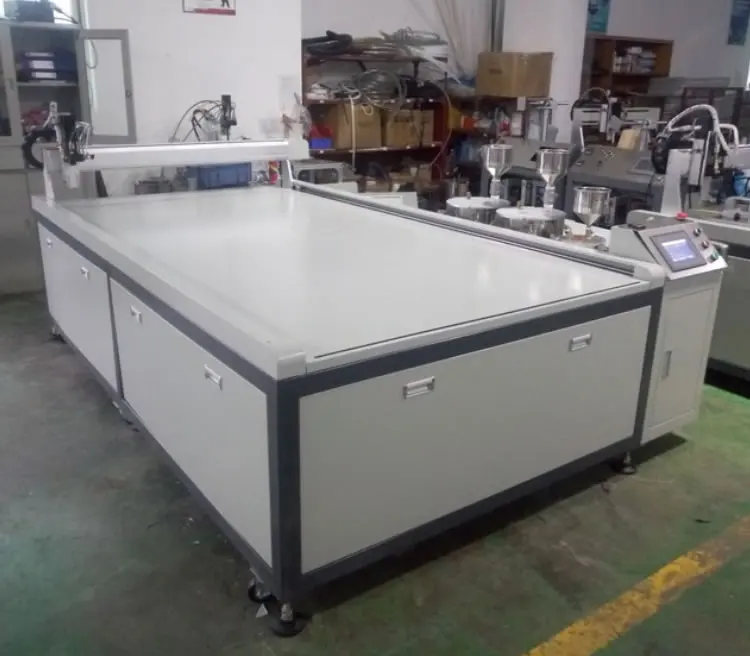

Двухкомпонентный автоматический Дозирующий клей для фоторамки и керамической плитки X axis travel 2400 мм AB

Product Overview

Description

Place of Origin:	Shenzhen, China (Mainland)	Brand Name:	LIUJIANG
Model Number:	LJ-2400AB	Operation Method:	Automatic
Glue mixing ratio:	1:1~10:1	Heating Function:	Optional: 1 or 2
Program Method:	Teaching Program	Auto Cleaning:	Support
Glue Bucket:	A, B 2 bukets	Mixing Method:	Dynamic
Air Pressure:	0.4-0.8MPa	Potting Speed:	10-150g/5s
Potting Precise:	Amount±2%, Ratio:±2%	Control System:	PLC+Touch Screen
Warranty	1 Year	Container Volume:	A: 20L; B:20L

Features:

1.Location accurate, high precision and small error operation: using high precise slide rail and high accurate balance device.

2. Strong electric control system: using imported Panasonic PLC, the original motor, touch screen, electronic components, wiring, dust-proof, anti-static system are designed according to the national standards.

3. Glue Dispensing Accuracy: high precision gear pump, large glue amount and glue mixing ratio with new technological breakthroughs.

4. A, B glue liquid level alarm function: Can avoid the glue supplying breaks

5. Unique timing glue outputting system: Can prevent the glue curved while workers short break, shifts switching.

6. B Glue curing agent monitor: Prevent the B glue breaking to cause curving problems

7. Multiple filtering system: From the glue tank to glue head, with multiple filters, to prevent the impurities to glue tank and cause rubber hose or pump stuck

8.temperature environment.

9.Automatic cleaning system: using two tanks to store, only dynamic mixing the glue at the mixing tube. Easy to clean after usage.

10. Dispensing, potting all in one design, automatic operation. Mixing and using at the same time.

11. Easy to operate, can save 0-100 sets of the parameters, only need to recall and press the start button to reproduce the same products.1.Location accurate, high precision and small error operation: using high precise slide rail and high accurate balance device.

2. Strong electric control system: using imported Panasonic PLC, the original motor, touch screen, electronic components, wiring, dust-proof, anti-static system are designed according to the national standards.

3. Glue Dispensing Accuracy: high precision gear pump, large glue amount and glue mixing ratio with new technological breakthroughs.

4. A, B glue liquid level alarm function: Can avoid the glue supplying breaks

5. Unique timing glue outputting system: Can prevent the glue curved while workers short break, shifts switching.

6. B Glue curing agent monitor: Prevent the B glue breaking to cause curving problems

7. Multiple filtering system: From the glue tank to glue head, with multiple filters, to prevent the impurities to glue tank and cause rubber hose or pump stuck

8.temperature environment.

9.Automatic cleaning system: using two tanks to store, only dynamic mixing the glue at the mixing tube. Easy to clean after usage.

10. Dispensing, potting all in one design, automatic operation. Mixing and using at the same time.

11. Easy to operate, can save 0-100 sets of the parameters, only need to recall and press the start button to reproduce the same products.
