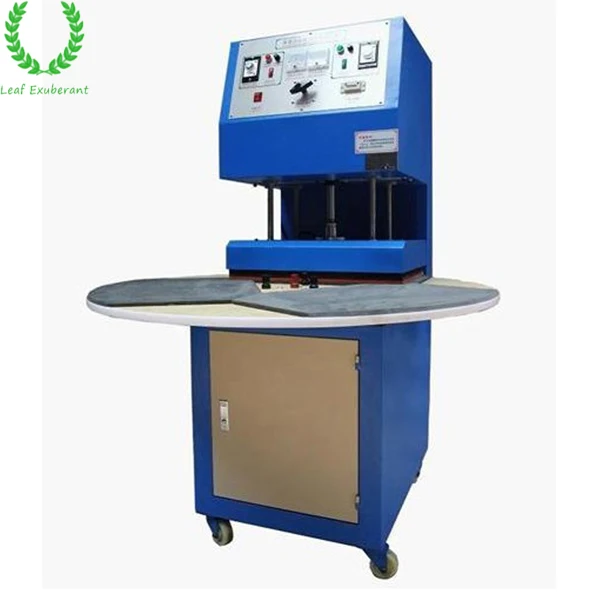

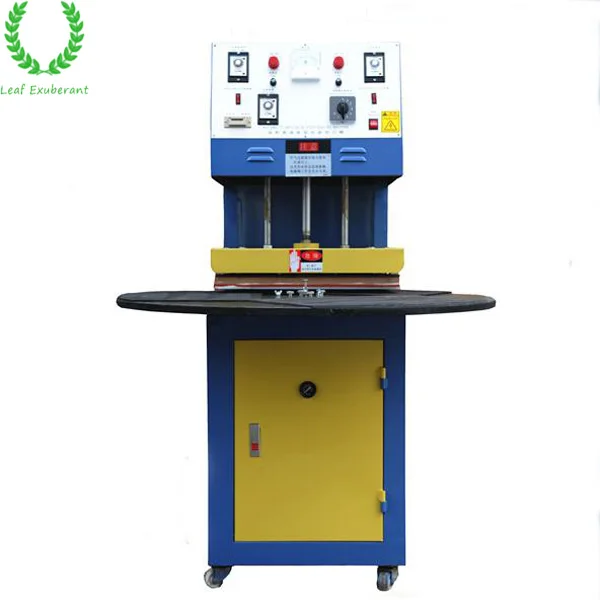

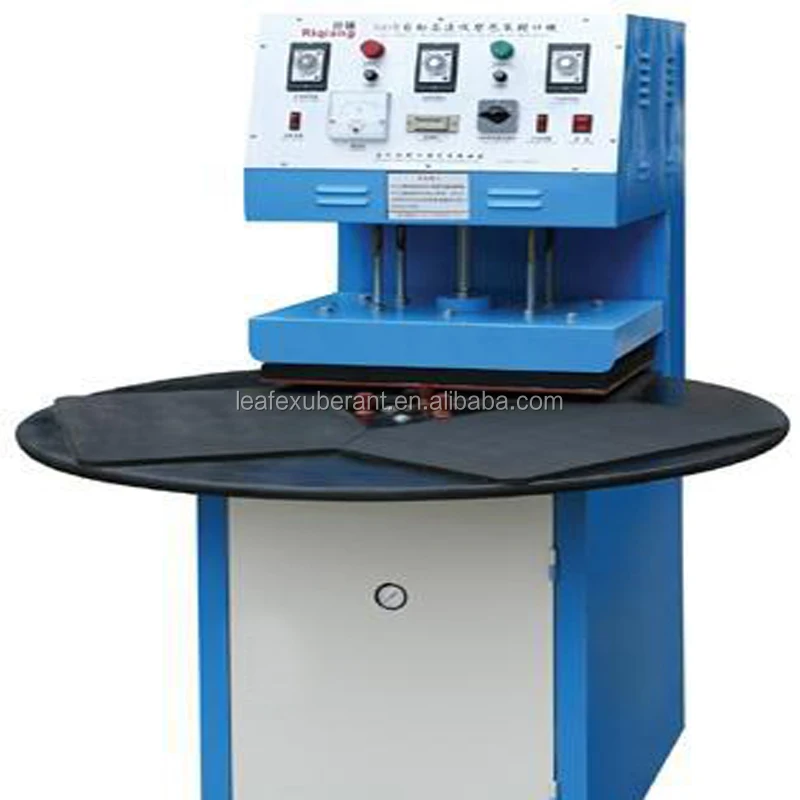

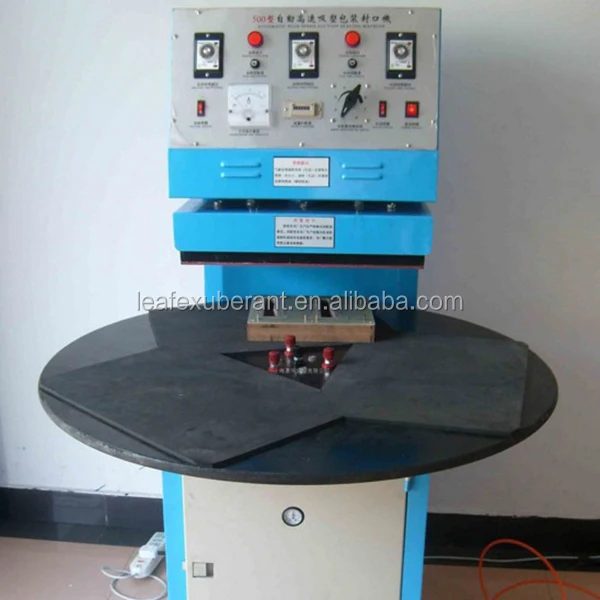

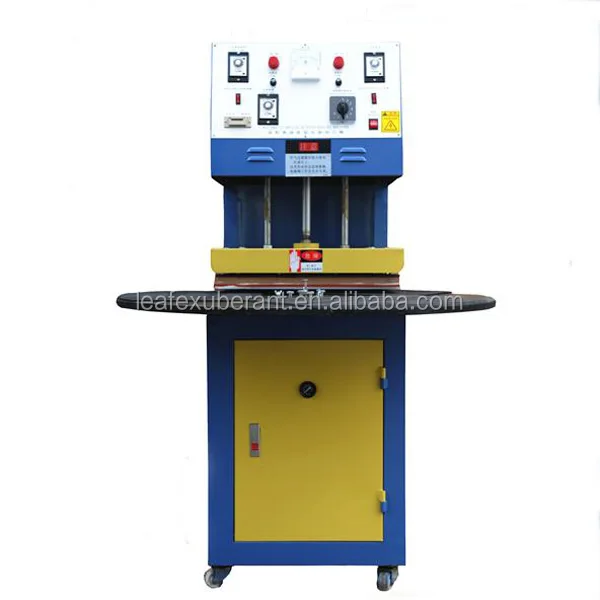

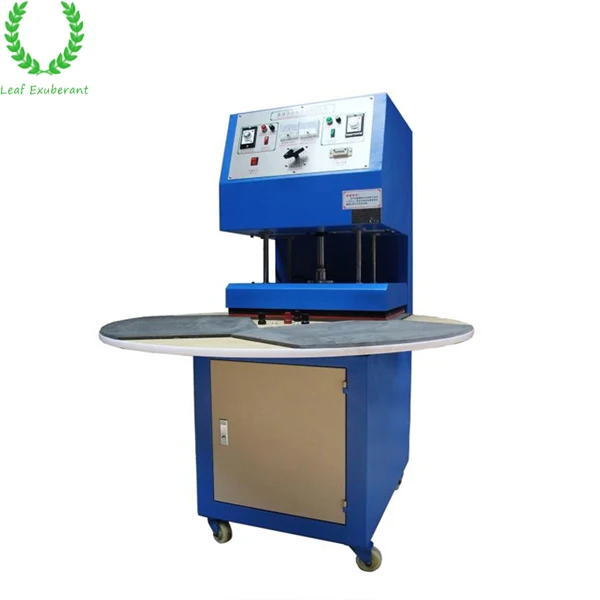

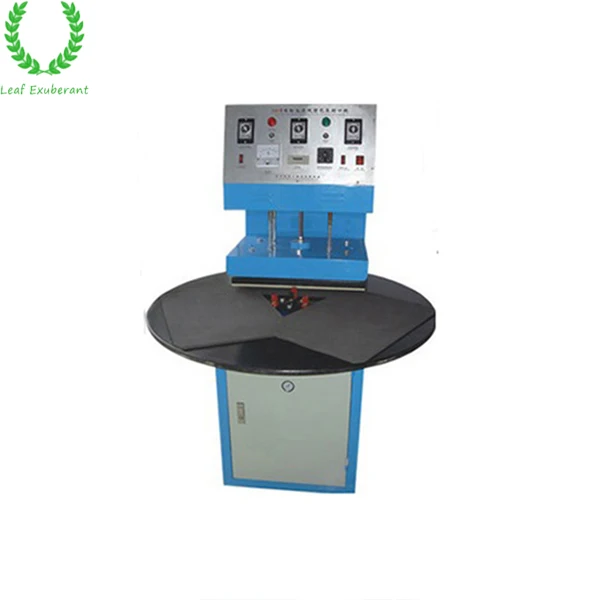

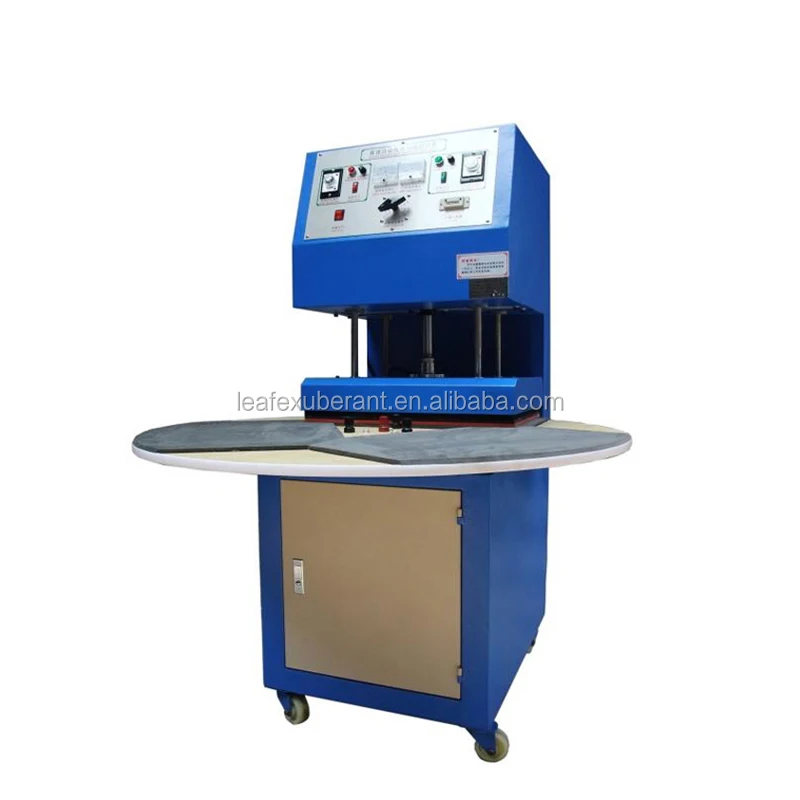

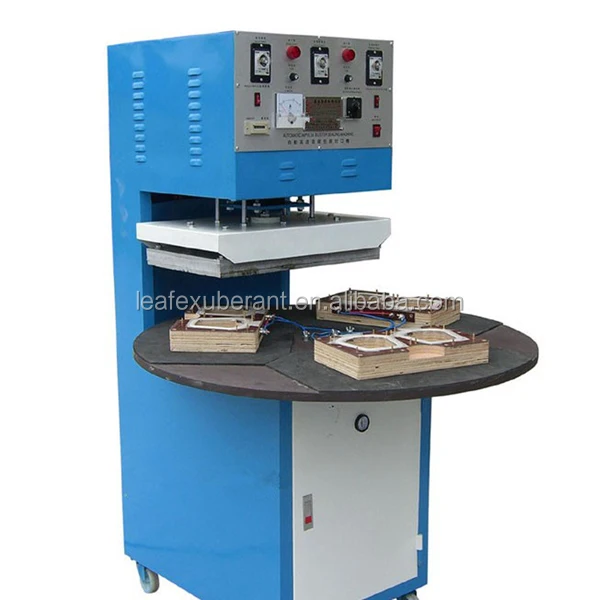

Description of Manual blister sealing packing machine for micro sd card and battery
1. This machine is suit for sealing PVC blister and paper card. After sealing the product will be transparent, beautiful, moisture proof, dustproof.
2. Blister sealing machine is widely used in hardware, cosmetics, toys, stationeries, batteries, art wares, car accessories, electrical components and souvenir etc.
Features of Manual blister sealing packing machine for micro sd card and battery
1. Easy to operate our PE blister sealing machine: only need choose the prolong time, heating time, cool- down time and transform the grade of heating current, spin the working plate with hand, then the prolong time system, heating system and cool system will be automatically operate, finish all the sealing process.

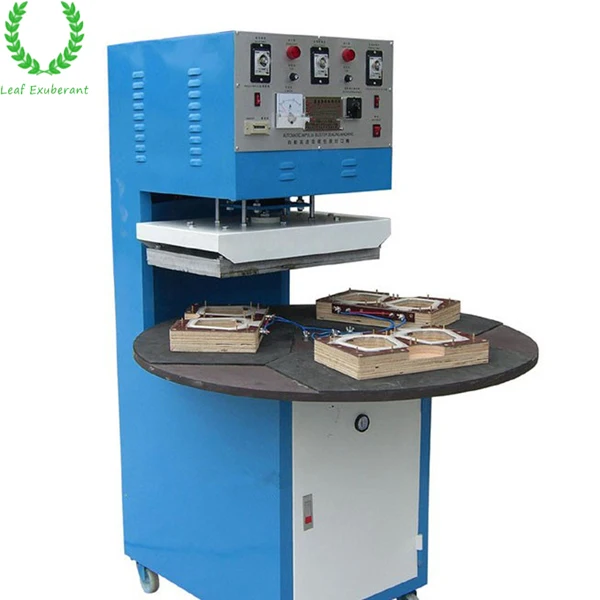

2. This working plate has three working position, with speedy packing and high efficiency.
3. Mould only suit for local sealing of the edge of blister and card, do not affect the packing, the blister and card can be clean and beautiful.
4. Machine body structure is strong, reliable and durable.
Main Parameters of Manual blister sealing packing machine for micro sd card and battery
Voltage | 220V/50HZ |
Power | ≤3kw |
Platen area | 490*340mm |
Operation times | ≤18times/min |
Machine weight | 150kg |
Delay time | 0-10s (can be adjusted) |
Heating time | 0-10s (can be adjusted) |
Heating voltage regulation | 8 stalls |
Turntable diameter | 107cm |
Capacity | 2-8s/per mold (general product) |
Molds | One set has 3 pieces (Need to be customized) |
Packing material | PVC and plastic card |
Packing size | <A4 paper |
Machine Dimension | 980*1080*1470mm |
Machine packing size | 80*59*152CM 130kg |
Turntable packing size | 115*115*8CM 28kg |
