Профессиональный большой дальности VTOL с неподвижным крылом наблюдения Дрон YFT CZ35
- Category: Aircraft >>>
- Supplier: Jiangsu Digital Eagle Technology Development Co. Ltd.
Share on (60850200035):
Product Overview
Description
Products Description

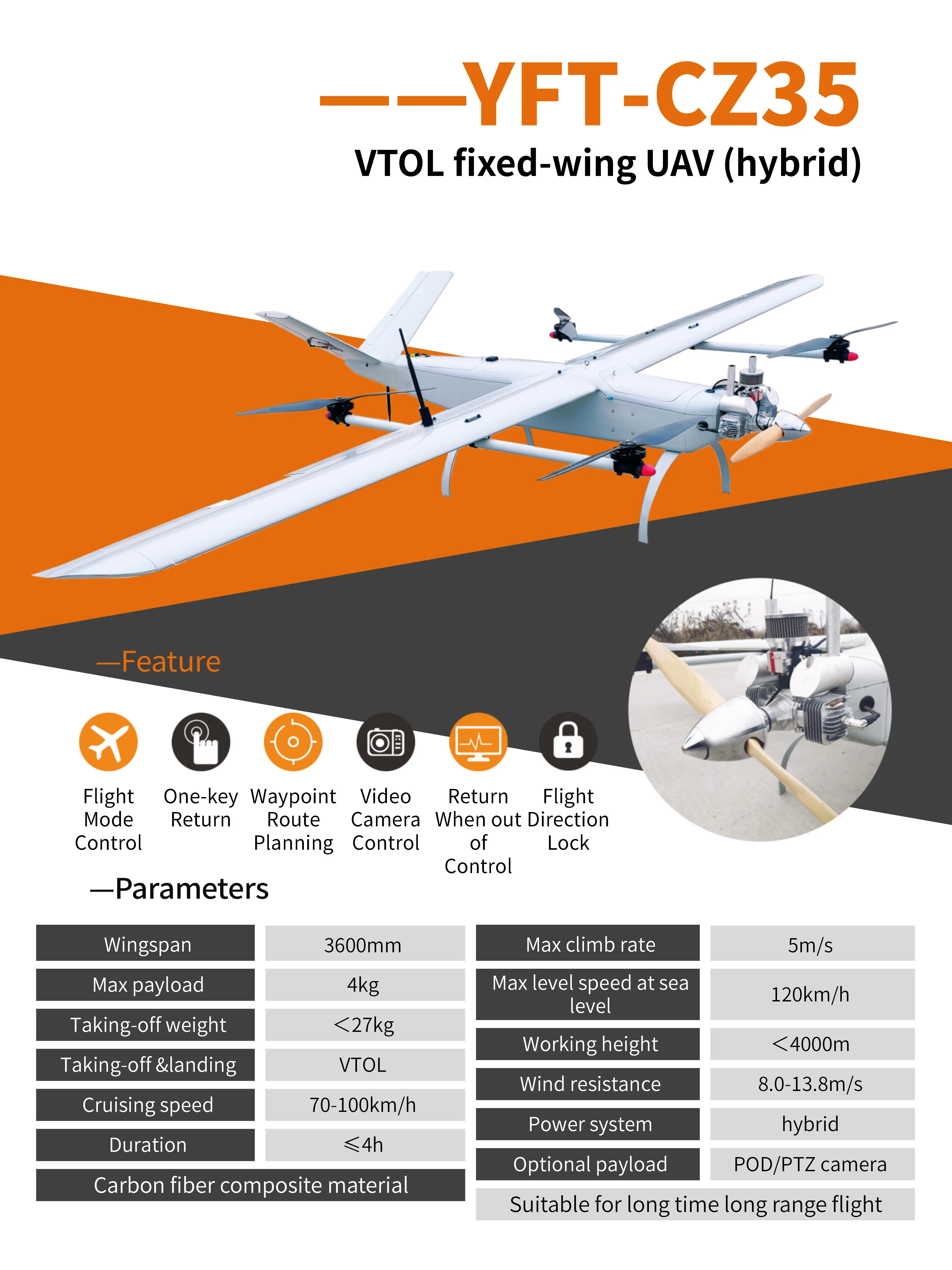

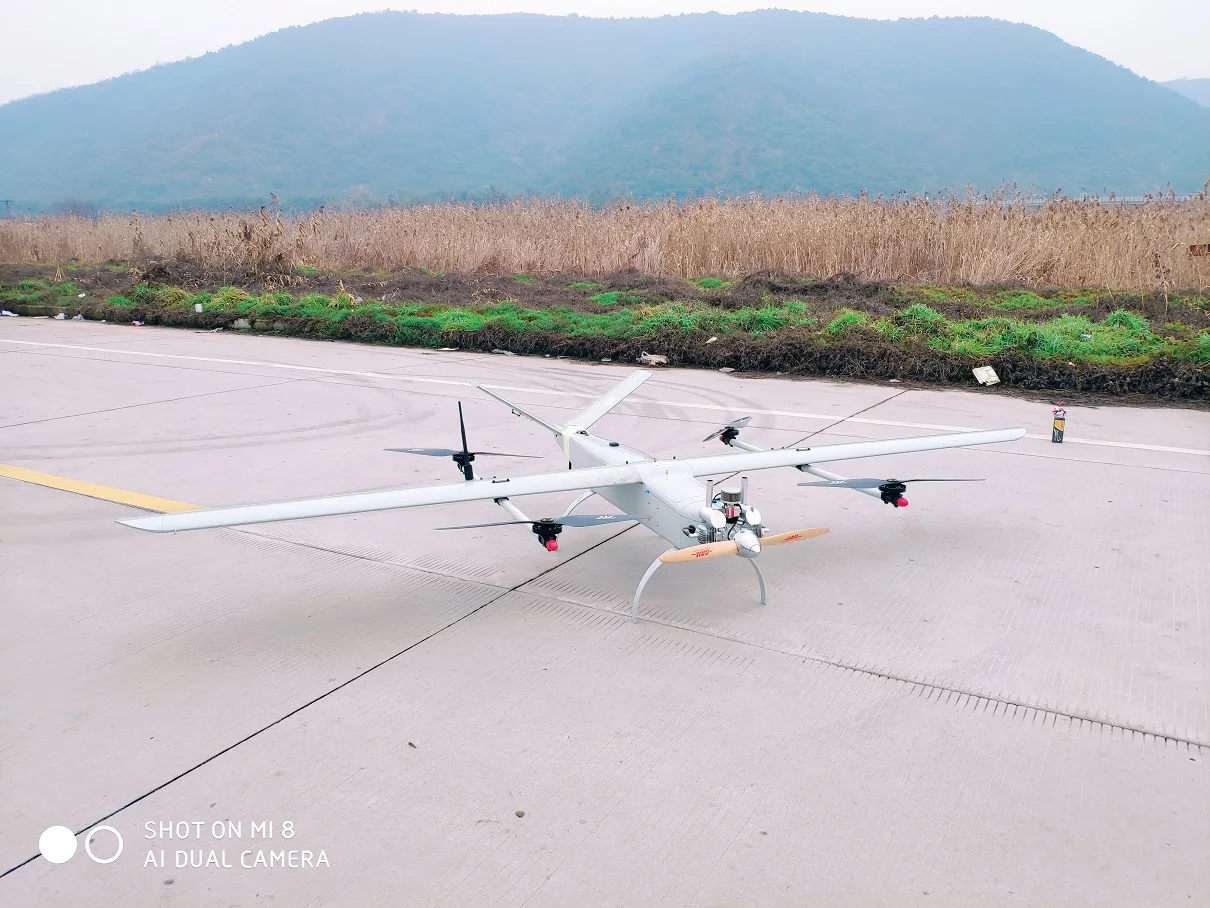

Item | Digital Eagle VTOL fixed wing drone YFT-CZ35 |
Model | YFT-CZ35 fuel engine |
Winspan | 3600mm |
Max payload | 5kg |
Flight duration | 3.5~4 hours |

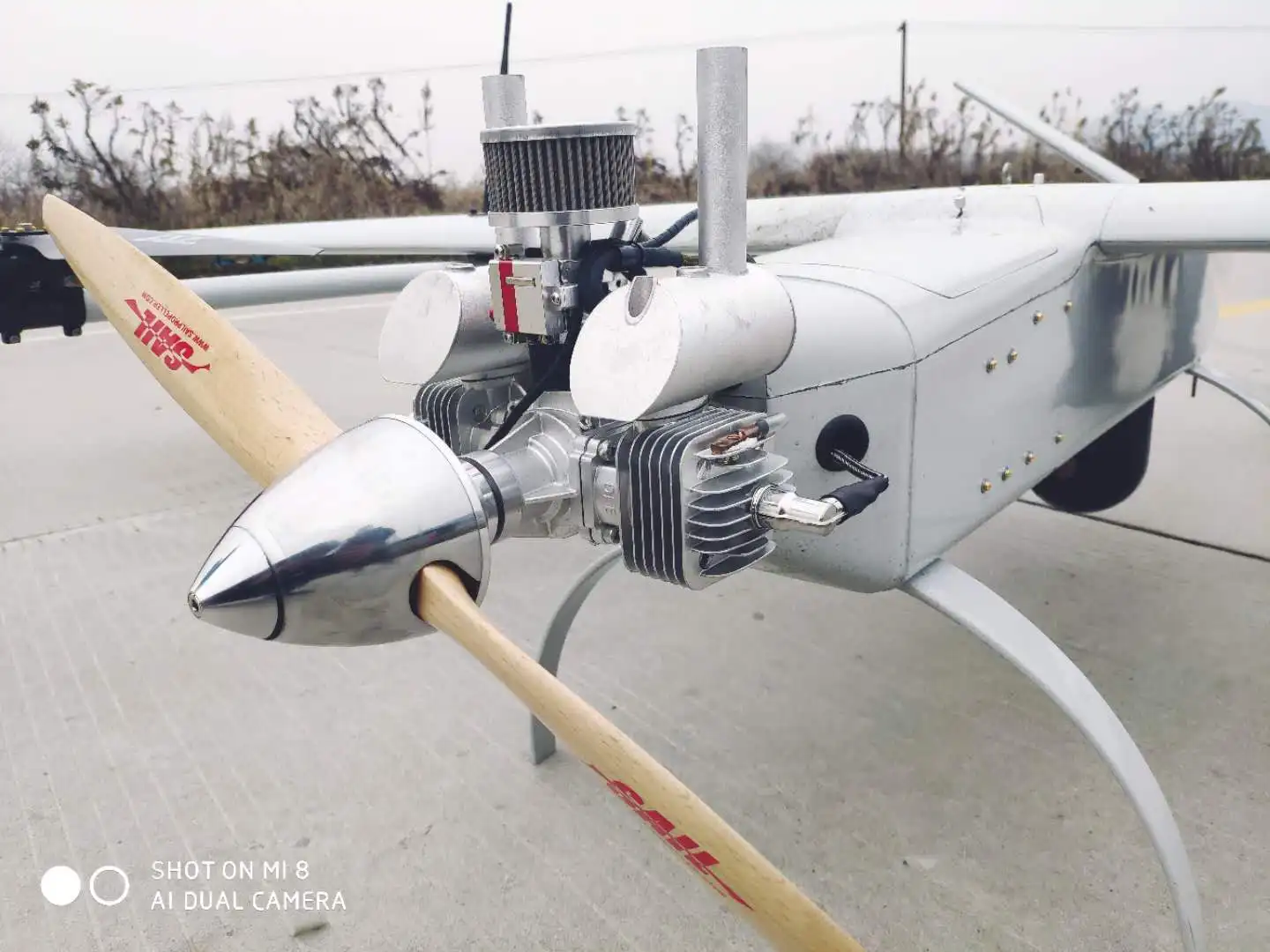

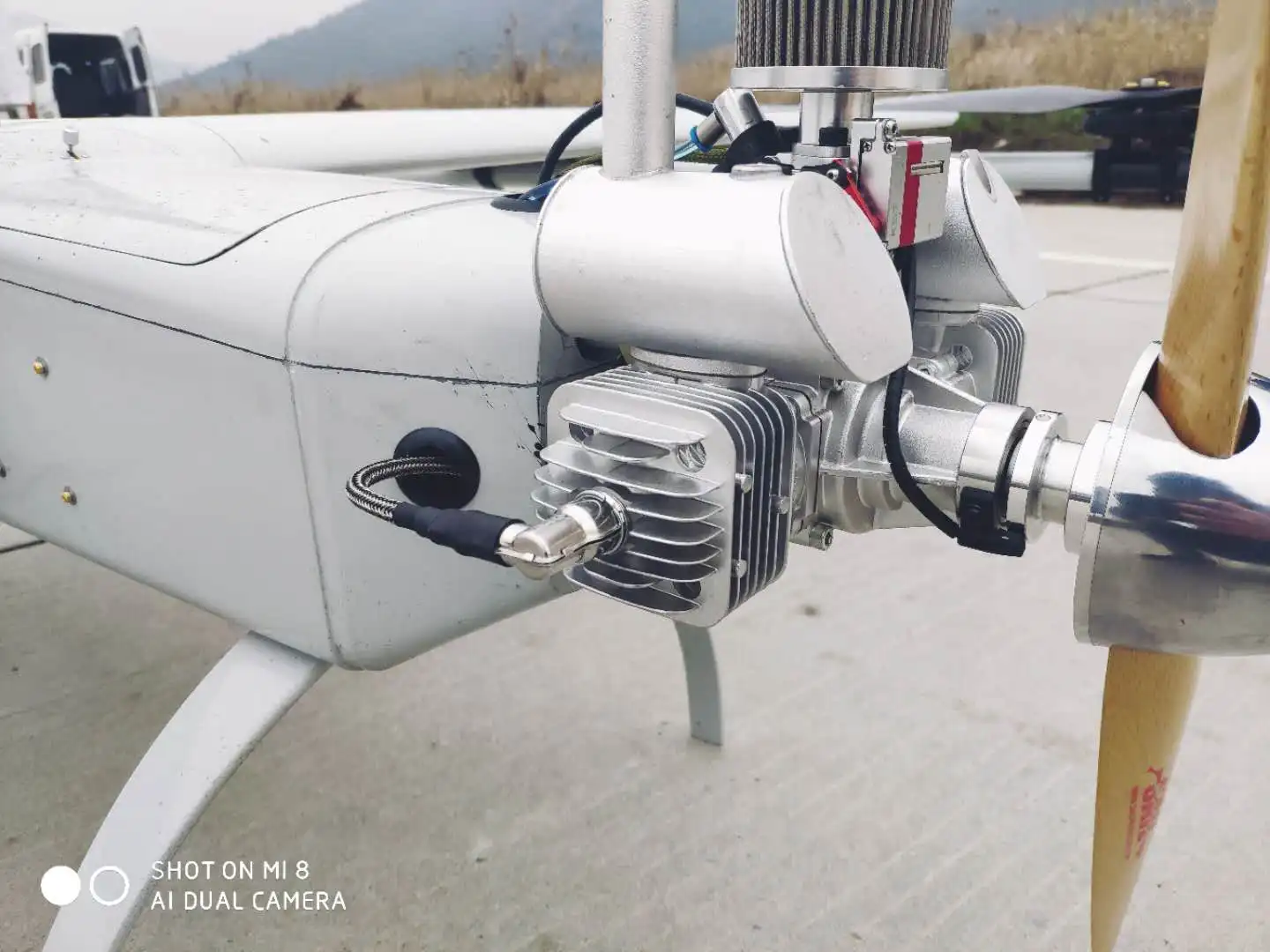

Power supply | fuel engine, gasoline |
Advantage of autopilot control system
YFT-CZ35 is a hybrid engine fixed wing drone with four-rotors layout. Support fixed-wing vertical take-off and landing function, smooth conversion of multi-rotors and fixed-wing, can be switched between the two modes.
1. Nine mission routes, 1 landing route.
2. Any installation method. With mounting angle correction and lever arm compensation, it can be mounted on the aircraft at any mounting angle and position.
3. Built-in black box data recording function, which can record about 60 minutes of flight data cyclically. Support for connecting external data loggers to record up to 2000 hours of flight data.
4. Built-in global geomagnetic model and magnetic compass calibration algorithm with polar flight test, the magnetic compass calibration can be completed with one button, and the satellite will take off immediately after positioning.
5. Supports dual redundancy GNSS positioning. Support double redundant magnetic heading system.
6. Emergency protection measures. A variety of emergency automatic processing mechanisms, including low battery power, engine stall, excessive speed, data link interruption, GPS weak signalprotection, attitude overrun and angular rate overrun, etc.
7. Flight control supports mobile platform take-off and landing.
8. Addautomatic capture of the homing point function.
9. It has a three-dimensional coordinate program-controlled flight function and can fly smoothly according to the predetermined three-dimensional coordinates.
10. Flight in both attitude and hover modes is supported in rotor mode.
11. Flight status and mission mode are flexible. The settings include but are not limited to flight routes, flight altitudes,
flight speeds, take-off and landing modes, photographing (camera) methods, security policies, etc., and interfaces with parameter settings.
12. Support GPS, GLONASS, Galileo, BDS system.
13. Horizontal positioning accuracy 1m +1ppm.
14. Number of channels: 120 and above.
15. It has a fixed-point, equidistant, isochronous shutter camera function, and records the POS data of the aerial point.
1. Nine mission routes, 1 landing route.
2. Any installation method. With mounting angle correction and lever arm compensation, it can be mounted on the aircraft at any mounting angle and position.
3. Built-in black box data recording function, which can record about 60 minutes of flight data cyclically. Support for connecting external data loggers to record up to 2000 hours of flight data.
4. Built-in global geomagnetic model and magnetic compass calibration algorithm with polar flight test, the magnetic compass calibration can be completed with one button, and the satellite will take off immediately after positioning.
5. Supports dual redundancy GNSS positioning. Support double redundant magnetic heading system.
6. Emergency protection measures. A variety of emergency automatic processing mechanisms, including low battery power, engine stall, excessive speed, data link interruption, GPS weak signalprotection, attitude overrun and angular rate overrun, etc.
7. Flight control supports mobile platform take-off and landing.
8. Addautomatic capture of the homing point function.
9. It has a three-dimensional coordinate program-controlled flight function and can fly smoothly according to the predetermined three-dimensional coordinates.
10. Flight in both attitude and hover modes is supported in rotor mode.
11. Flight status and mission mode are flexible. The settings include but are not limited to flight routes, flight altitudes,
flight speeds, take-off and landing modes, photographing (camera) methods, security policies, etc., and interfaces with parameter settings.
12. Support GPS, GLONASS, Galileo, BDS system.
13. Horizontal positioning accuracy 1m +1ppm.
14. Number of channels: 120 and above.
15. It has a fixed-point, equidistant, isochronous shutter camera function, and records the POS data of the aerial point.
Related Products
Wide Application
Company Profile
About Digital Eagle

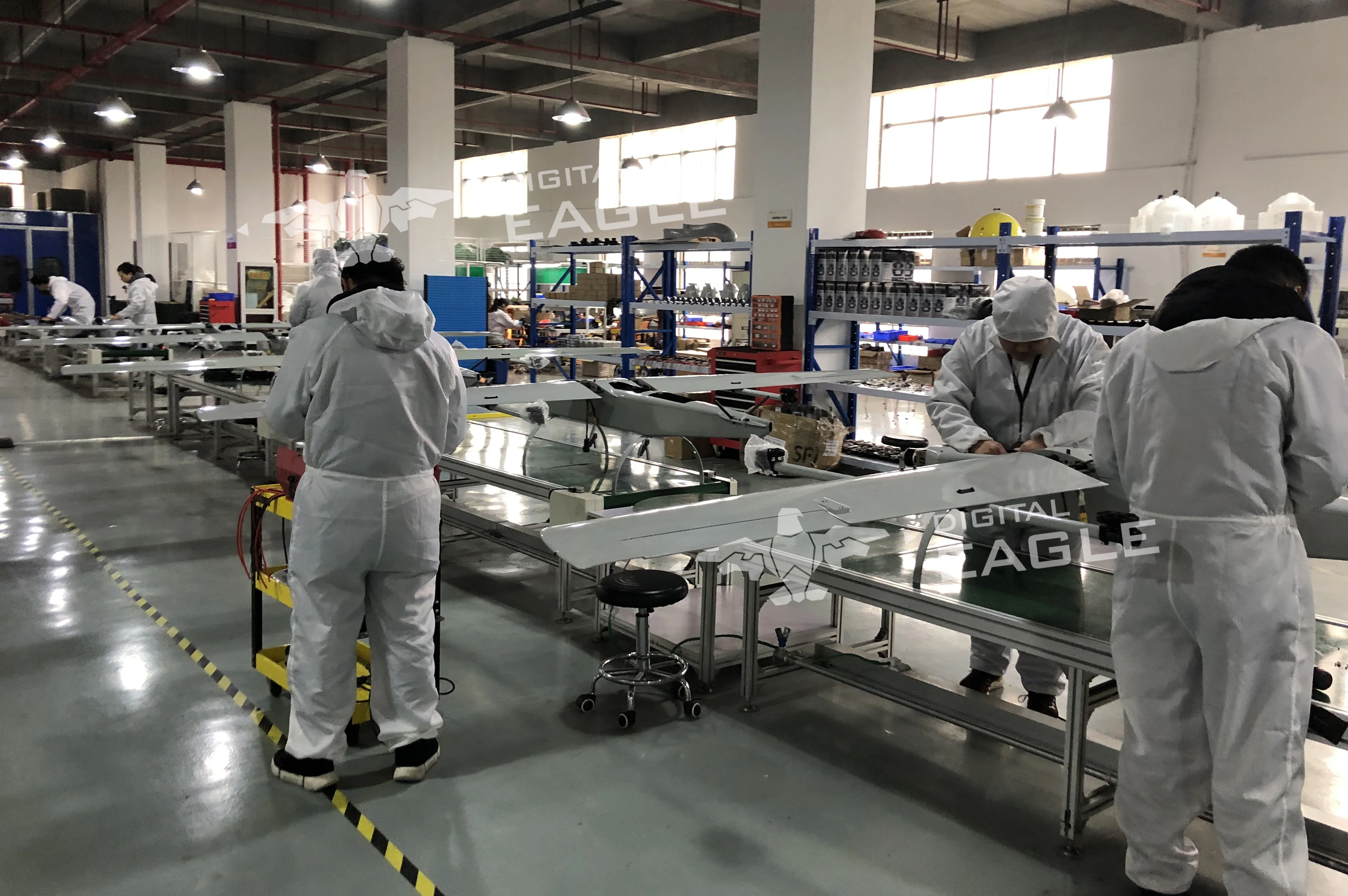

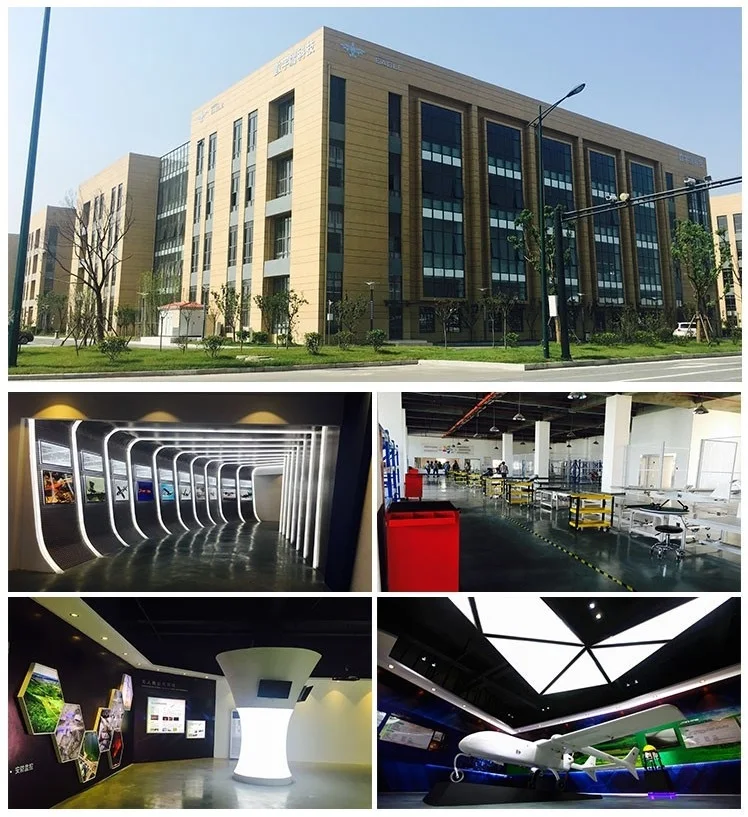

Jiangsu Digital Eagle Technology Development Co., Ltd (DE) is one high-tech enterprise that has independently developed UAV systems and UAV counter systems since 2013, owning R&D center in Wuxi, Factories in Taizhou, Yancheng & Anhui.
At present, DE has formed major production lines for:
Factory 2:
Factory 3:
- Police security drones
- Agricultural spraying drones
- Anti-drone system

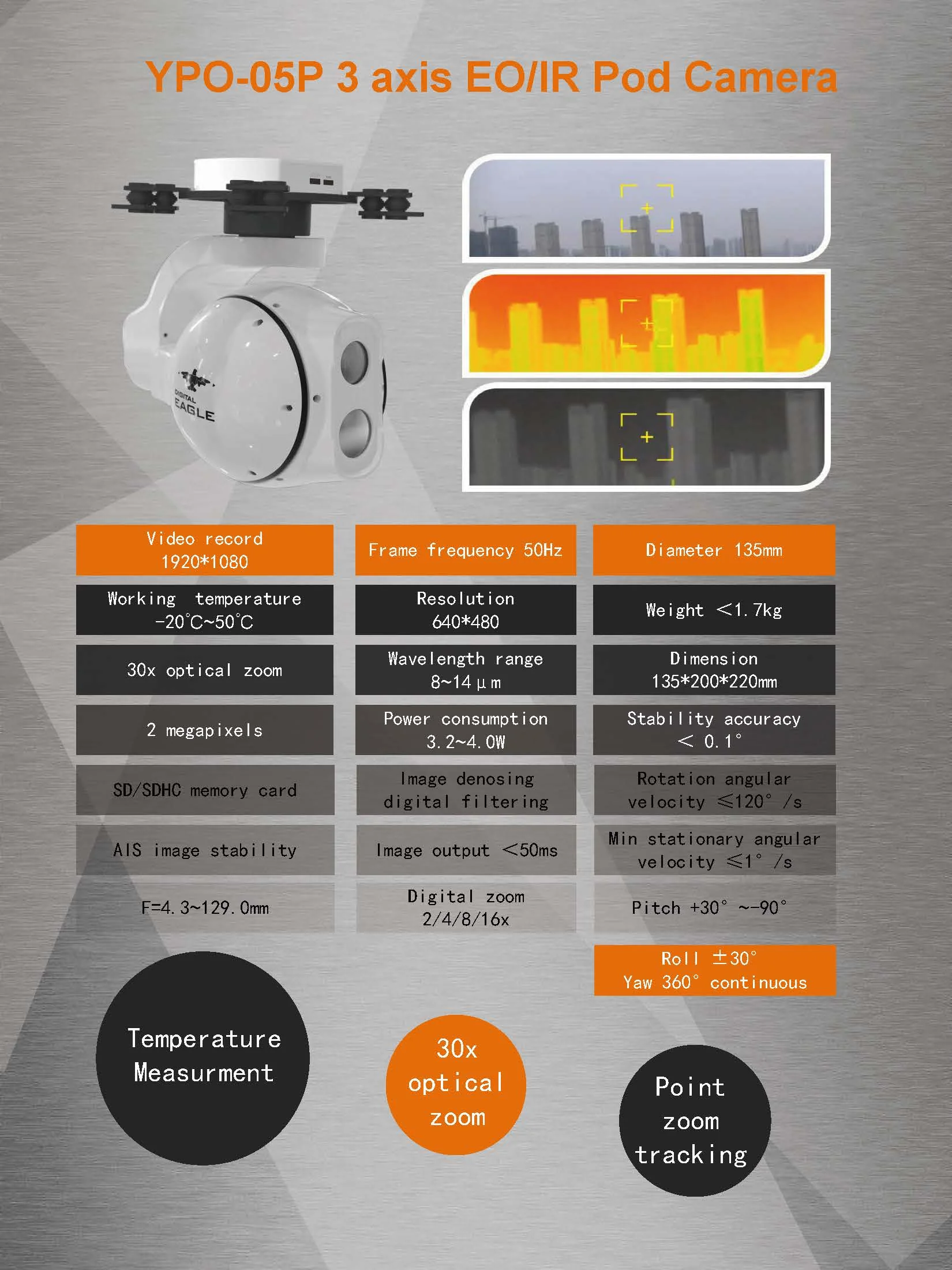

- EO/IR camera
