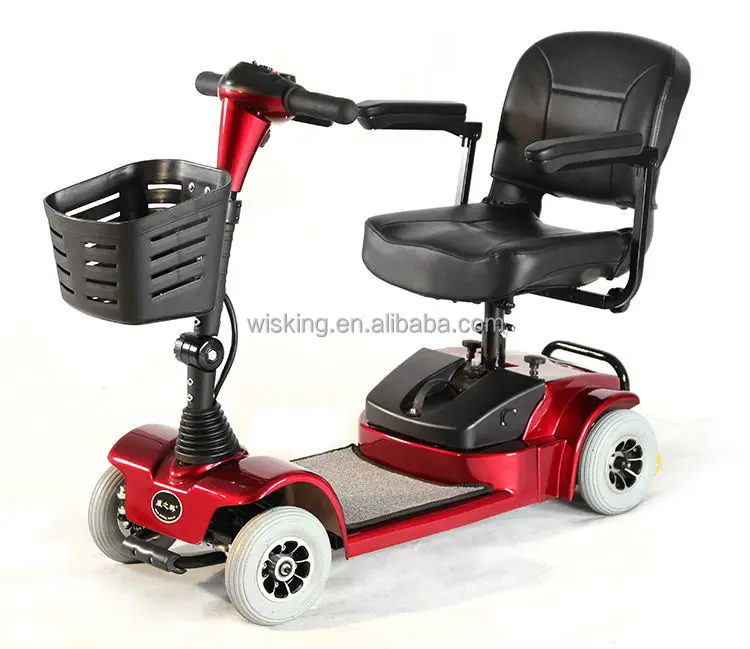

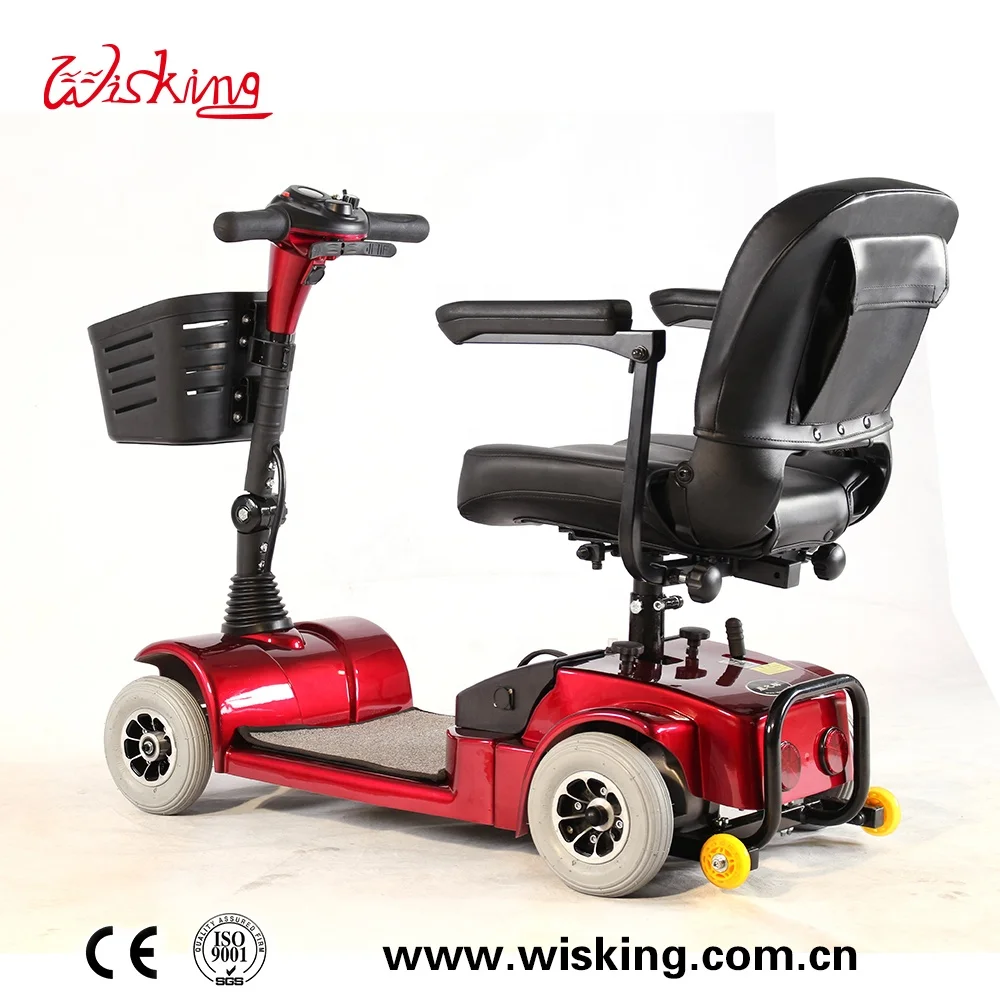

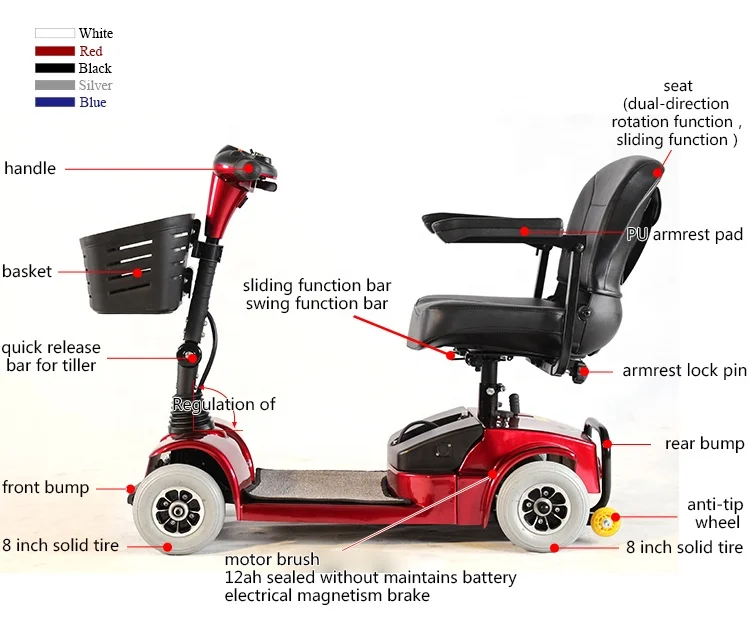

Folding mobility scooter for elderly foldable 4 wheels electric mobility scooters for disabled wisking 4024

Share on (60851187224):


Price:

Quantity:


Product Overview

Description


Easy operation, fashionable design mini travel scooter.


Front and rear easily changed tires with the luxury rims.


Dual-direction rotation comfortable seat. width adjustable flip-up armrests.


Easy access tiller-mounted charger port.

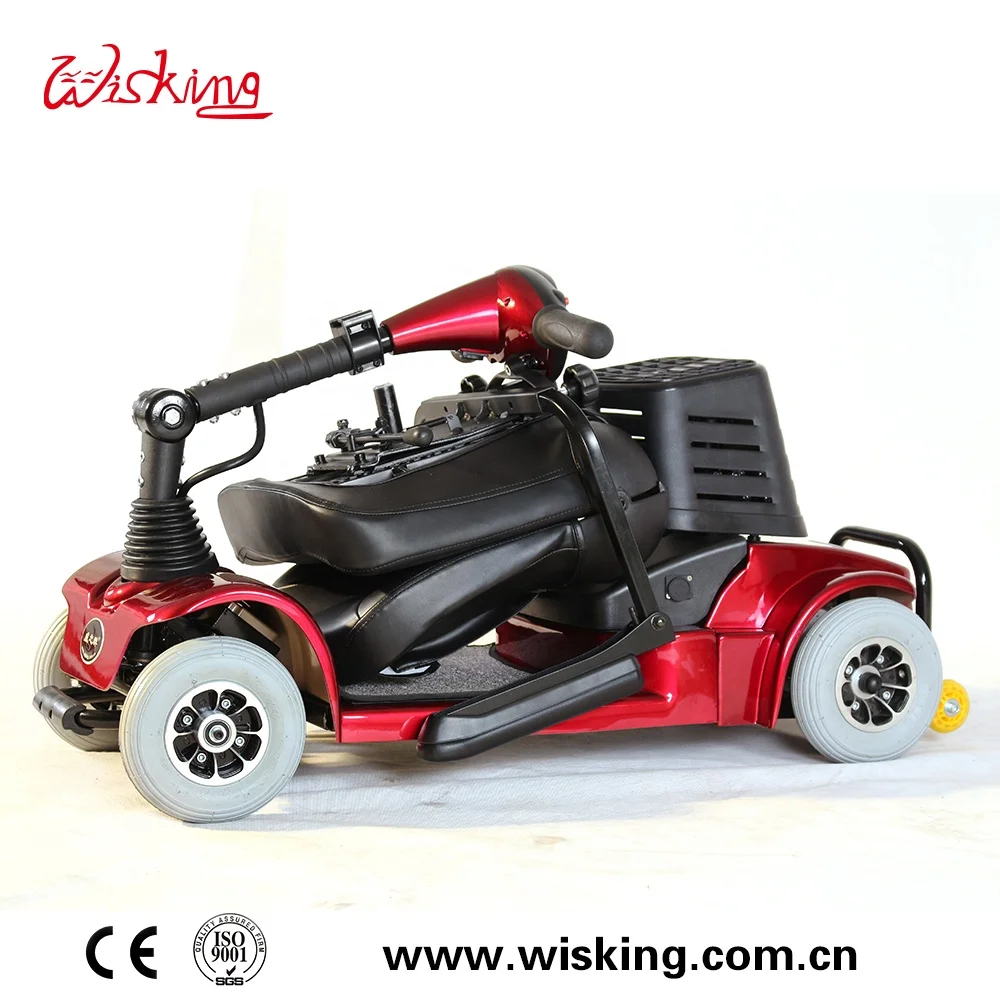

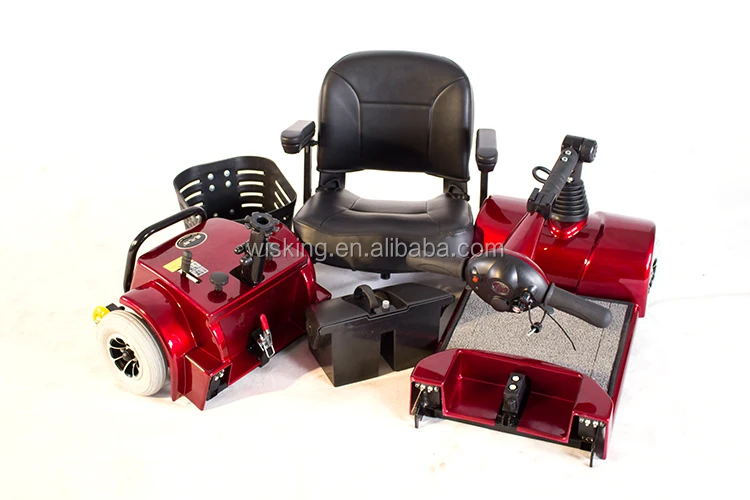

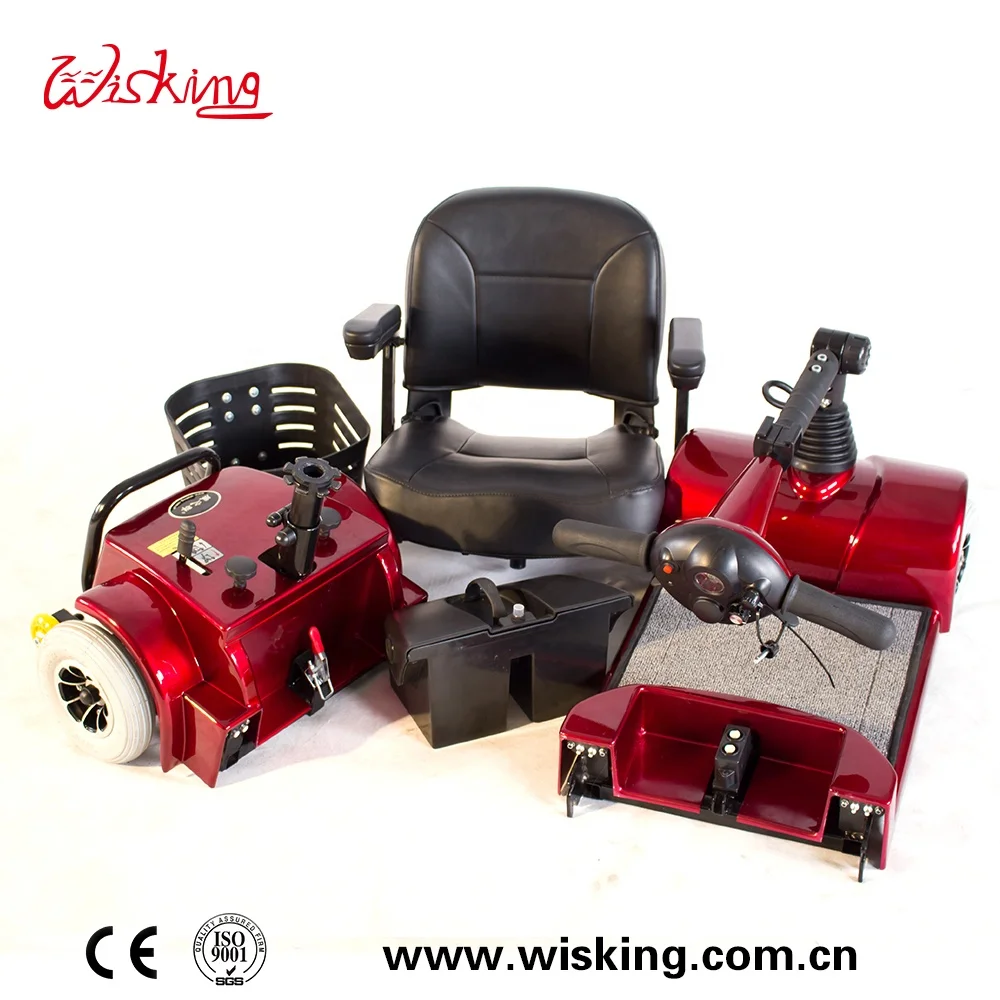

Disassembles into 3 lightweight pieces, wireless, and easy for transport.












Product Description


Specification





















































































Overall dimension  107*51*96cm
Front tire/Rear tire  8" solid tire/8" solid tire
Weight capacity  120kg
Controller  PG(Imported from UK)45A
Motor  24V/200W
Battery  12V/12AH*2
Battery weight  4.2kg*2
Battery dimension(l*w*h)  15.1*9.8*9.5cm*2
Charger  24V/2A
Rechargr time  6-8hrs
Gross weight  52kg
Net weight(with batteries)  45kg
Package  1ctn
Package size  107*51*57cm
Range  up to 15km per battery charge
Incline capability  12 degrees
Turning radius(min)  1.52m
Ground clearance  5cm
Max.forward speed  7km/h
Qty of 20”FCL  88pcs

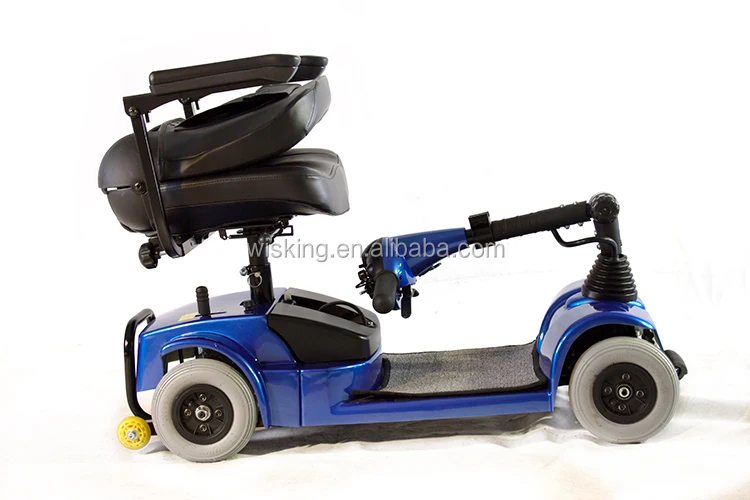

 Product pictures













Product details














Our Services


After Sale Service


ONE-YEARS LIMITED WARRANTY
One years on all structural frame components





ONE-YEAR LIMITED WARRANTY
For one (1) year from the date of purchase, Wisking will repair or replace at our option to tile original purchaser, free of charge, any part or electronic component found upon examination by an authorized representative of Wisking to be defective in material and/or workmanship,
The battery is warranted by the battery manufacturer, The battery is not warranted by Wisking, Warranty service can be performed by Wisking or by an authorized Wisking Provider, Do not return faulty parts to Wisking without prior consent, All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the original purchaser.





ONE-YEAR WARRANTY EXCEPTIONS
TRANSAXLE: In cases where there is an increase in the operational noise level, the warranty does not apply,(The increase in operational noise level usually occurs due to abusive and excessive strain on the scooter,)
MOTOR BRAKE: one-year warranty for the electrical function of the motor brake, Brake pads are a wearitem and are not warranted,





WARRANTY EXCLUSIONS
ABS plastic shrouds and footrest covers (wear items and not warranted)
Batteries (the battery manufacturer provides a limited warranty)
Tires and tire tubes (wear items and not warranted)
Upholstery and seating (wear items and not warranted)
Repairs and/or modifications made to any part of the scooter without specific and prior consent from Wisking
Circumstances beyond the control of Wisking
Damage caused by: battery fluid spillage or leakage, abuse, misuse, accident, or negligence, improper
operation, maintenance, or storage, commercial use or use other than normal
Labor, service calls, shipping, and other charges incurred for repair of the product





THERE IS NO OTHER EXPRESS WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of original purchase and to the extent permitted by law. Any and all implied warranties are excluded, This is the exclusive remedy, Liabilities for consequential damages under any and all warranties are excluded,
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages, So, the above limitation or exclusion may not apply to you.





Service Network


In this market the disabled and the elderly in the domestic, the quality of Wisking's products has the higher reputation and good customer service. We export our products all over the world, and every year, export around 10,000pcs mobility scooters and power wheelchairs. We are also capable of providing OEM and ODM high quality products with the most competitive prices.
