RK310 01 Industrial Thermocouple Pt100 PT1000 RTD Temperature Sensor for Sale
- Category: >>>
- Supplier: Hunan Rika Electronic Tech Co. Ltd.
Share on (60851257670):
Product Overview
Description
RK310-01 Industrial Thermocouple Pt100 PT1000 RTD Temperature Sensor for Sale
Product Description
RK310-01 Atmospheric Temperature Sensor is produced with precision platinum resistance (PT100/ PT1000) as the sensing element,and the platinum resistance located in the probe head where is done with overall seal to ensure the accuracy , If need,this model also can be equipped with 11 plates radiation shield(RK95-01/02) to protect the sensors from solar radiation and rain.
FEATURES
- High Sensitivity
- Fast response time
- Campact in size
- Easy installation
- Good stability of output
APPLICATIONS
- Environmental monitoring
- Livestock farm
- Storage
- Forestry
- Greenhouse
- Agriculture
TECHNICAL SPECIFICATION
Item | Technical Specification |
Range | -50-+150°C |
Accuracy(IEC751/EN60751) | PT100/ PT1000 Class A |
Output Signal | PT100/PT1000(3 wire/4 wire)\u0081 |
Operating Temperature | -40℃-+85℃ |
Ingress Protection | IP67 |
Storage | 10-60℃@20%-90%RH |
Probe material | 304SS |
Cable material | Teflon skin with metal shielding net |
Dimension | dia: 6mm, length: 50mm |

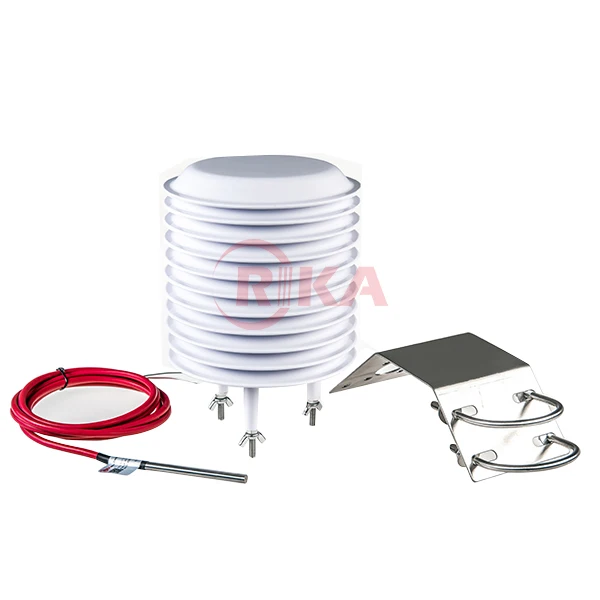

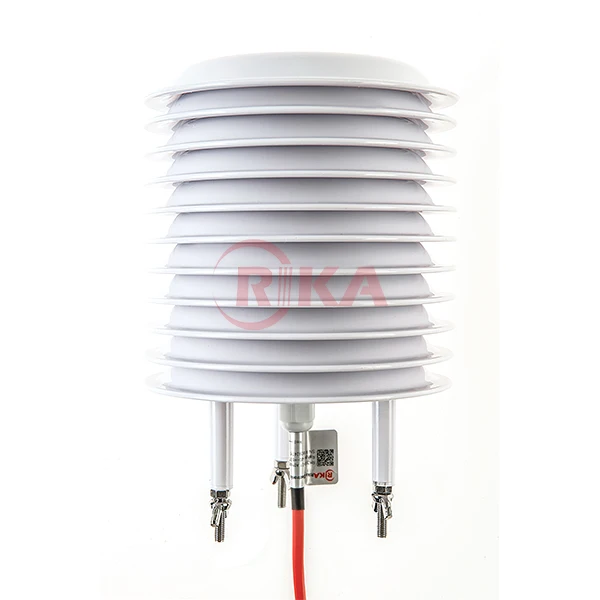

Radiation Shield(optional) | RK95-01 11 plates |

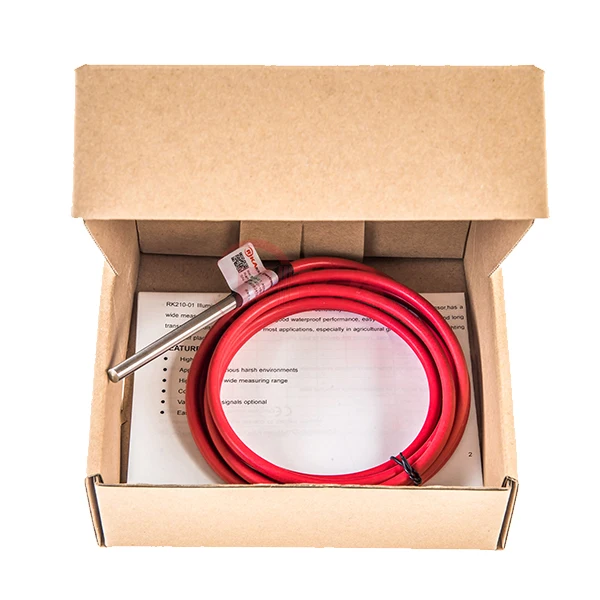

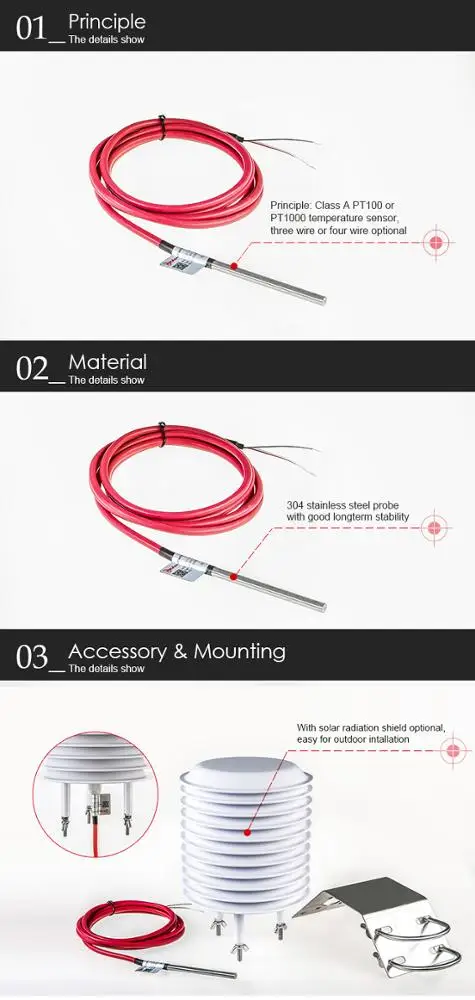

Details show

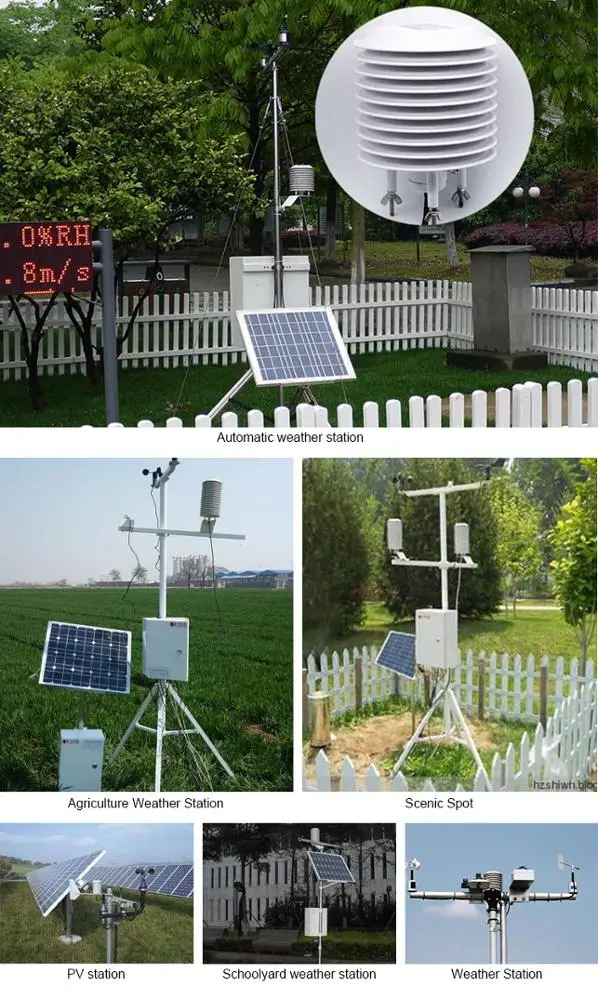

Application
Ordering Process
In order to send price to you, please tell me your information in details:
1.What’s your required output signal ? -- We have pt100 or pt1000 optional. Please specify.
2.What’s your required cable length ? - The standard is 2m. If you have special demands, please specify.
3. Do you need the optional solar radiation shield ? -- If yes, price will be different.
4.Quantity?
5.Price items: CIF or Exw or FOB ? -- If CIF please tell us your detail shipping address & post code for freight calculation.
6.Your complete company name,address, post code,contact person, tel, fax etc.
Relative Prodcuts
 |  |  |
 |  |  |
Company Information
Our Office & Factory
Certifications
FAQ
Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .
Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
