Ceramic fiber fabric, also named aluminum silicate fabric, Al2O3 content about 45%, is divided in to two types: glass fiber reinforced and stainless steel wire reinforced. Fire rating class A, long term use 1000℃ below.
It will prolong high temperature and heat insulation time, when ceramic fiber fabric by heat treating, or coated with vermiculite.
Application:
Large area industrial insulation, thermal radiation shielding protective clothing, coated fabric, fireproof curtain, flexible expansion joint insulated carpet, other industrial thermal insulation, heat insulation, fire resistance and protection.
Characteristics:
Heat and electric insulation, acid resistance, oil and water vapor corrosion resistance, resistance of aluminum, zinc and other non-ferrous molten metal etching, good tensile strength, low thermal conductivity, non-toxic.
Specification:
Colour
White
Gray
Material
Aluminum silicate fiber
Aluminum silicate fiber
Thickness
1.5mm-6mm
1.5mm-6mm
Density
500-525
500-525
Longitude
58±2
58±2
Latitude
29±1
29±1
AI2O3
≥45%
≥45%
Burning Out Rate(1050%)
≤18%
≤5%
Thermal conductivity
0.17-0.20W/MK(100℃)
0.17-0.20W/MK(100℃)
Reinforcements
Stainless Steel Wire
Stainless Steel Wire
Maximum temperature
1260℃
1260℃
Working Temp
1050℃
1050℃
Melting Point
1720℃
1720℃
Incombustible
grade B
grade A

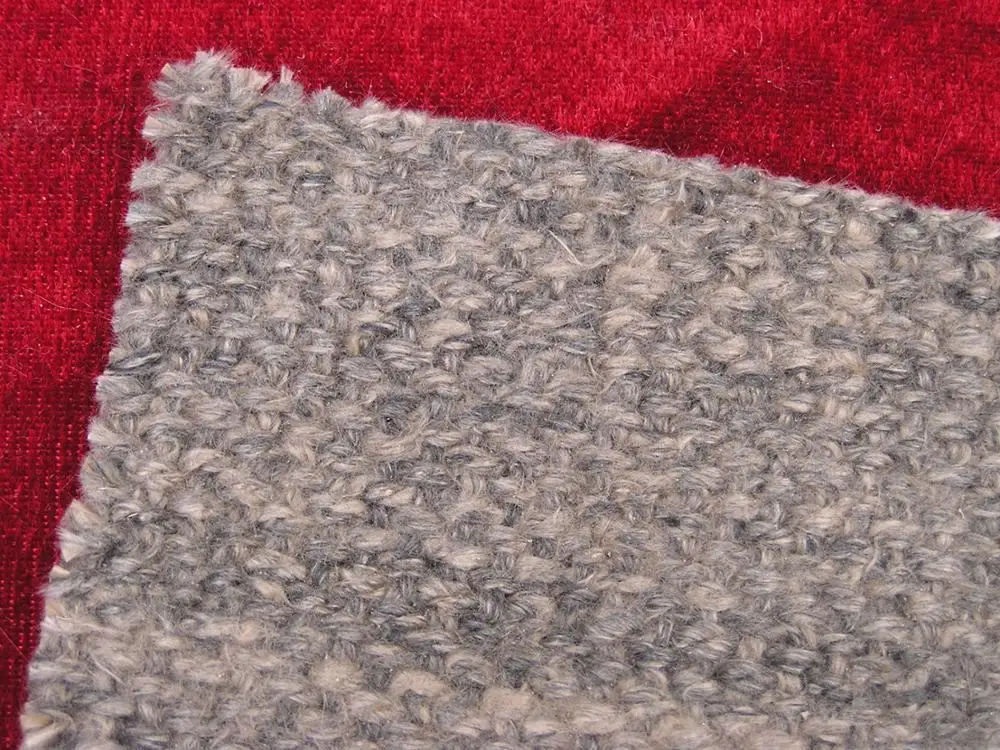

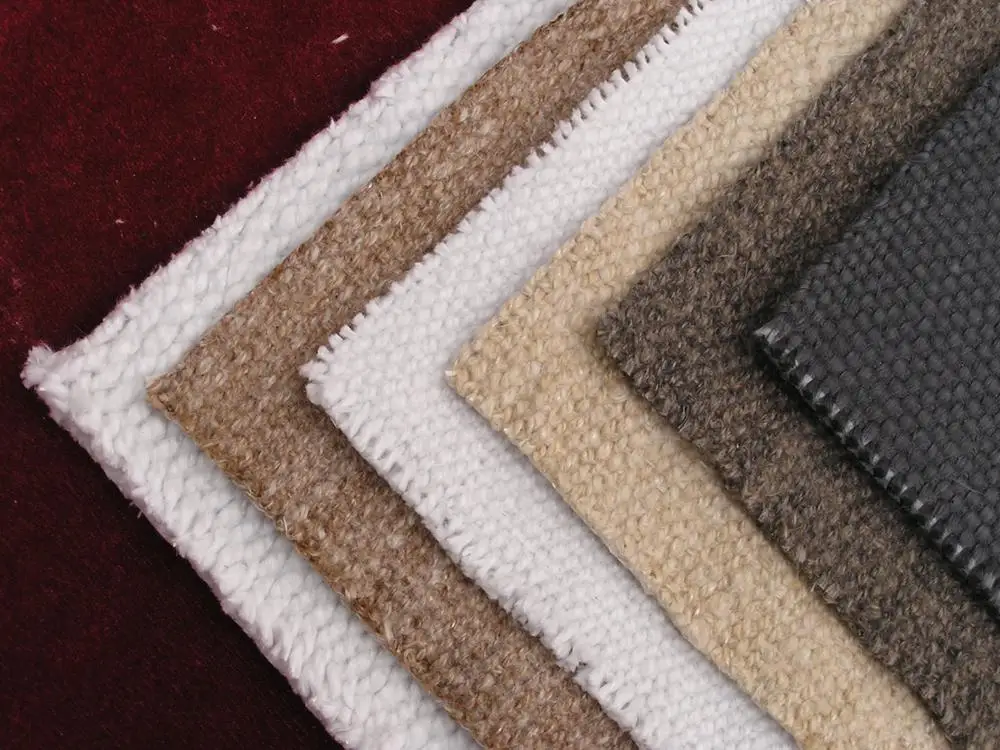

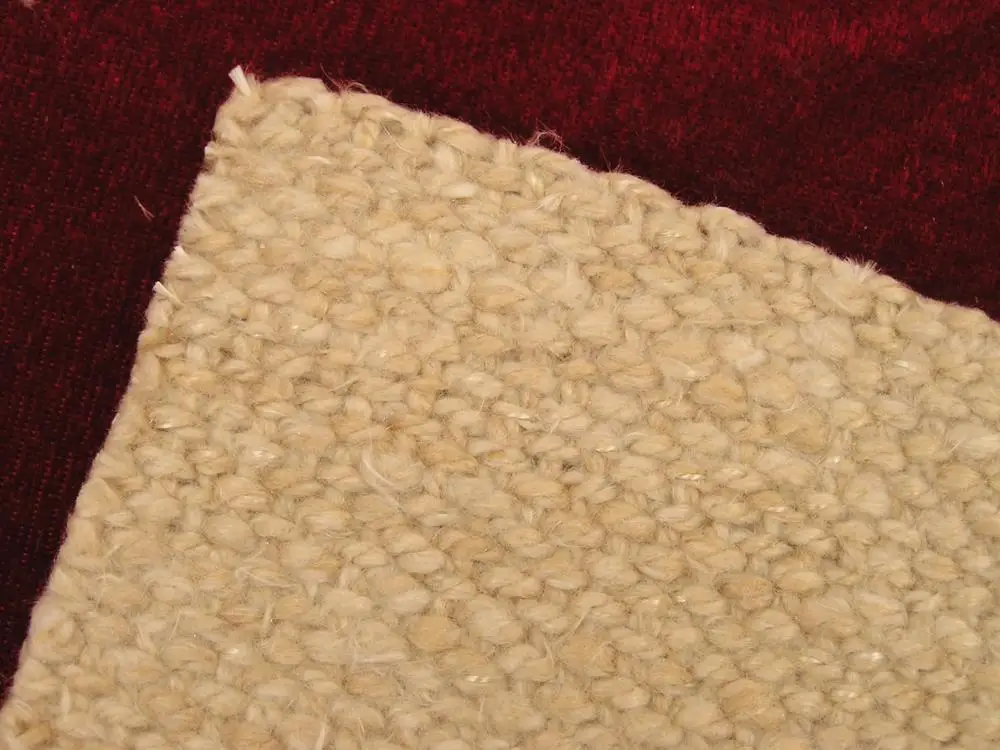

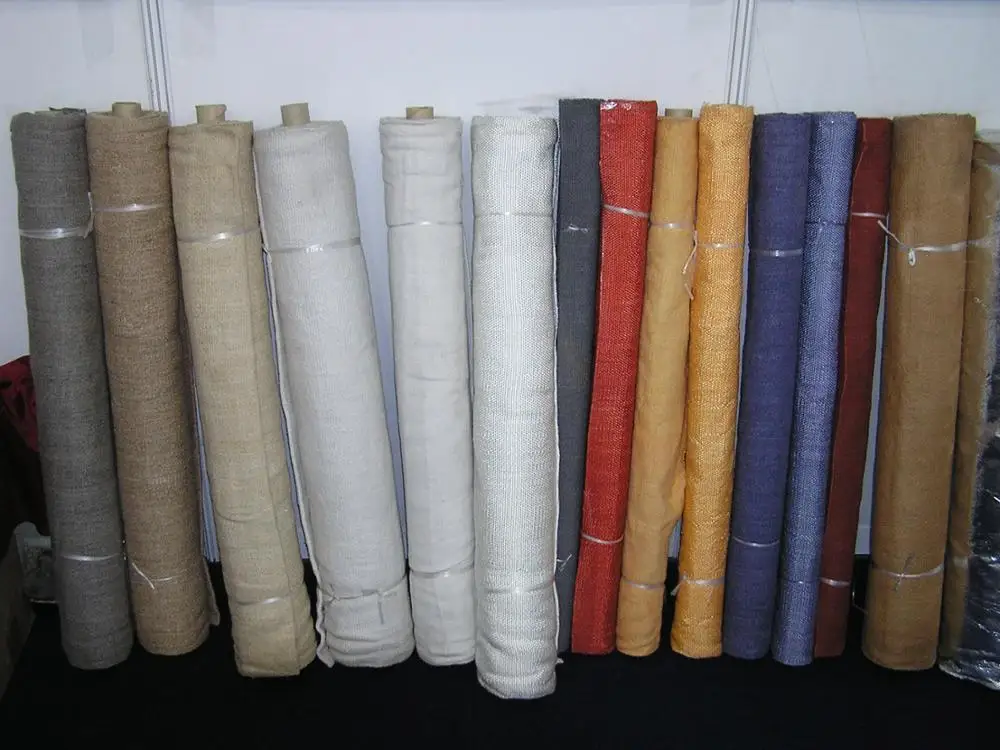

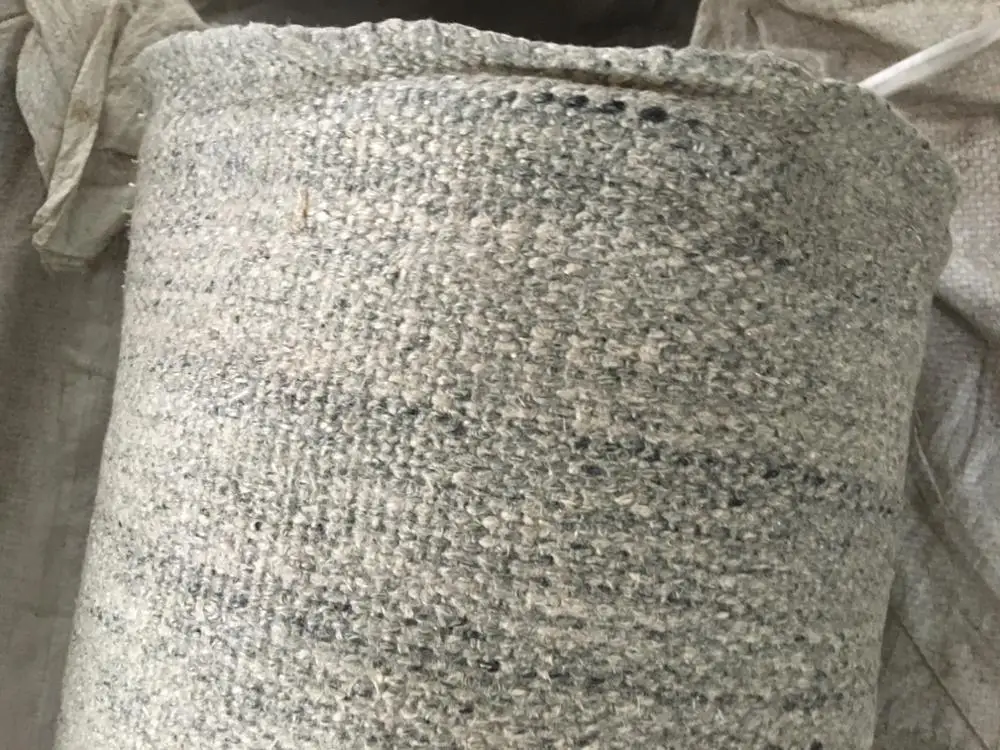

Product display
