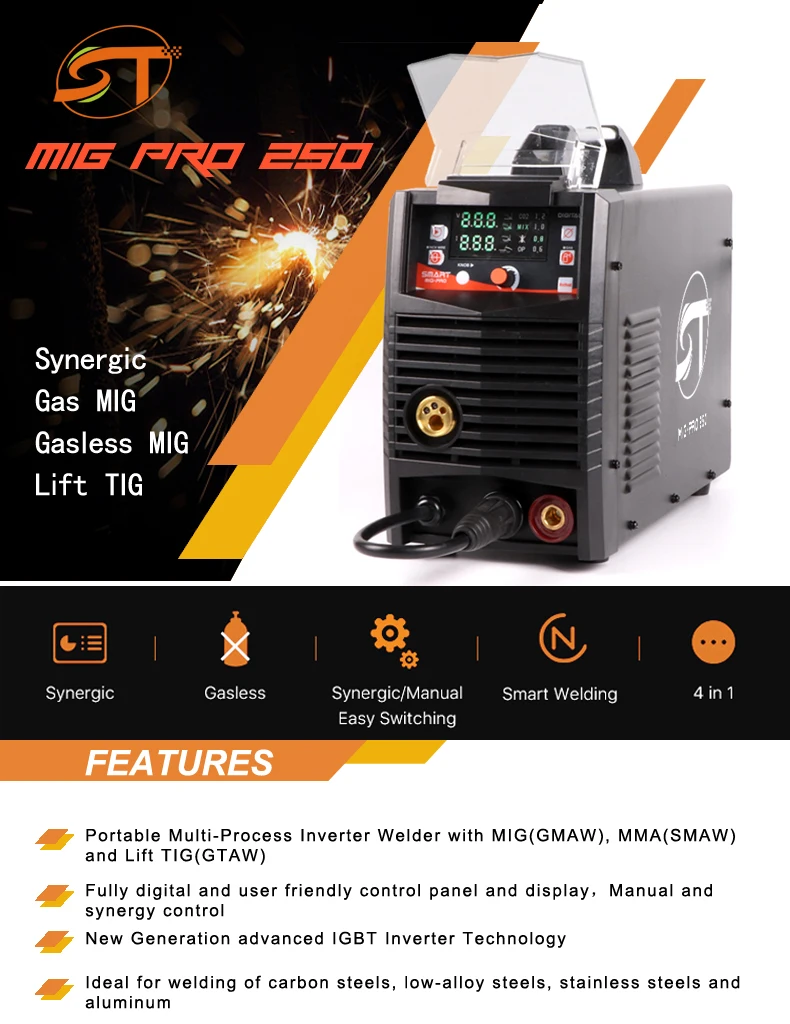

Высокочастотный портативный сварочный инвертор MIG IGBT DC 250A MIG 250
- Category: MIG Welders >>>
- Supplier: Zhejiang ST Transformer Co. Ltd.
Share on (60851666478):
Product Overview
Description
Products Description
Product Parameters
MIG-250 PRO | |
RATED POWER INPUT | 1 PHASE 220V ±10% |
RATED INPUT POWER CAPACITY(KVA) | 11.3 |
NO-LOAD VOLTAGE(V) | 52 |
OUTPUT CURRENT ADJUSTMENT RANGE(V) | 50-250 |
RATED OUTPUT VOLTAGE ADJUSTMENT RANGE(V) | 12.5-30 |
RATED CUTY CYCLE(%) | 60 |
EFFICIENCY(%) | 85 |
POWER FACTOR | 0.93 |
TYPE OF WIRE FEEDER | INSIDE |
GAS POST-FLOW TIME(S) | 1±0.5 |
WIRE FEEDING SPEED(M/MIN) | 2.0-15 |
DIAMETER OF COLD（MM） | 200 |
EARTH CABLE(MM2) | ≥2.5 |
DIAMETER OF WELDING WIRE(MM) | 0.8/1.0 |
WELDING THICKNESS(MM) | ≥0.8 |
WEIGHT(KG) | 15.5 |
MEASUREMENT(MM) | 530*295*400 |
INSULATION CLASS | F |
PRO TECTION CLASS | IP23 |
