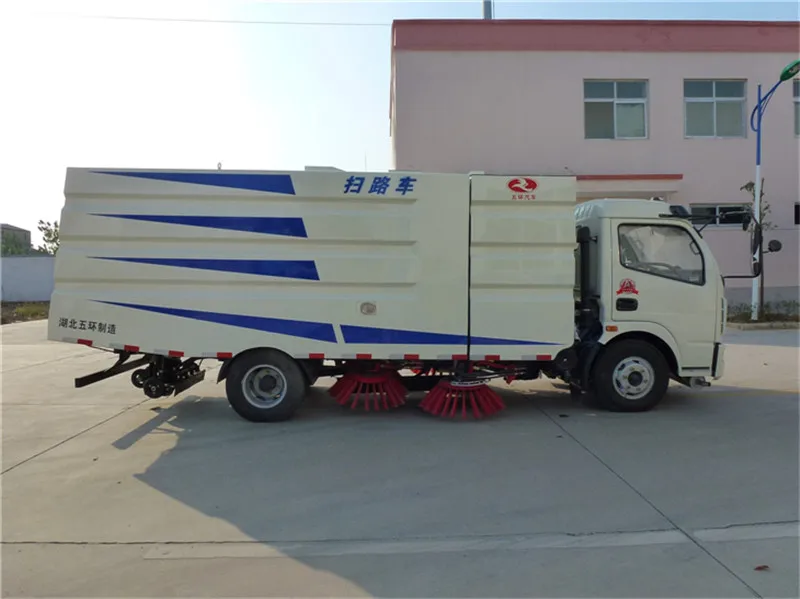

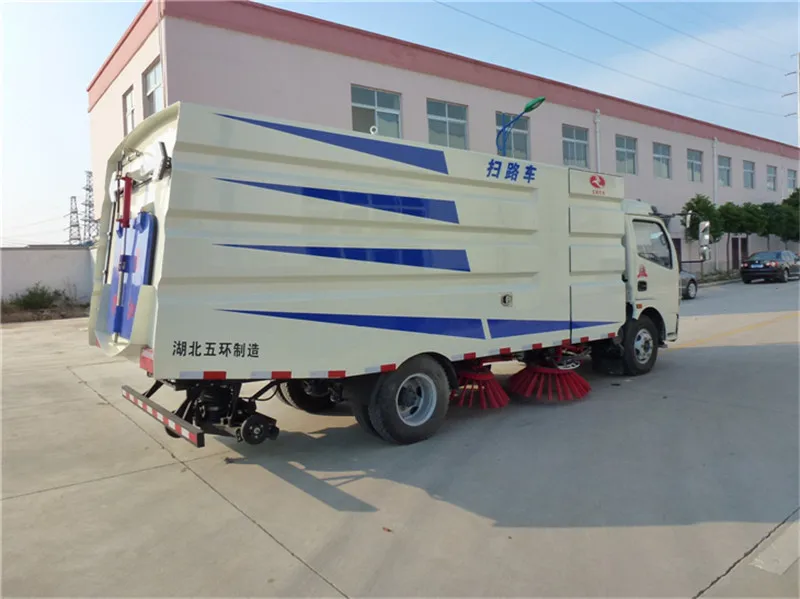

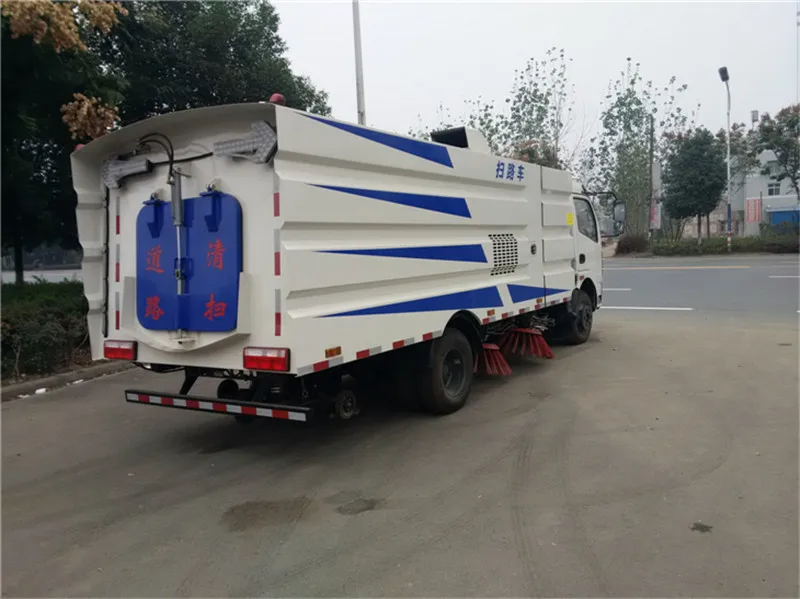

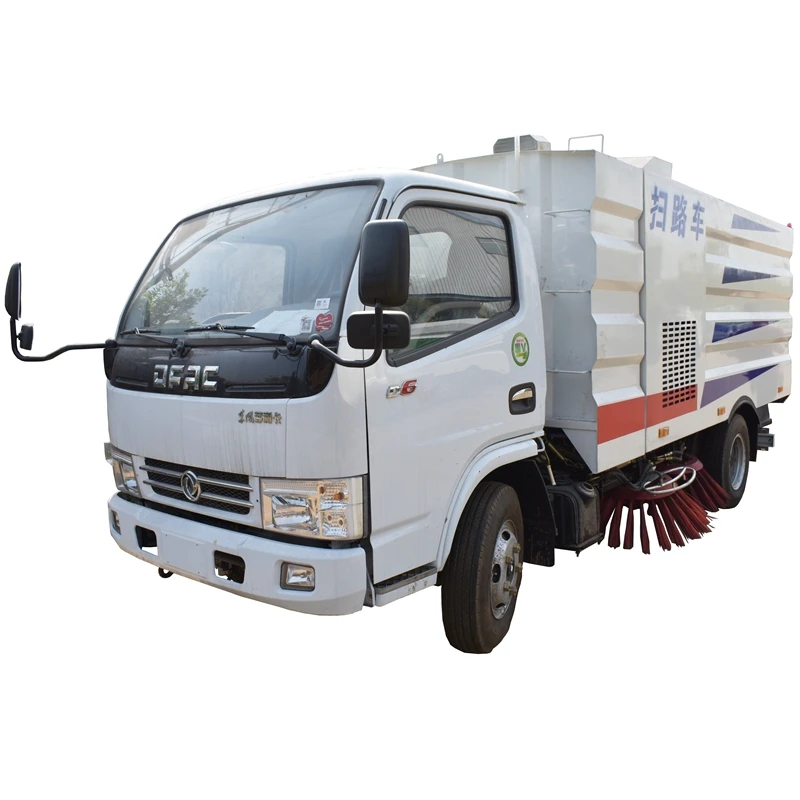

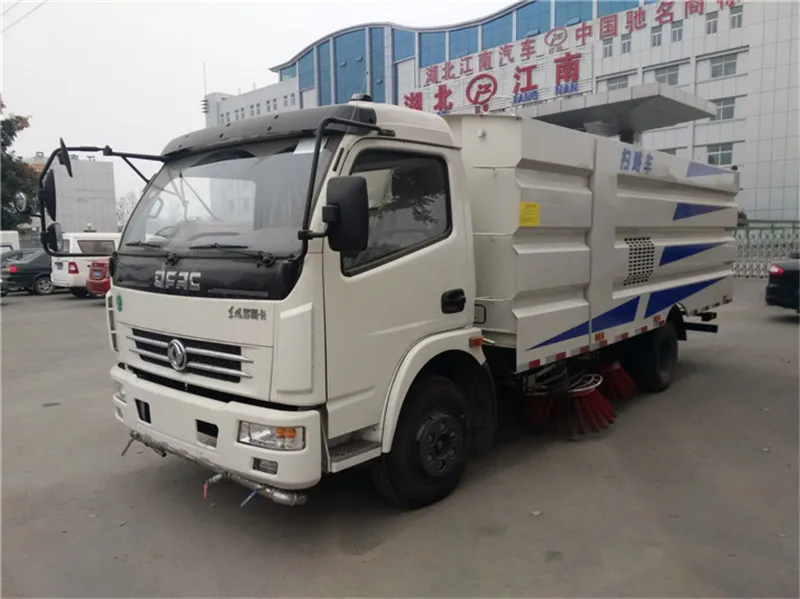

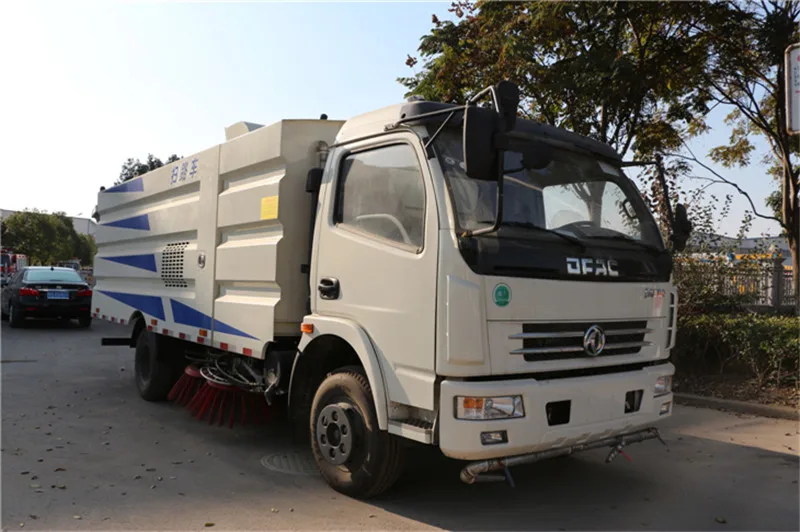

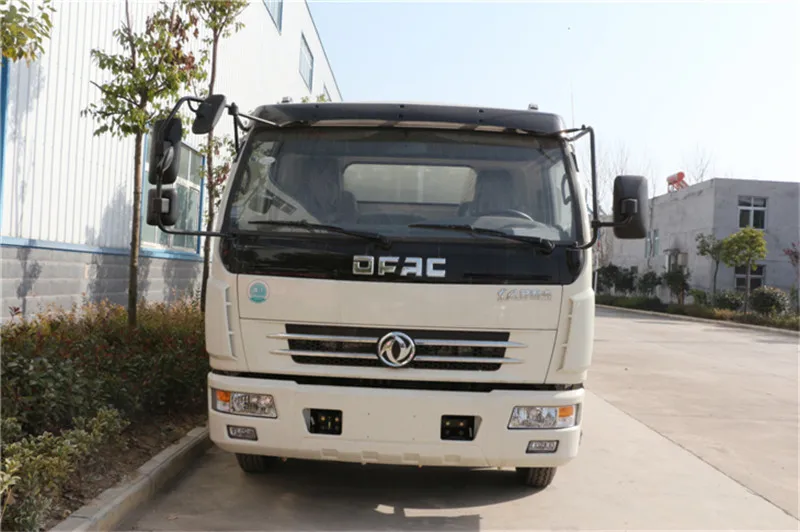

dongfeng DFAC brand LHD RHD multi function road washing and sweeping truck sweeper truck
- Category: >>>
- Supplier: Hubei Dali Special Automobile Manufacturing Co. Ltd.
Share on (60851806499):
Product Overview
Description
Product Description
dongfeng DFAC brand LHD RHD multi-function road washing and sweeping truck sweeper truck
1. Water Tanker volume:0.5CBM/m3; garbage tanker volume:2 CBM/m3; made by stainless steel enclosure material;
2. Maximum sweep width is 3.2m, maximum inhaled particles φ100mm, maximum operation ability 4500m2-9000m2;

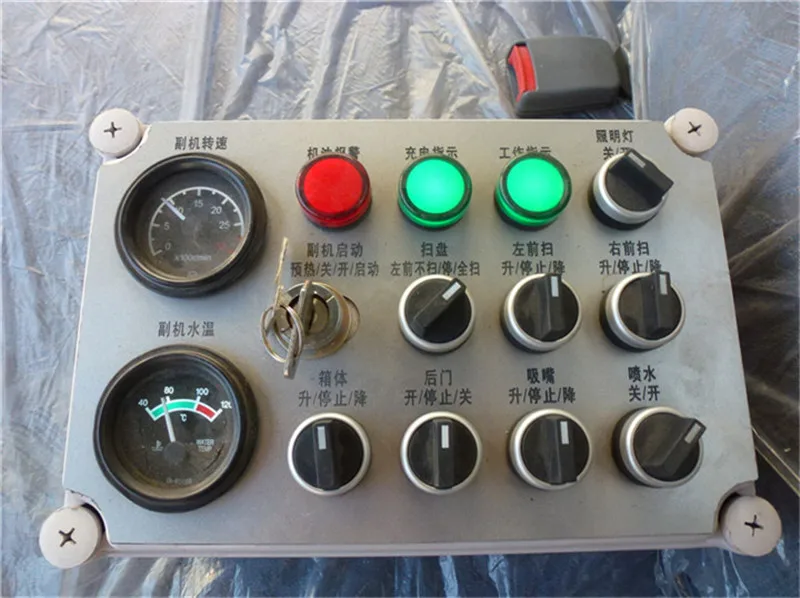

3. Equipped with two-way operation button and rinse function;

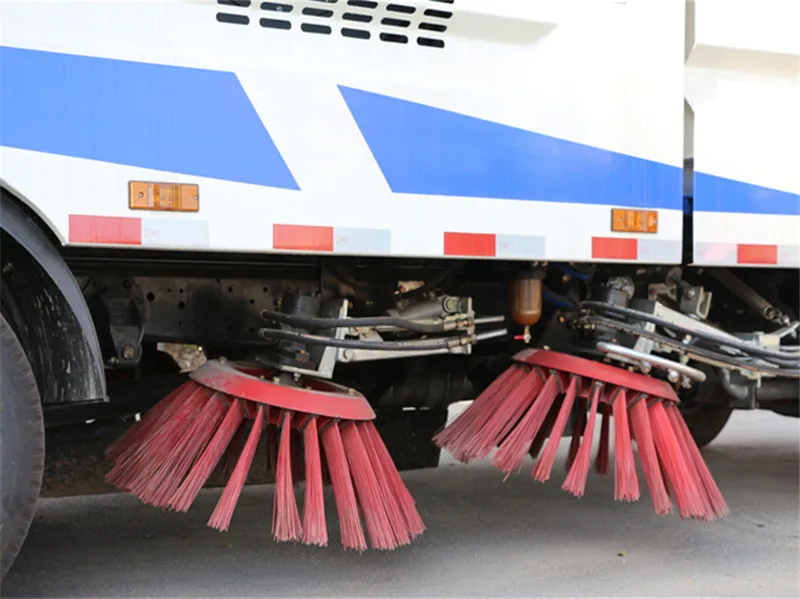

4. Equipment with ISUZU 57kw vice engine; Maintenance-free automatic clutch; high quality fan without maintenance; with electromagnetic valve group; with abrasion proof hydraulic oil cylinder and electric control switch; left & right front sweep and chuck dust spray pressure system; front sweep with automatic collision avoidance function.
| Technical parameters | ||||
| The totalmass(kg) | 12490 | Curb Weight(kg) | 8495 | |
| Rated the quality | 3800 | Chassis Model | CA1120P62K1LE4Z | |
| of(kg) | ||||
| Approach / | 22/17 | Front overhang / | 1400/1700 | |
| departure angle(°) | rear overhang | |||
| Dimensions(mm) | 6800X2400X2900 | Compartment | ||
| dimension(mm) | ||||
| Number of axles | 2 | Maximum speed | 85 | |
| Tire | 8.25-20,8.25R20 | Number of tires | 6 | |
| Specifications | ||||
| Front track | 1800 | Rear track | 1800 | |
| Wheelbase | 4200 | Axle load | 4470/8020 | |
| Number of spring | 7/7+6 | Type of fuel | Diesel | |
| Emission Standards | EuroIII/EuroIV | |||
| Engine parameters | ||||
| Engine Model | BF4M2012-16E4 | Engine Manufacturer | Faw | |
| Engine | 4040 | Engine power | 121 | |
| Displacement | ||||
| Chassis | Faw 4x2 chassis, with left/right hand drive optional, flat cab with air conditioner. | |||
| Description | ||||
| Modified | 1. Container:water tanker and garbage box,volume:3-10CBM,material: stainless steel. | |||
| Description | 2. Equipped with vice engine. | |||
| 3. Equipped with two-way operation button and rinse function. | ||||
| Component | Basic composition:chassis,tanker,secondary engine,hydraulic operation system,spraying and pressuring dust system,sweeping brushes. | |||
| Purpose | Road sweep truck, as one of the sanitation equipment, is a new and high-efficiency equipment with the collection of road surface cleaning, garbage collection and transport. Cab be widely used in highway, municipal and airport road etc. | |||
| Product advantage | Best Quality with good price. | |||
Road
Sweeper
truck
structure
| 1,garbage sump size is high , In order to facilitate the rubbish easy, the water tank is arranged in the garbage box bottom, such that the maximum discharge angles up to 54degrees above, makes the garbage dumping more thoroughly. 2, The hydraulic valve group with well-known domestic brand leader, test pressure can reach35MPa,flow rate up to 300L/Min, can be of various industrial valves and hydraulic walking hydraulic valve dynamic, static and fatigue life of precision testing. 3, The auxiliary machine air filter intake system design , which can greatly improve the service life of the engine:Engine air intake quality will directly affect the service life of the engine, the engine inlet air filtration is not good,light can make the power of the engine is reduced,burning oil, heavy can make the engine cylinder liner and pistonscrapped, so my company in order to maximize the engine's intake quality,not only will the engine air intake to thetop of the box, is still the original air filter frontend increase an oil bath type filtering device, used to bond the gas flow in the fine dust, so that the engine air cleaner. 4, Hydraulic system filter using wellknown products, so that the hydraulic system to keep high cleanliness, uses the original hydraulic oil cooling technology, compared with similar products, the temperature dropped 10 degrees, prolongs the service life of hydraulic oil, hydraulic system with automatic overload protection device, fully guarantee the safe use of hydraulic system. 5,Cleaning brush made by quality hydraulic motor ,high working effect ,and long life |
Company Information
HuBei DaLi Special Automobile Co., LTD is a manufacting group located in SuiZhou City, HuBei Province,China. SuiZhou is near to wuhan, Xiangfan and Shiyan,with these citys, there is a Golden Car Manufacting hallway along the 318 highway. Among that, SuiZhou is famous as the capital of Chinese special automobile manufactory.
Our factory cooperates with famous chassis manufacturers, such as DONGFENG, FAW and etc. Our main business include producing special trucks and sell chassis, trucks and truck's spare parts. Our company has independent export potence, and has a mounts of clients overseas. Our leading productions include more than 300 types of trucks such as water truck, Fecal suction truck, Sewage suction truck, Garbage truck, Road sweeper, Fuel tank truck, High-altitude operation truck, Truck with Crane, Dump truck, Trainer truck, Semi-Trailer, fire fighting truck, van truck, Prime mover, chemical liquid truck, bulk cement truck, concrete mixer truck ,wrecker truck ,Pressure vessel, etc .Our company has solid technology ,flawless inspection, advanced equipments, reliant quality and flexible modes of operation .What's more, it has roundly passed the certification of ISO 9001-2008,the 3C(China Compulsory Certification)and other certifications that export needed.
We promise that all the products sold by us can get "three guarantees" for one year and enjoy maintenance and free technolog service for life. After service can be dealt within 48 hours.
