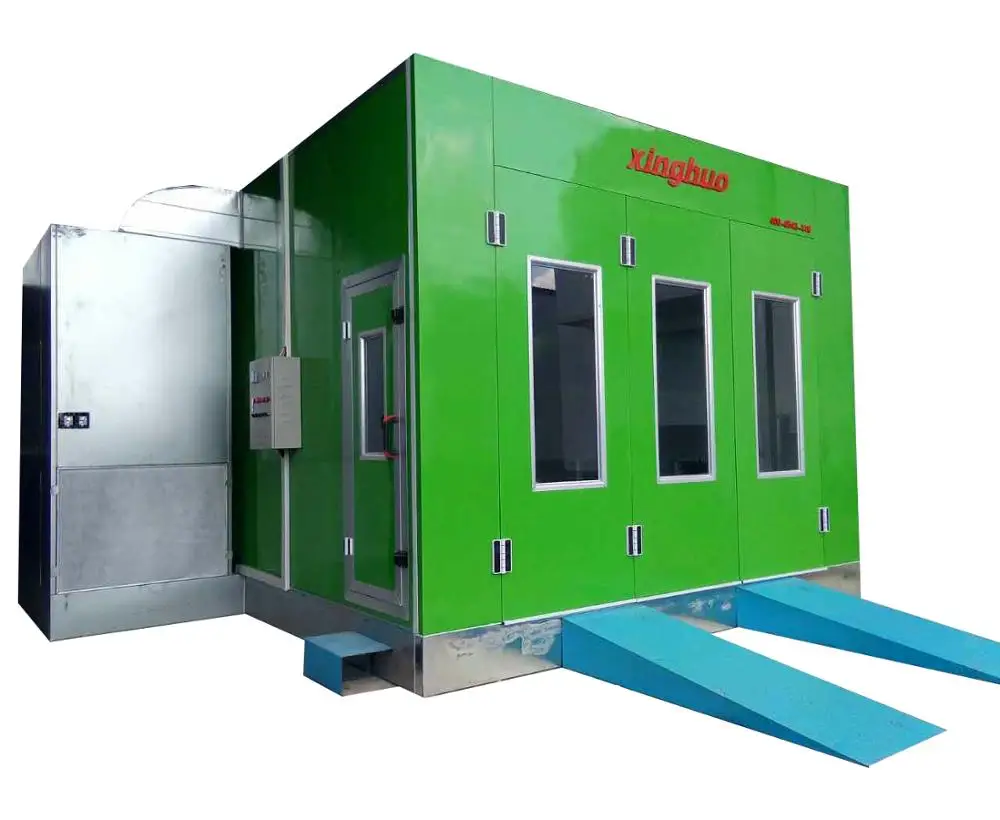

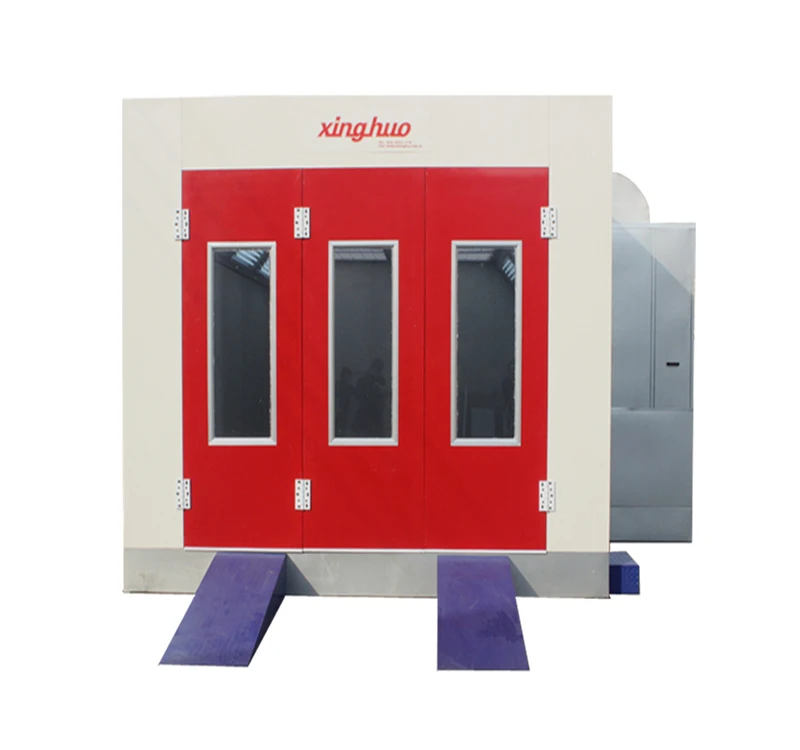

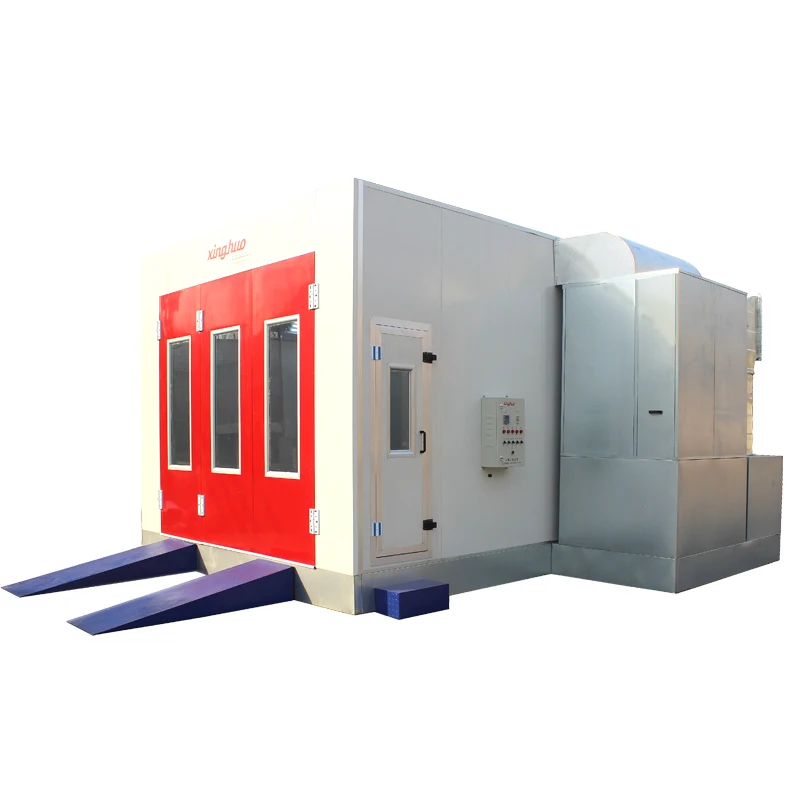

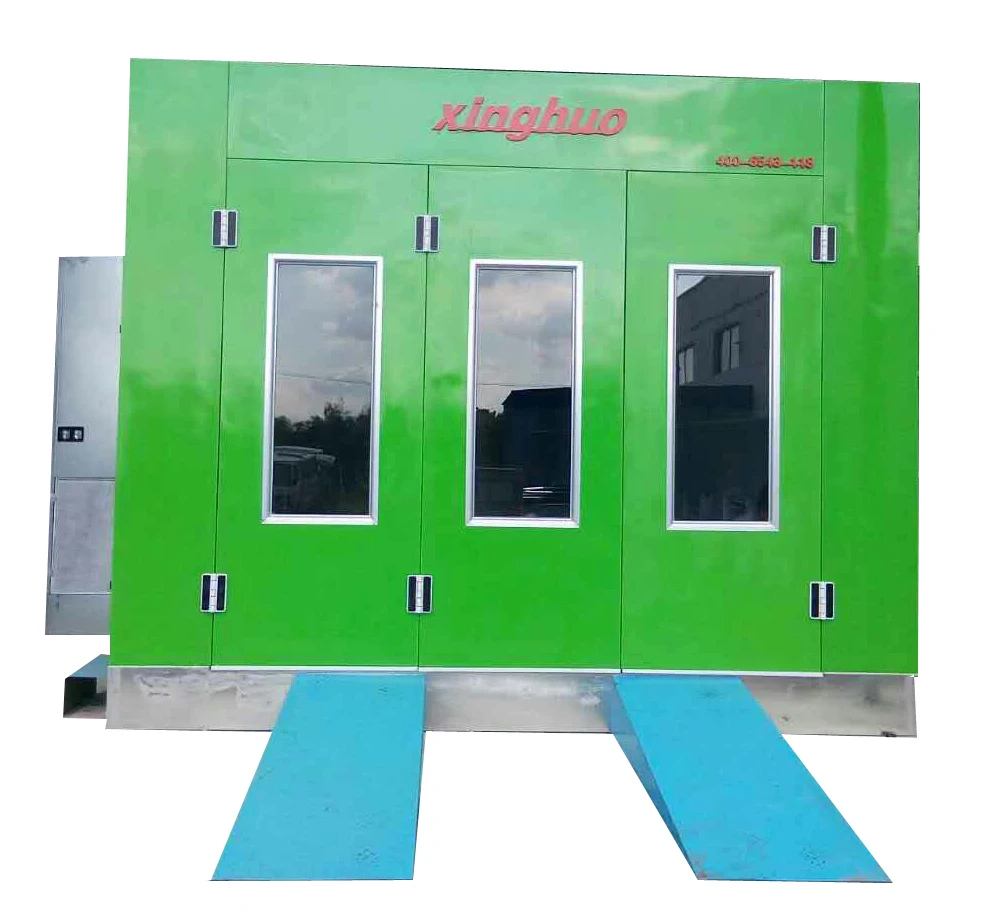

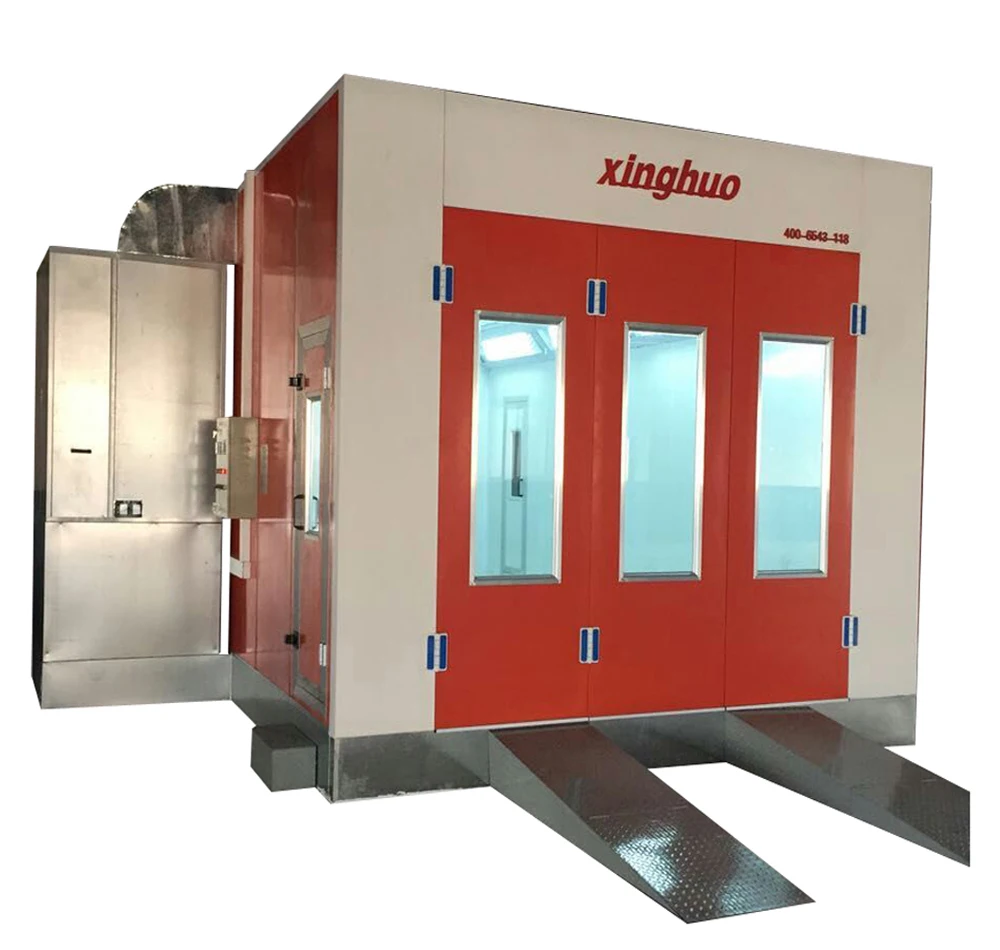

Hot sale CE approved used auto paint booths/paint drying oven/cars rooms painting

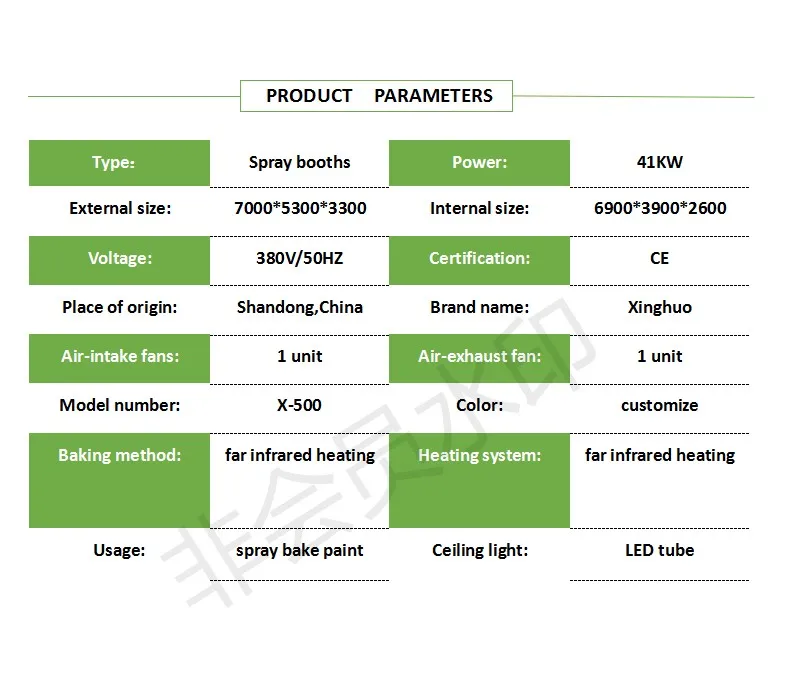

 Total power 41kw; 380v/50hz

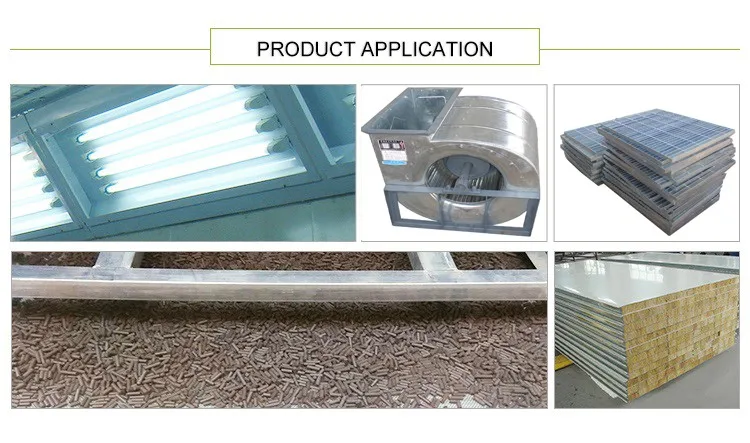

1.Walls & Ceiling

- High-quality high-temperature resistant fireproof basalt rock wool board, plate thickness 50mm, double-sided 0.4/0.4mm steel plate, rock wool density 120kg/m³

- High-quality galvanized sheet bending and fastening

2.Basement system

- The surrounding is made of high-quality galvanized sheet.

- The load-bearing bracket is 1.8mm galvanized sheet with convex steel structure welded

- Steel grilles(30*4mm flat iron and 8 #threaded steel welding)*2rows

- Non-slip boards(painted by the tread plate)*3rows

3.Heating system

- Use far infrared heating

- The far-infrared electric heating pipes are fixed on both sides of the barn and at the rear

- Far infrared electric heater total power: 30KW, divided into 3 channels.

4.Filter system

- Domestic cotton primary filtration, top filter cotton fine filtration, filtration rate 98 %

- Use high-quality galvanized sheet welded frame to make cotton mop

- Filter cotton in-line design to prevent hair loss

- Design six cotton mops, easy to replace, enhance the overall strength

5.Air system

- The fan is selected from Yancheng YDW type fan in Jiangsu

- Air-intake fans*2units,centrifugal fans with 3kw motor each

- Air-exhaust fan*1unit,centrifugal fans with 4kw motor

6.Illumination

- The light box is made of galvanized sheet by bending,welding and spraying production

- 32 sets of LED tubes with an illumination of ≥800 lux

7.Control panel

- With temperature time setting, normal temperature painting, paint switch, lighting switch, emergency stop switch, fault alarm,etc
