Реки тяжелой шестиугольной сетки gabion машина
- Category: Other Metal & Metallurgy Machinery >>>
- Supplier: Wuxi Changan Machine Factory
Share on (60851851219):
Product Overview
Description
Product Description

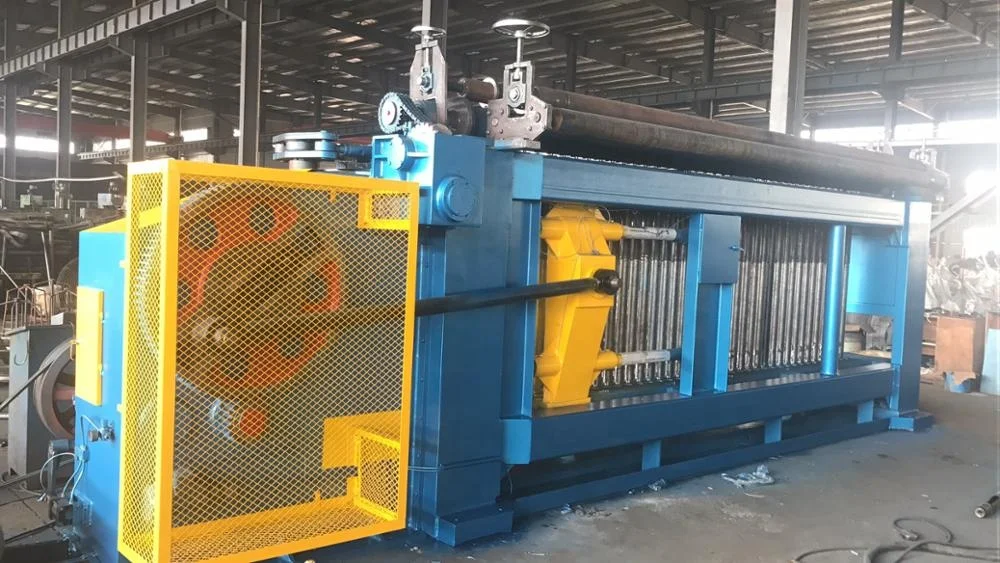

Gabion machine is also called heavy duty hexagonal wire mesh machine or gabion box machine, which is to produce the hexagonal wire mesh for reinforcement stone box use to protect and support the seawall,hillsides,road and bridge,reservoirs and other civil engineering.
Product specification(mm) | Max mesh width(mm) | Max wire diameter(mm) | Motor (kw) | Weaving speed(m/hour) | dimension(mm) | Weight(t) |
| 60*80 | 3500 | 4 | 15 | 165 | 6200*1400*2400 | 14.5 |
| 4500 | 4 | 18 | 7200*1400*2400 | 15 | ||
| 5500 | 4 | 30 | 8200*1400*2400 | 15.5 | ||
| 80*100 | 3500 | 4 | 15 | 200 | 6200*1400*2400 | 14.5 |
| 4500 | 4 | 18 | 7200*1400*2400 | 15 | ||
| 5500 | 4 | 30 | 8200*1400*2400 | 15.5 | ||
| 100*120 | 3500 | 4 | 15 | 220 | 6200*1400*2400 | 14.5 |
| 4500 | 4 | 18 | 7200*1400*2400 | 15 | ||
| 5500 | 4 | 30 | 8200*1400*2400 | 15.5 | ||
| 120*150 | 3500 | 4 | 15 | 230 | 6200*1400*2400 | 14.5 |
| 4500 | 4 | 18 | 7200*1400*2400 | 15 | ||
| 5500 | 4 | 30 | 8200*1400*2400 | 15.5 |
FAQ
Q: what's the delivery time of gabion mesh machine ?
A: 30 days after we received the deposit.
Q: Could we install the machine by ourselves?
A: yes, if u can. if u have any problem, u could ask us.or we can arrange our engineer install the machine in ur factory
Q: Could u make different voltage of this machine ?
A: we could make one type of voltage which is suited to ur country
Q: Are you a manufacturer in China?
A: Yes,we are a manufacturer for producing wire mesh machine with more than 15 years experience.
